Lighting Control Module (LCM)

PINPOINT TEST D: NO COMMUNICATION WITH THE LIGHTING CONTROL MODULE (LCM)


Test D1:

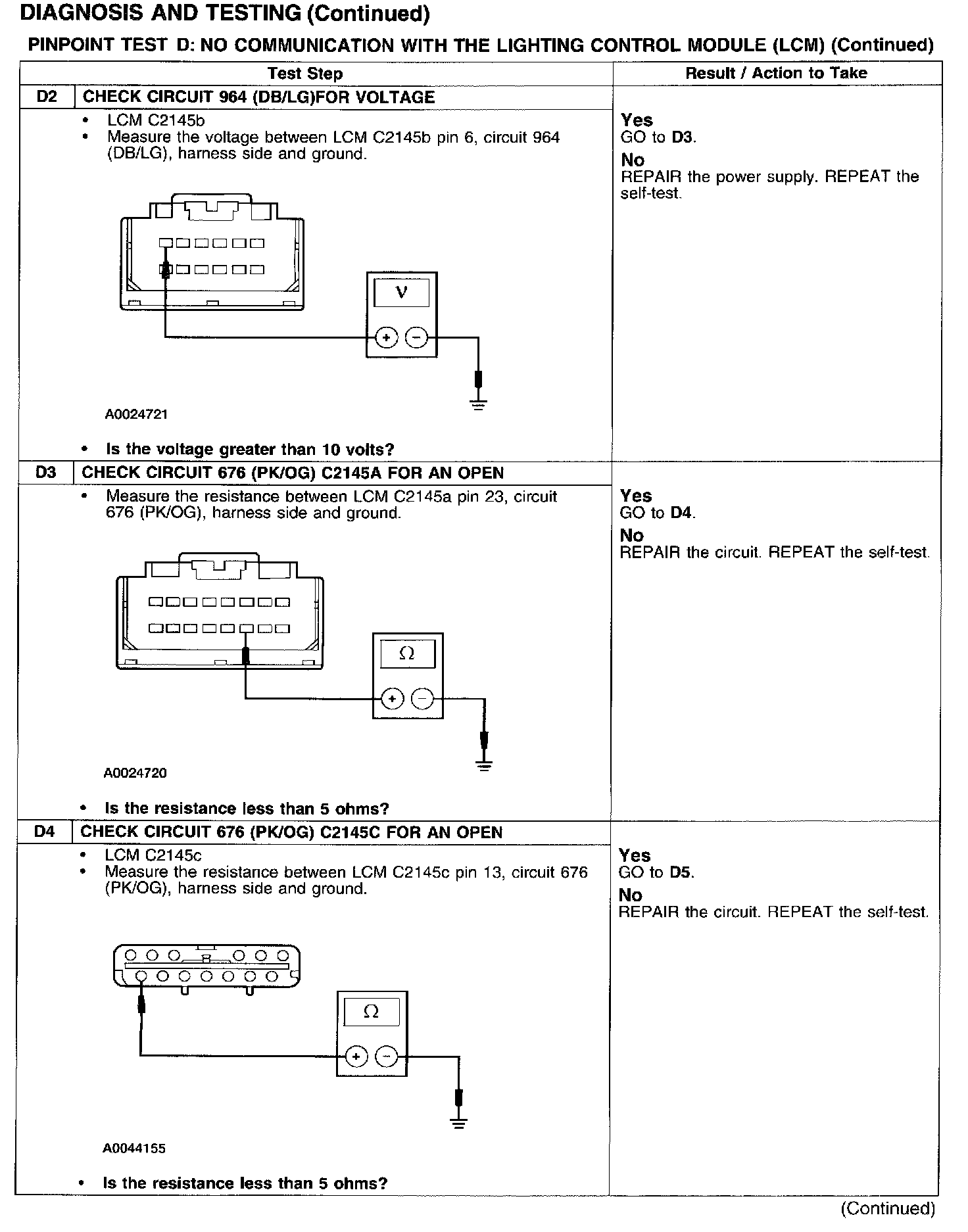

Test D2-D4:

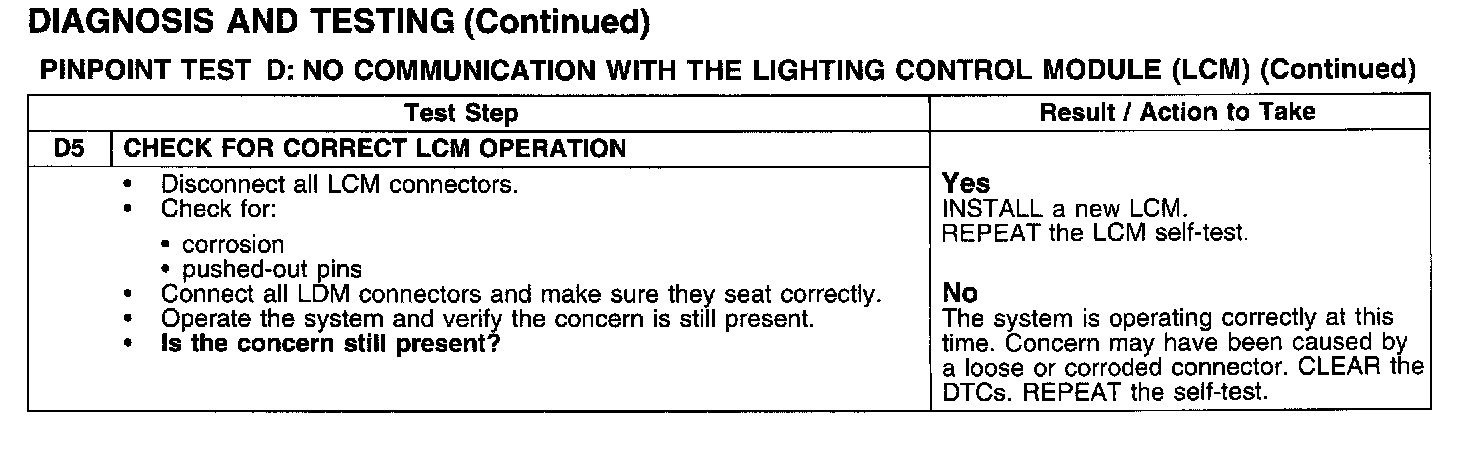

Test D5:
