Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2003
>>
Town Car V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
System Diagram
>>

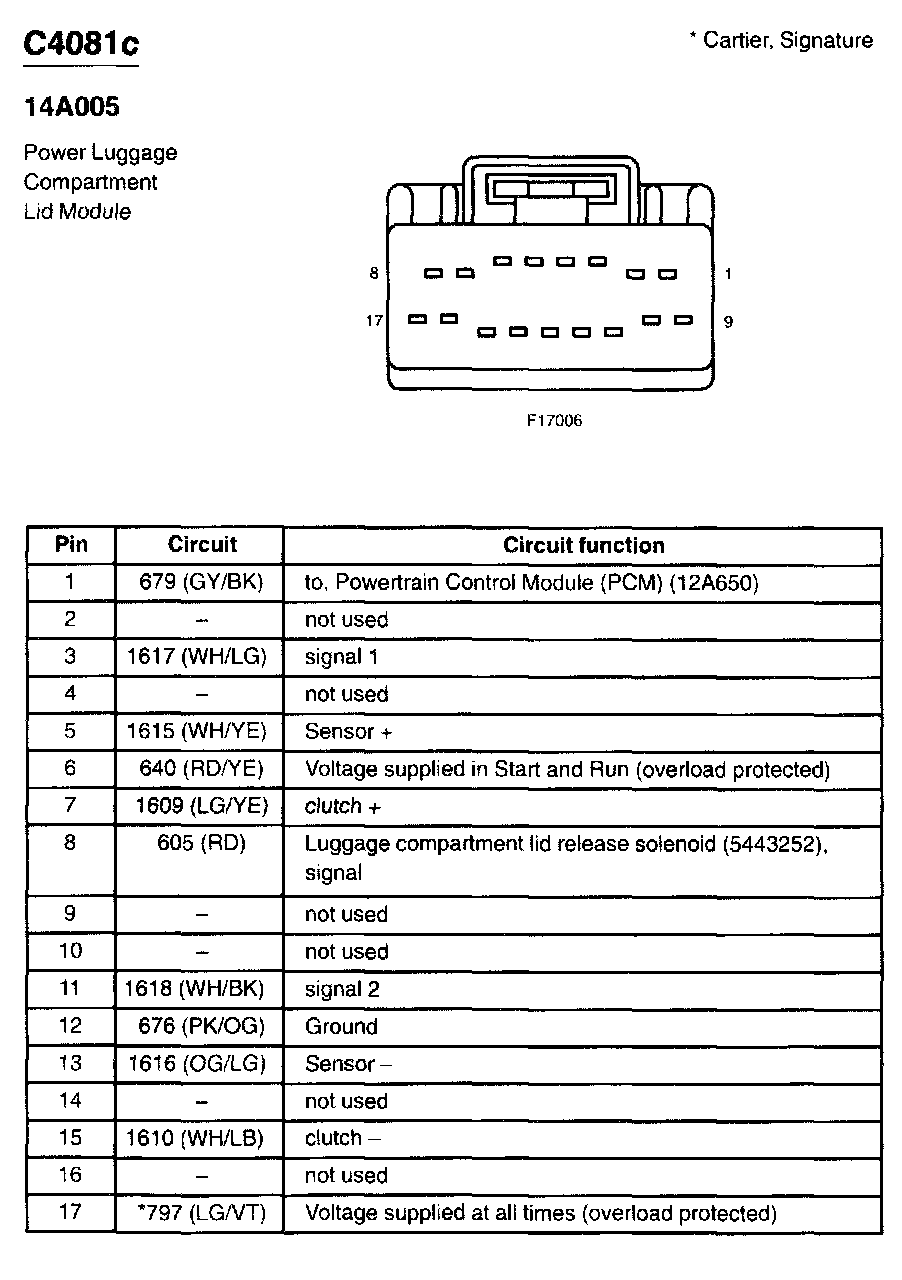

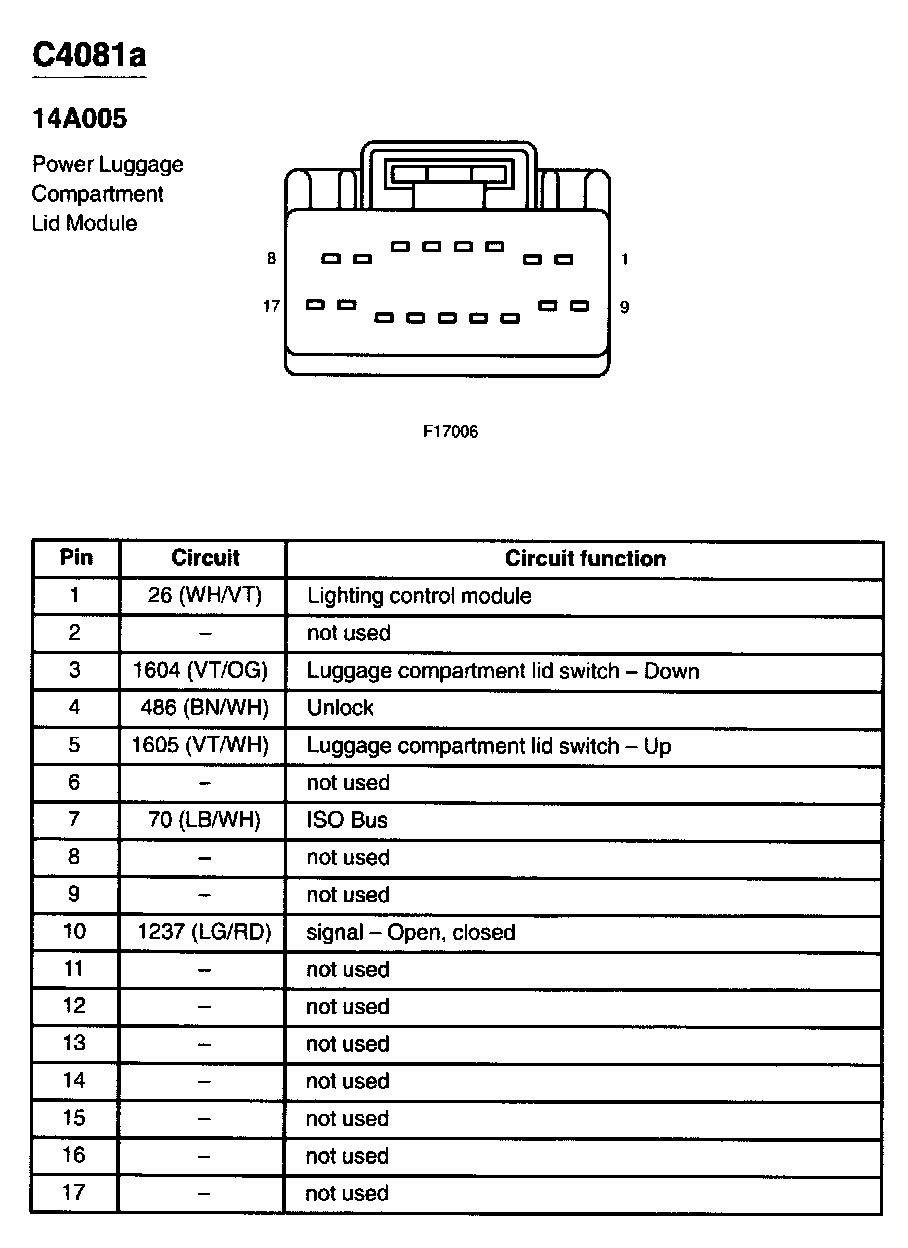

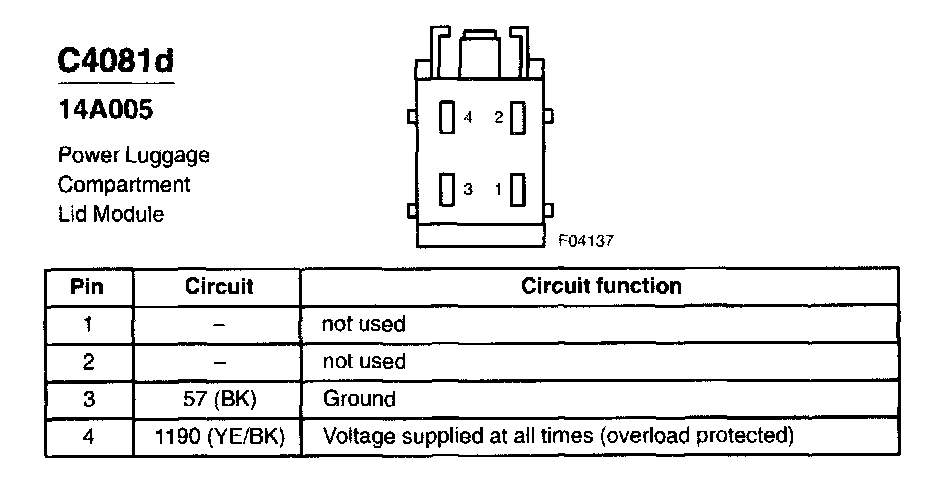

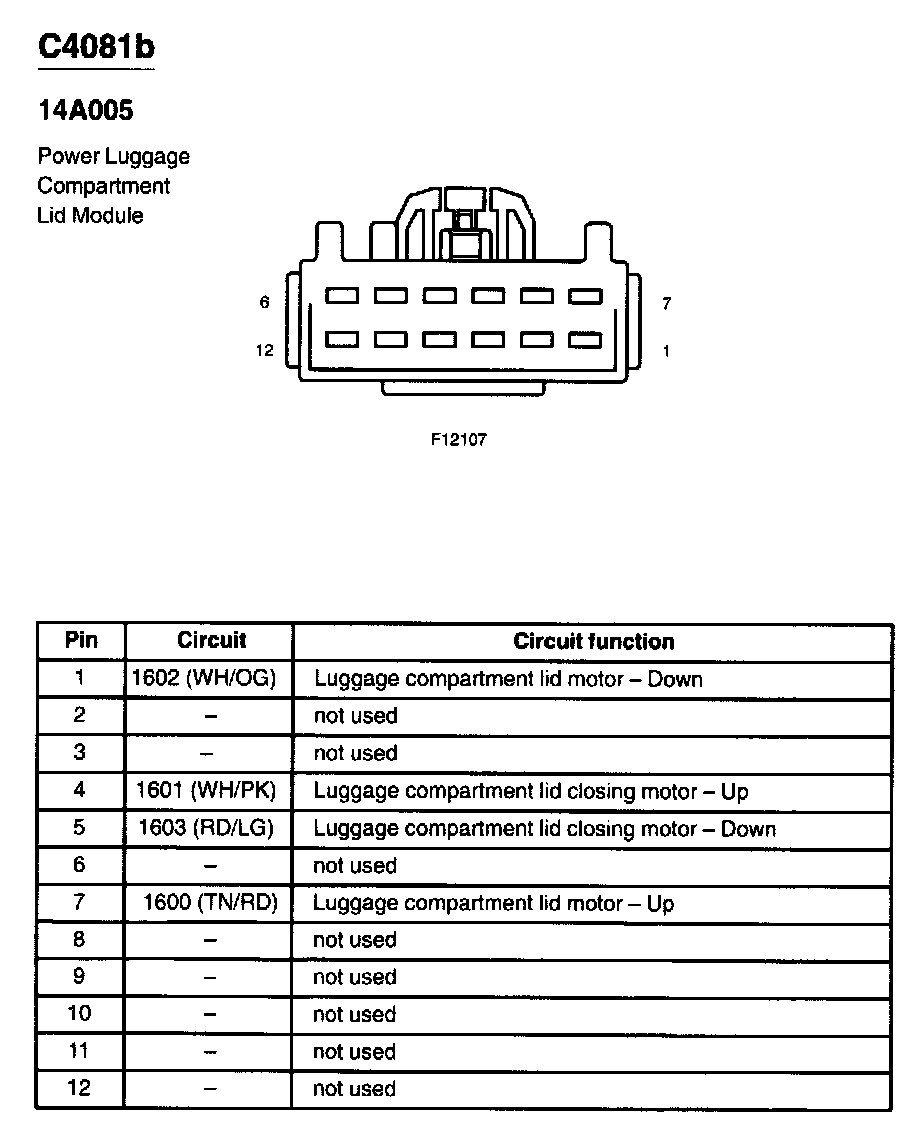

Power Luggage Compartment Lid Module
Power Luggage Compartment Lid Module
