Test A
Test A
PINPOINT TEST A: THE ANTI-LOCK BRAKE CONTROL (ABS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

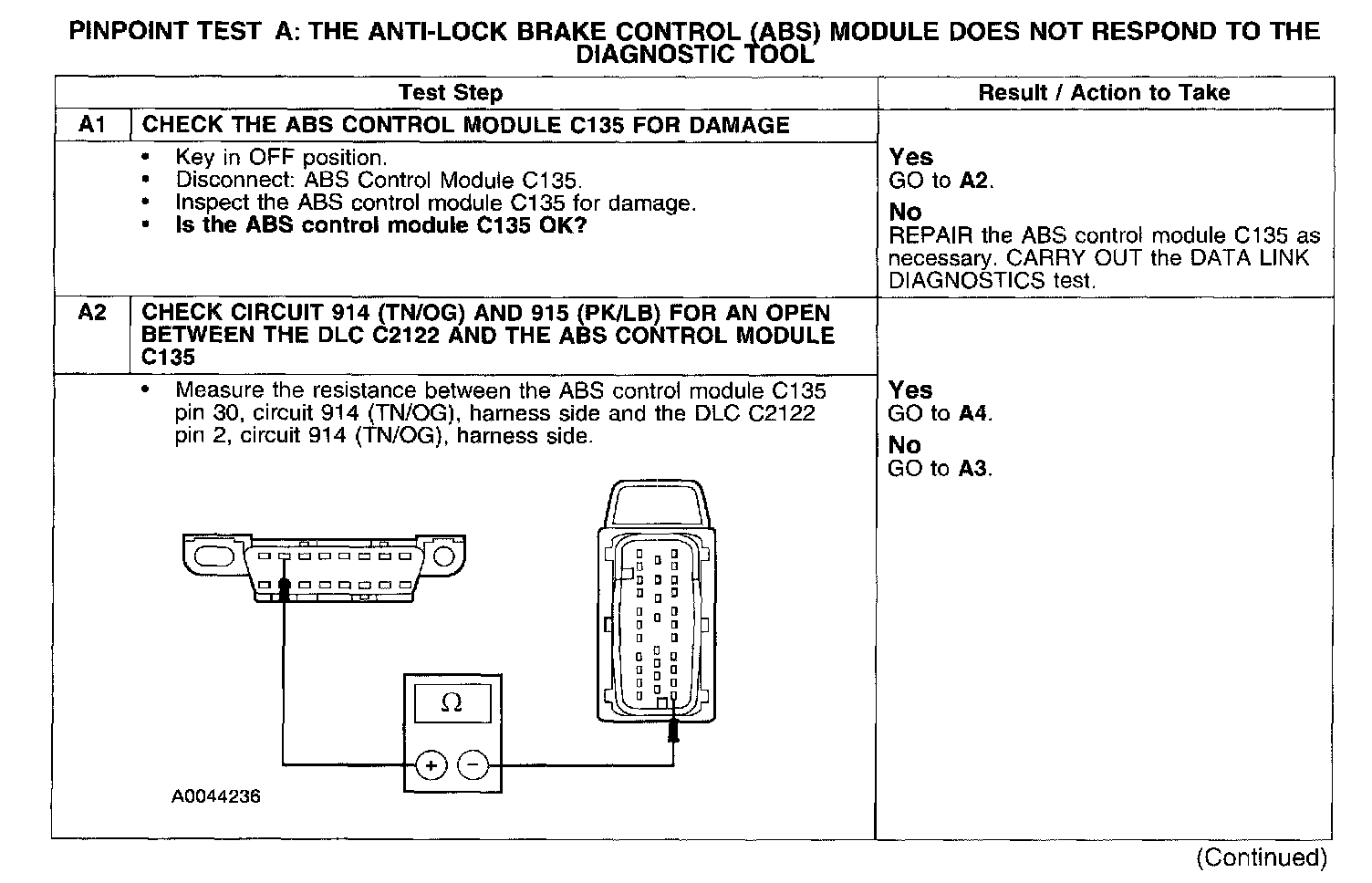

Test A1-A2:

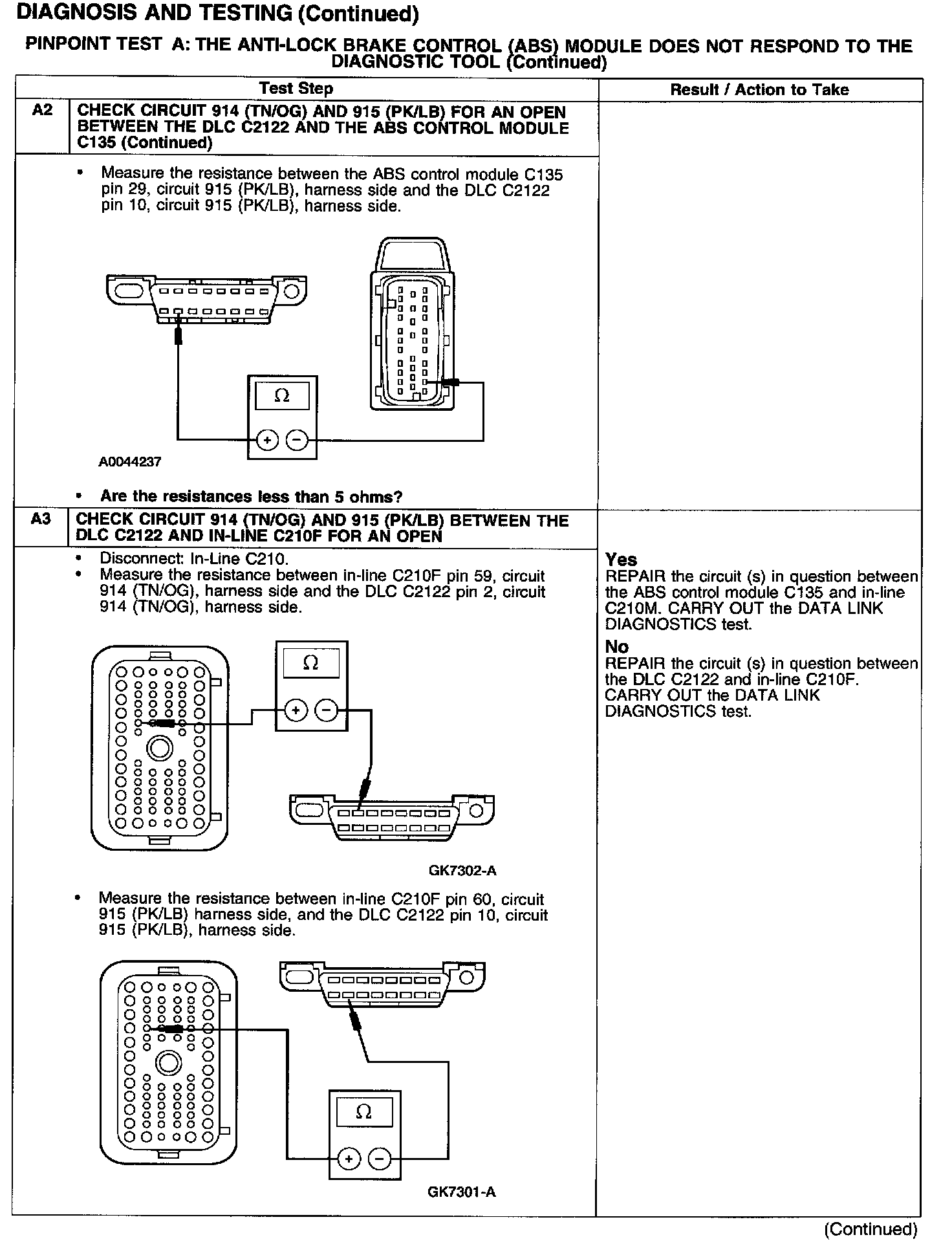

Test A2-A3:

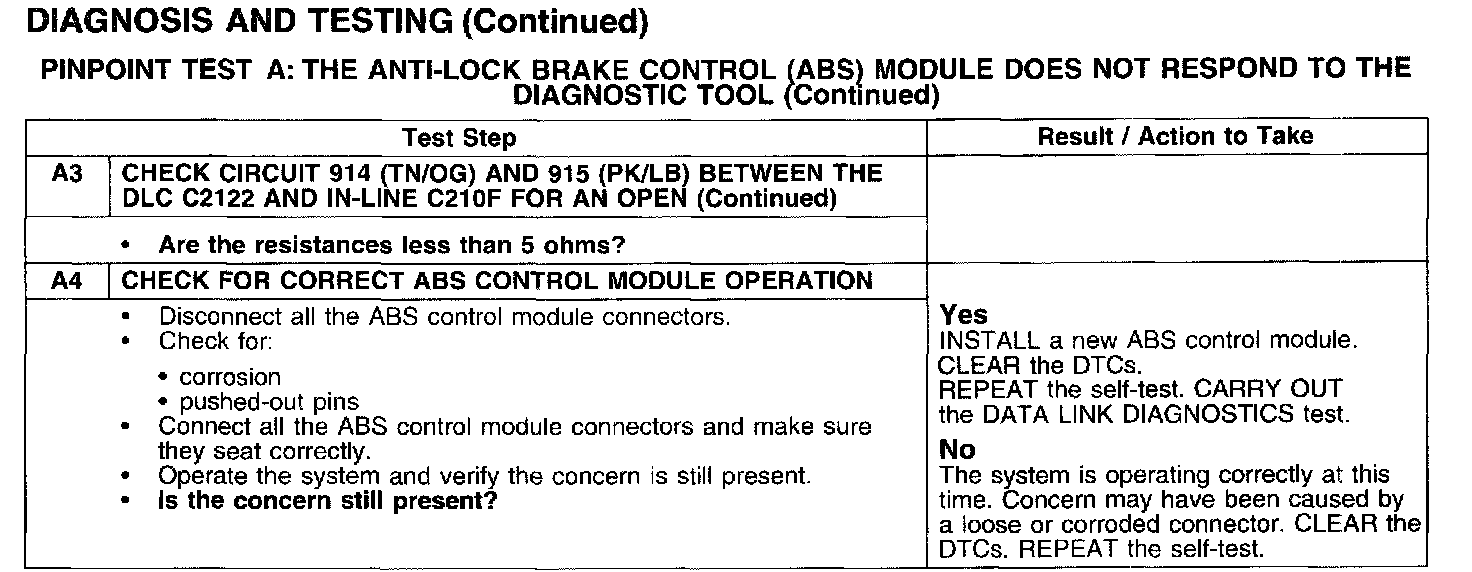

Test A3-A4:
