Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2003
>>
Town Car V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D
Test D
PINPOINT TEST D: THE DRIVER SEAT MODULE (DSM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

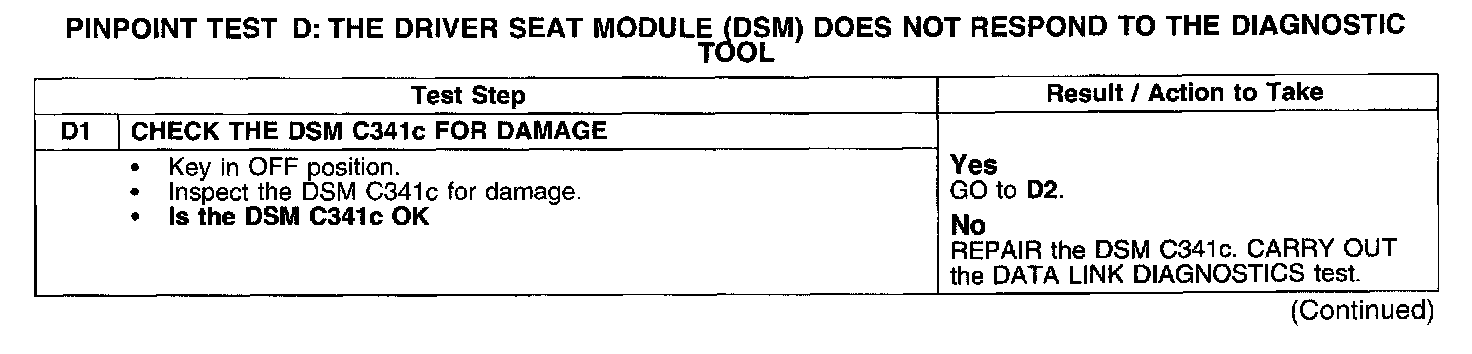

Test D1:

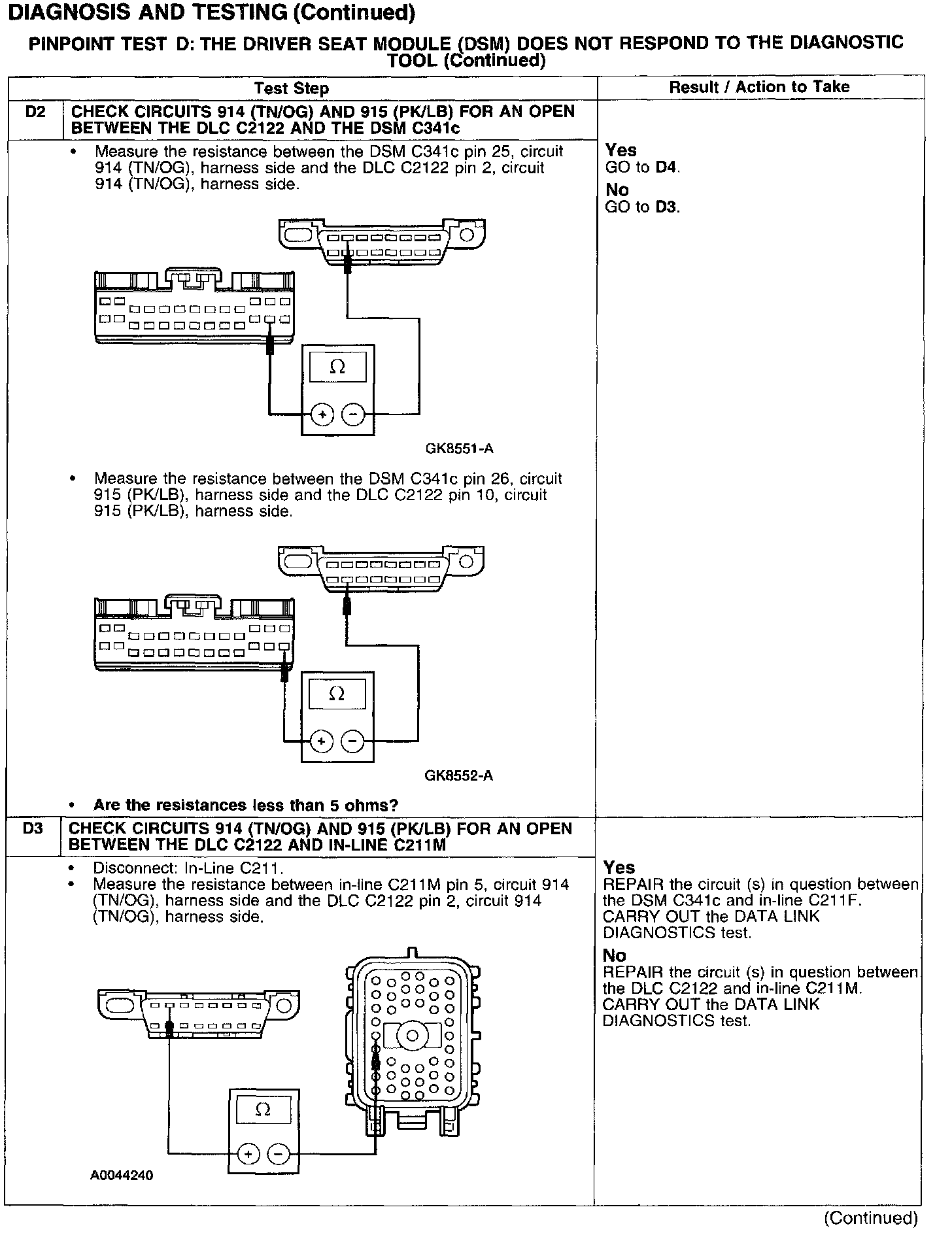

Test D2-D3:
Test D3-D4:
