Test H
Test H
PINPOINT TEST H: THE NEXT GENERATION SPEED CONTROL (NGSC) SERVO DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

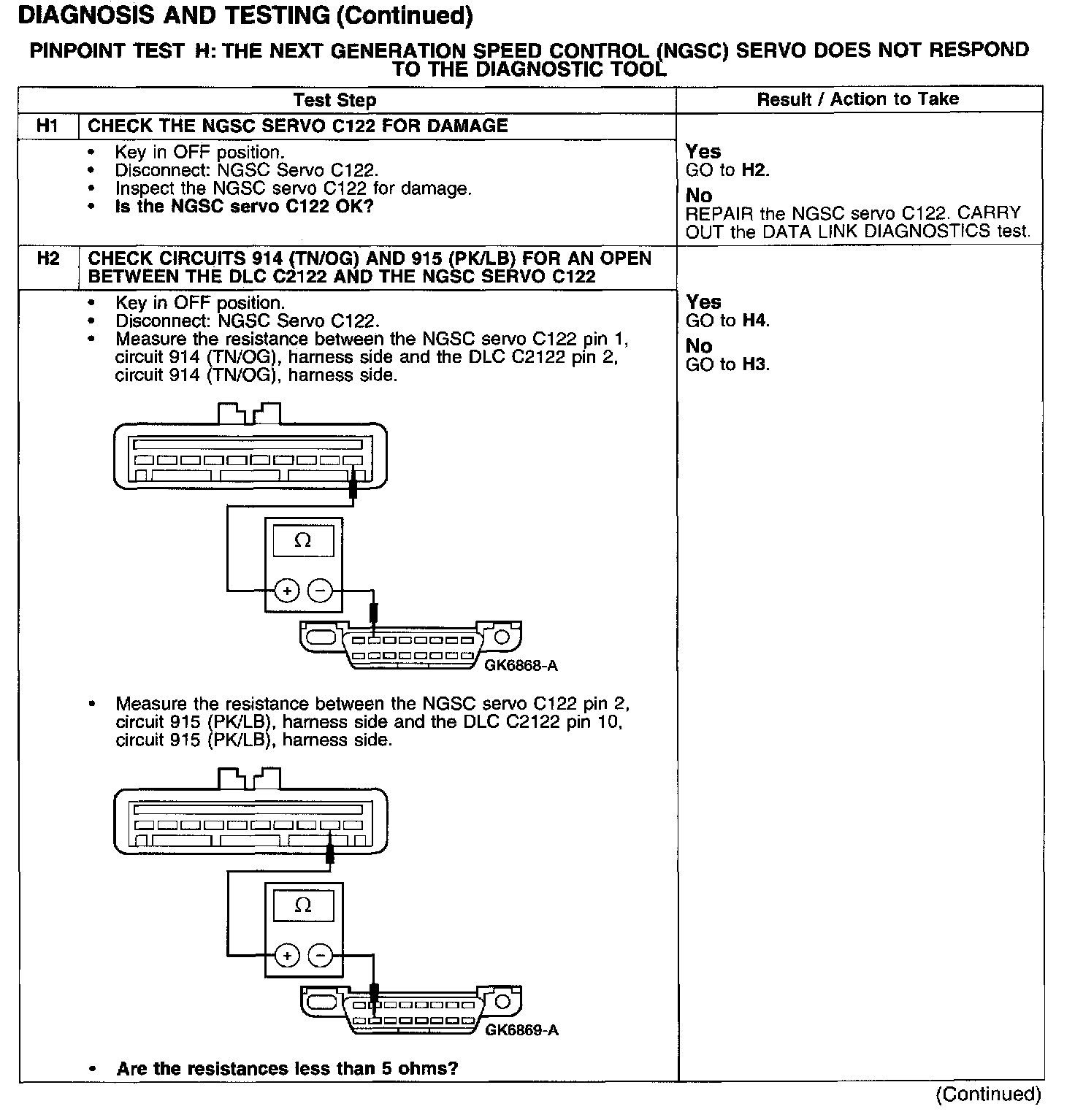

Test H1-H2:

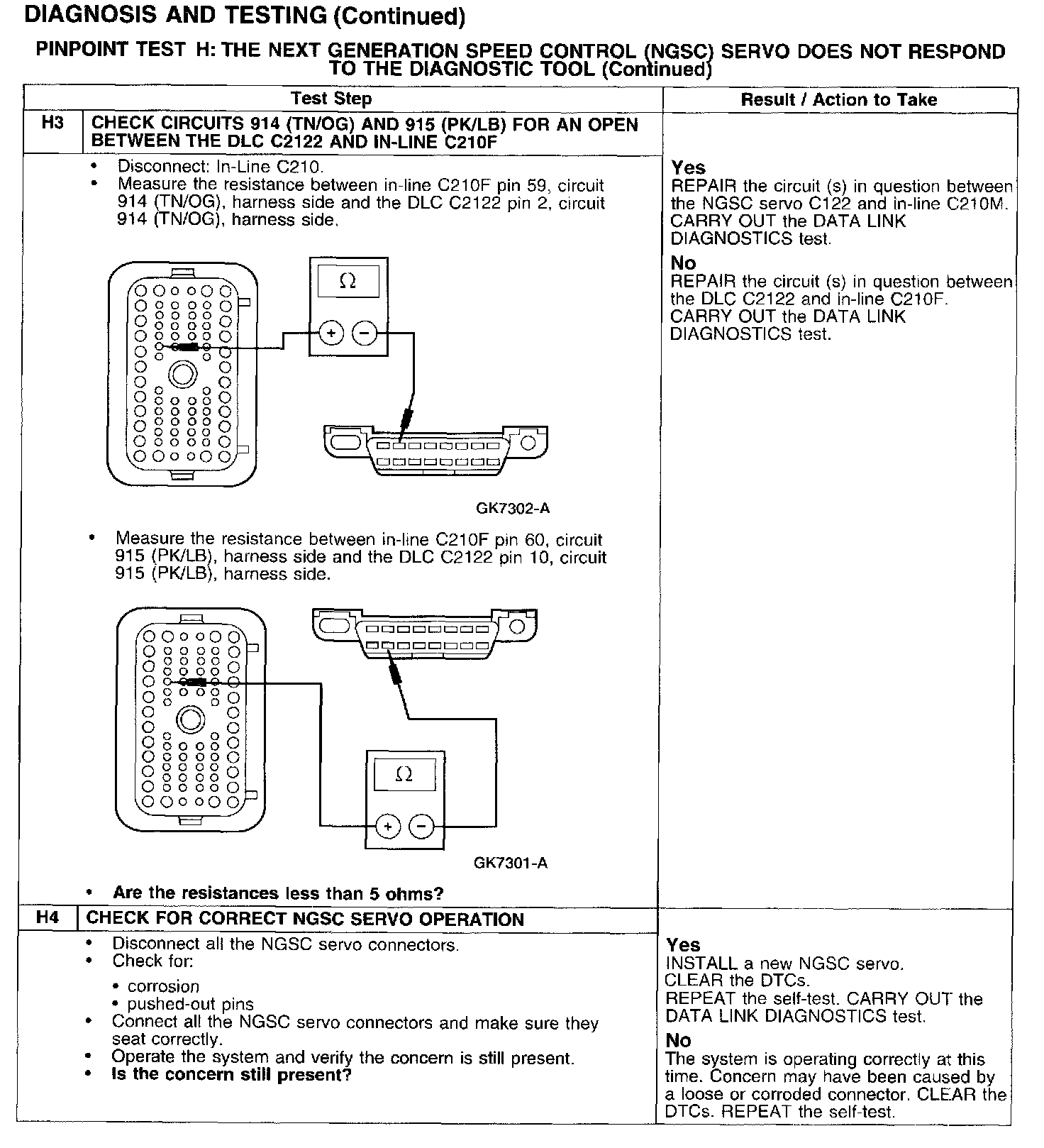

Test H3-H4:
