PINPOINT TEST I: THE TELEMATICS CONTROL MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

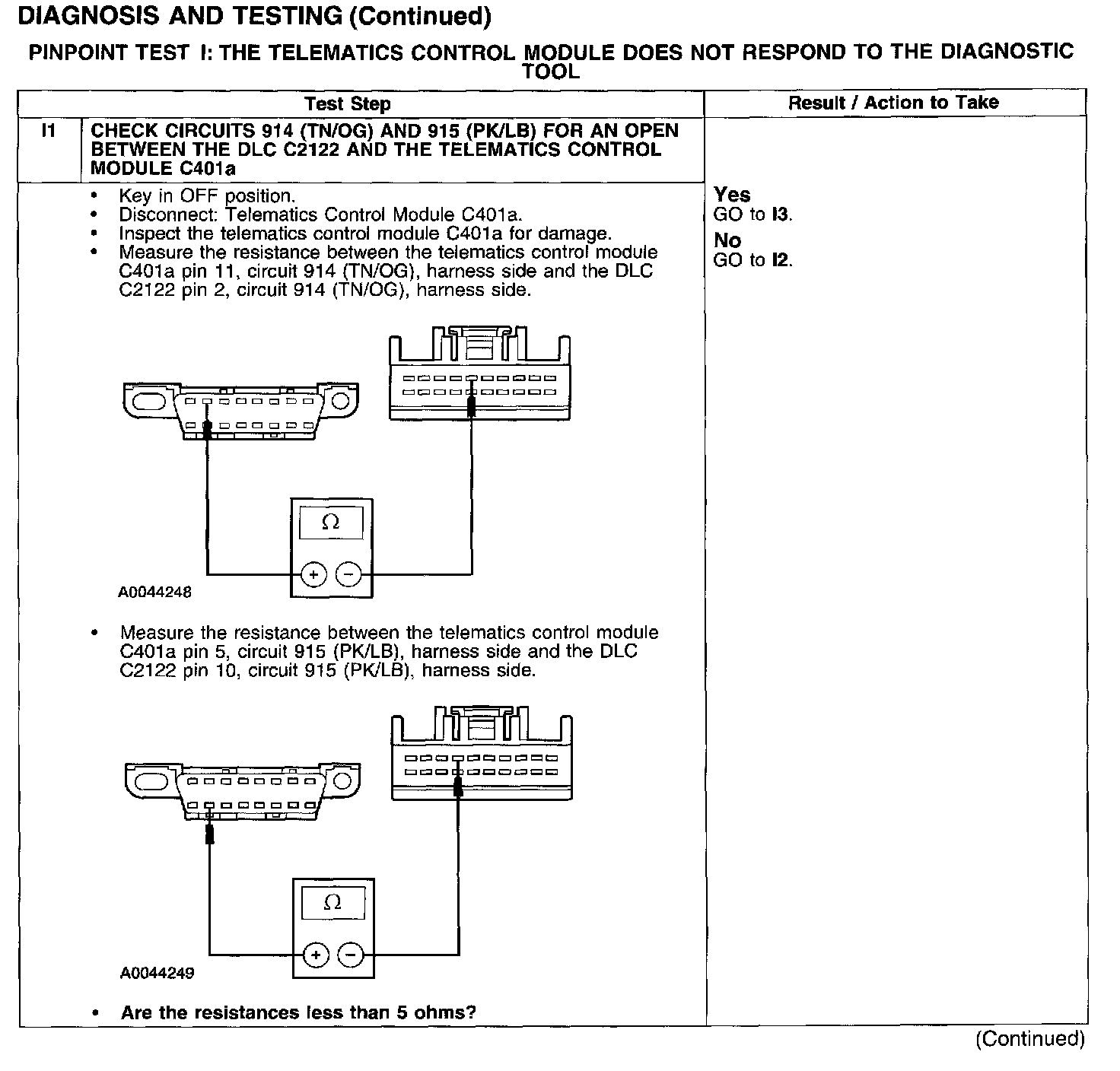

Test I1:

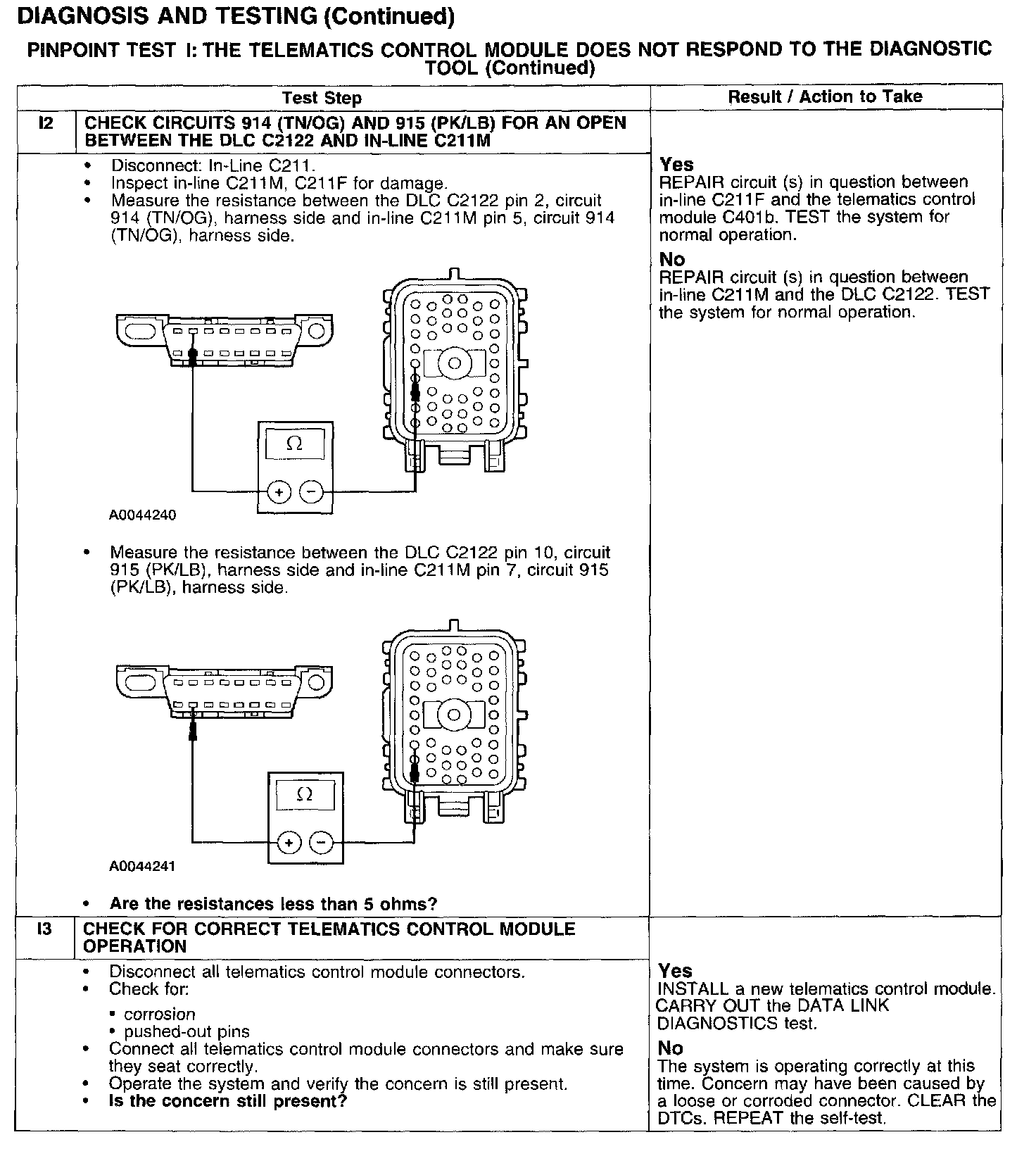

Test I2-I3:
