Antilock Brake System (ABS) Connector C155

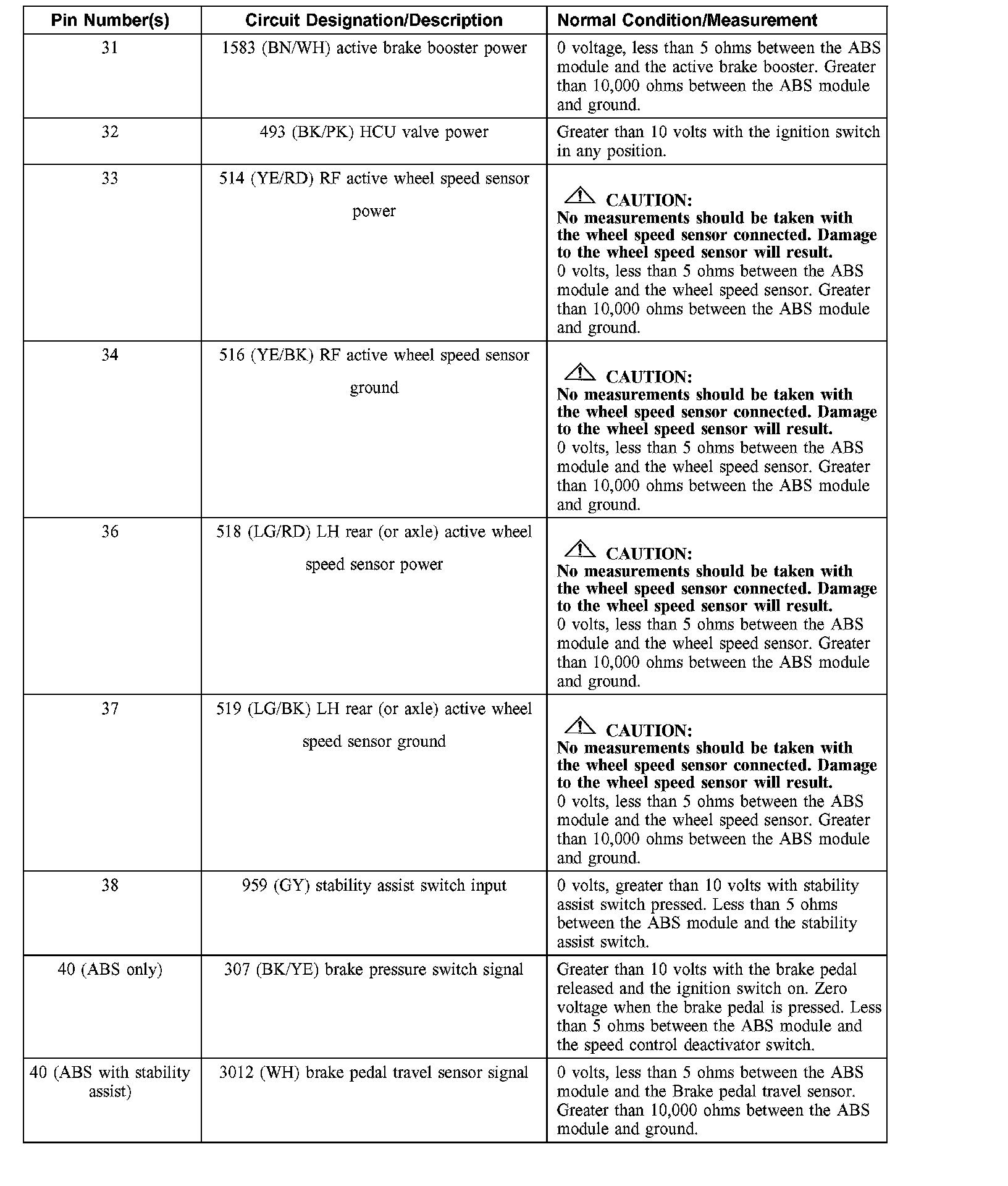

Part 1 Of 4:

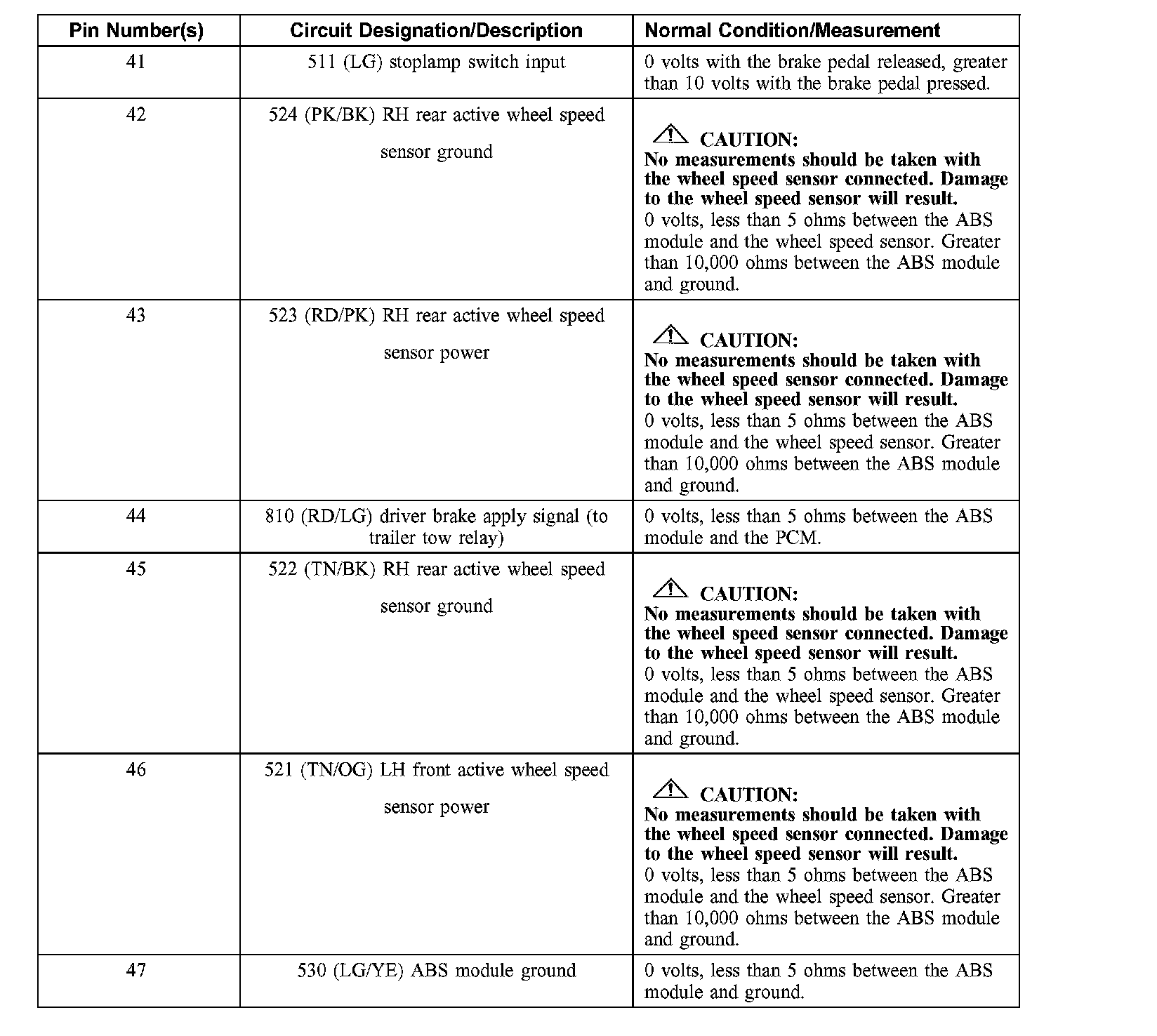

Part 2 Of 4:



Part 3 Of 4:



Part 4 Of 4:
