Test F: Message Center Displays "Check Tire Pressure" Or "Tire Very Low" And/Or The TPMS Light On Continuously

Pinpoint Test F: Message center displays "Check Tire Pressure" or "Tire Very Low" and/or the TPMS light on continuously
Refer to Wiring Diagram schematic and connector information.

Normal Operation
If there is a fault in the TPMS, the message center receives information from the TPMS module. Faults such as low tire pressures, damaged or nonfunctional tire pressure sensors and TPMS module DTC's are sent to the message center.

Possible Causes
- Low tire pressure(s)
- Tire pressure sensor(s)
- TPMS module DTC(s)

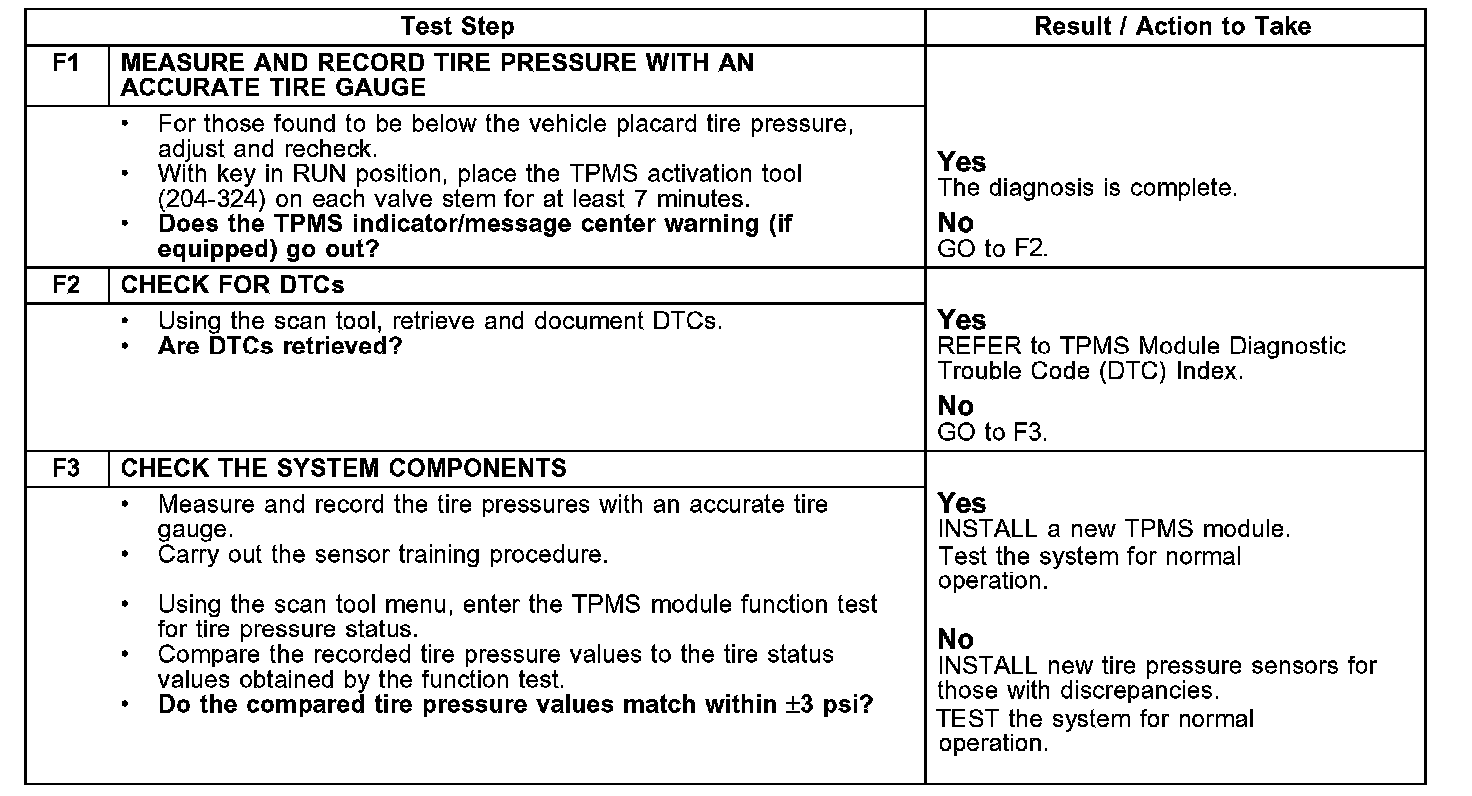

Test Steps F1-F3:

PINPOINT TEST F: MESSAGE CENTER DISPLAYS "CHECK TIRE PRESSURE" OR "TIRE VERY LOW" AND/OR THE TPMS LIGHT ON CONTINUOUSLY

NOTE: If a warranty case is opened for an actual TPMS fault, document and include the actual tire pressure data in all warranty communications.
