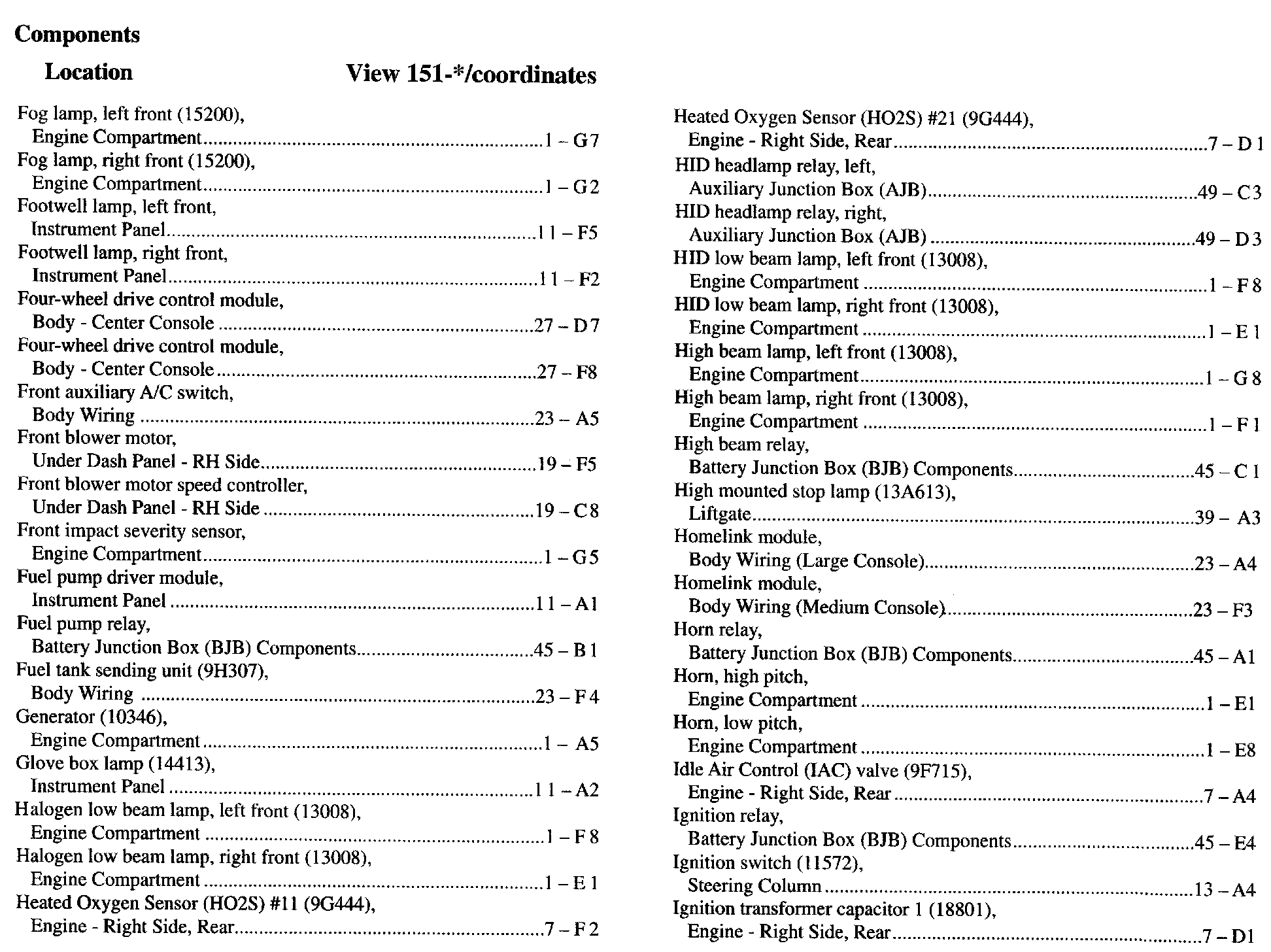

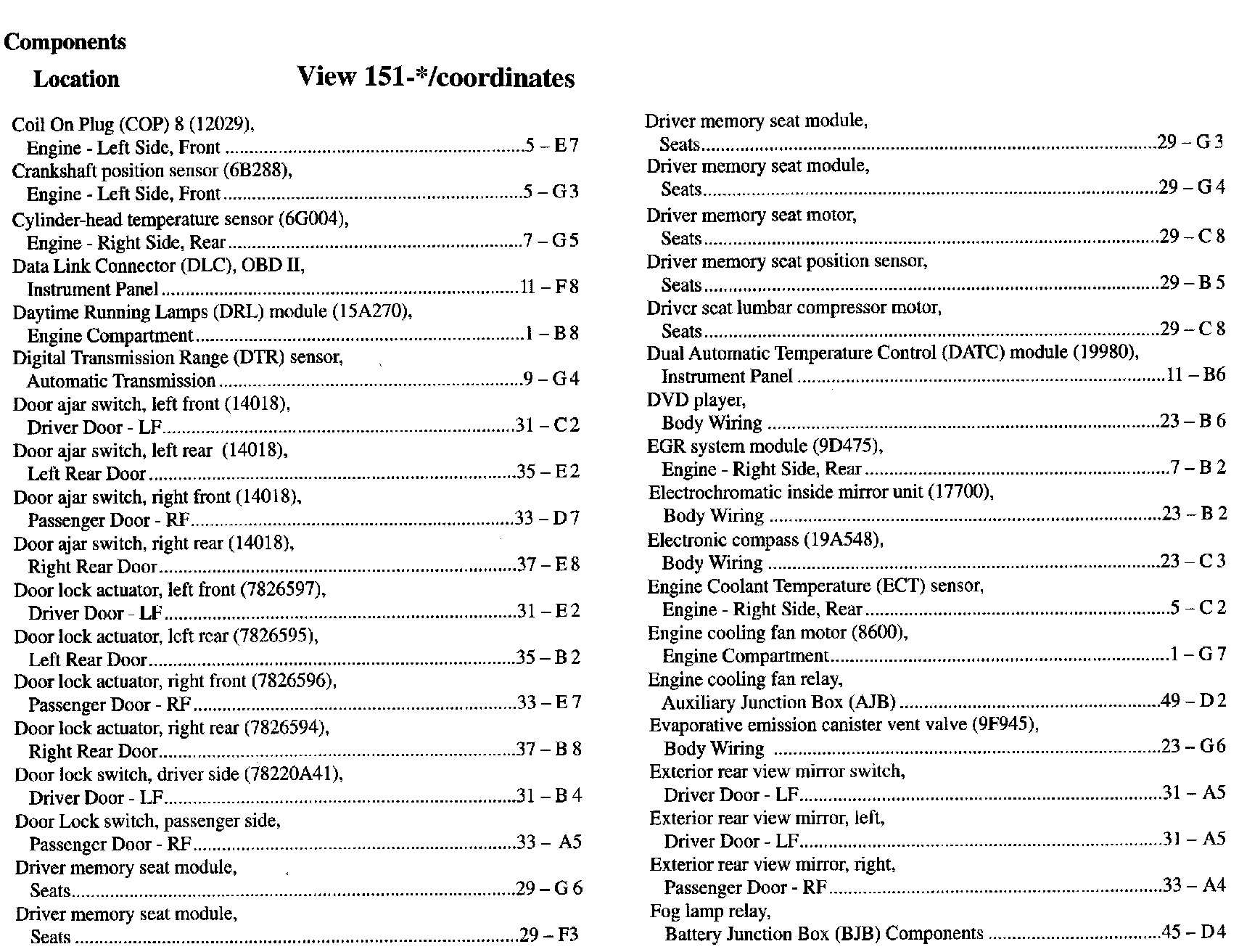

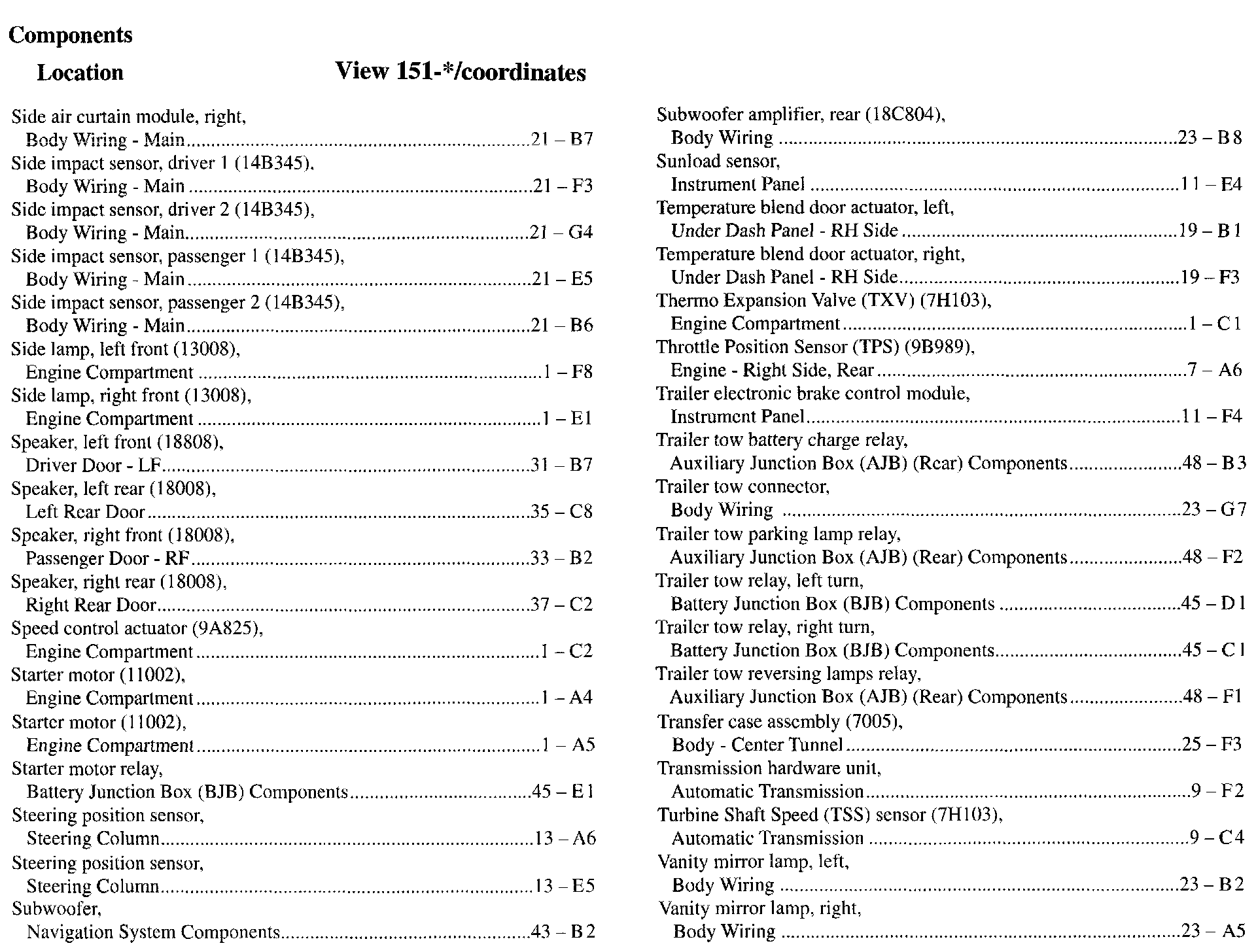

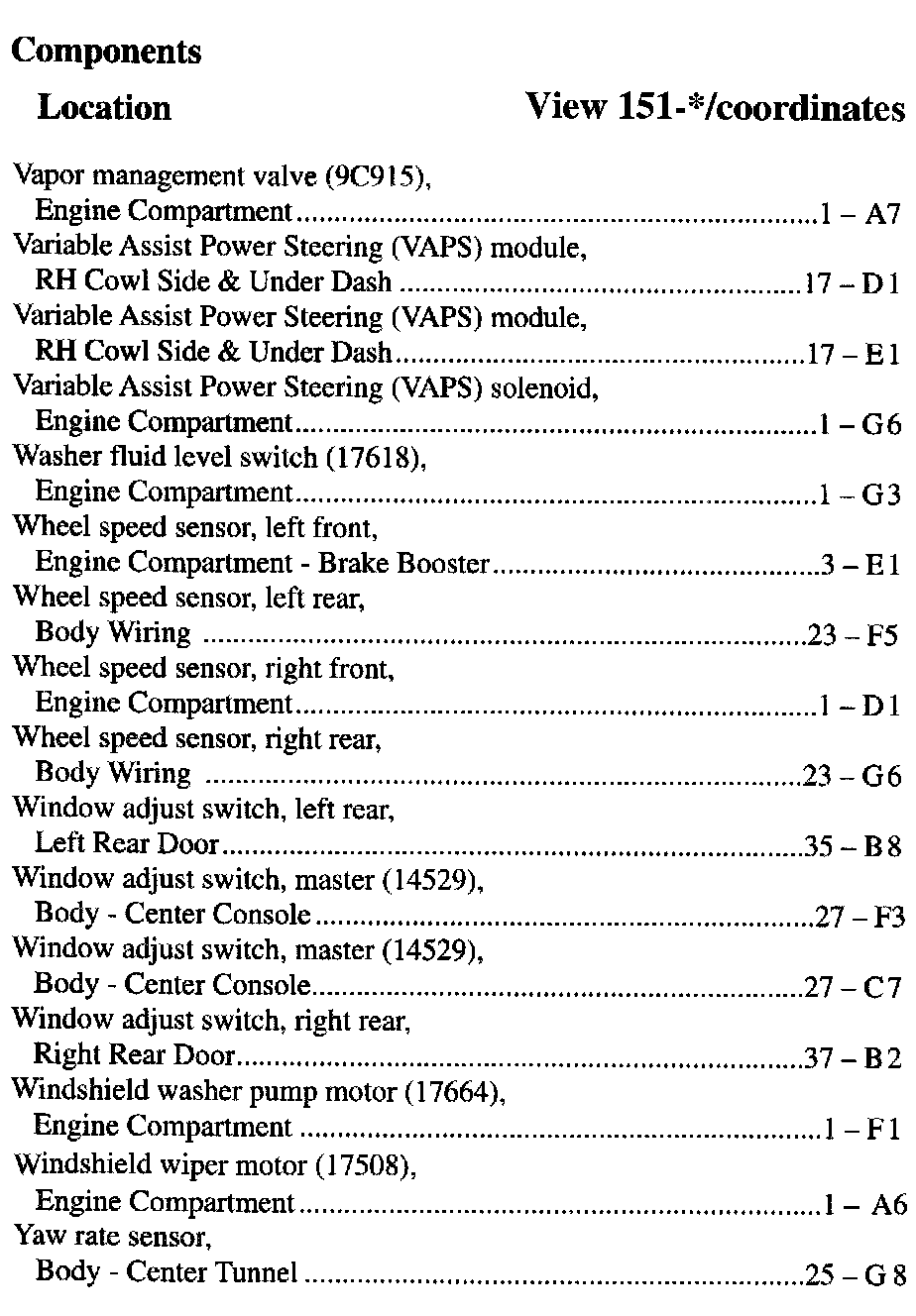

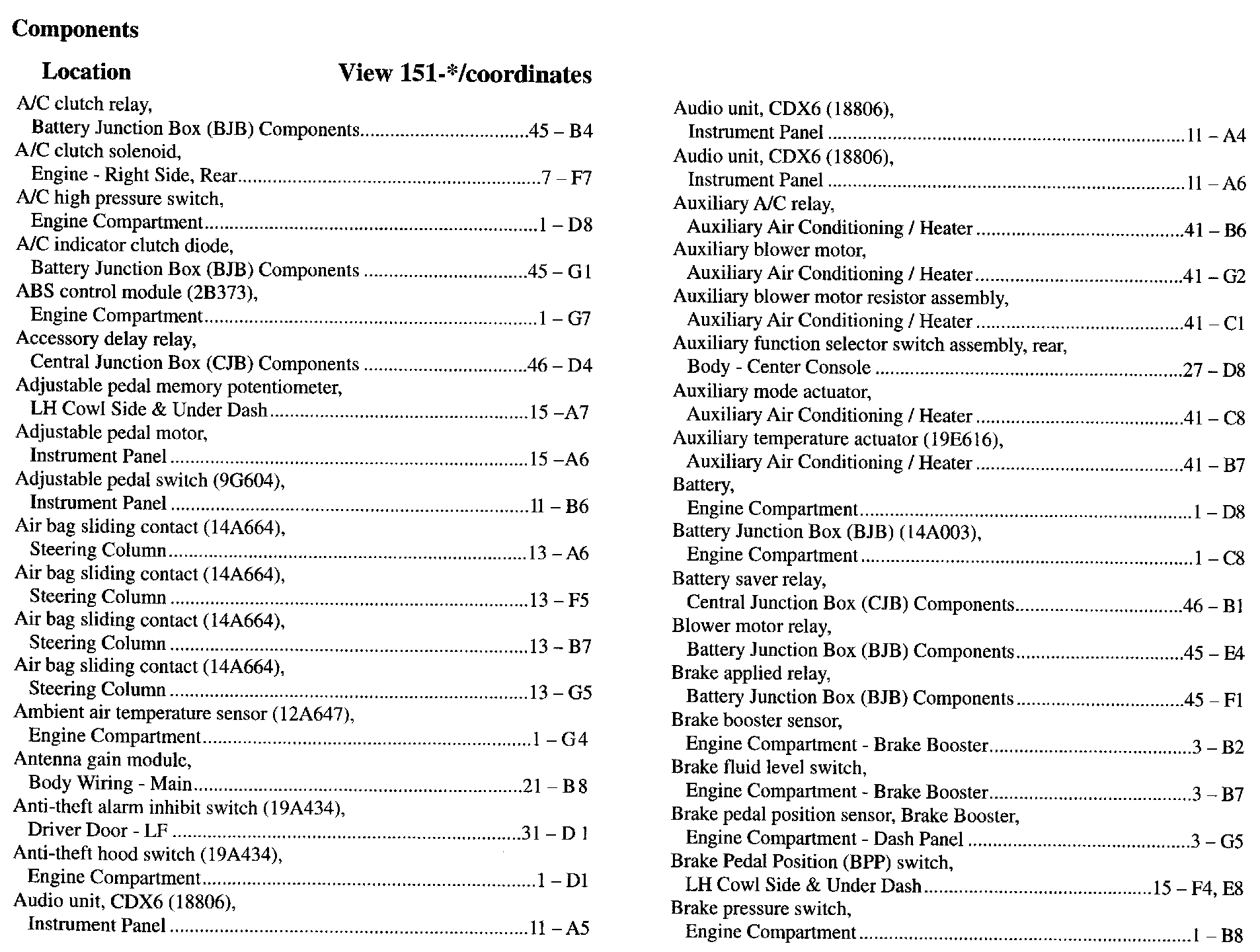

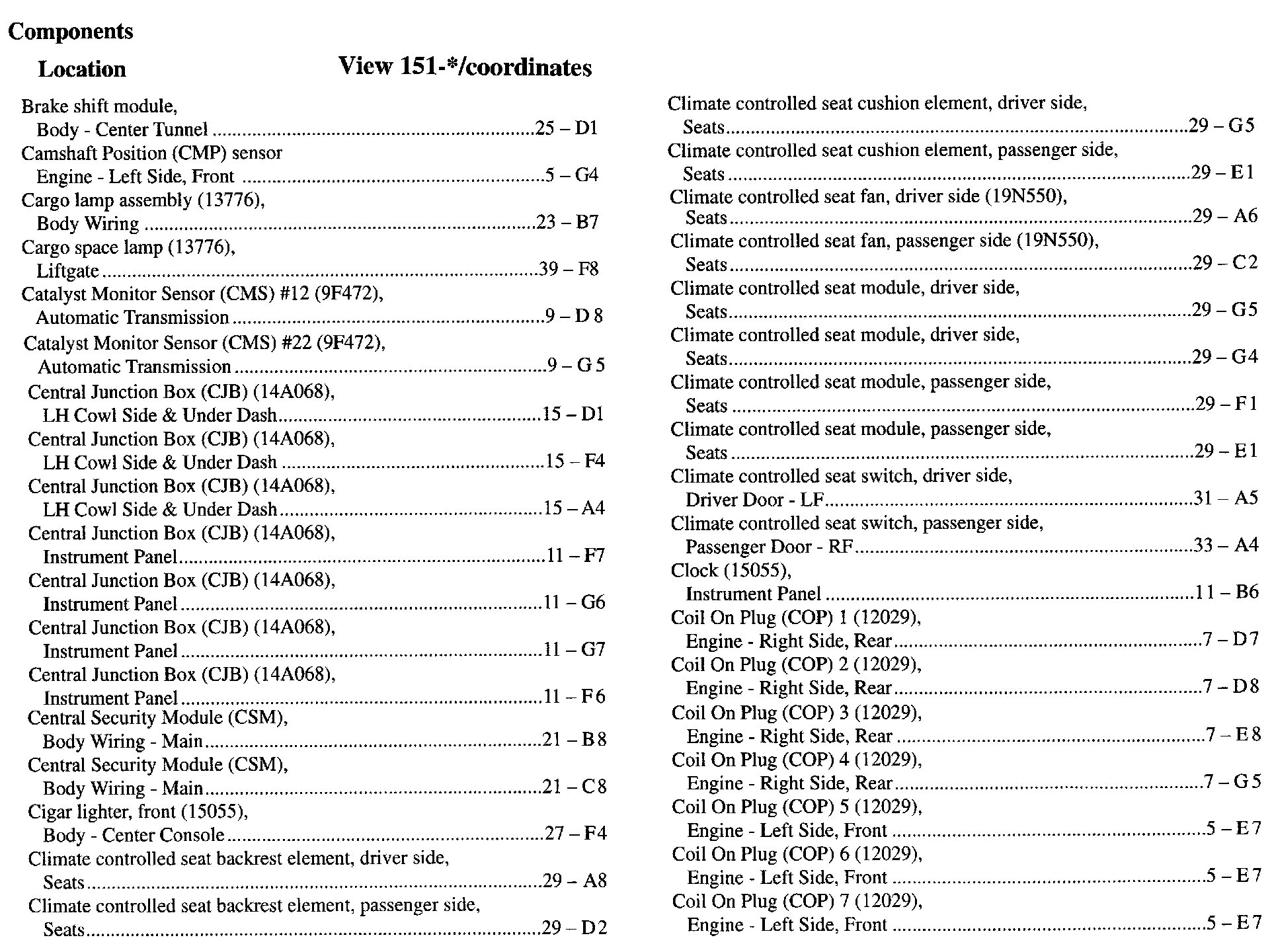

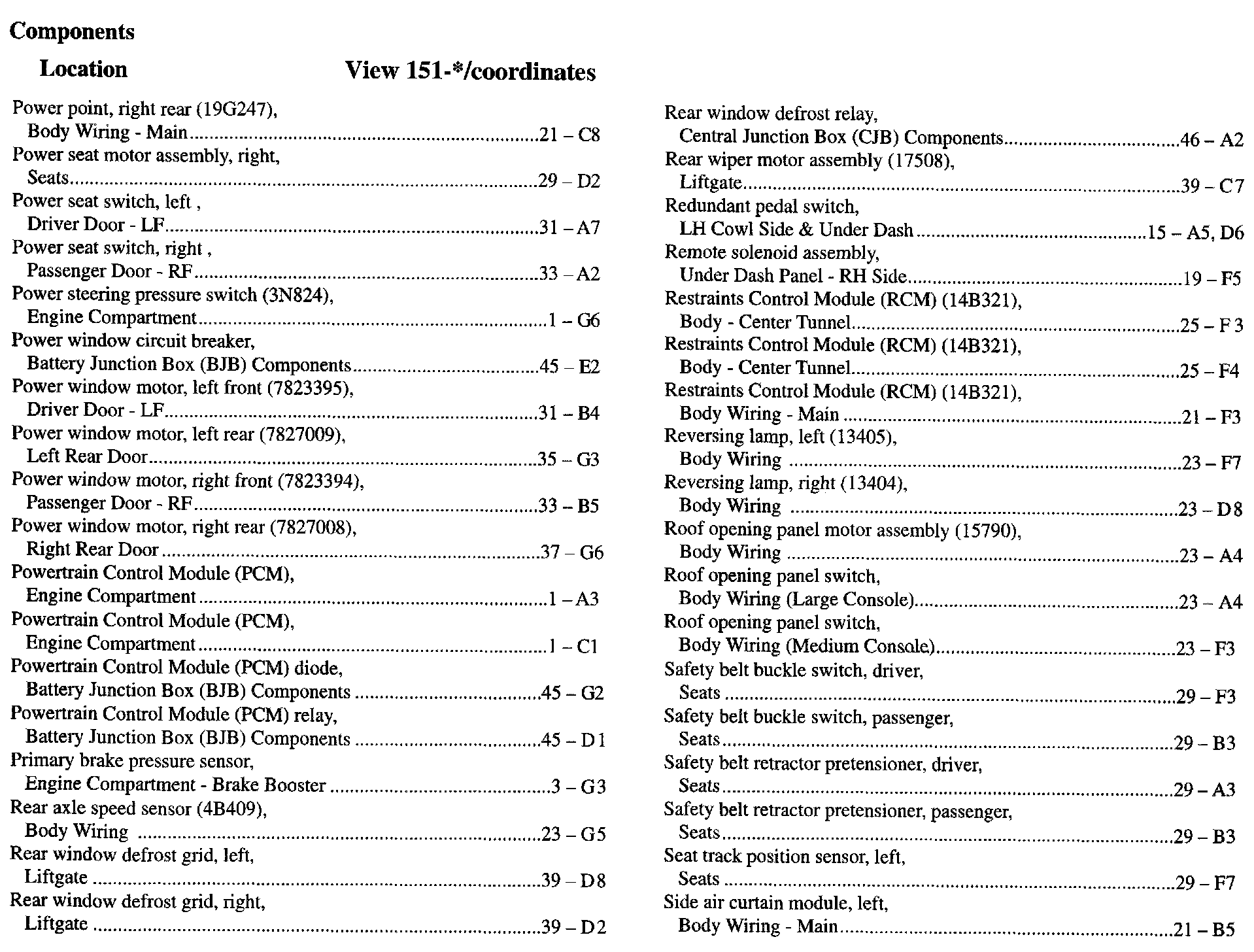

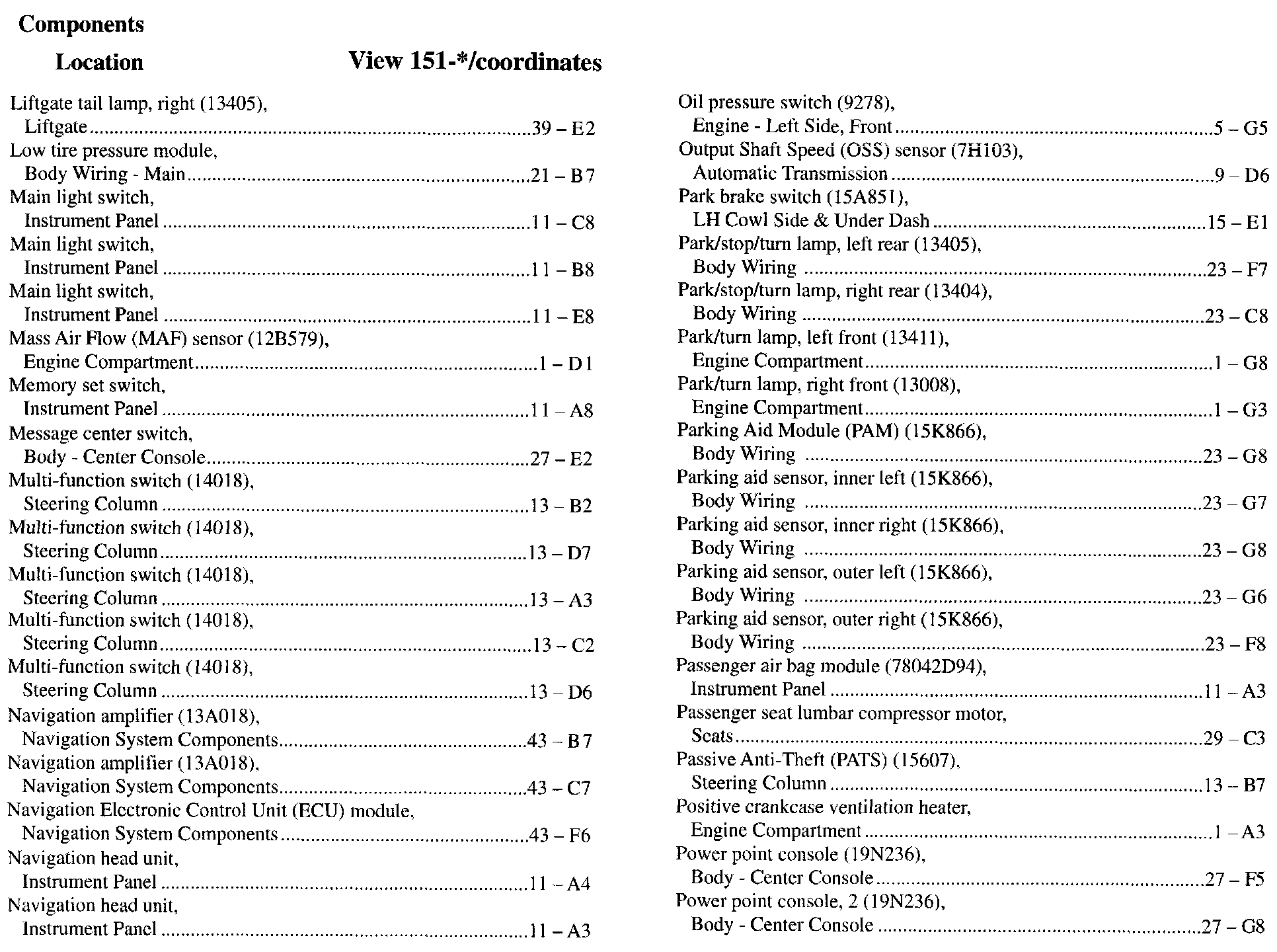

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.
A/C-Br:
Br-Co:
Co-Fo:
Fo-Ig:
Ig-Li:
Li-Bo:
Po-Si:
Si-Va:
Va-Ya:
