Climate Control Assembly

CLIMATE CONTROL ASSEMBLY

REMOVAL

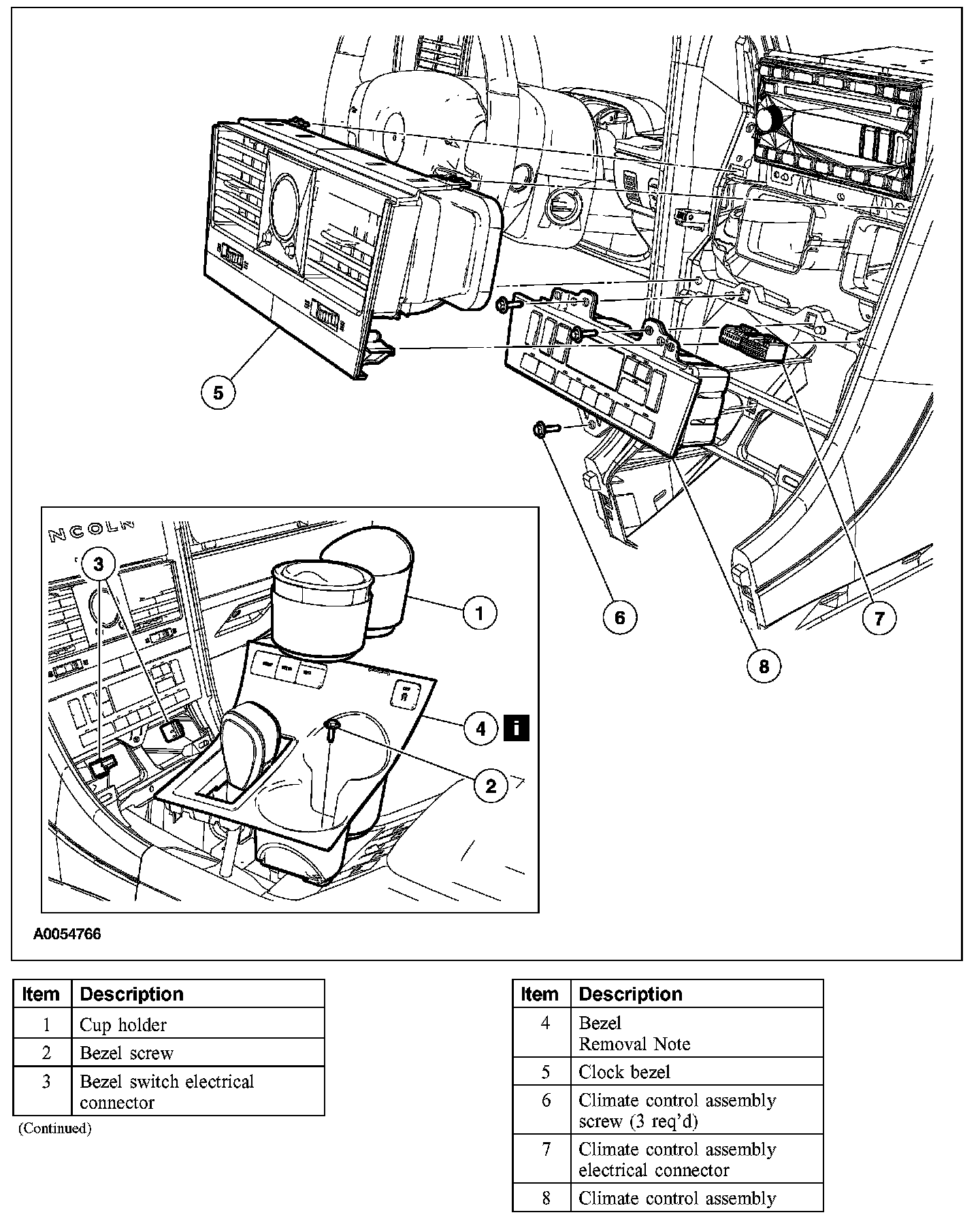

1. Remove the parts in the order indicated in the illustration and table.

Item 4: Bezel Removal Note

1. NOTE: The shift control bezel is only partially removed from the floor console to allow removal of the floor console center finish panel.

Depress the tab at the rear of the shift control bezel to release it from the floor console center finish panel.

2. Rotate the bezel to gain access to the lower climate control assembly screw.

INSTALLATION
1. To install, reverse the removal procedure.
