EGR Valve: Service and Repair

Exhaust Gas Recirculation (EGR) Valve

1. NOTE: Access to the exhaust gas recirculation (EGR) tube is through the right front wheel well.

If removal of the EGR tube is necessary, with the vehicle in NEUTRAL, position it on a hoist.

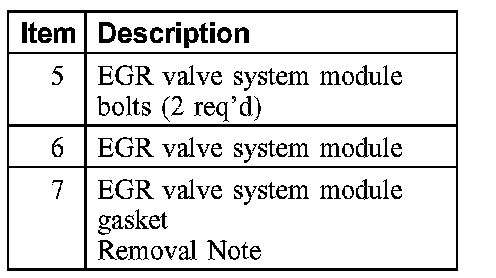

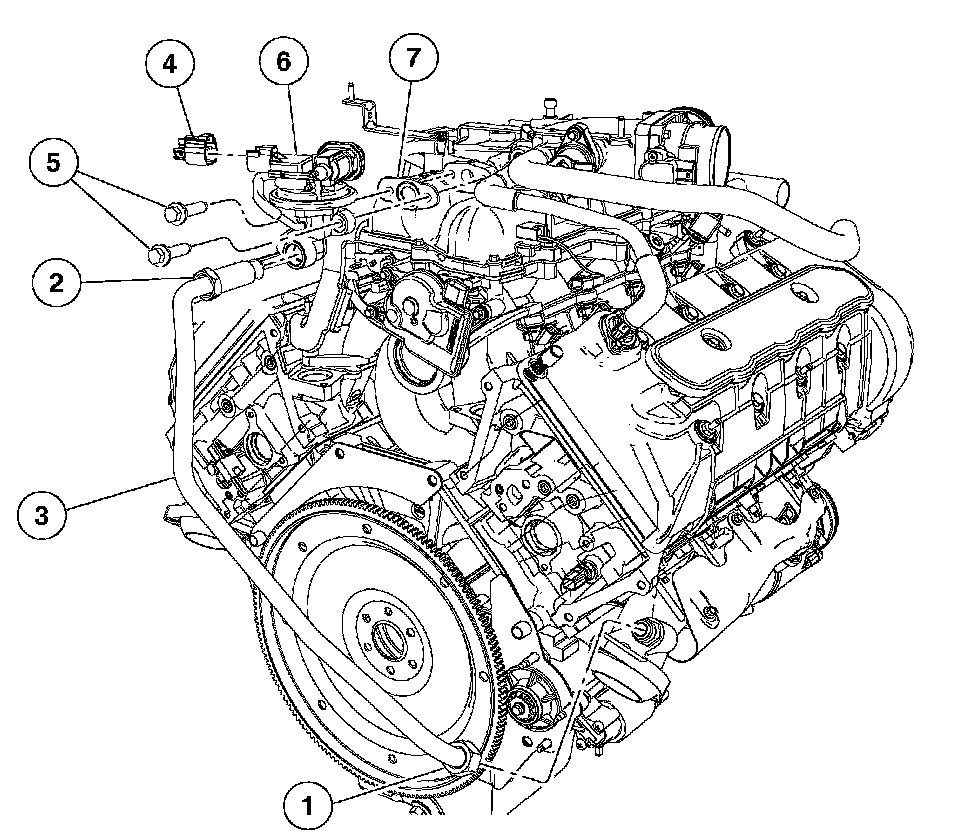

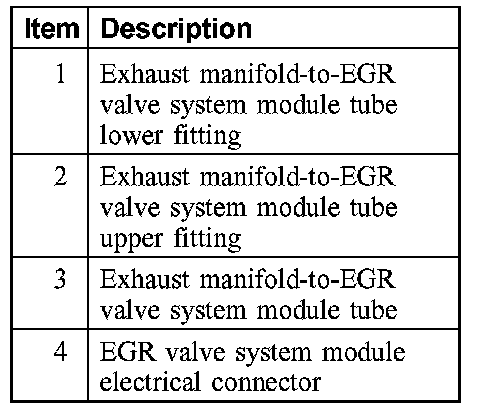

2. Remove the parts in the order indicated in the illustration and table.

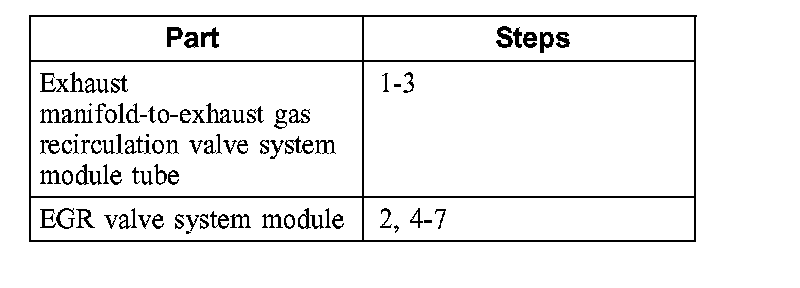

To remove individual parts, only carry out the listed steps:

3. To install, reverse the removal procedure.

Item 7: EGR Valve System Module Gasket Removal Note

1. NOTE: The EGR valve sealing surfaces are soft metals.

Carefully clean the EGR sealing surfaces.
