Panel Illumination Control Module: Service and Repair

DIMMER MODULE

REMOVAL
1. Disconnect the battery.
2. Remove the LH quarter trim panel.

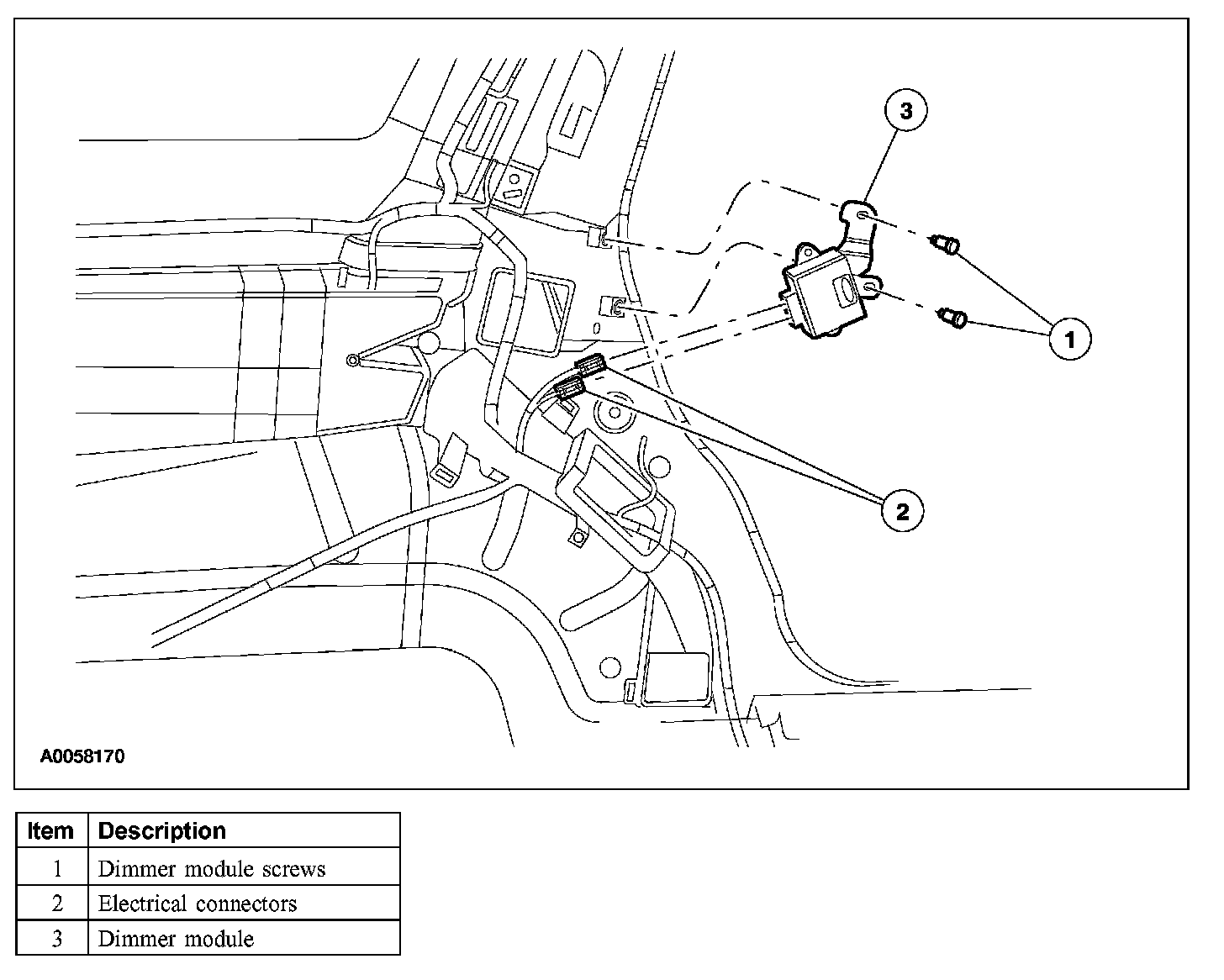

3. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
