General Specifications

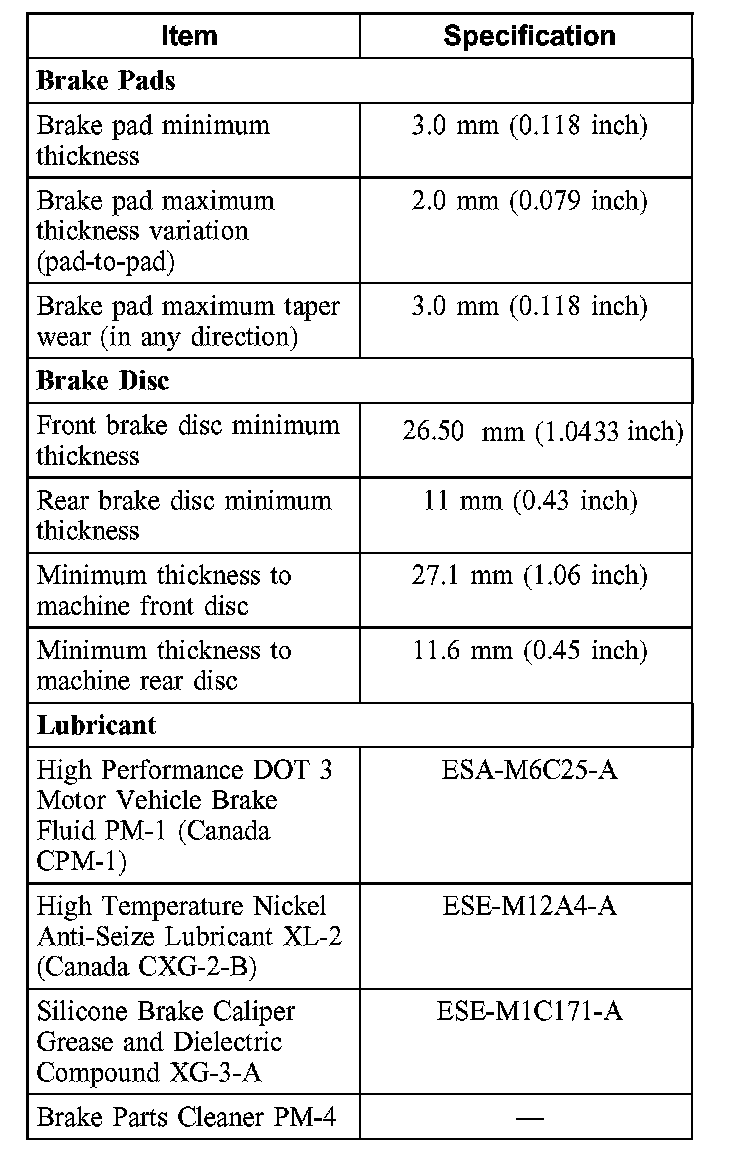

Disc Brake Specifications
Brake pad minimum thickness 3.0 mm (0.118 inch)
Brake pad maximum thickness variation (pad-to-pad) 2.0 mm (0.079 inch)
Brake pad maximum taper wear (in any direction) 3.0 mm (0.118 inch)
Front brake disc minimum thickness 26.50 mm (1.0433 inch)
Rear brake disc minimum thickness 11 mm (0.43 inch)
Minimum thickness to machine front disc 27.1 mm (1.06 inch)
Minimum thickness to machine rear disc 11.6 mm (0.45 inch)
