Liftgate Window Glass: Service and Repair
LIFTGATE WINDOW GLASSREMOVAL
1. If installing a new liftgate window glass, remove the rear wiper motor.

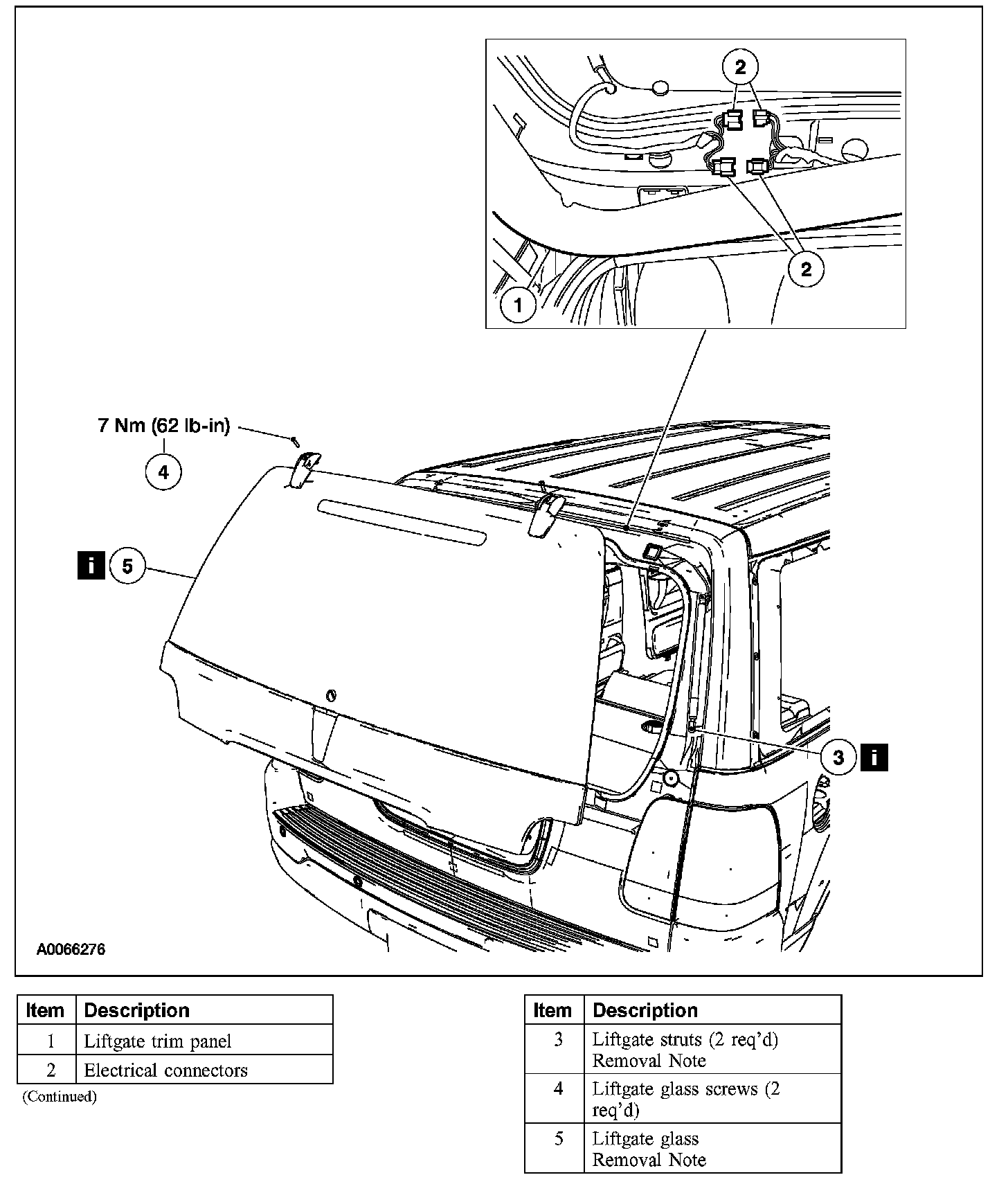

2. Remove the parts in the order indicated in the illustration and table.
Item 3: Liftgate Struts Removal Note
1. CAUTION: Open and support the liftgate before removing the liftgate window glass struts.
Disconnect the liftgate window glass struts at the liftgate glass.
Item 5: Liftgate Glass Removal Note
1. CAUTION: Be sure not to scratch the applique located at the bottom of the glass.
With the help of an assistant, remove the liftgate window glass.
INSTALLATION
1. To install, reverse the removal procedure.
