Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Anti-Theft - Perimeter >> Connector Circuit Reference >> Front Electronic Module (FEM) >> Front Electronic Module (FEM) C201f

Front Electronic Module (FEM) C201f

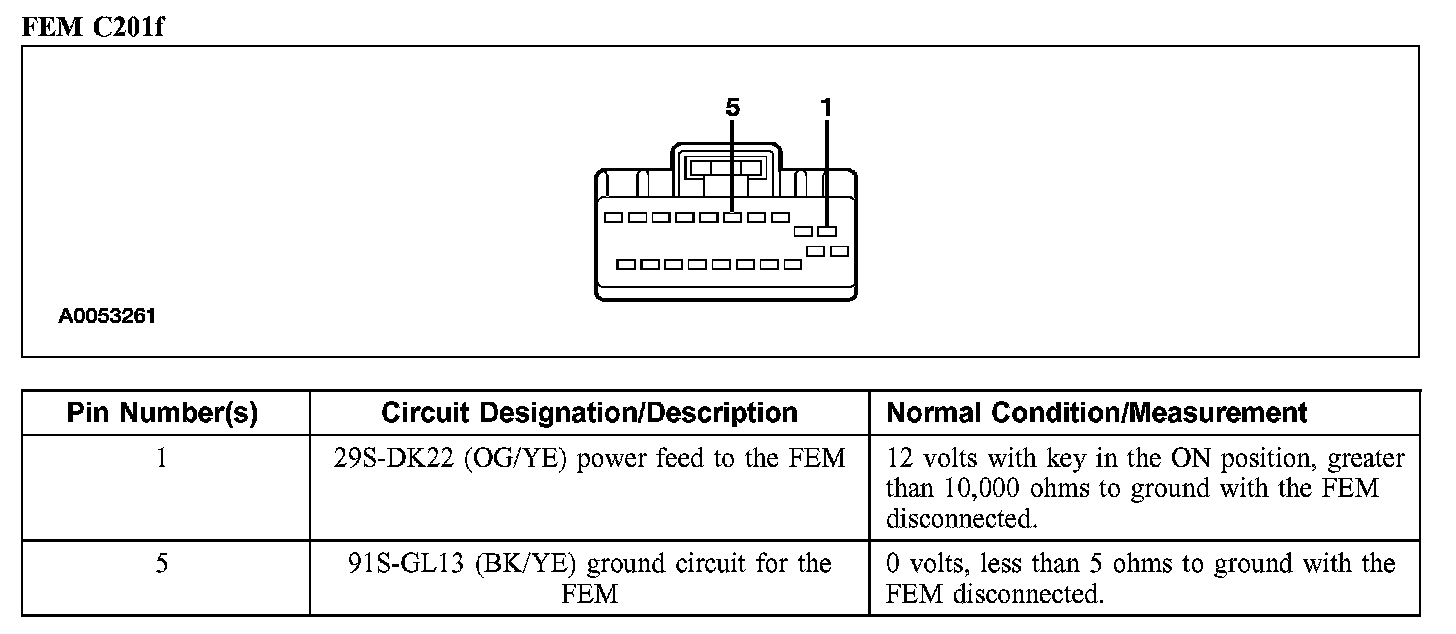

FEM C201f:
