Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Parking Aid Module C4014b

Parking Aid Module C4014b

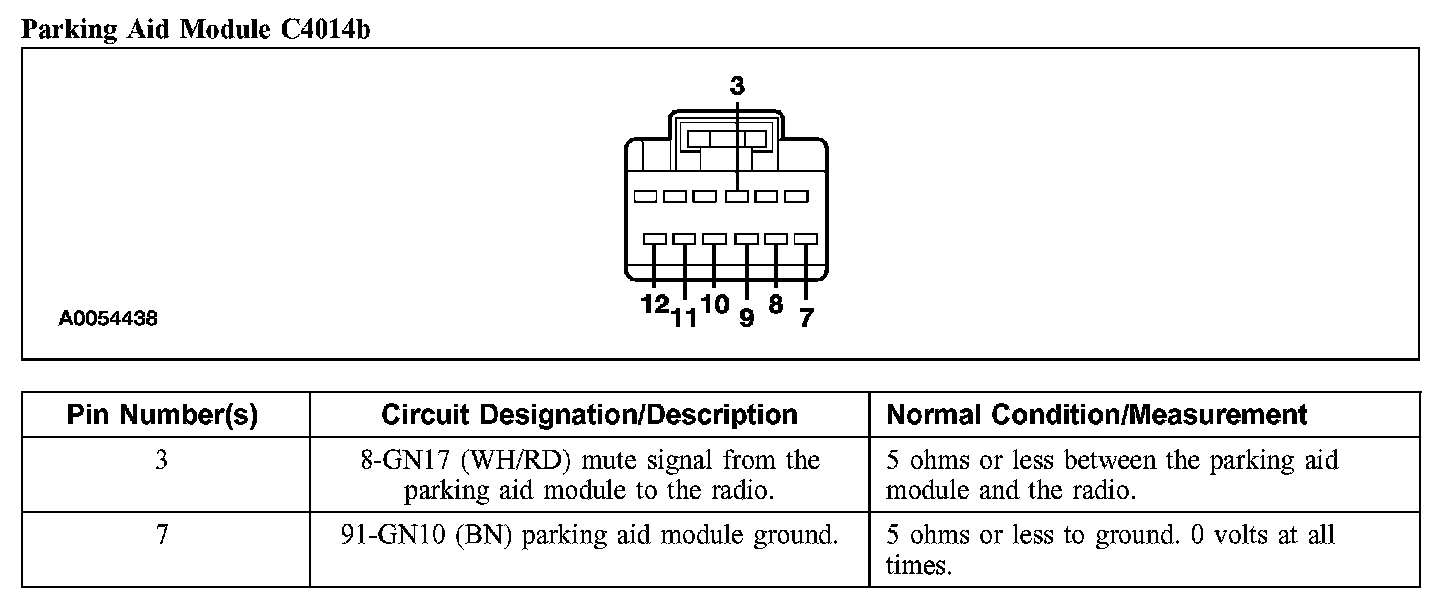

Parking Aid Module C4014b, Part 1:

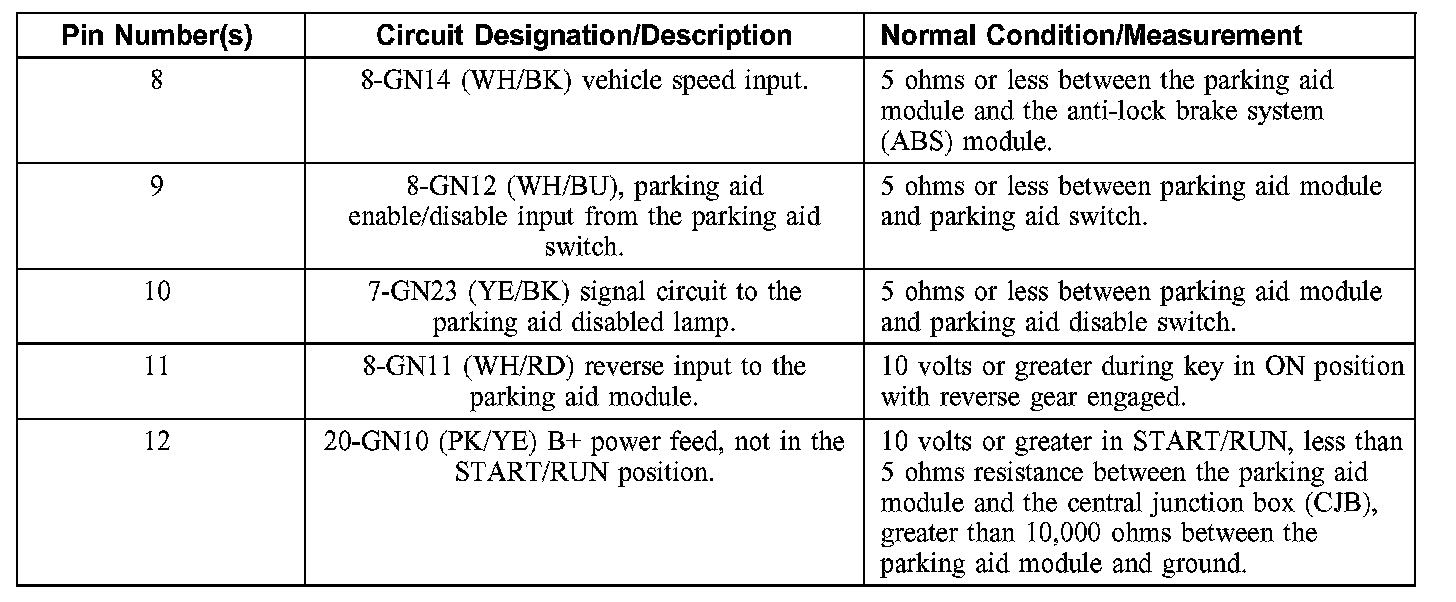

Parking Aid Module C4014b, Part 2:
