Driver/Passenger Rear Heated Seat Module C3162/C3163

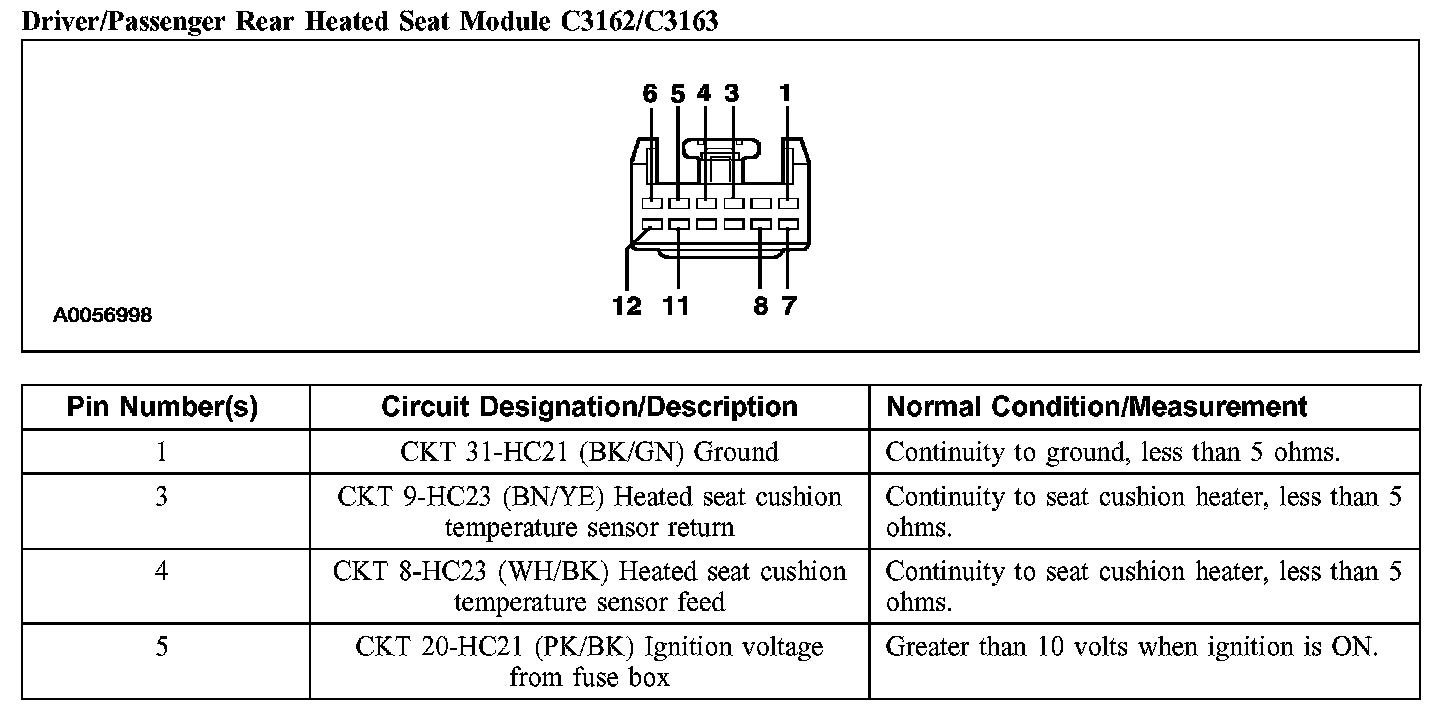

Driver/Passenger Rear Heated Seat Module C3162/C3163, Part 1:

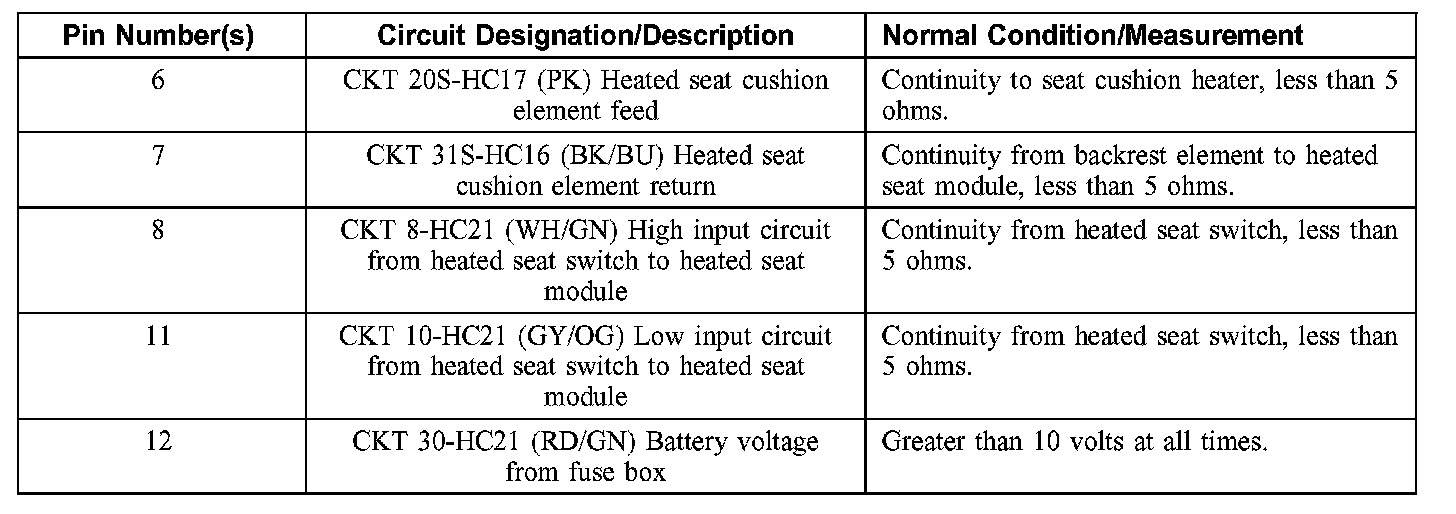

Driver/Passenger Rear Heated Seat Module C3162/C3163, Part 2:
