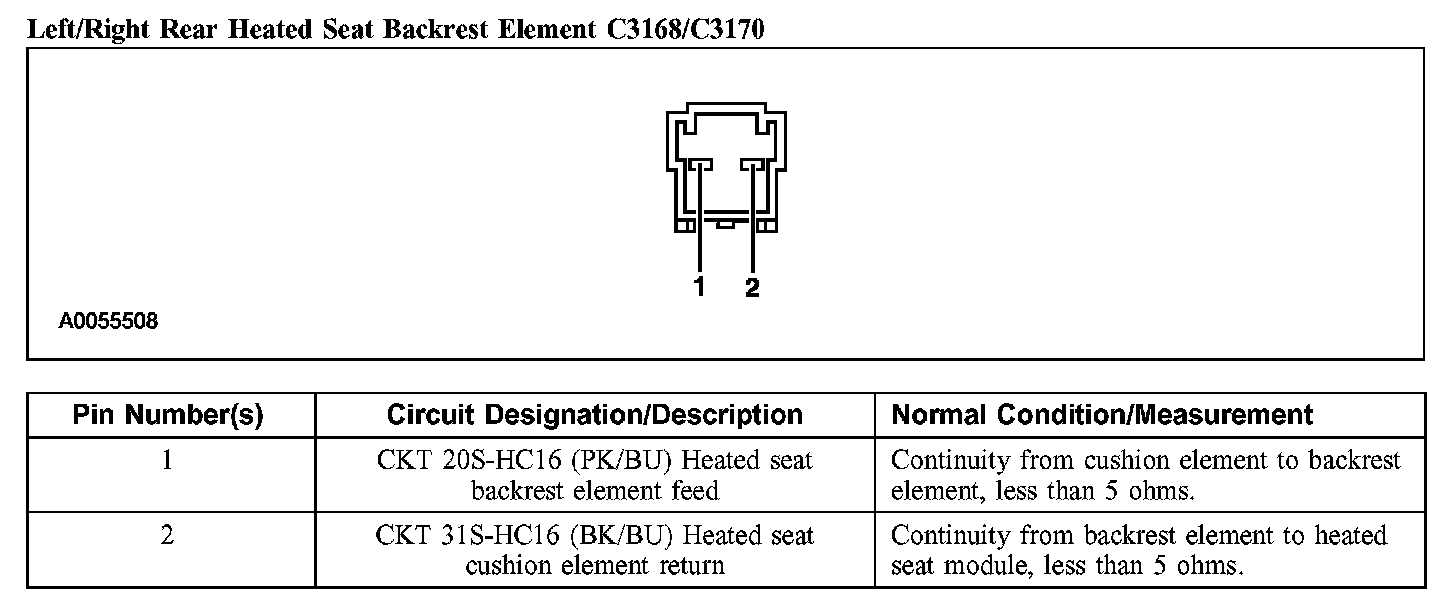

Left/Right Rear Heated Seat Backrest Element C3168/C3170
Left/Right Rear Heated Seat Backrest Element C3168/C3170
Left/Right Rear Heated Seat Backrest Element C3168/C3170:
