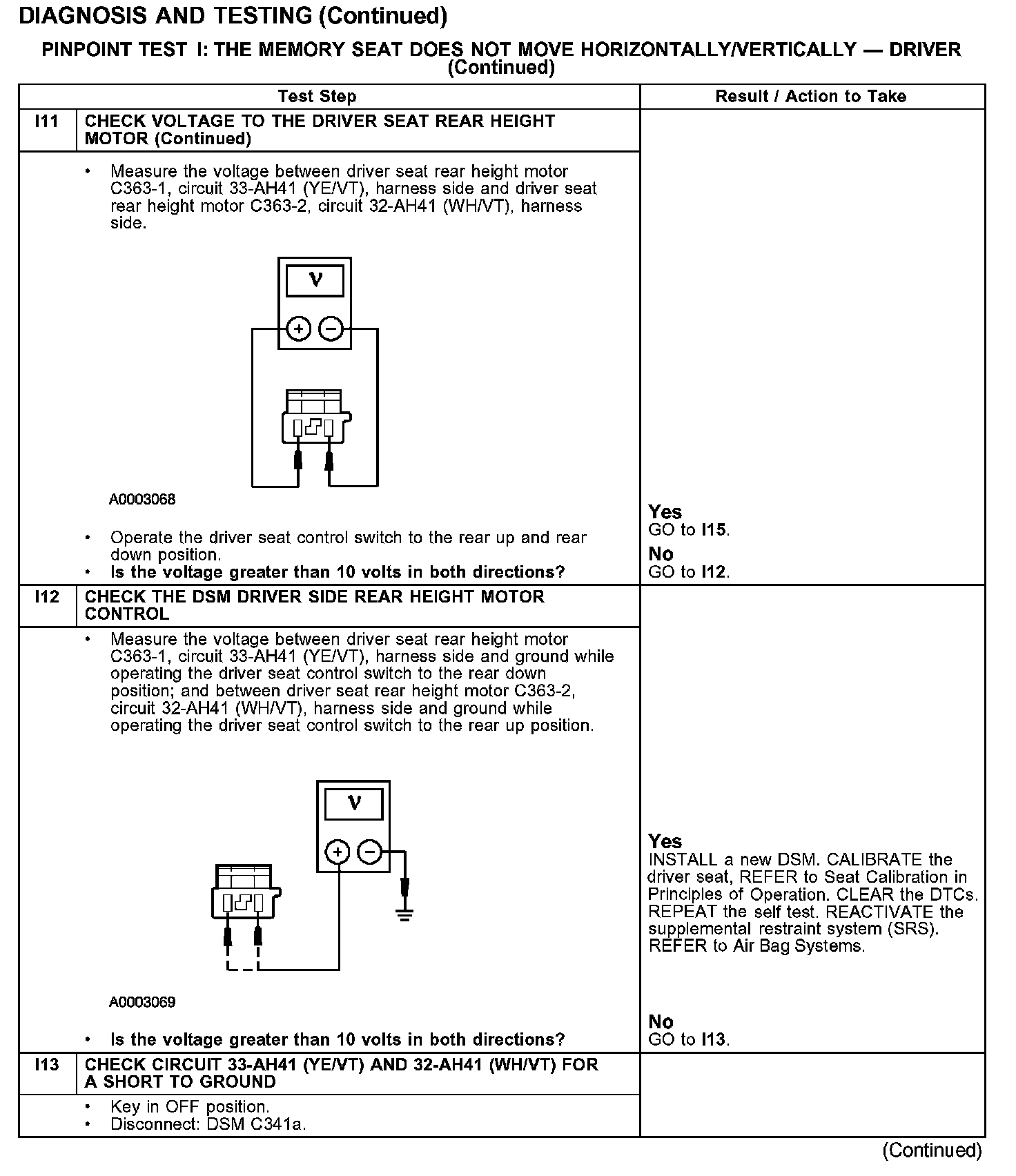

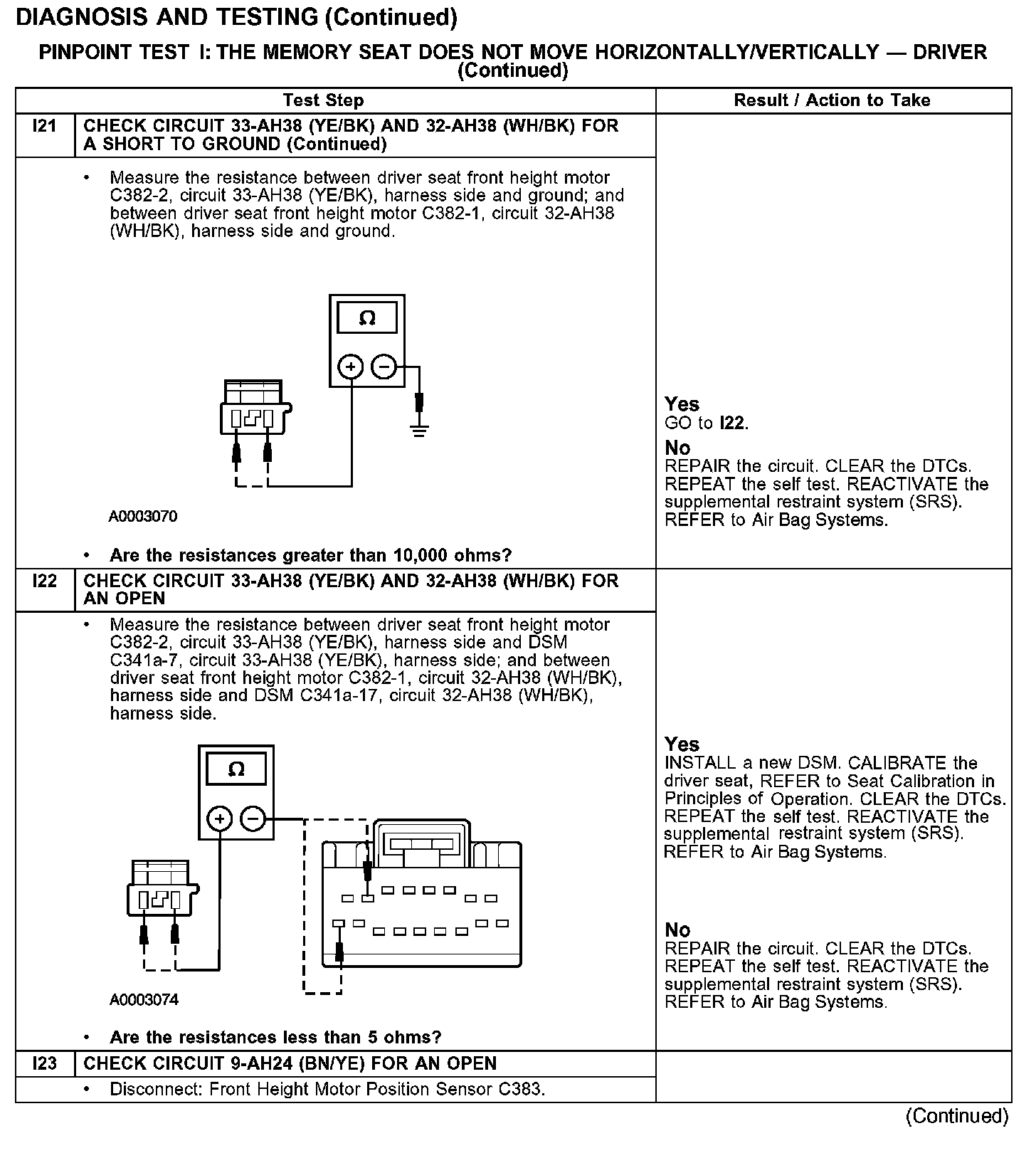

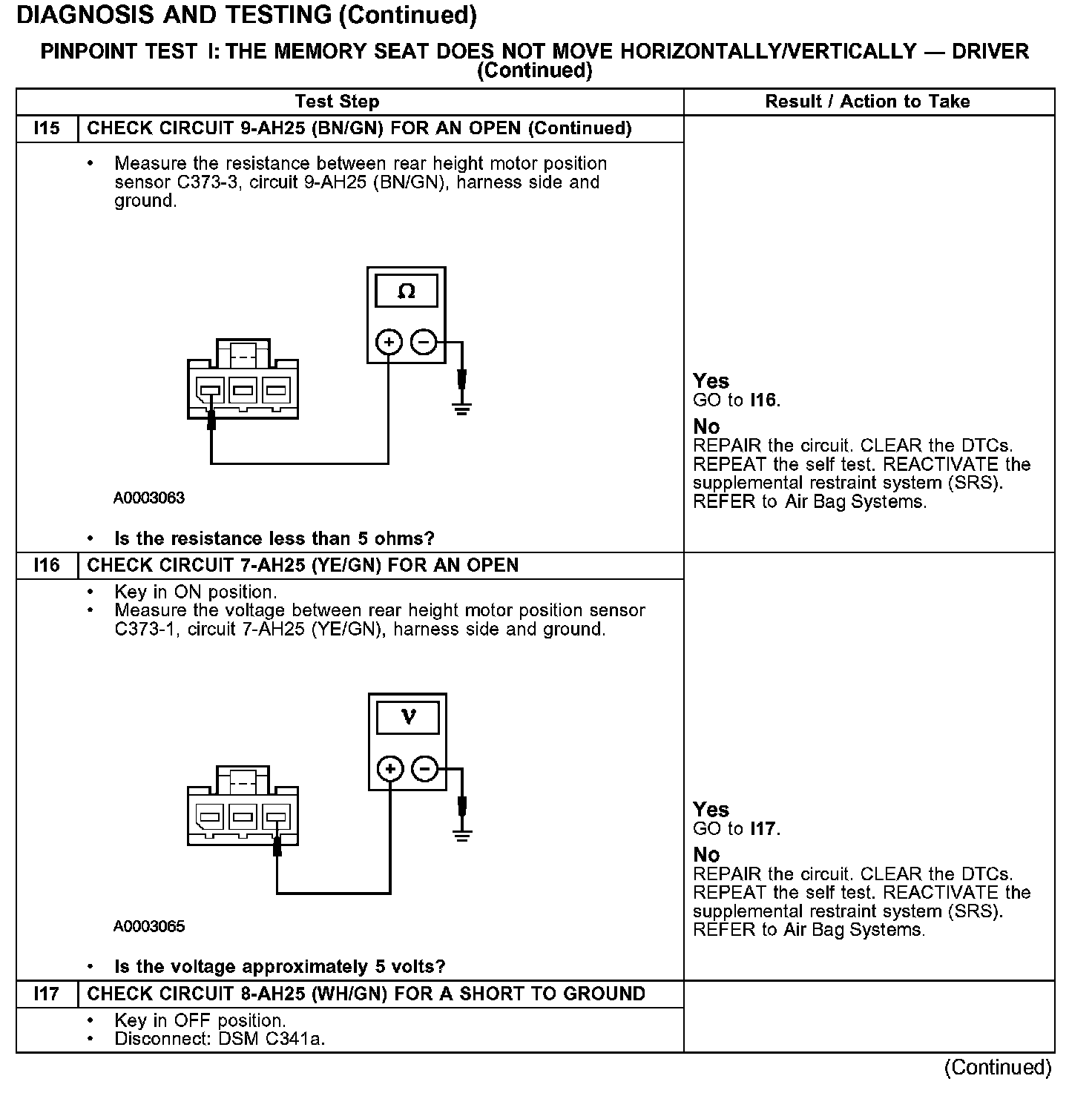

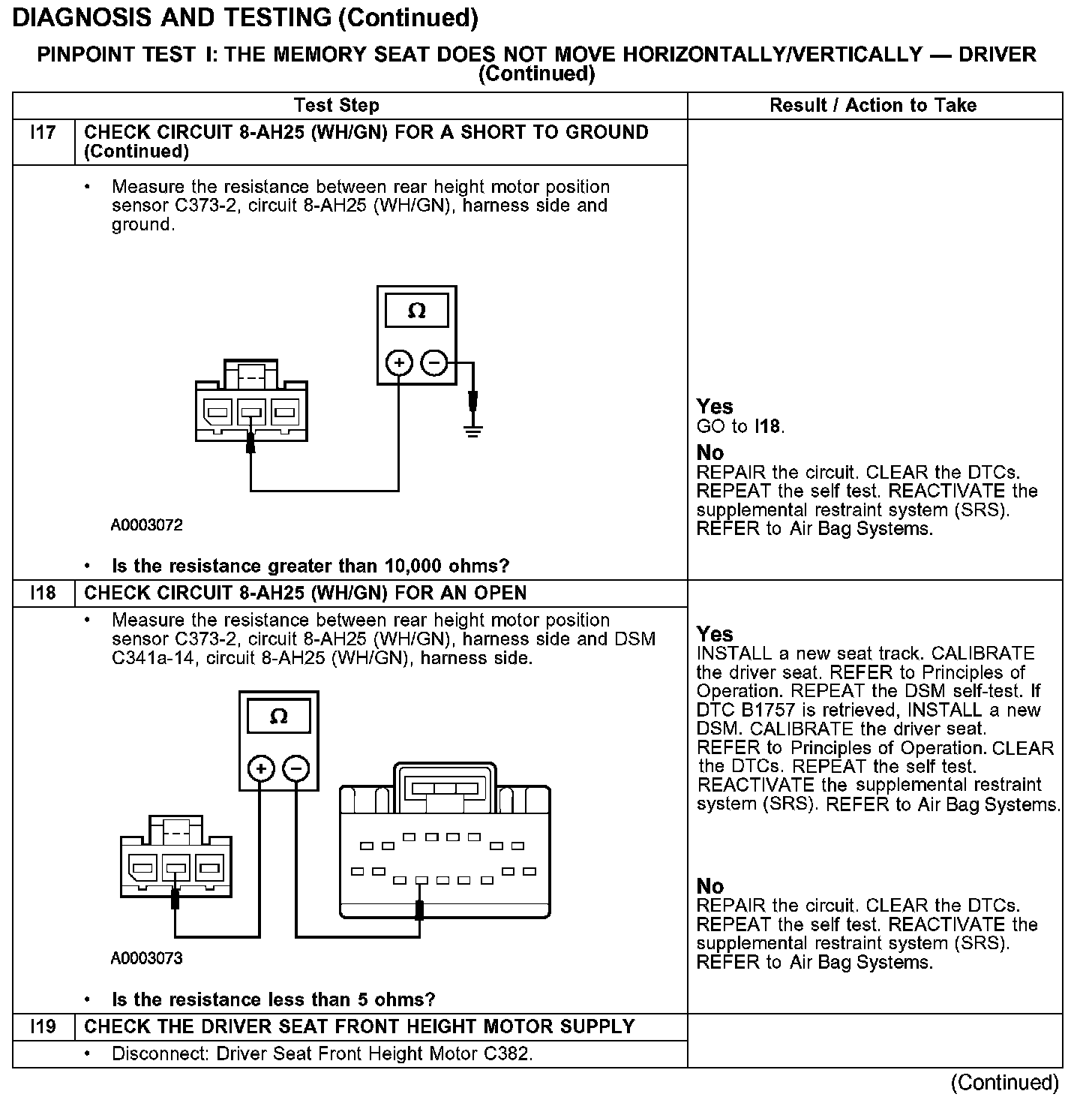

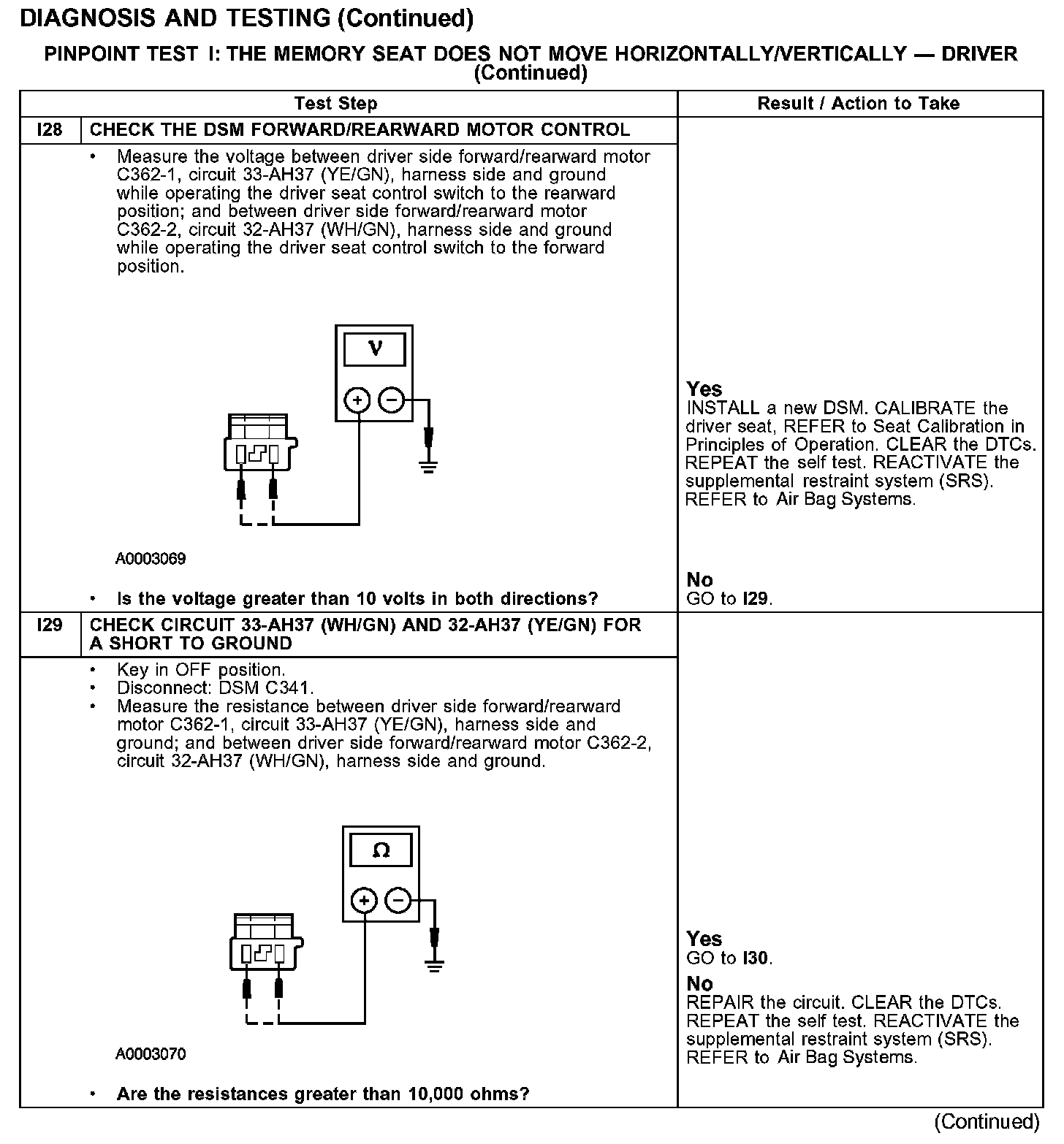

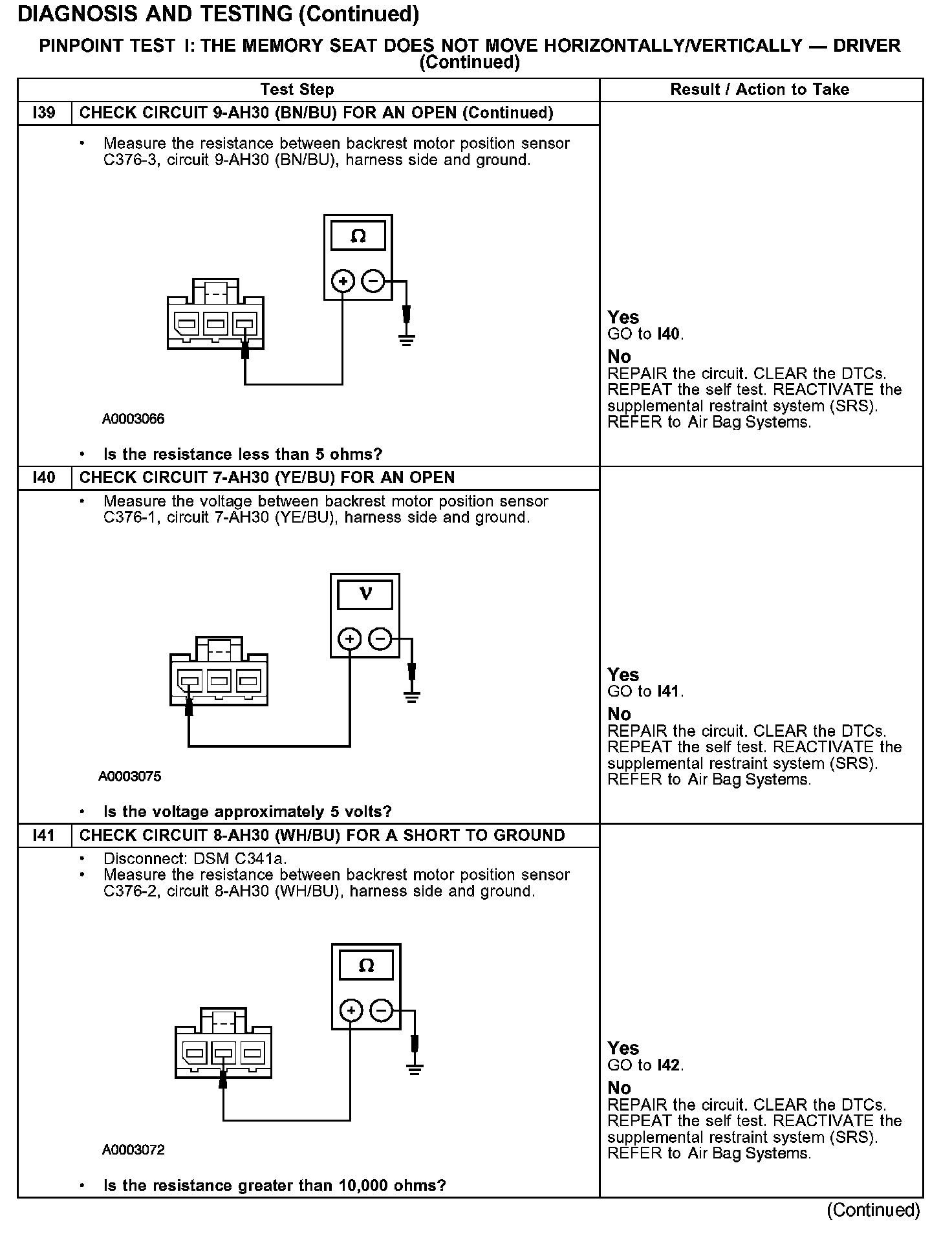

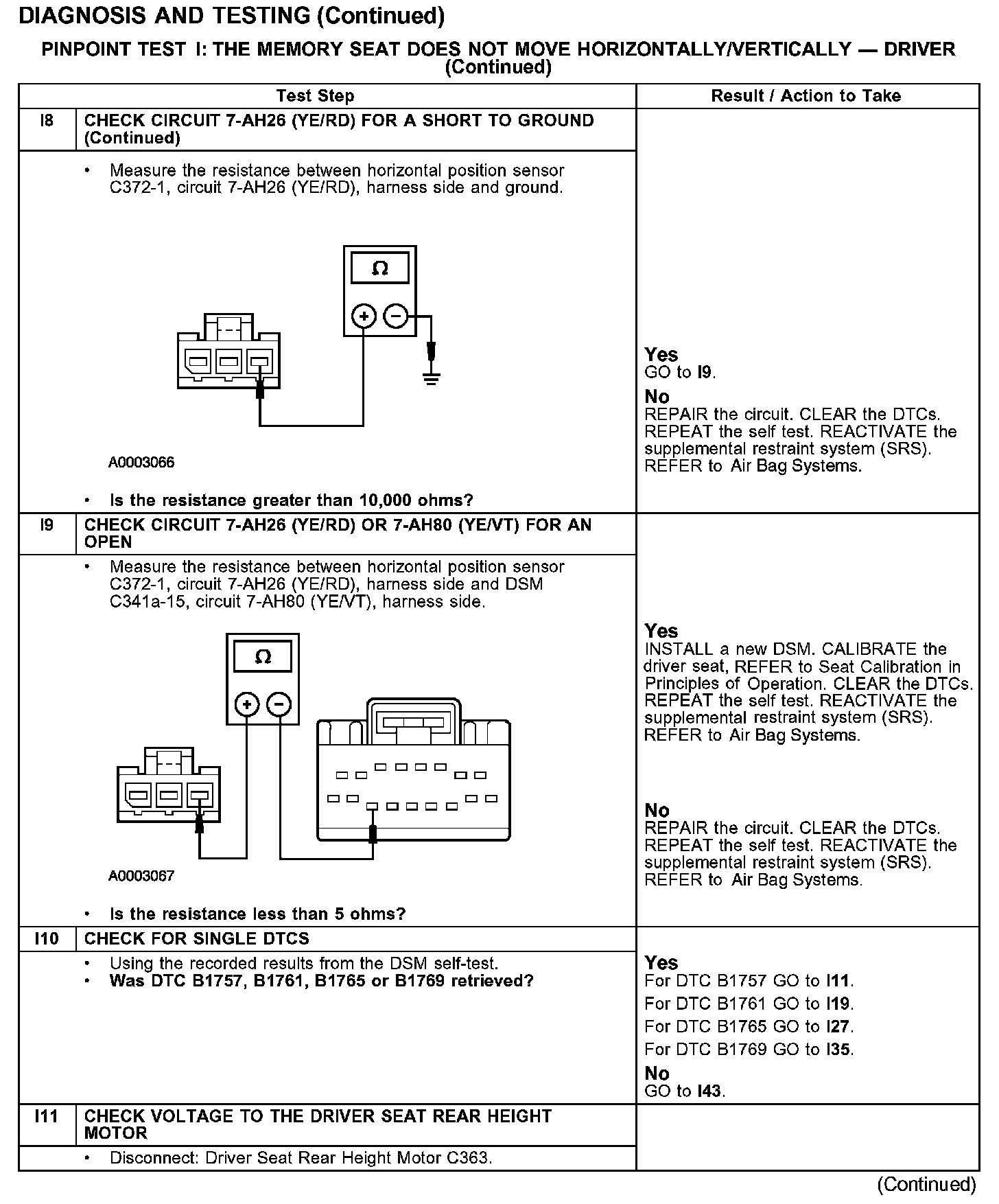

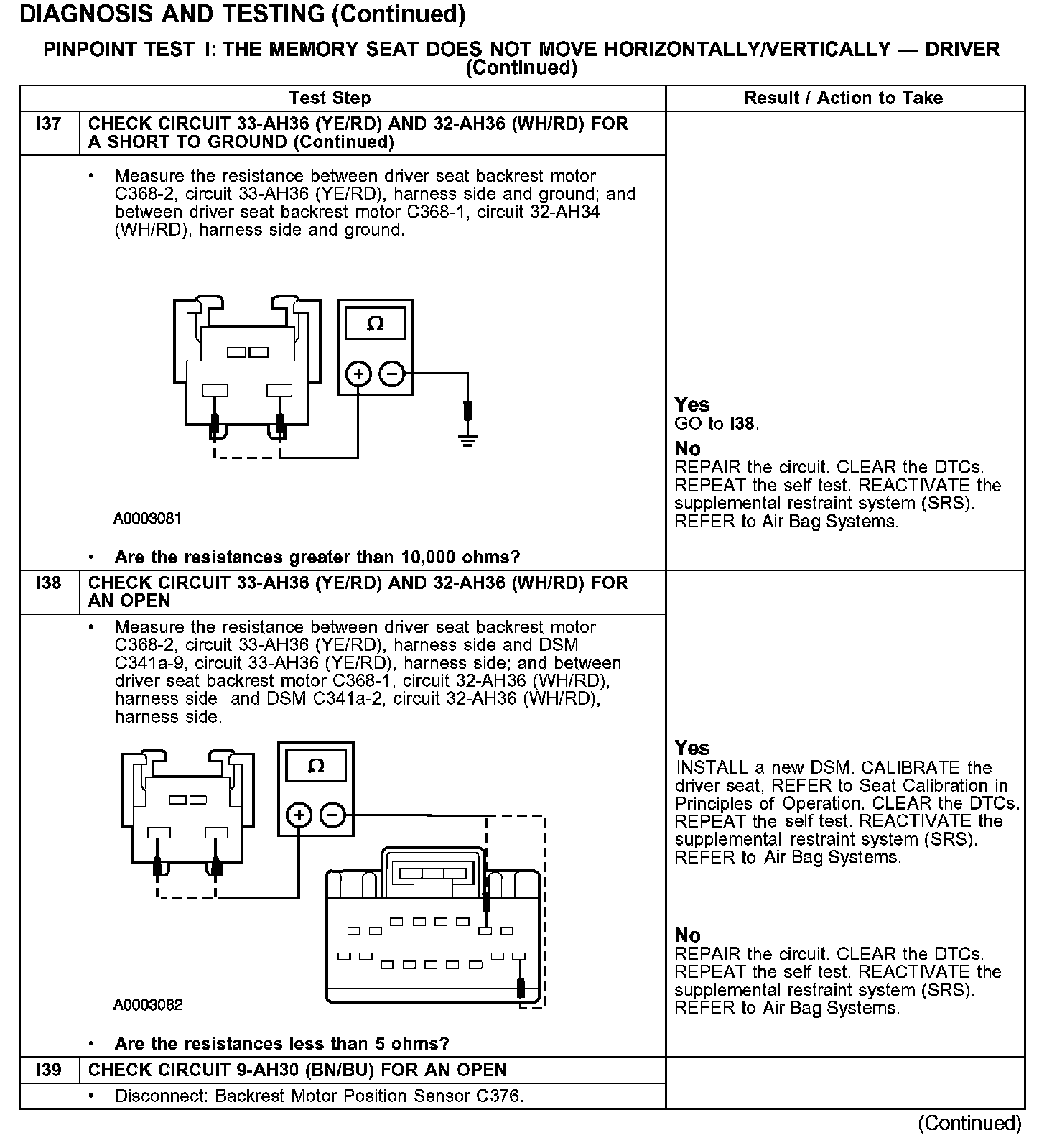

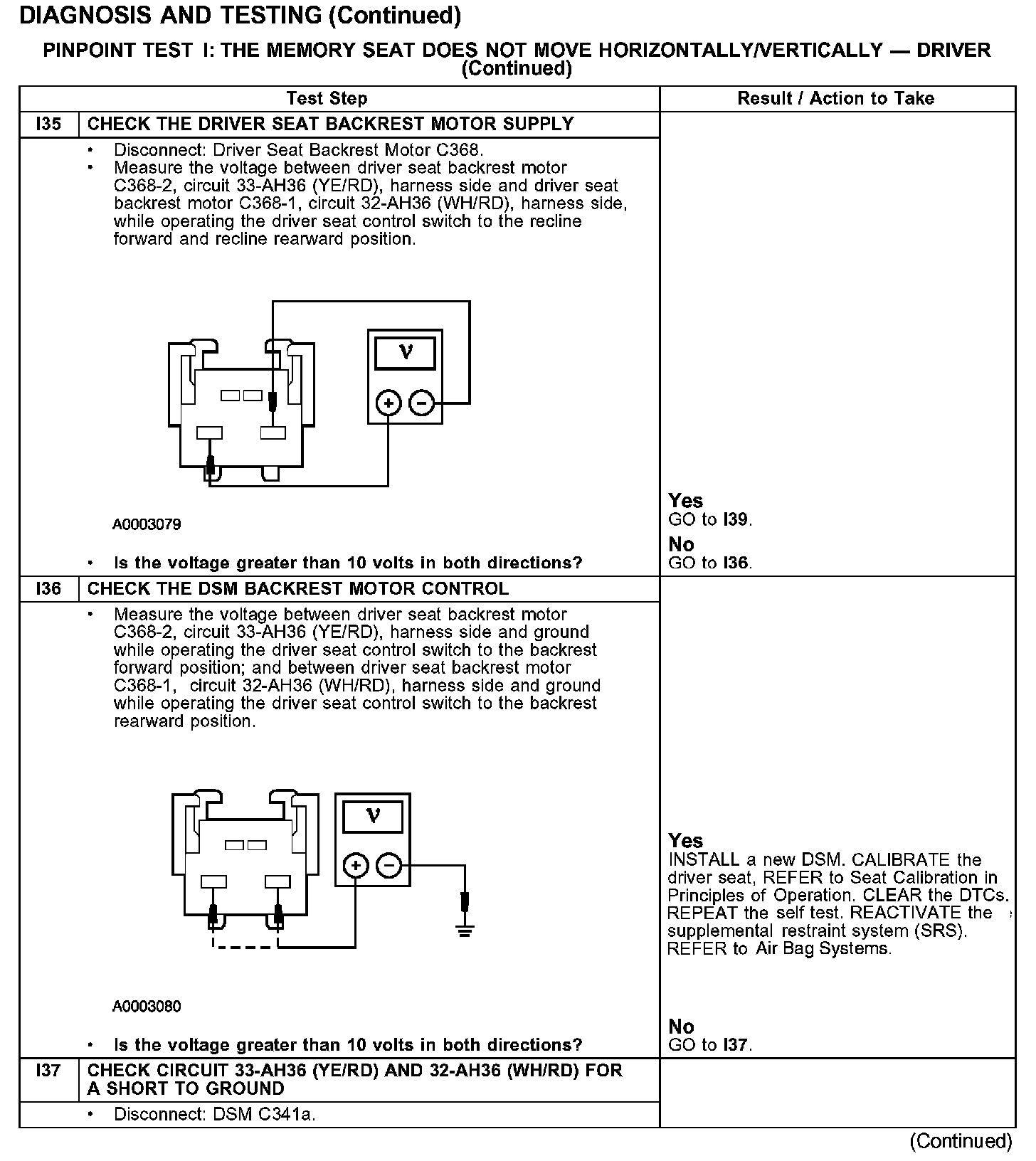

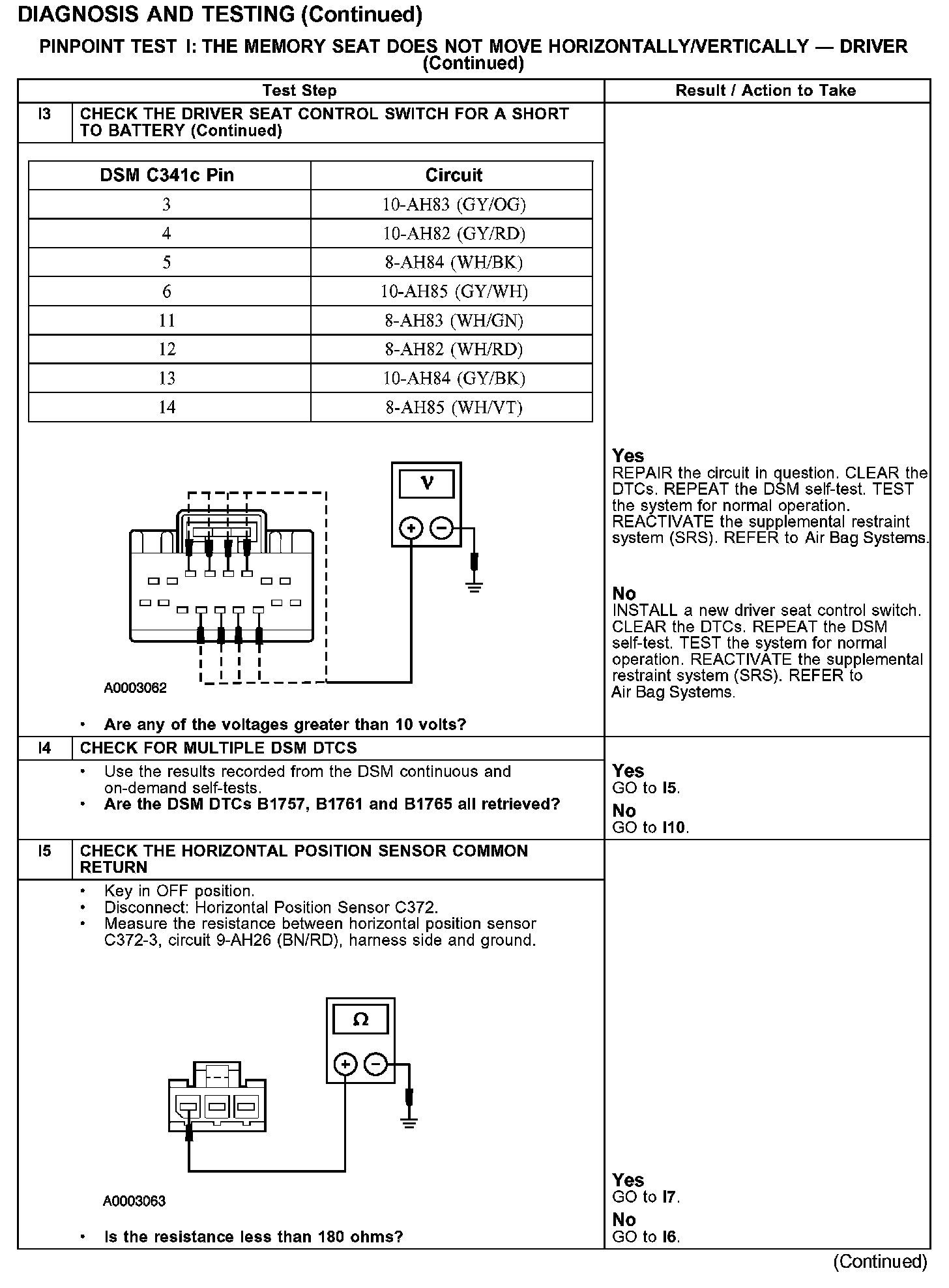

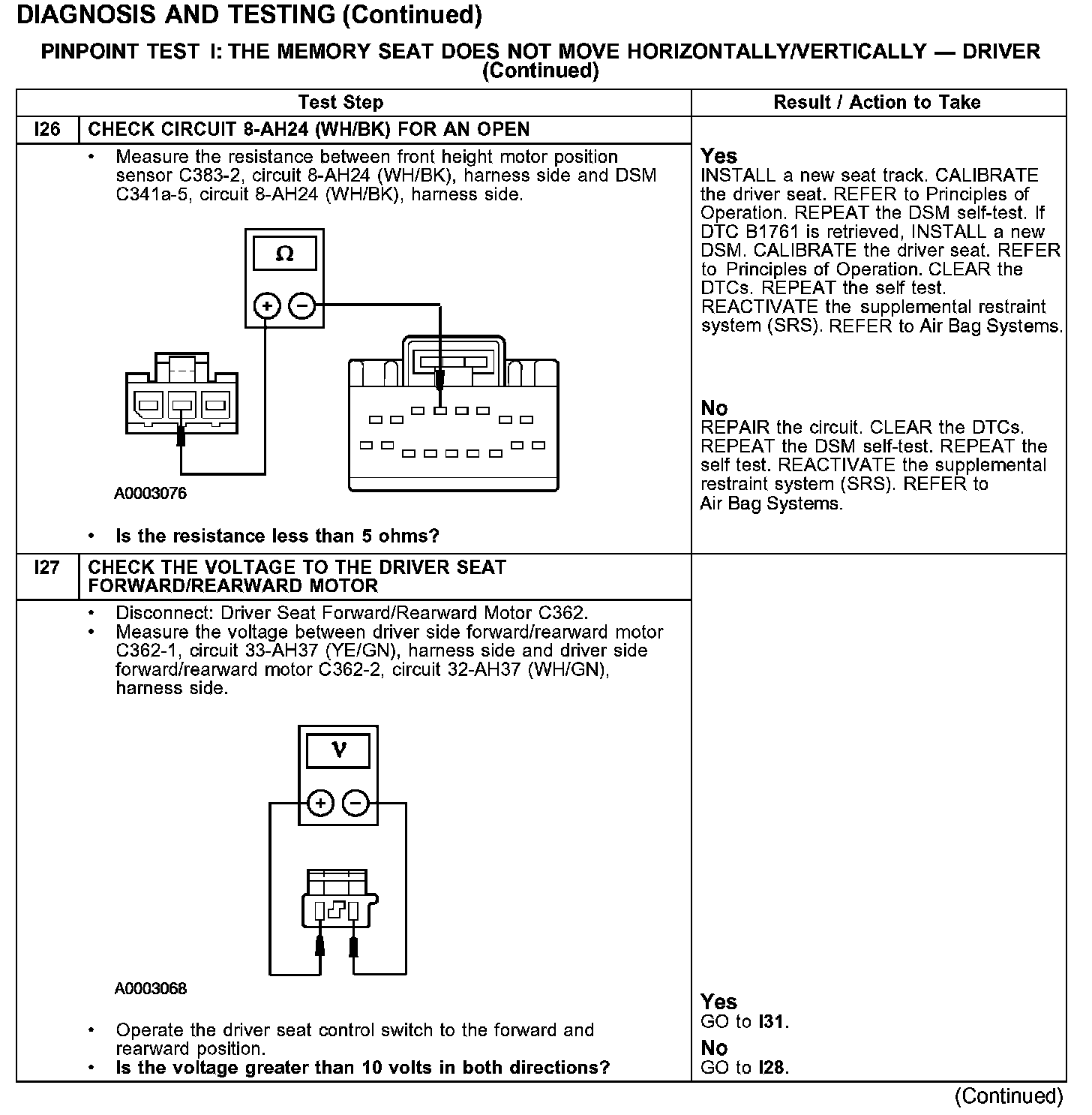

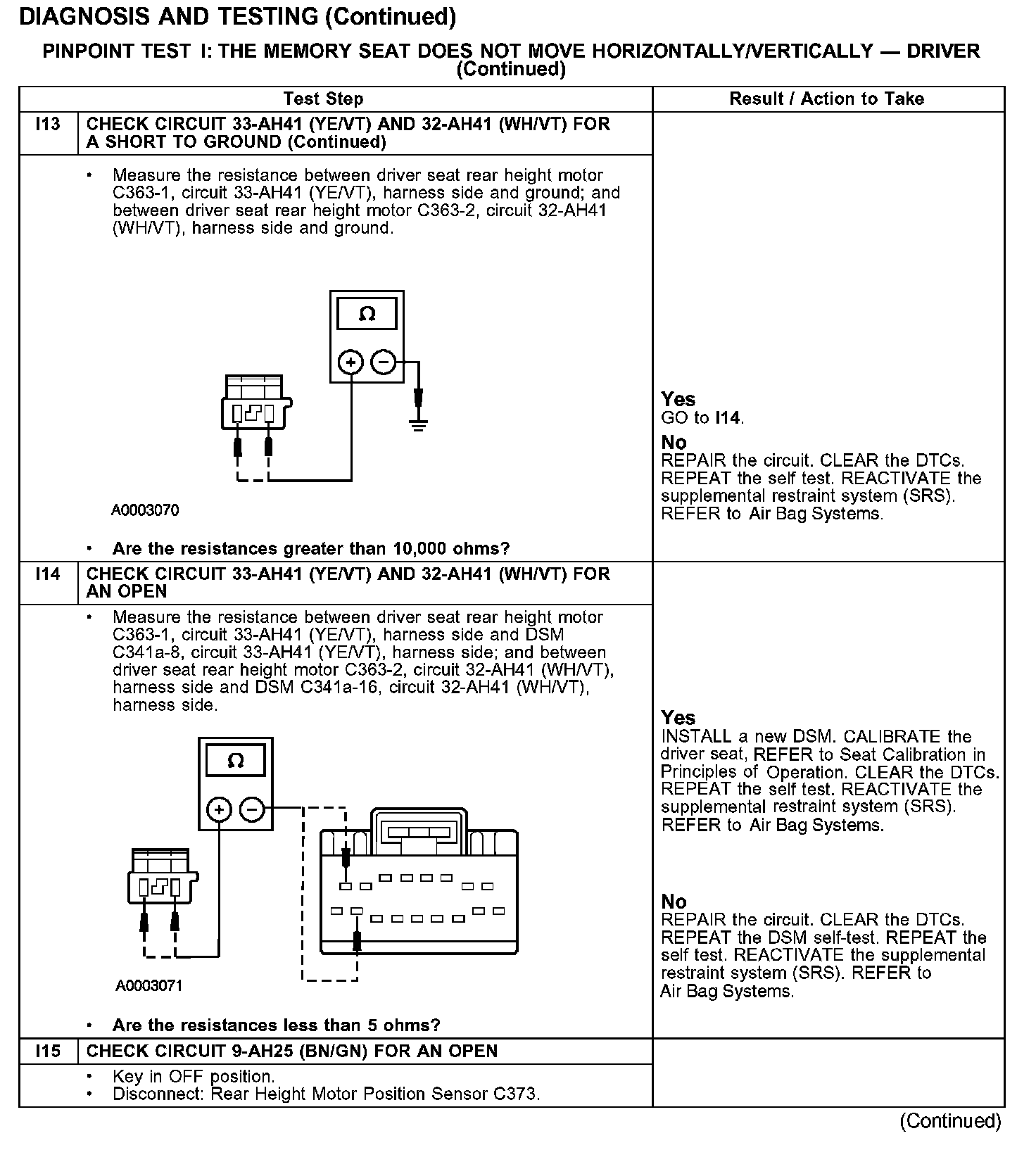

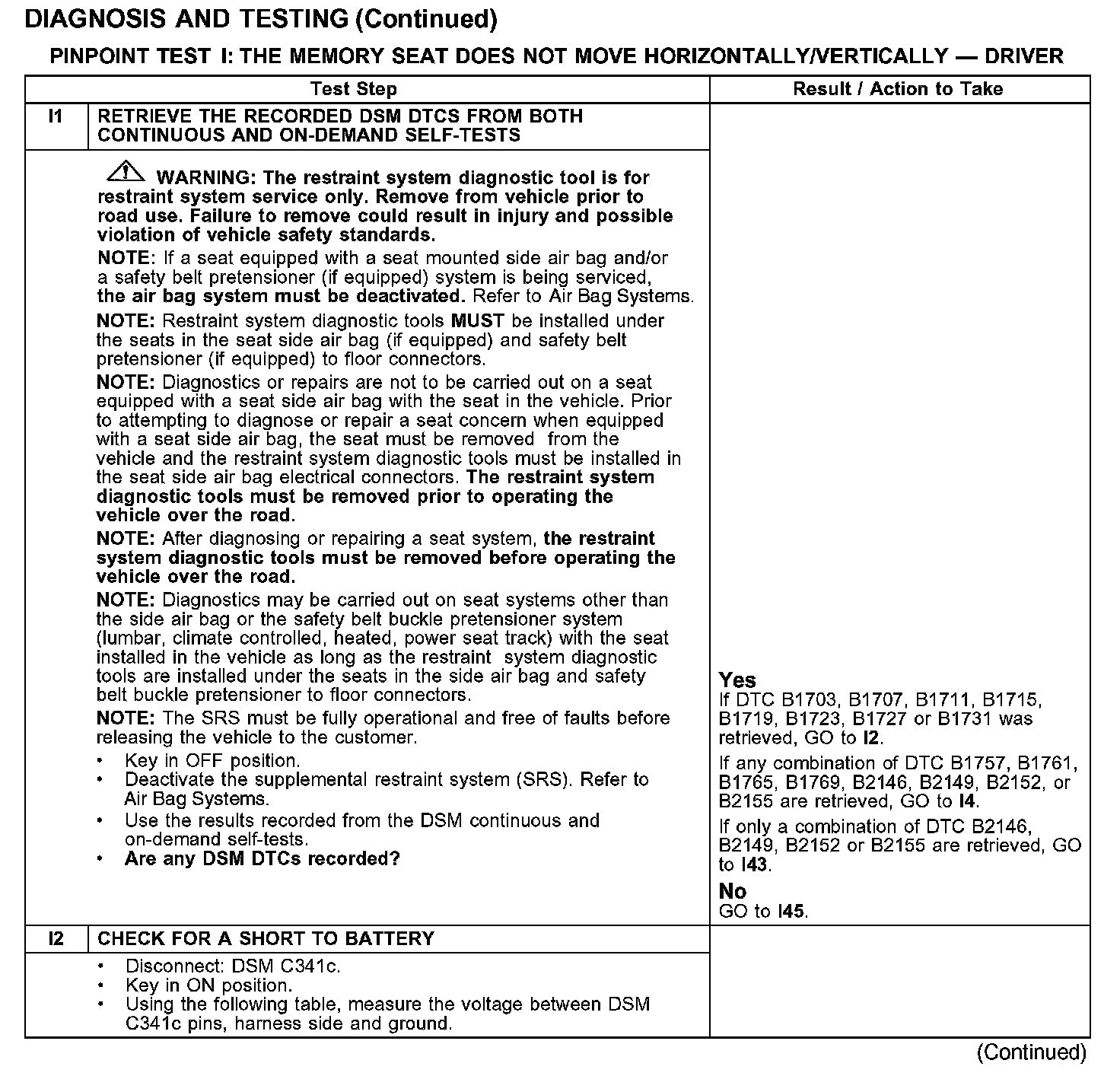

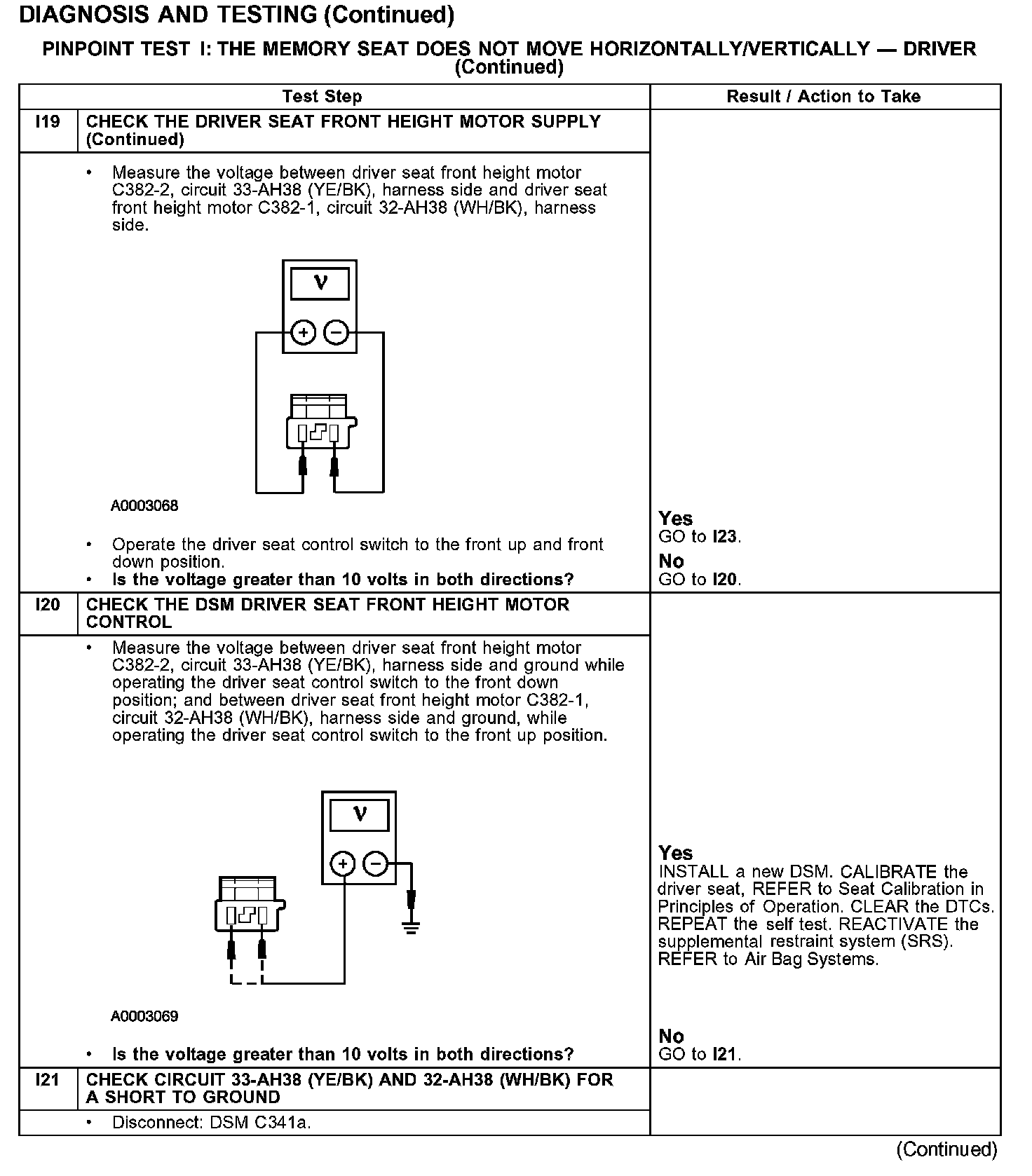

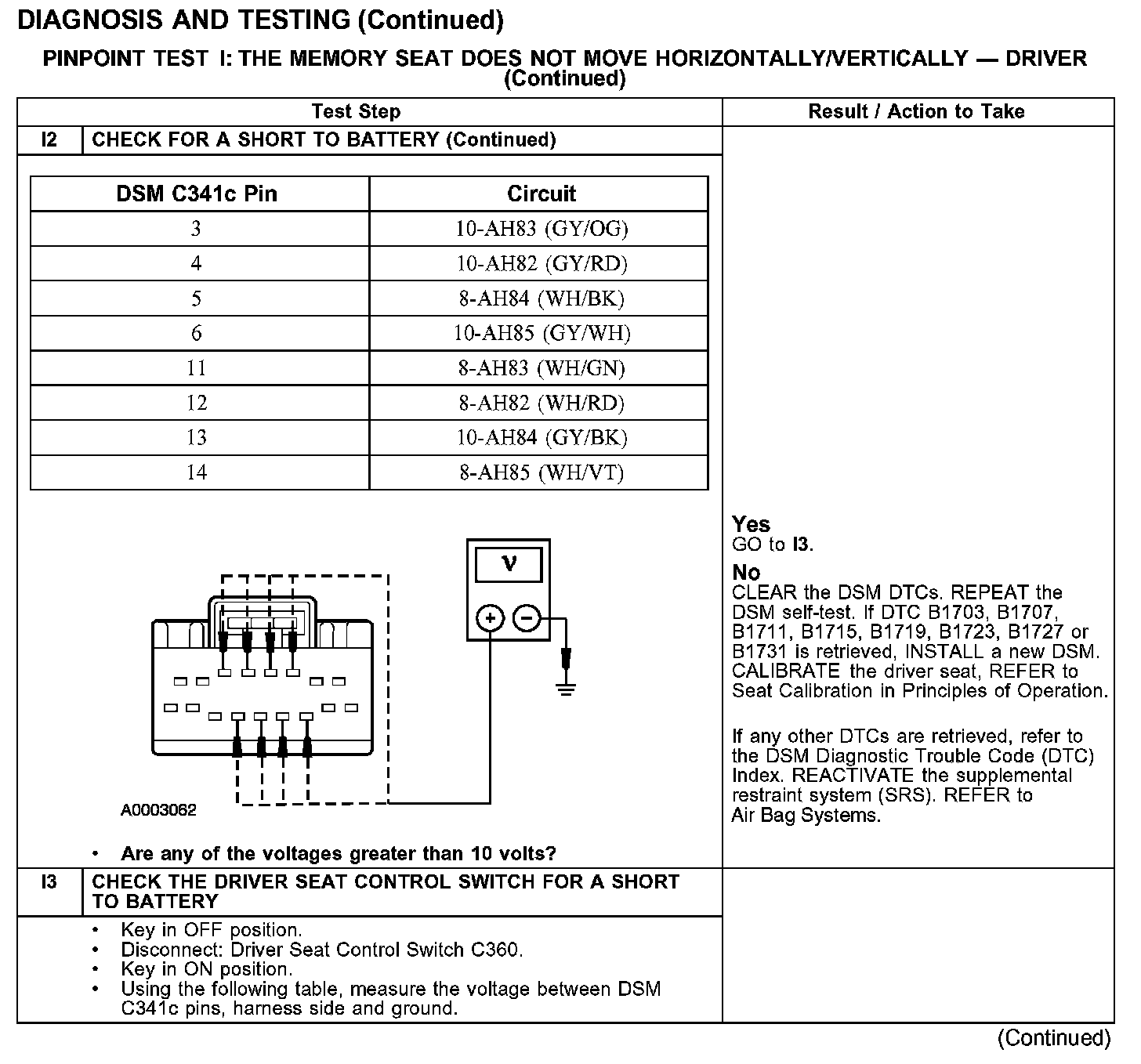

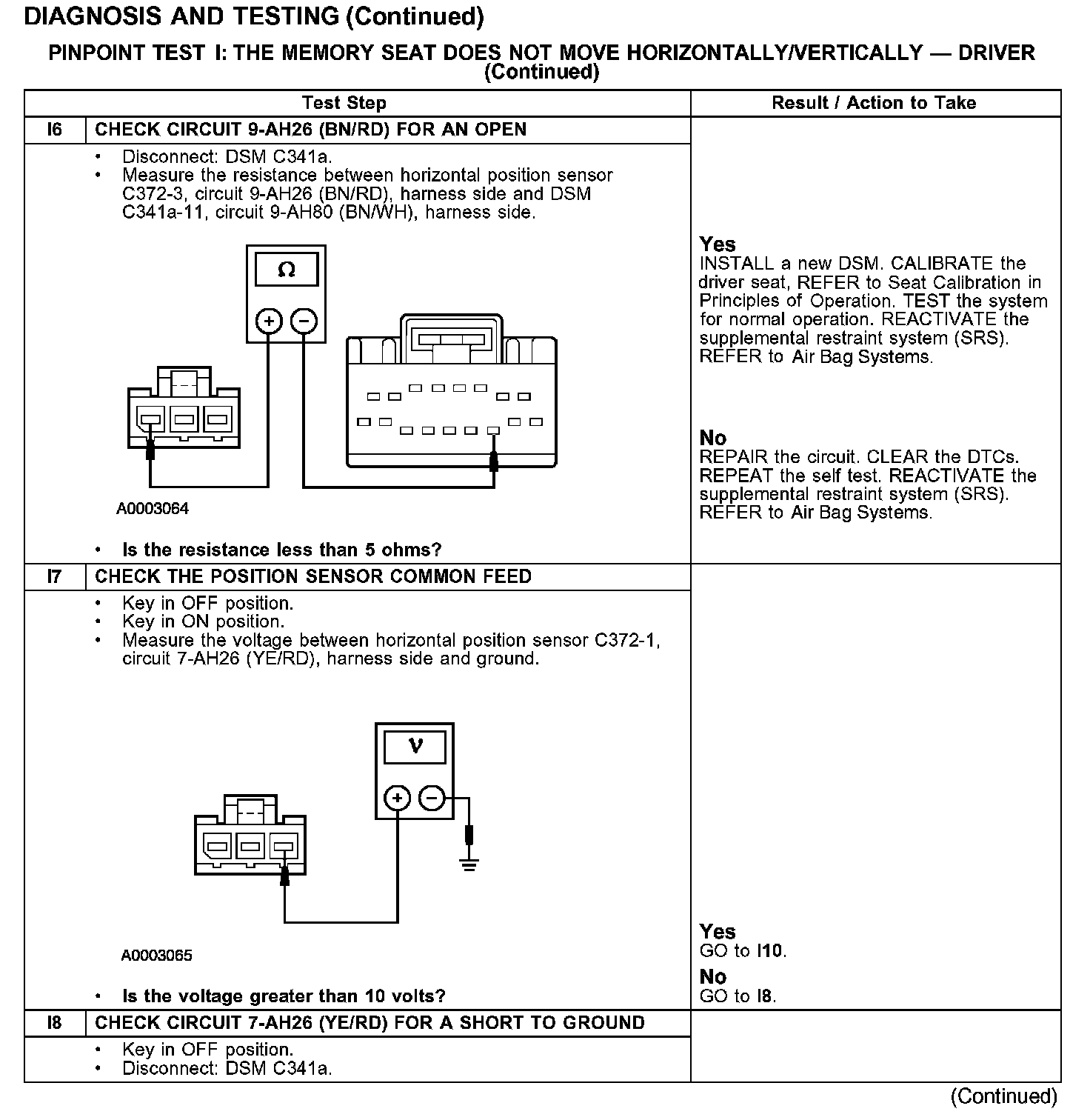

PINPOINT TEST I: THE MEMORY SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - DRIVER

Test I1-I2:

Test I2-I3:

Test I3-I5:

Test I6-I8:

Test I8-I11:

Test I11-I13:

Test I13-I15:

Test I15-I17:

Test I17-I19:

Test I19-I21:

Test I21-I23:

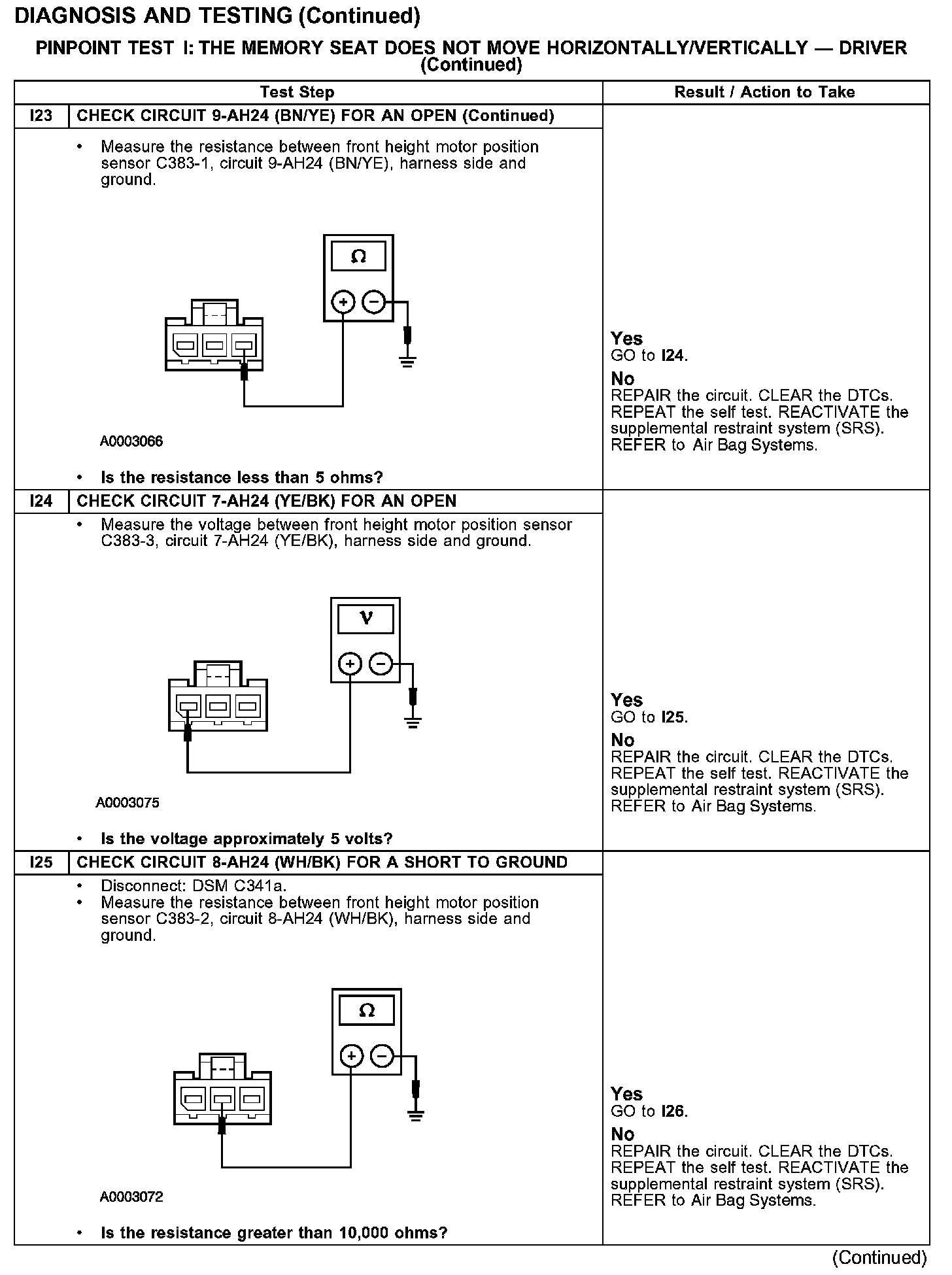

Test I23-I25:

Test I26-I27:

Test I28-I29:

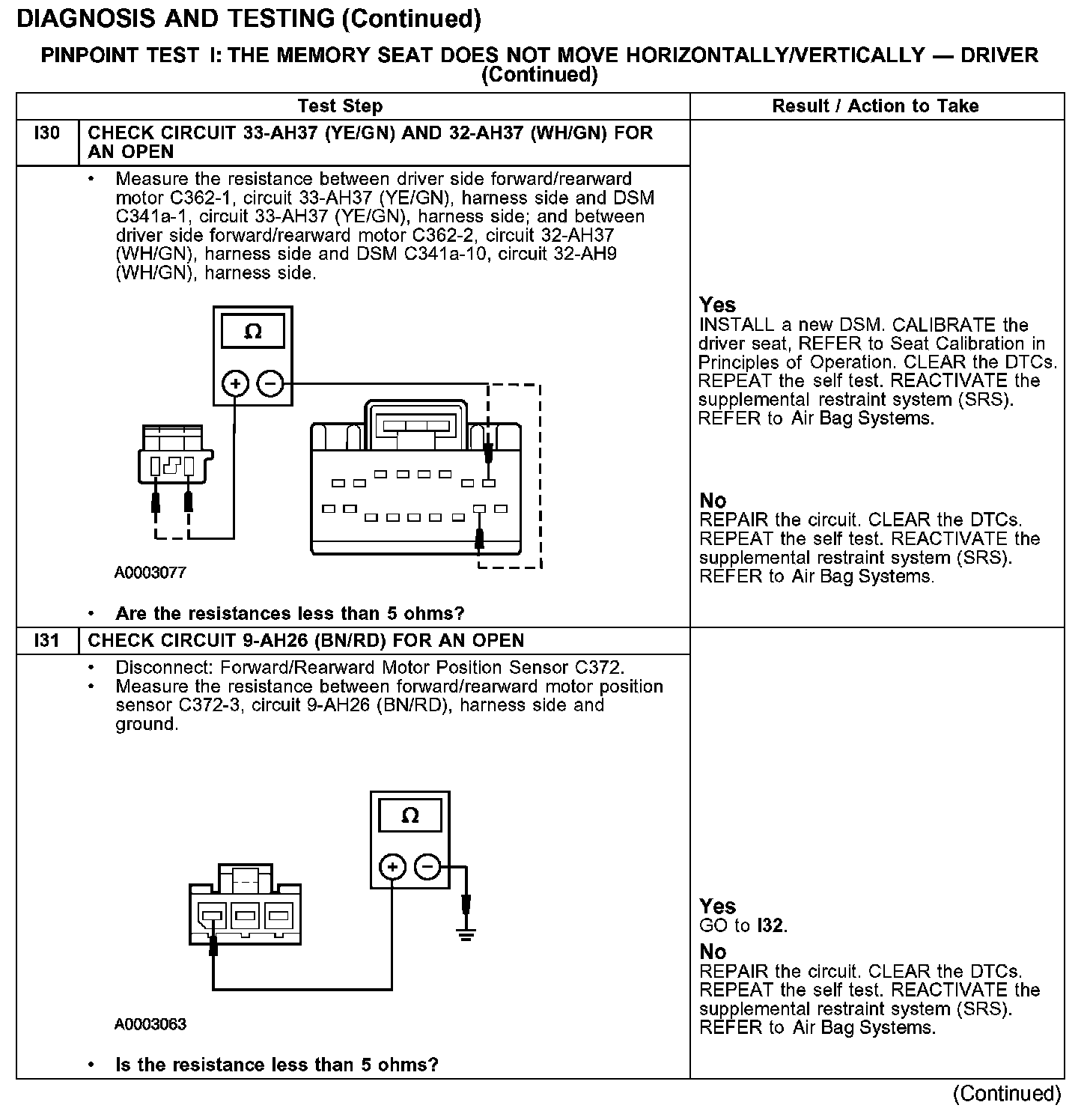

Test I30-I31:

Test I32-I34:

Test I35-I37:

Test I37-I39:

Test I39-I41:

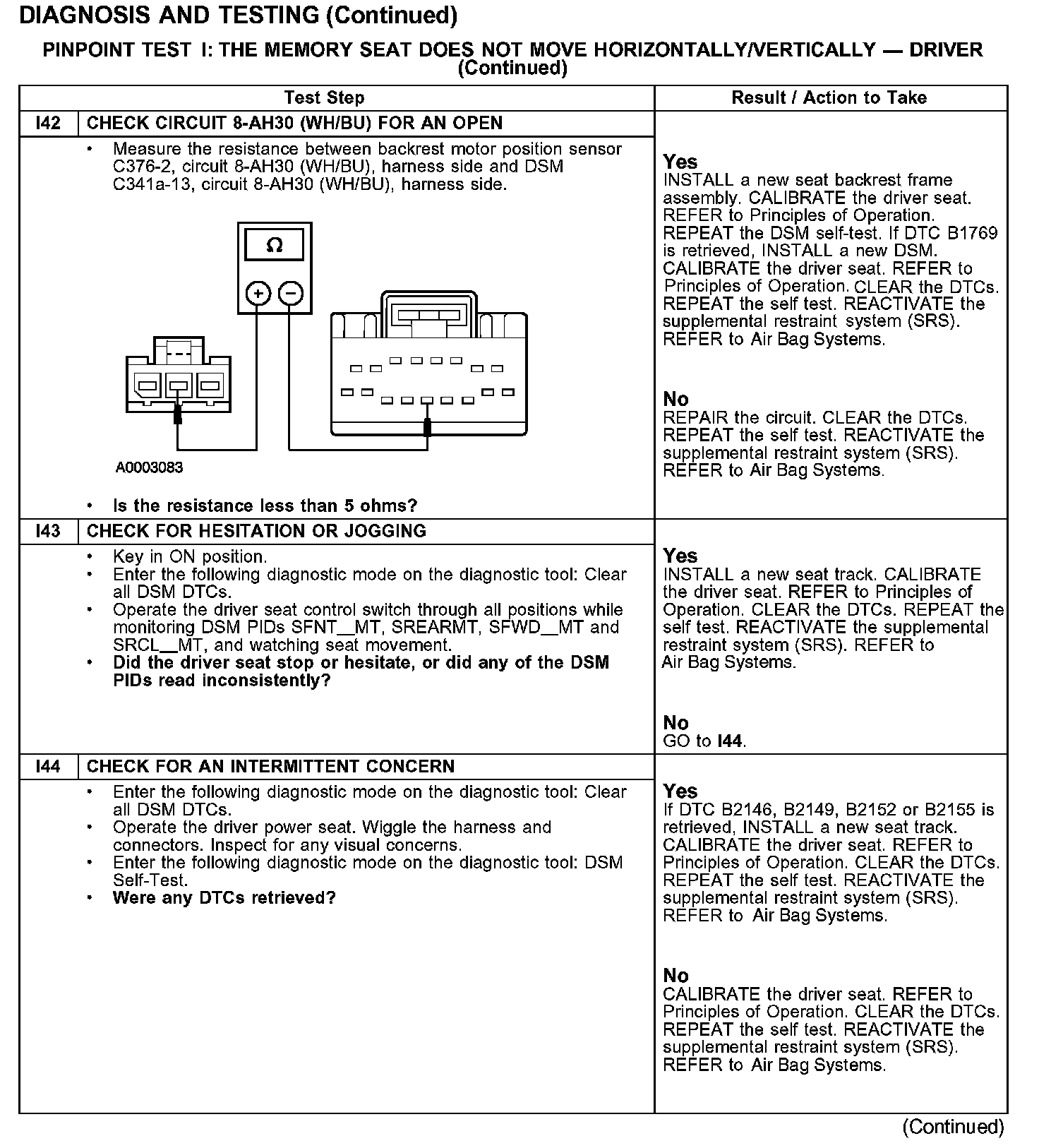

Test I42-I44:

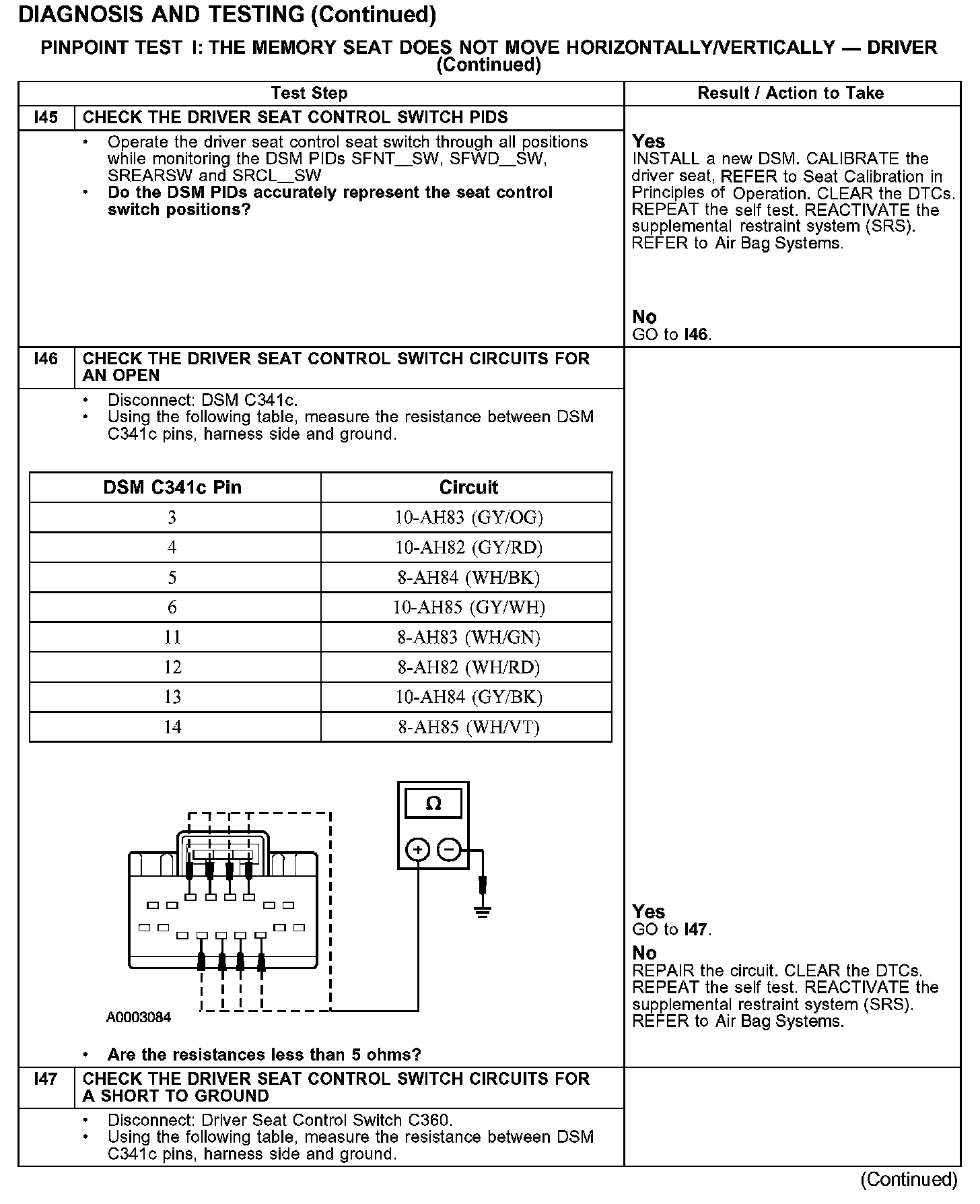

Test I45-I47:

Test I47 Continued:

Normal Operation
The power seat switch is powered by battery voltage to driver seat control switch circuit 29-AH35 (OG/YE) and is supplied ground on driver circuit 91-AH35 (BN). When pressed, the power seat switch supplies the voltage and ground to the driver seat module (DSM). The DSM then supplies voltage and ground to the appropriate power seat track motor based on the inputs received from the seat control switch. When pressed in the opposite direction, the power seat switch reverses the polarity to the DSM, which moves the seat in the opposite direction. There are three power seat track motors that combine to move the seat horizontally (forward/reverse) and vertically (front up/down and rear up/down). The power recliner cannot be repaired separately. If the power recliner needs to be repaired, an entirely new front seat backrest frame must be installed.

Possible Causes
A memory seat that does not move horizontally/vertically can be caused by:
- a fuse.
- wiring, terminals, or connectors.
- a faulty memory set switch.
- a faulty power seat track motor position sensor.
- a faulty DSM.
