Yaw Rate Sensor: Service and Repair
Yaw Rate Sensor1. Disconnect the battery.
2. Remove the front floor console cup holder.

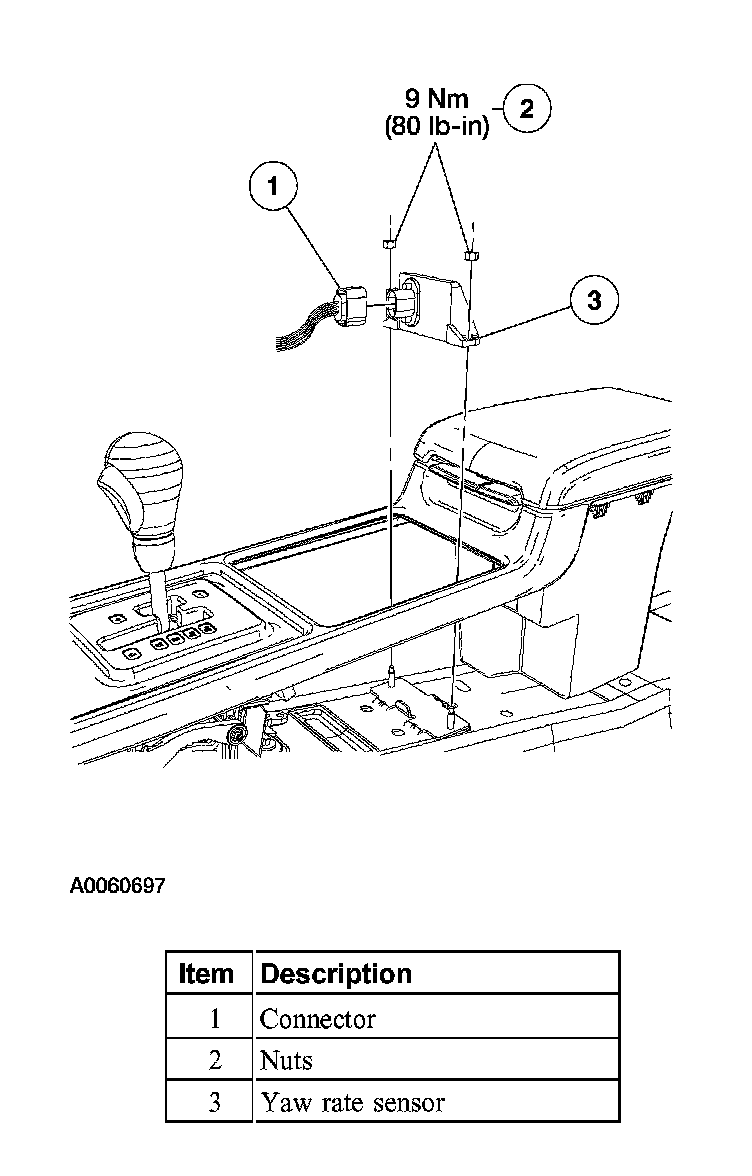

3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
1. Disconnect the battery.
2. Remove the front floor console cup holder.
3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
