Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 55 >> 55-1 to 55-3

55-1 to 55-3

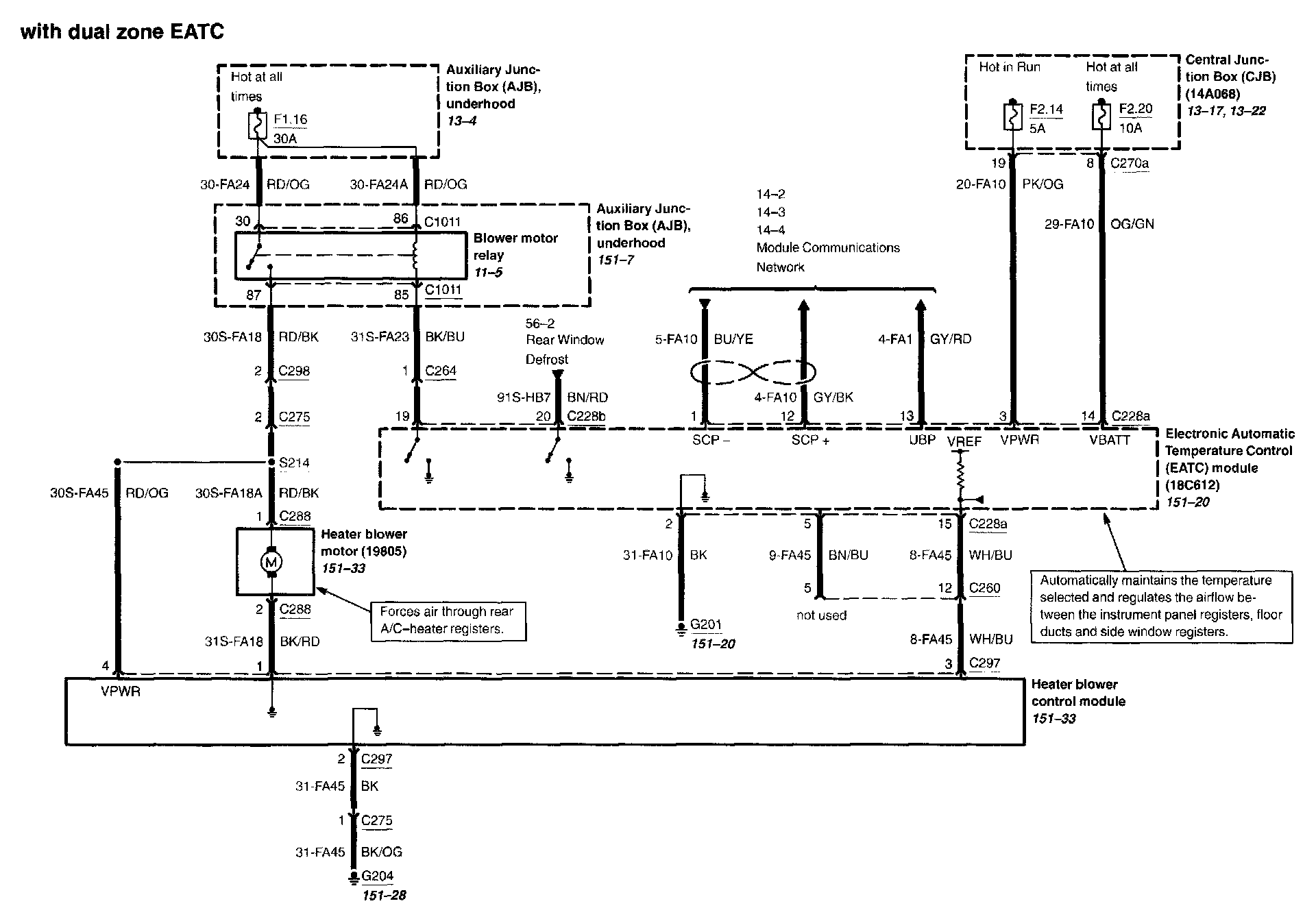

55-1:



55-2:



55-3:
