Automatic Transmission/Transaxle

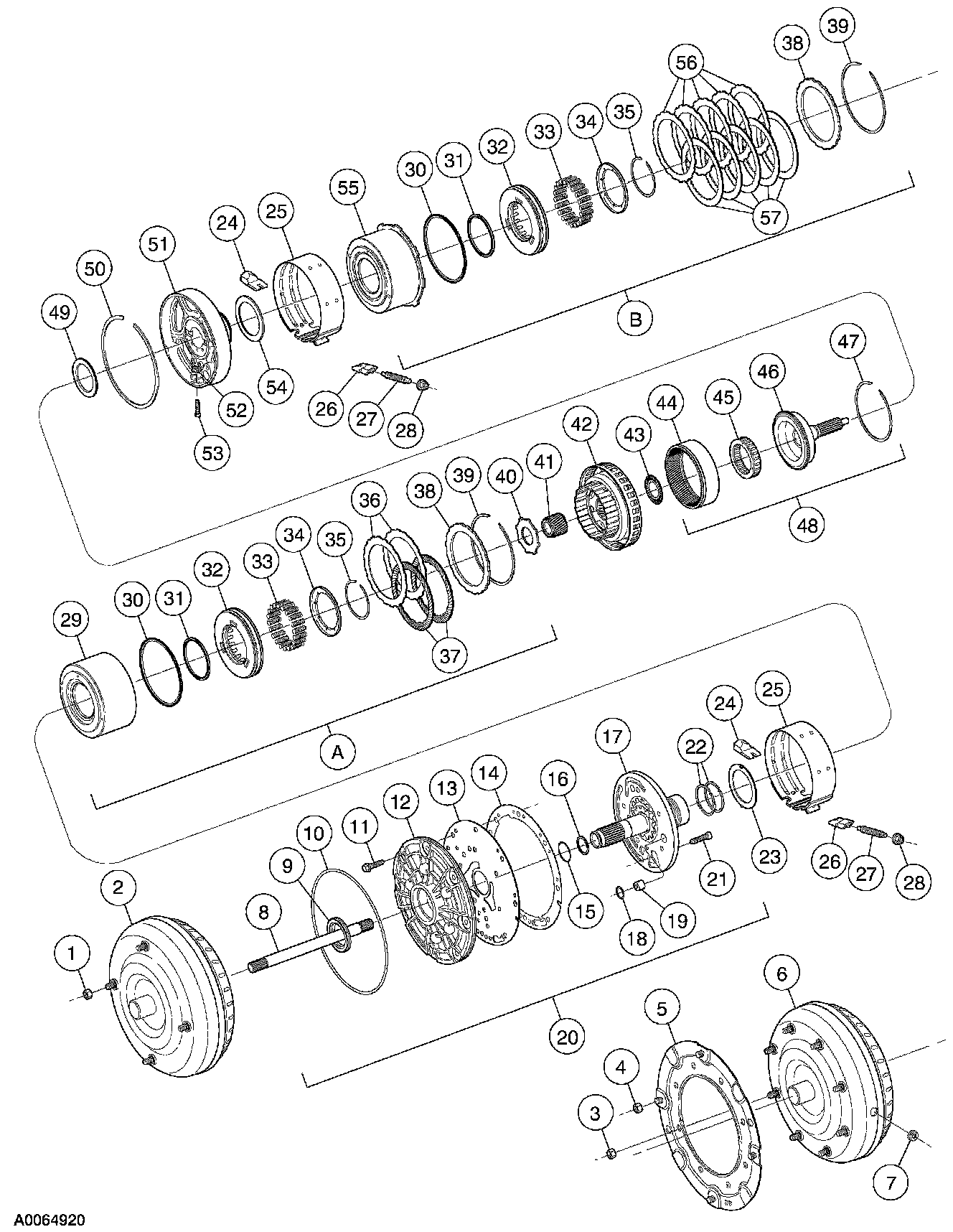

Part 1 Of 6:

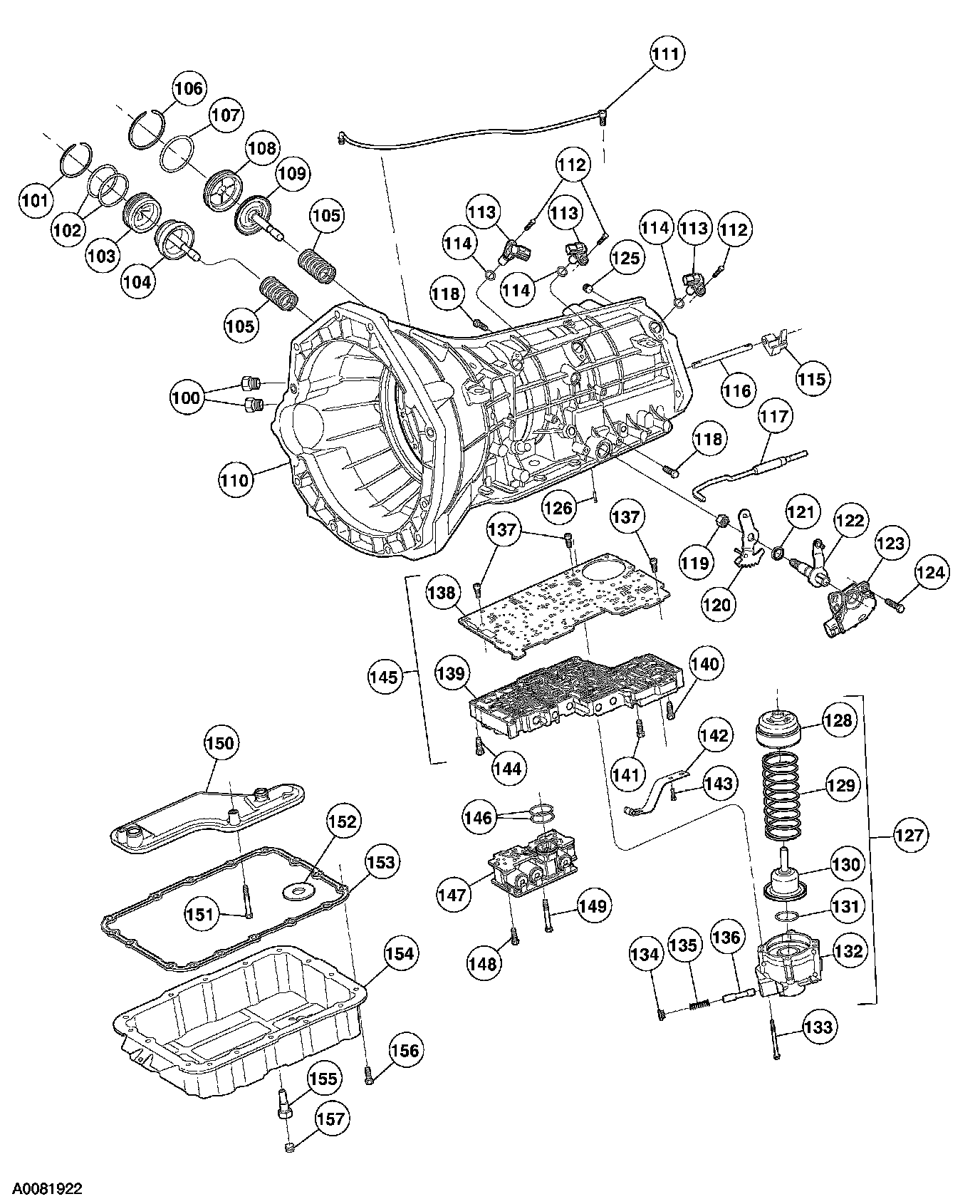

Part 2 Of 6:

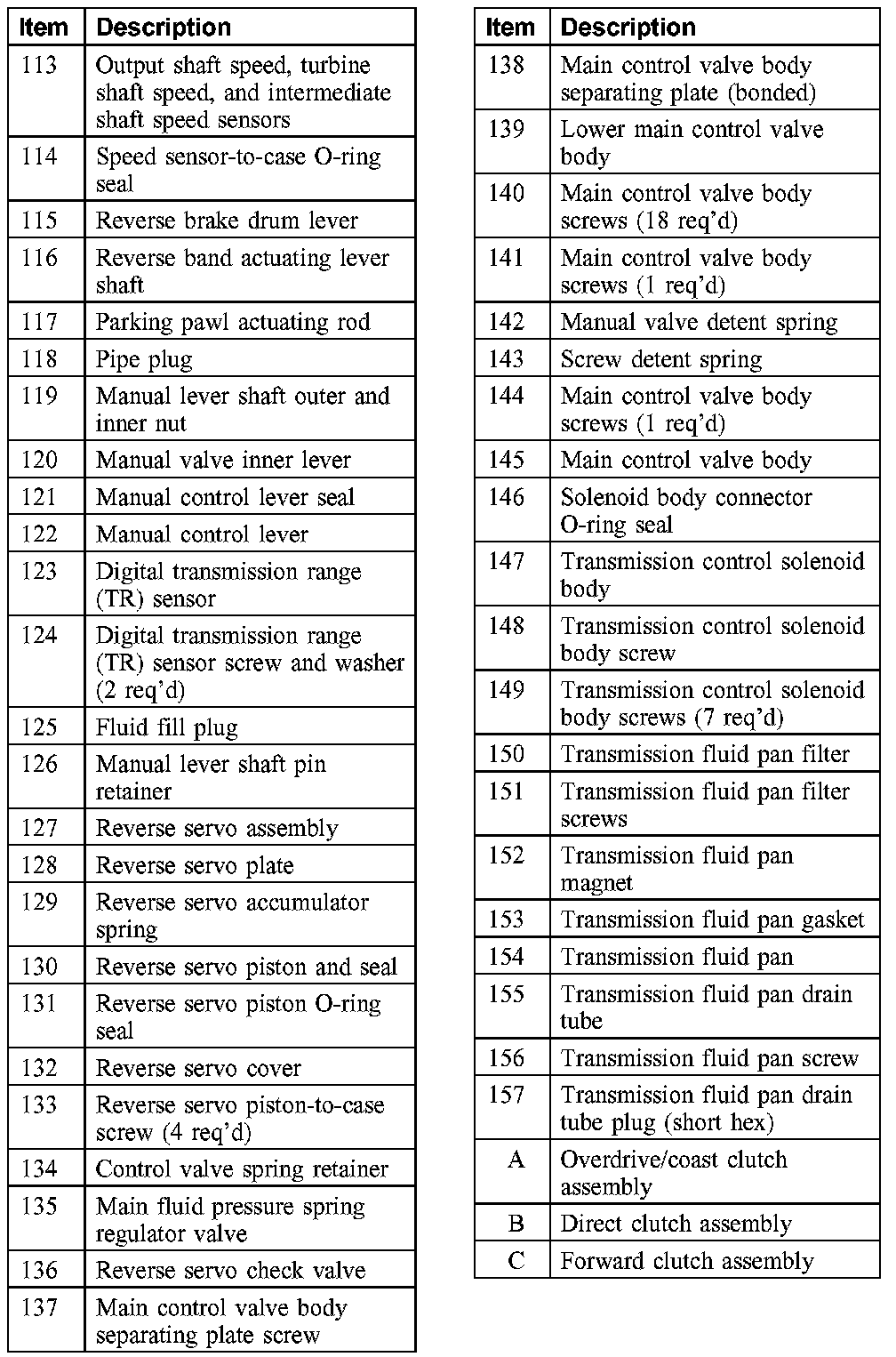

Part 3 Of 6:



Part 4 Of 6:



Part 5 Of 6:



Part 6 0f 6:
