Air Register: Service and Repair

INSTRUMENT PANEL REGISTERS

REMOVAL

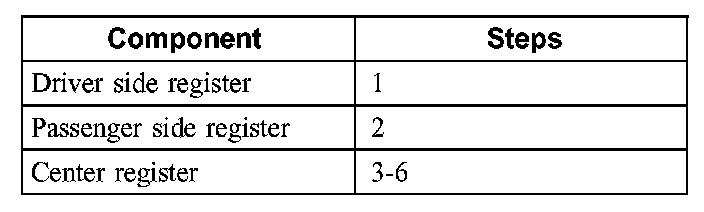

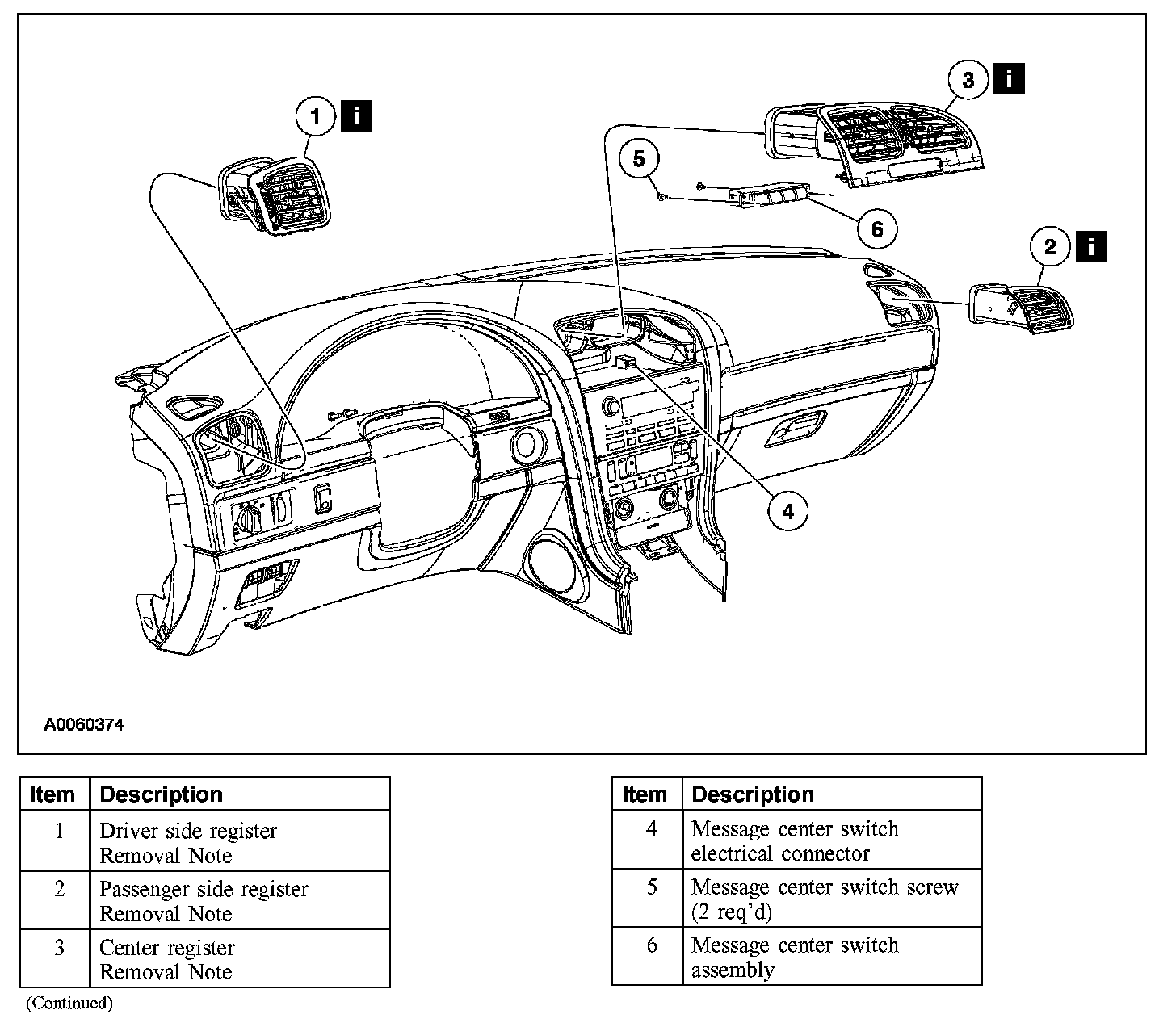

1. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the steps.

Item 1-2: Driver Side and Passenger Side Register Removal Note

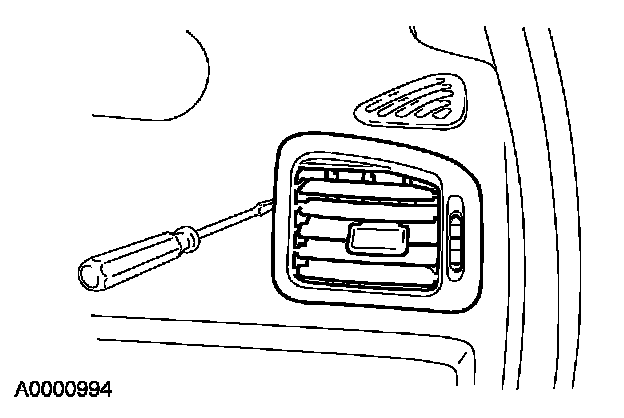

1. Depress the inboard side tab with a flat blade tool. Pull the register rearward, depress the outboard tab and remove the register.

Item 3: Center Register Removal Note







1. Insert a mini-pick in the pocket and pull the register from the instrument panel.

INSTALLATION
1. To install, reverse the removal procedure.
