Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Connector Circuit Reference >> Jet Pump Module C434

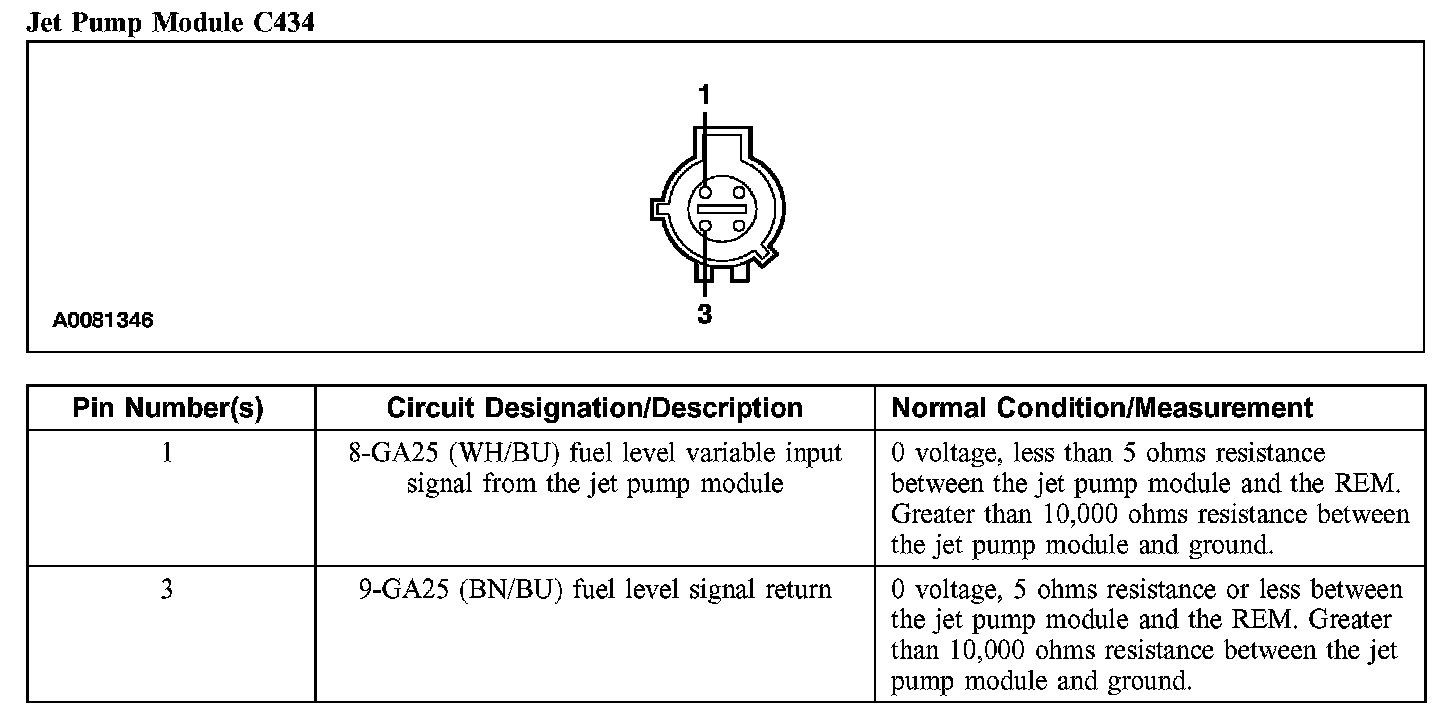

Jet Pump Module C434

Jet Pump Module C434:
