Lincoln
>>
2004
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Diagnostic Schematic and Connector Information
>>
Window Control Switch
>>
Power Window Switch LR C701, RR C801
Power Window Switch LR C701, RR C801

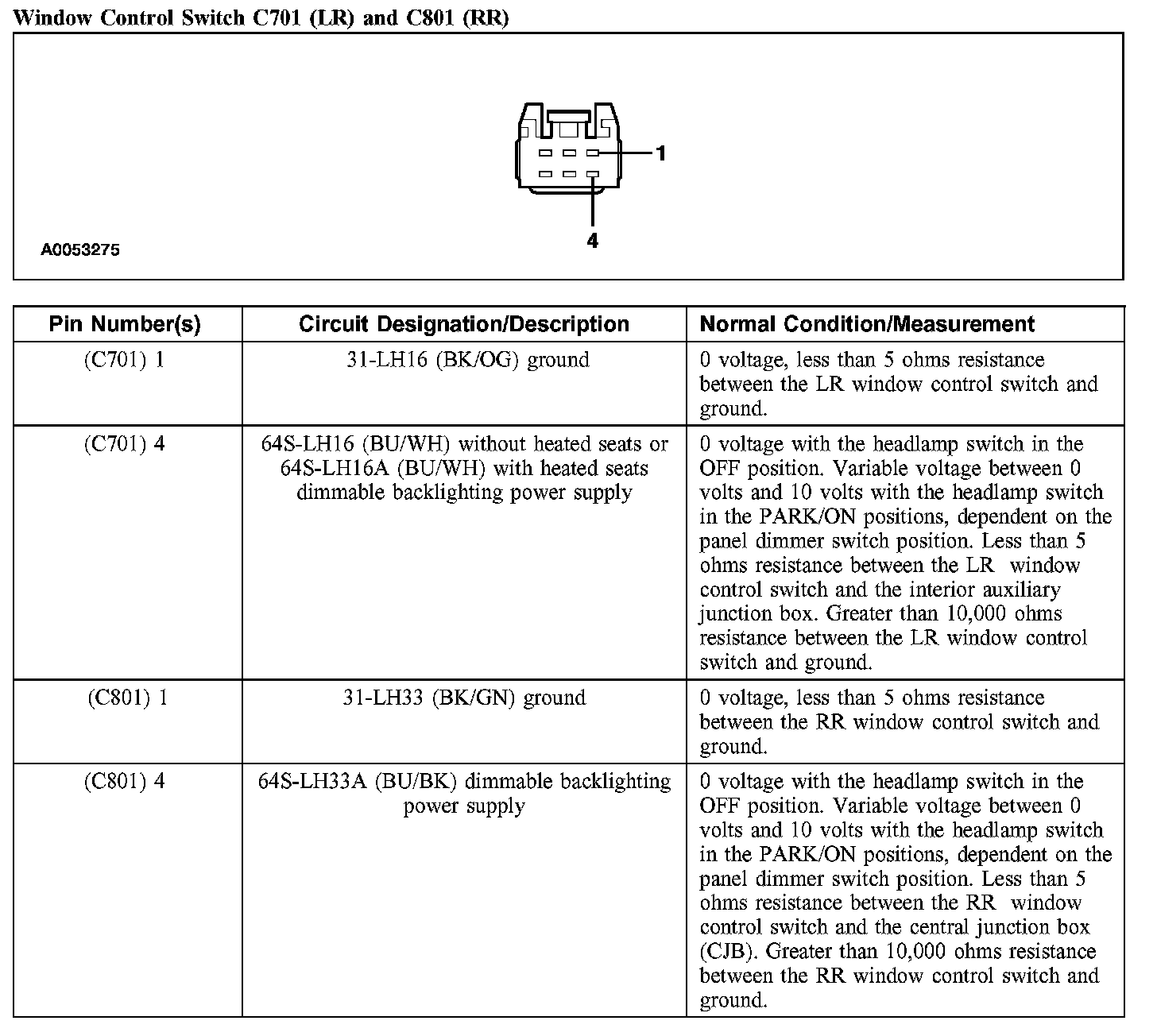

Window Control Switch C701 (LR) And C801 (RR):
