Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Maintenance >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Specifications

Fuel Pressure: Specifications

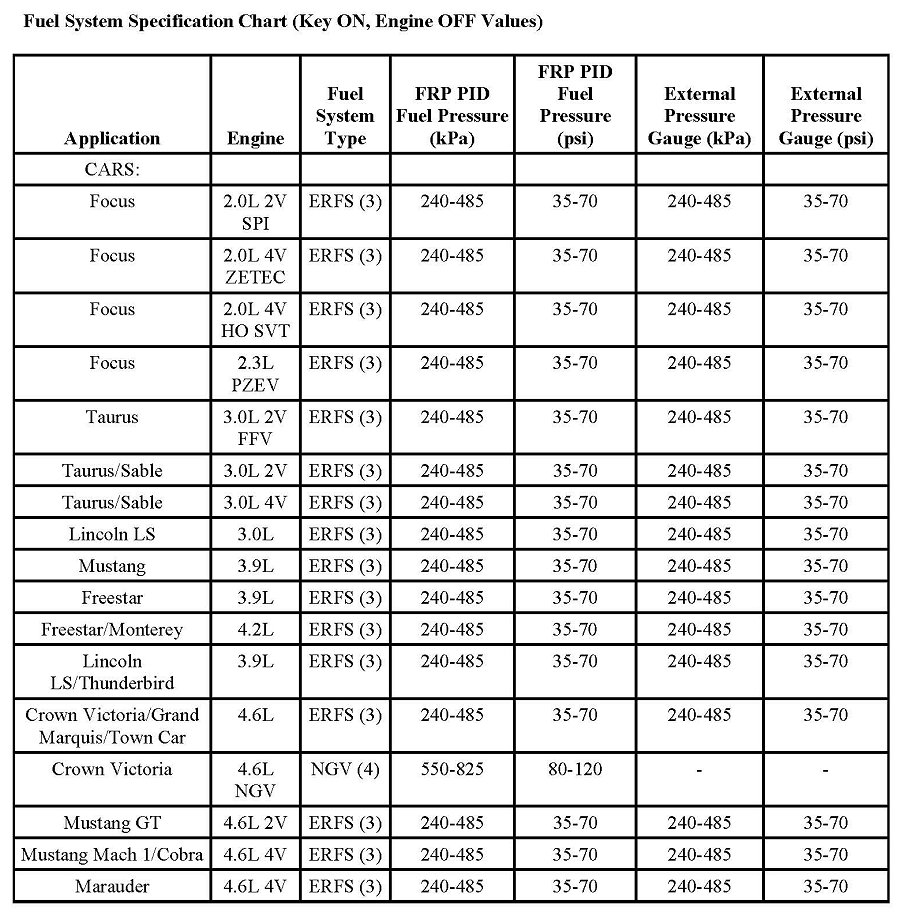

Fuel System Pressure Chart (1 Of 2):

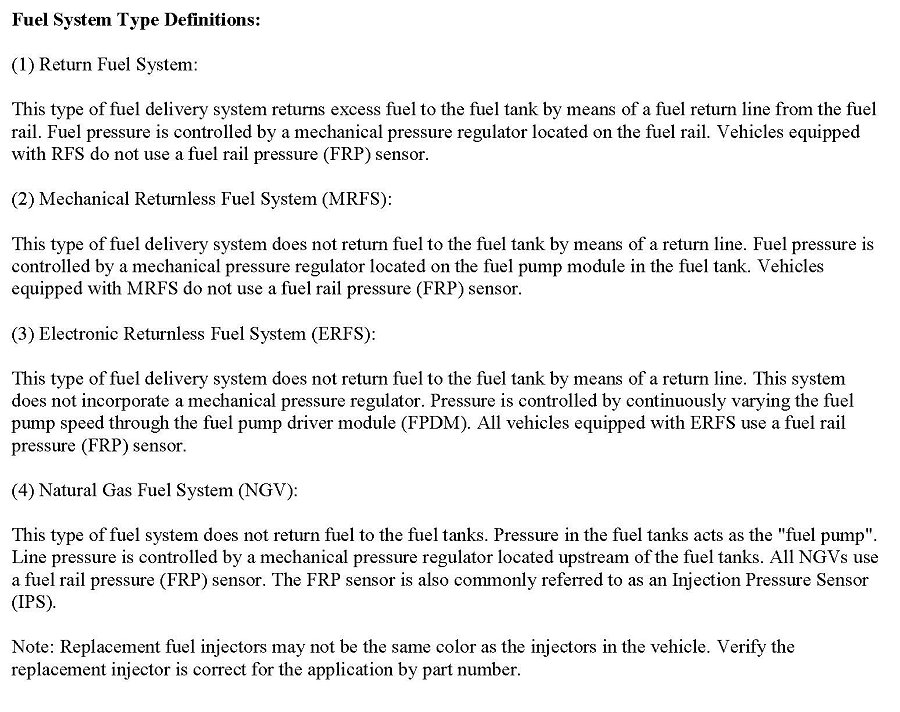

Fuel System Pressure Chart (2 Of 2):
