Diagnostic Trouble Code Tests and Associated Procedures

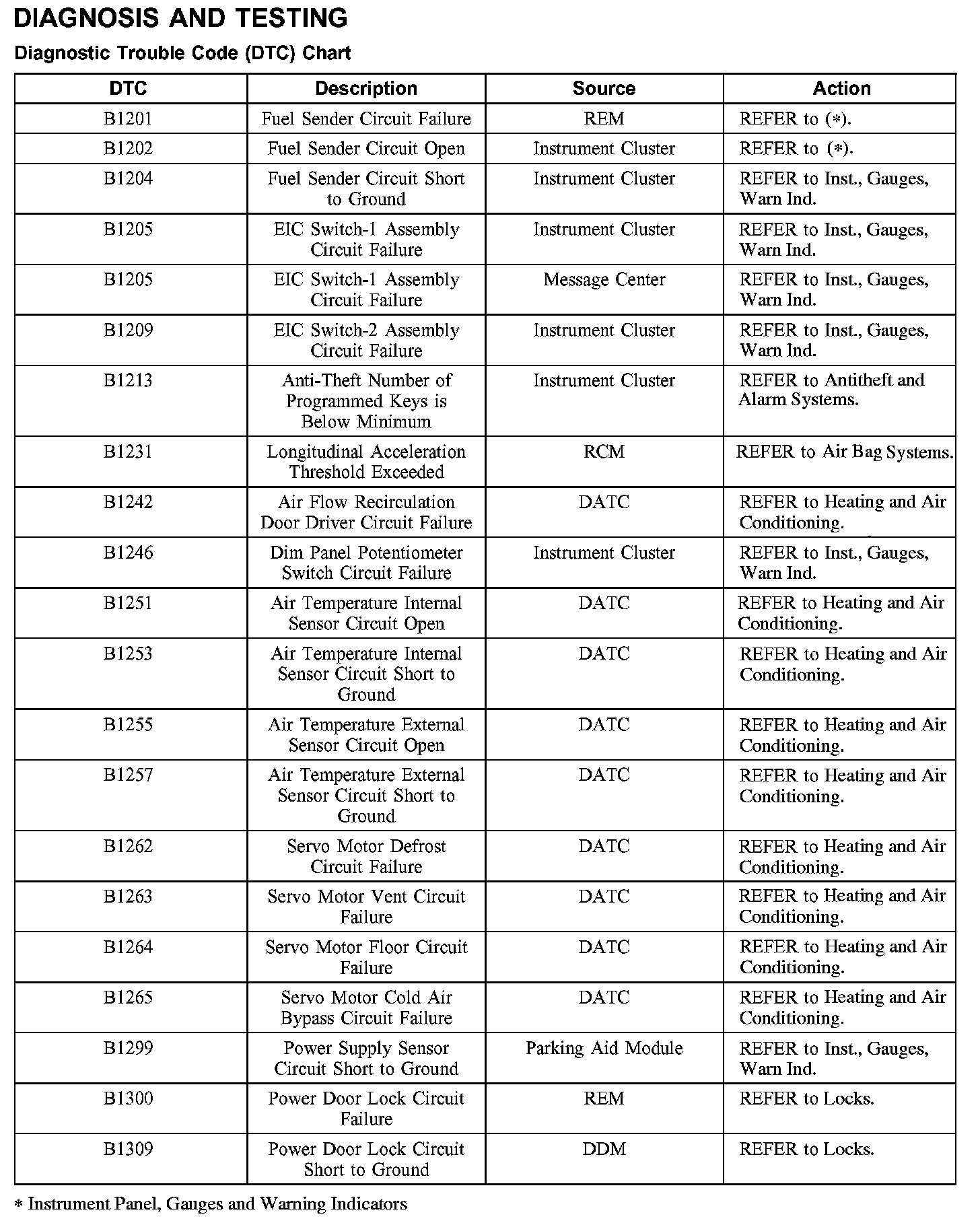

DTC Chart B1201 - B1309:

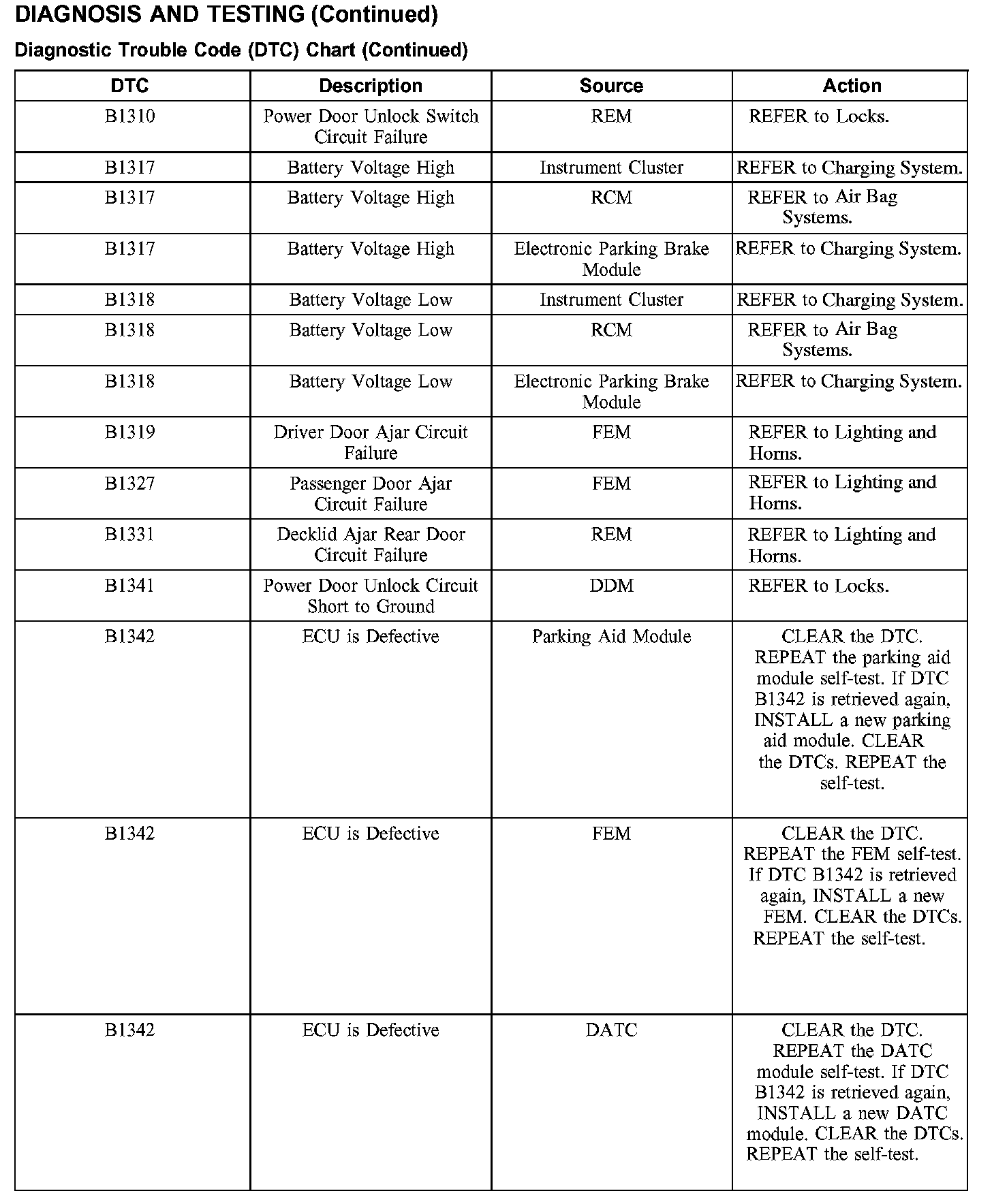

DTC Chart B1310 - B1342:

DTC Chart B1342 - B1342:

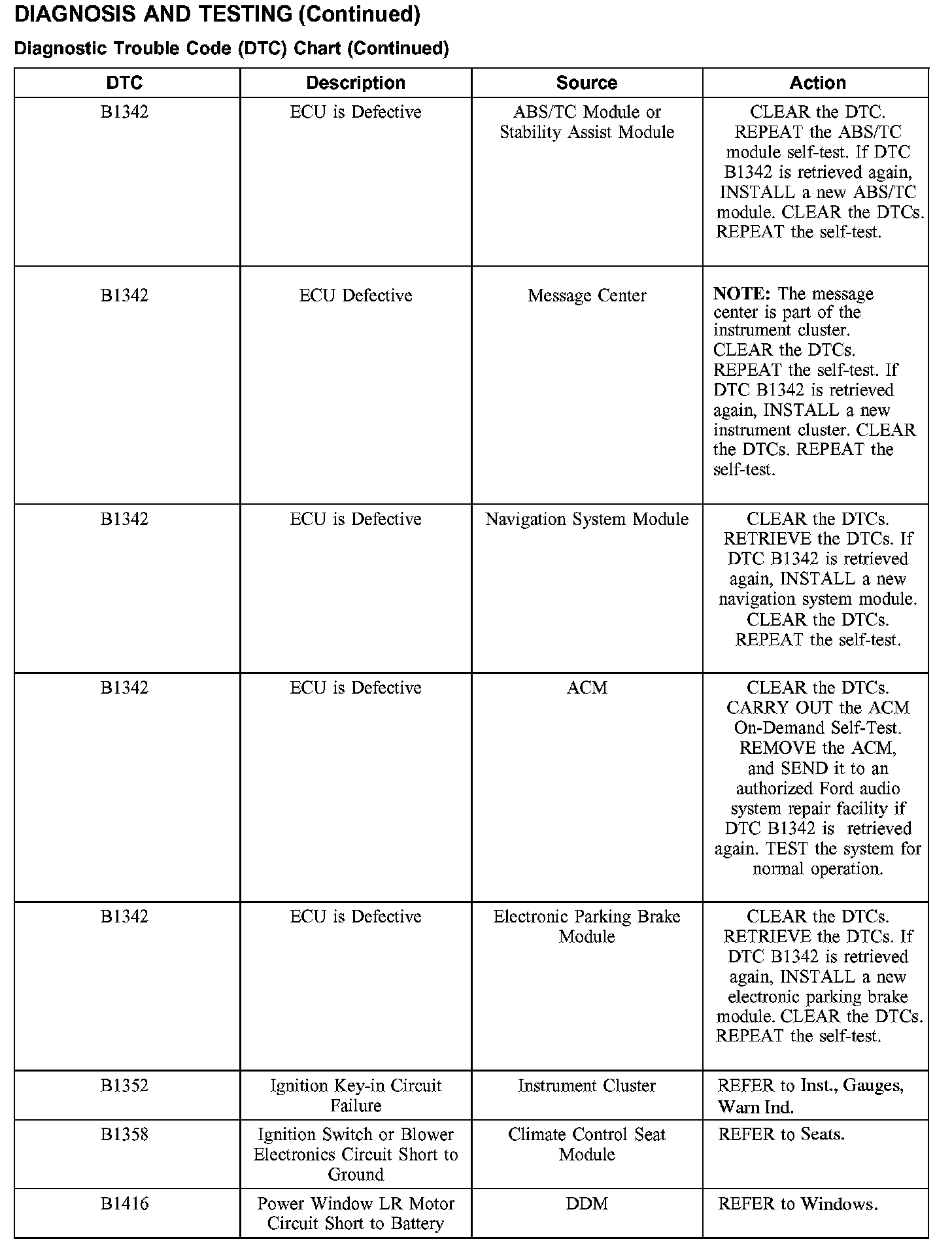

DTC Chart B1342 - B1416:

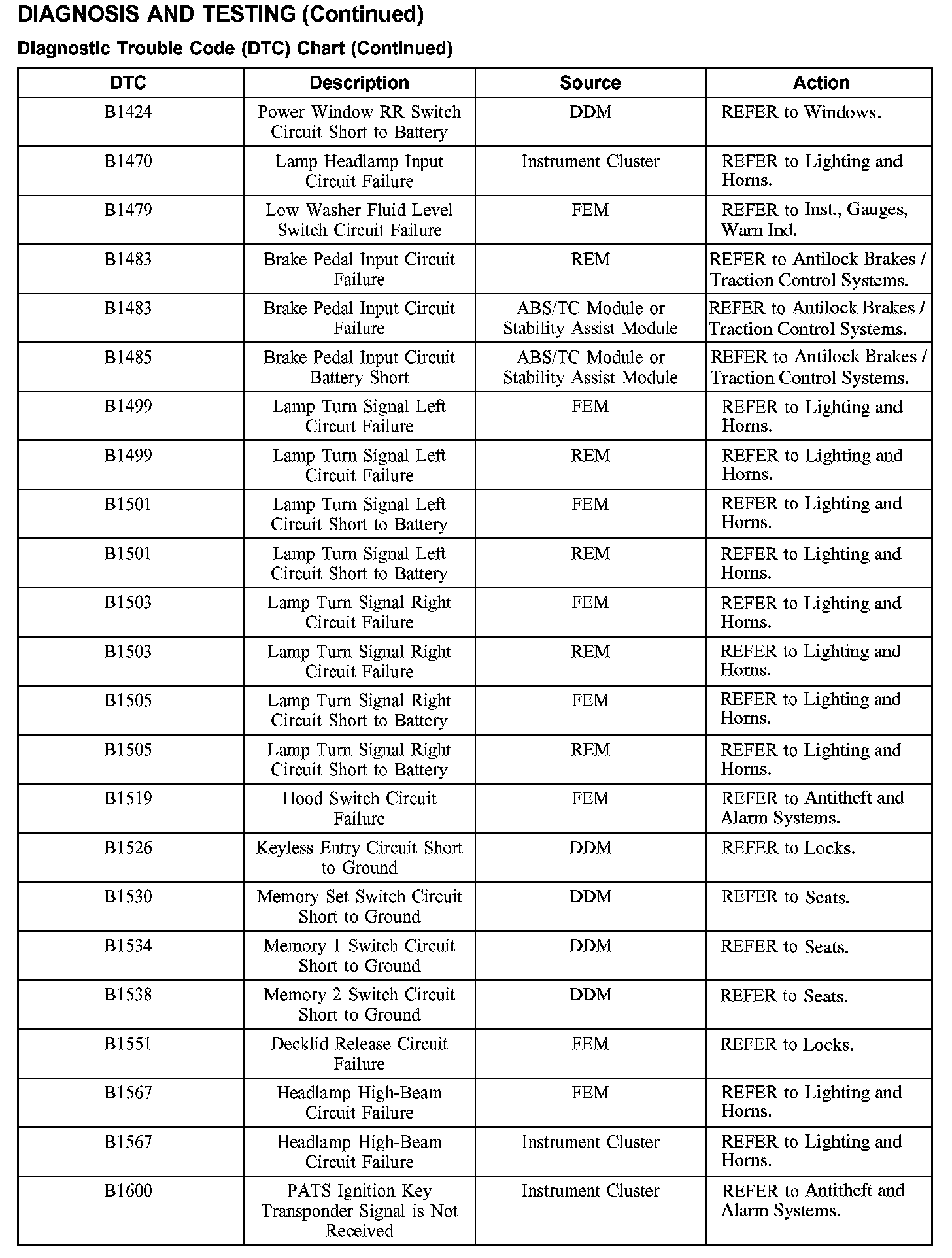

DTC Chart B1424 - B1600:

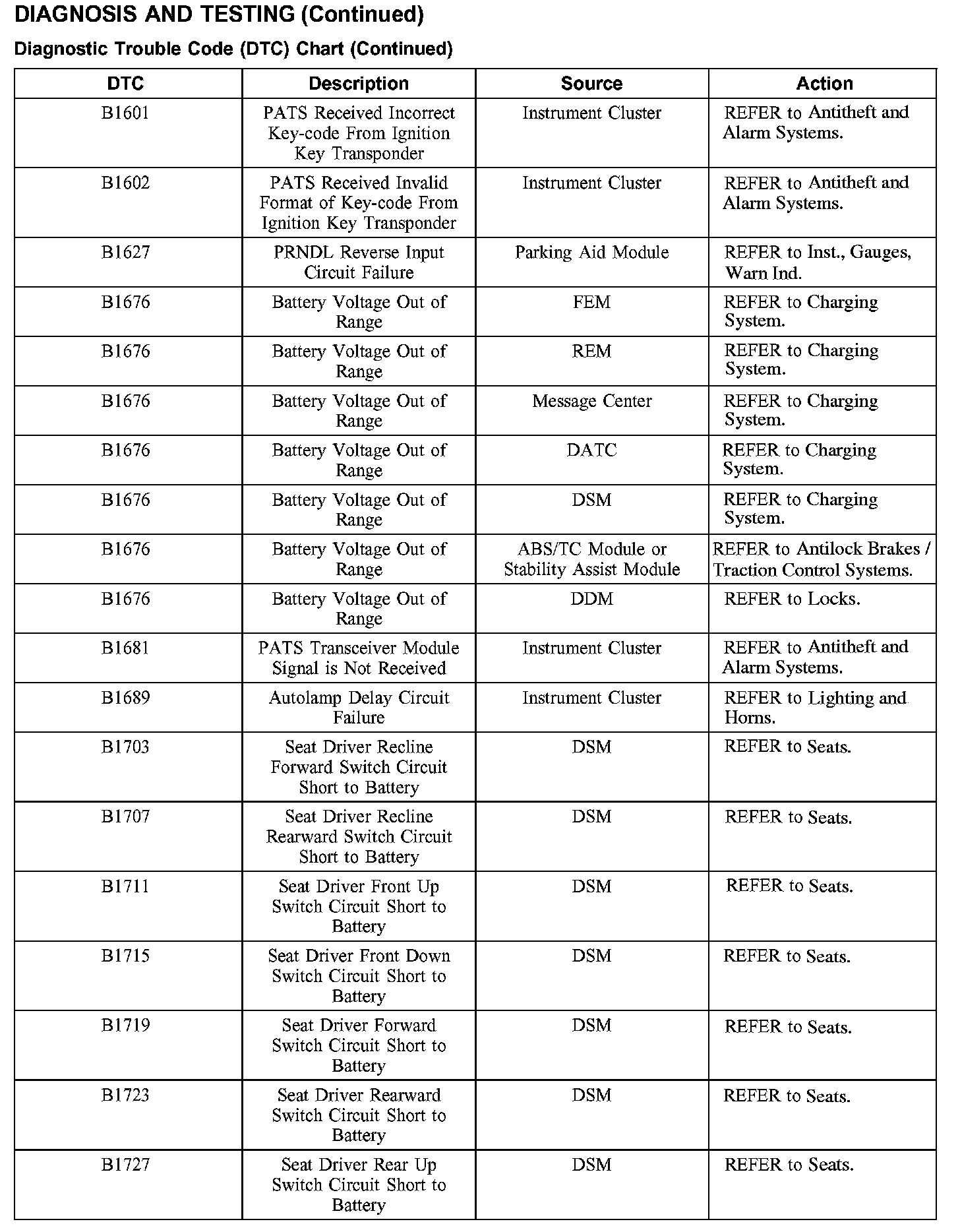

DTC Chart B1601 - B1727:

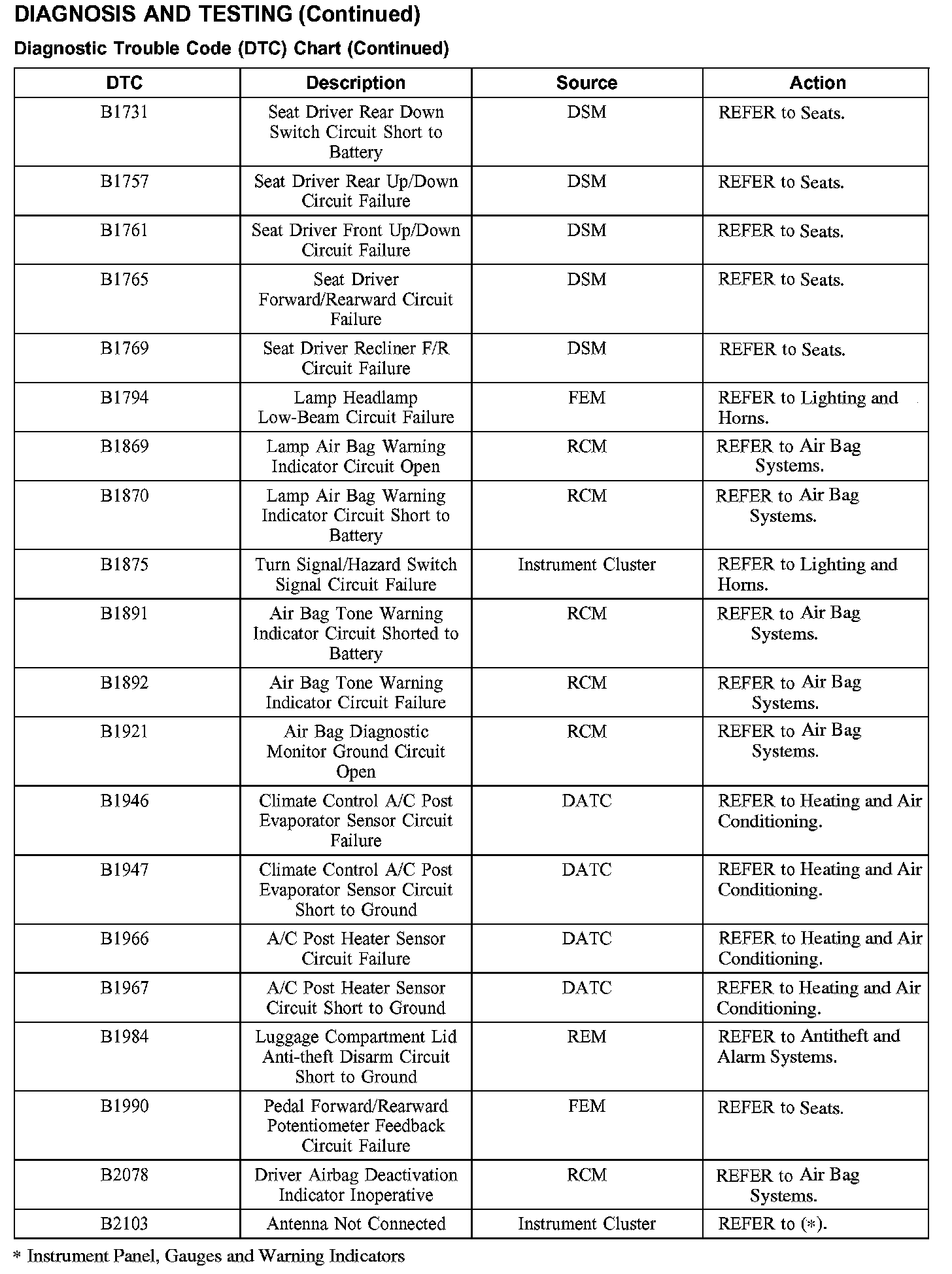

DTC Chart B1731 - B2103:

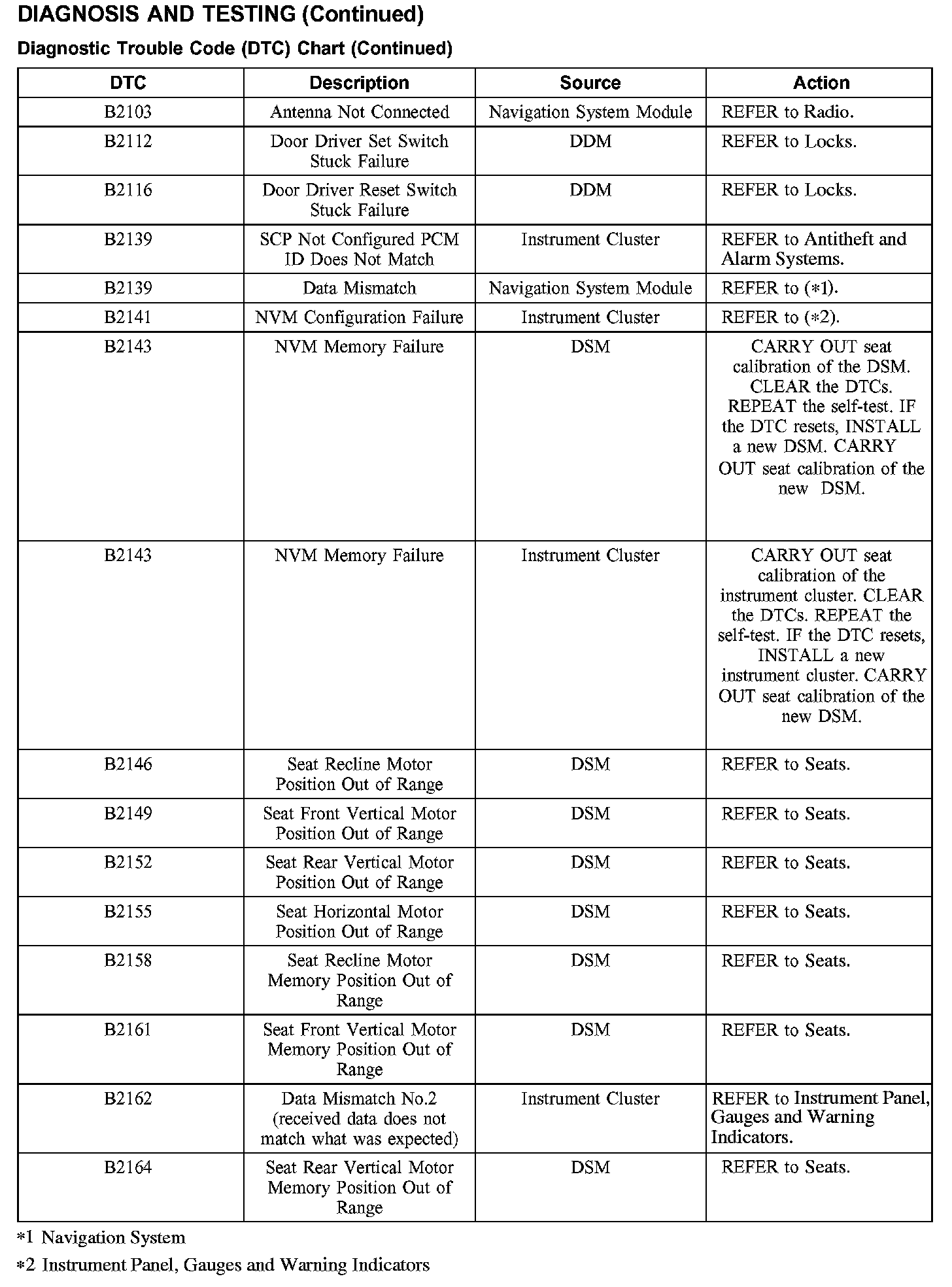

DTC Chart B2103 - B2164:

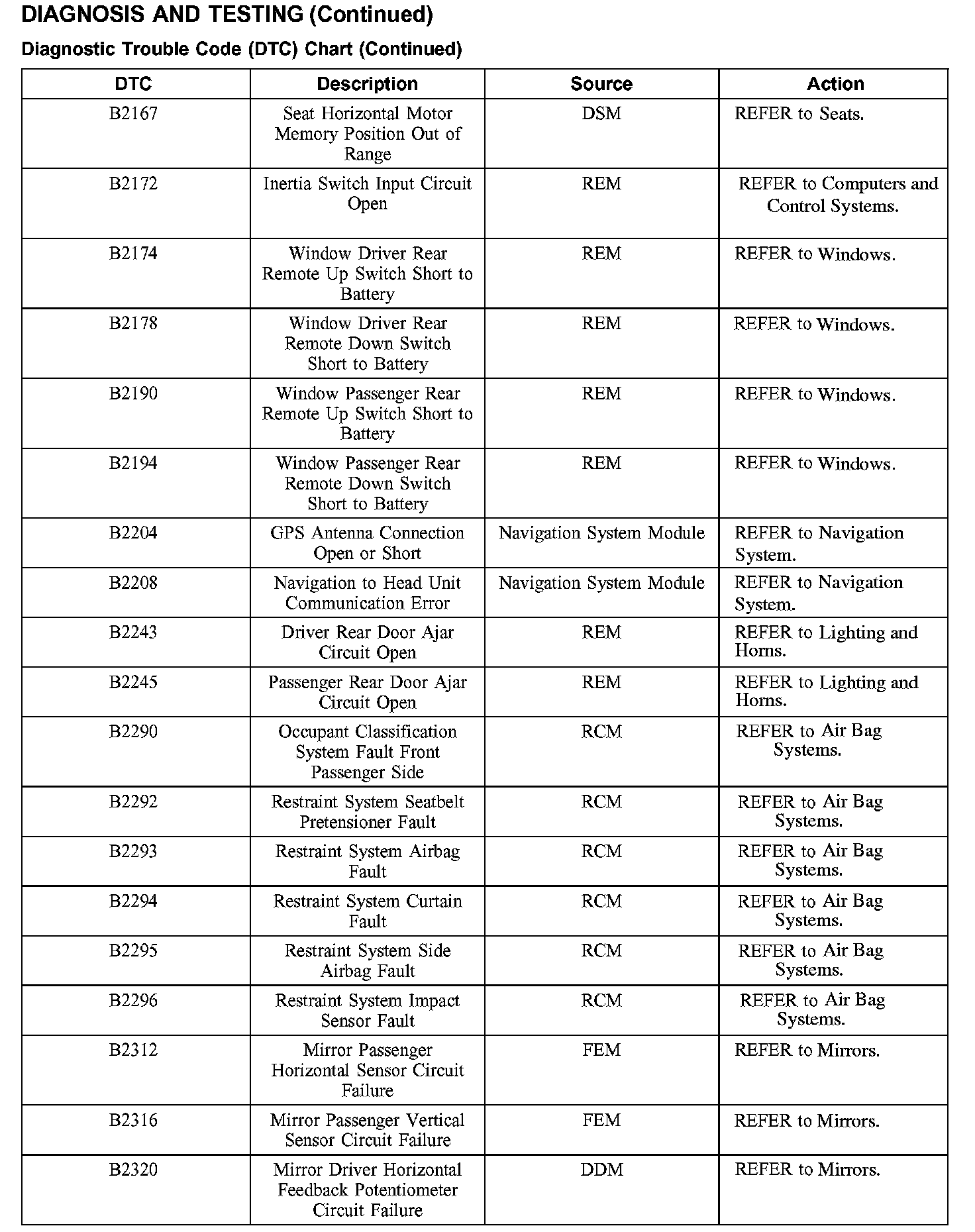

DTC Chart B2167 - B2320:

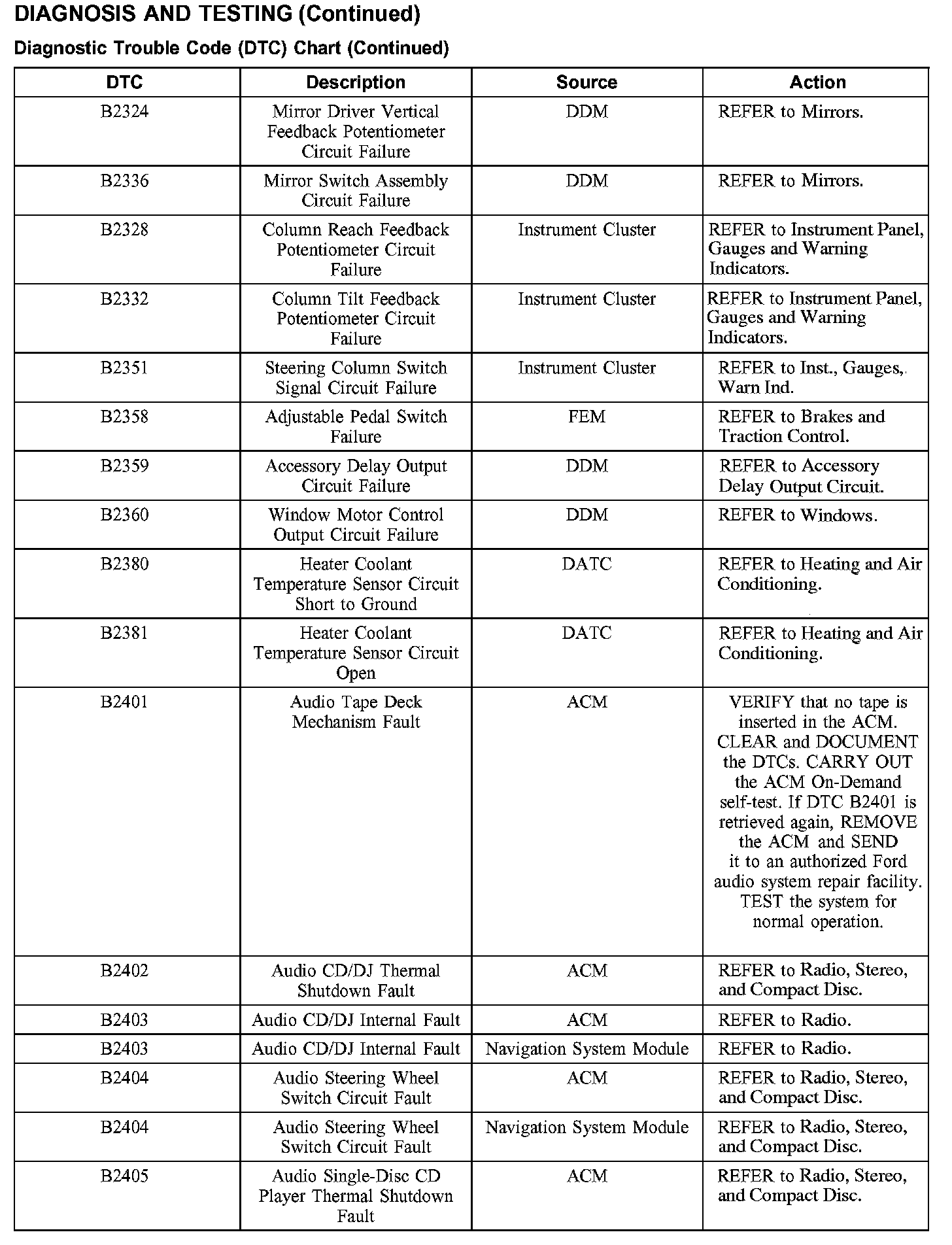

DTC Chart B2324 - B2405:

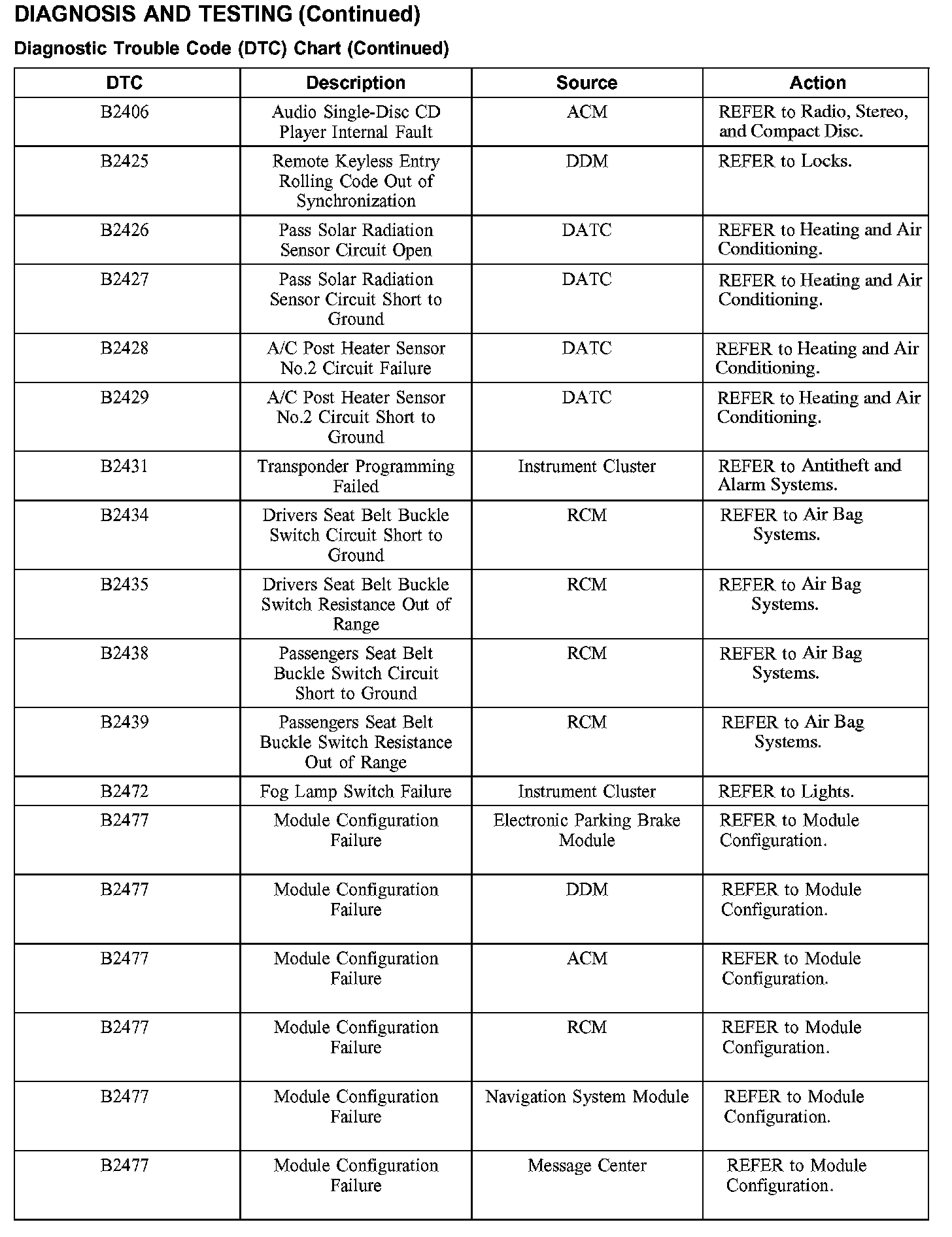

DTC Chart B2406 - B2477:

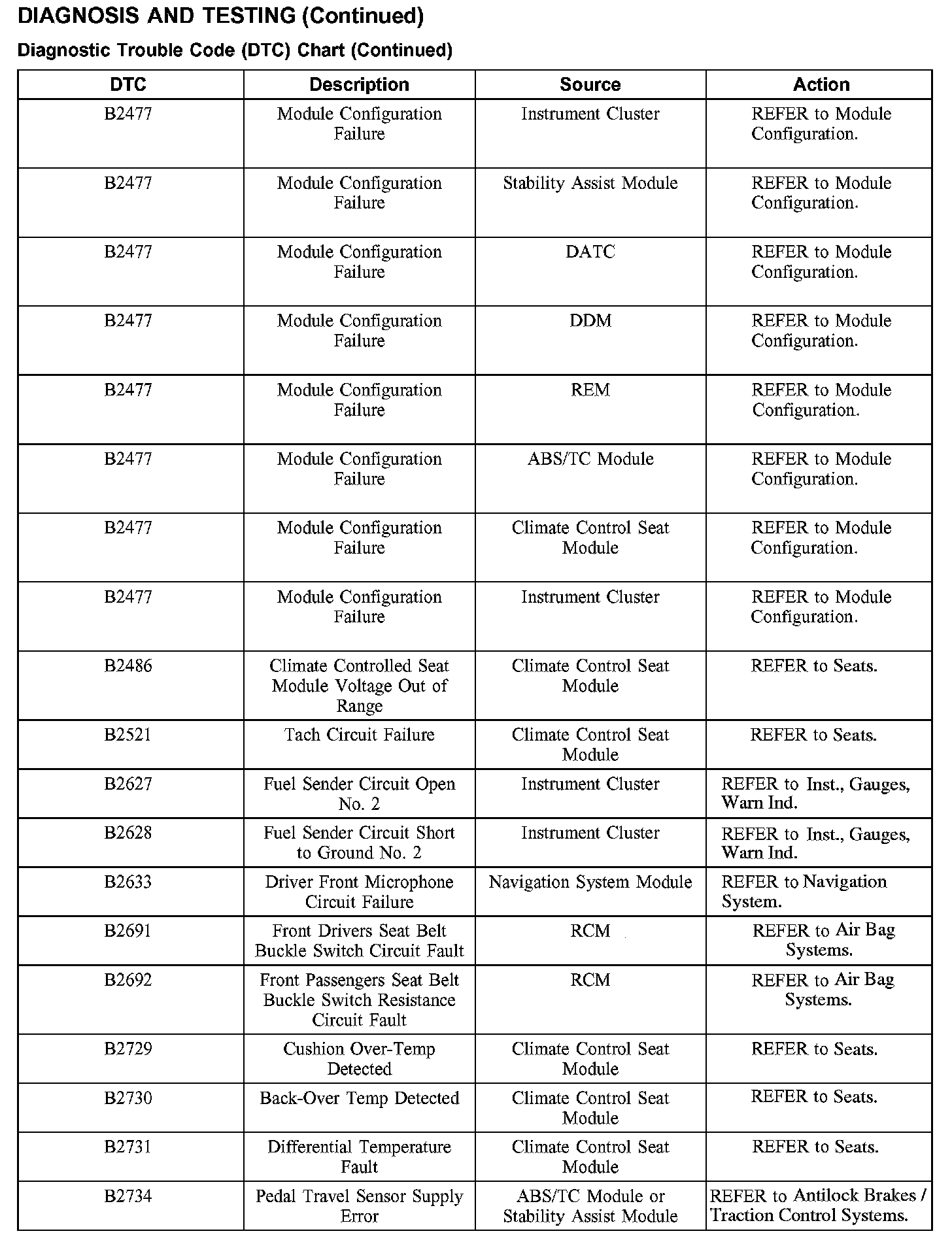

DTC Chart B2477 - B2734:

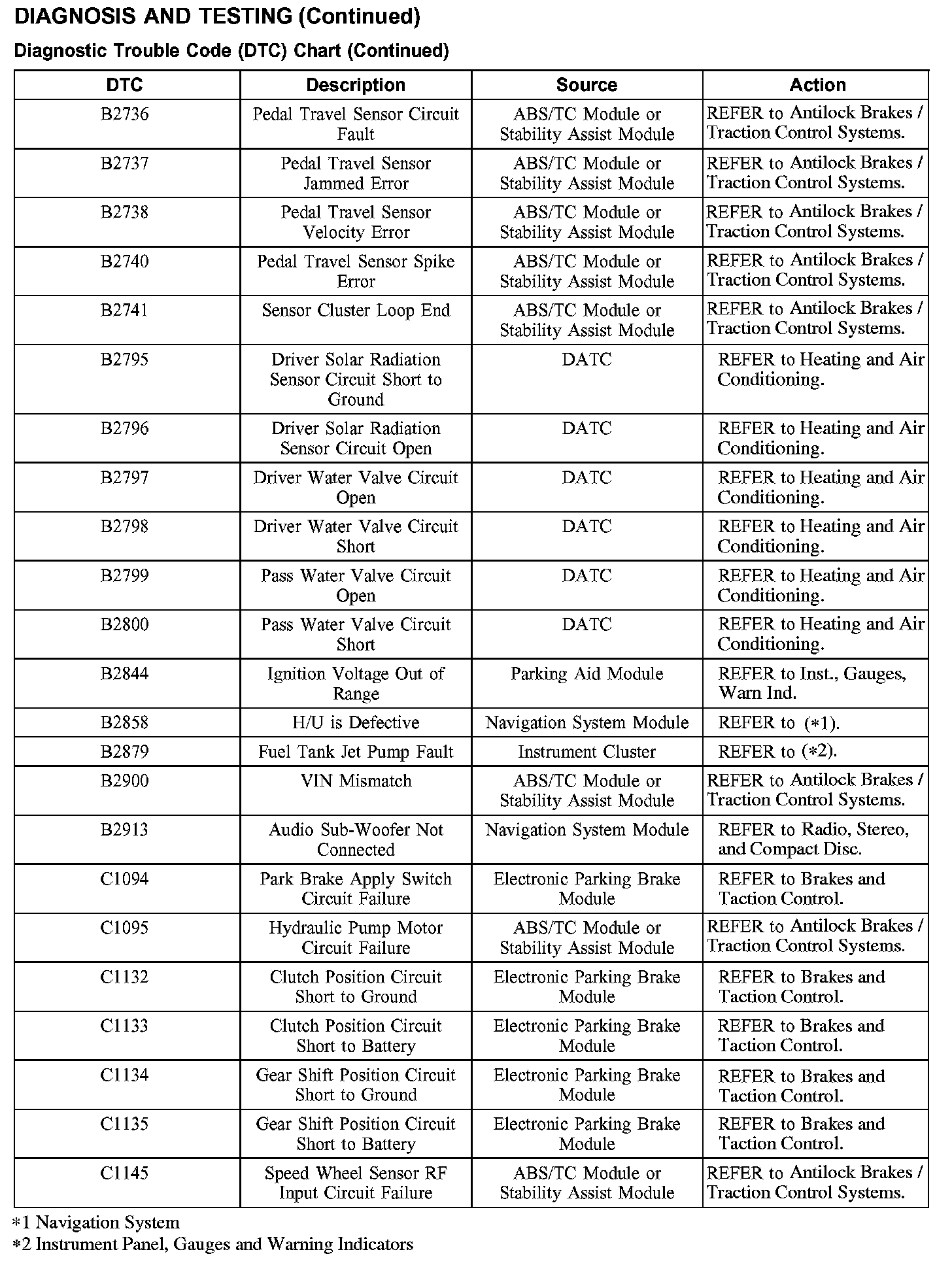

DTC Chart B2736 - C1145:

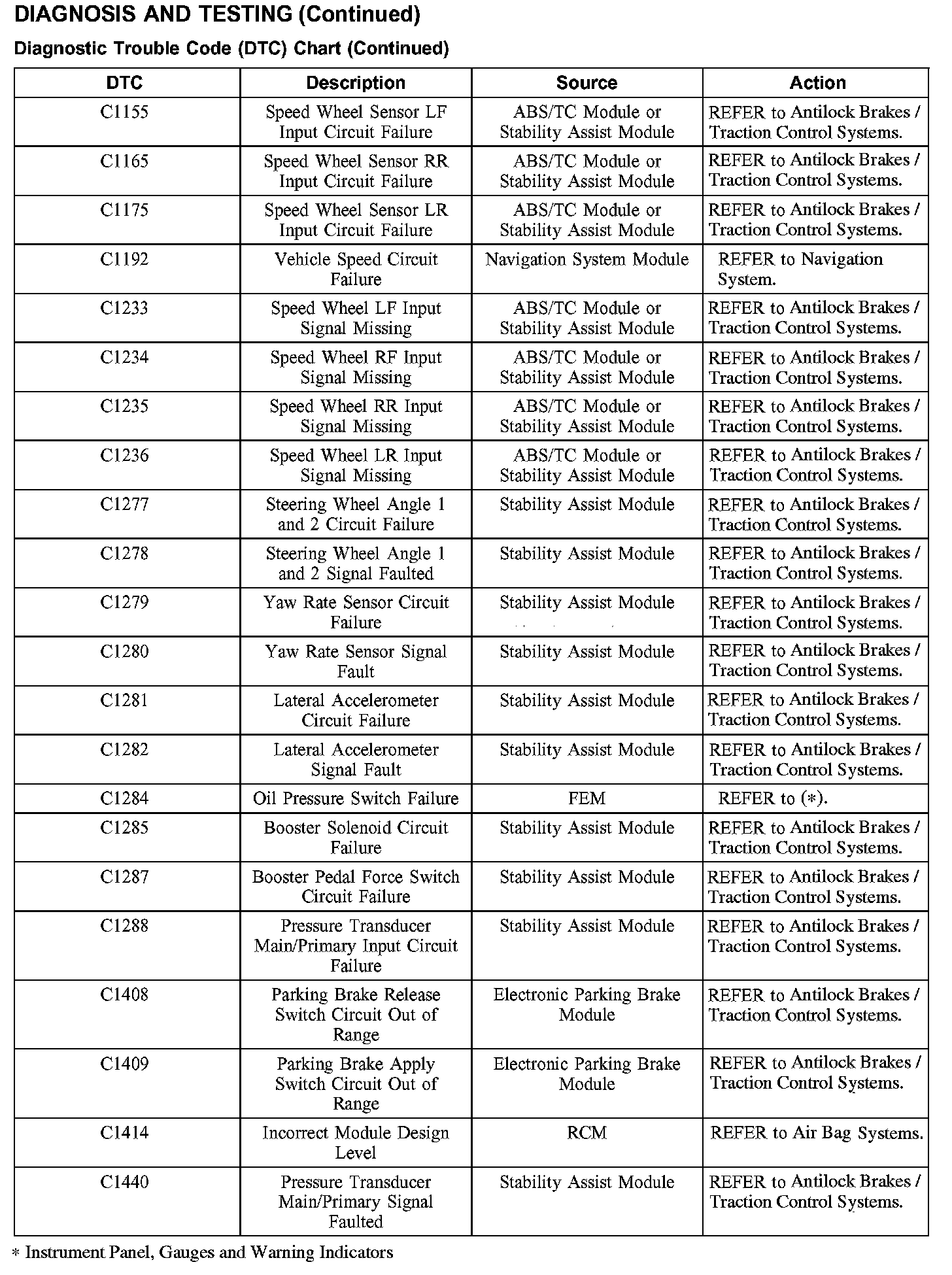

DTC Chart C1155 - C1440:

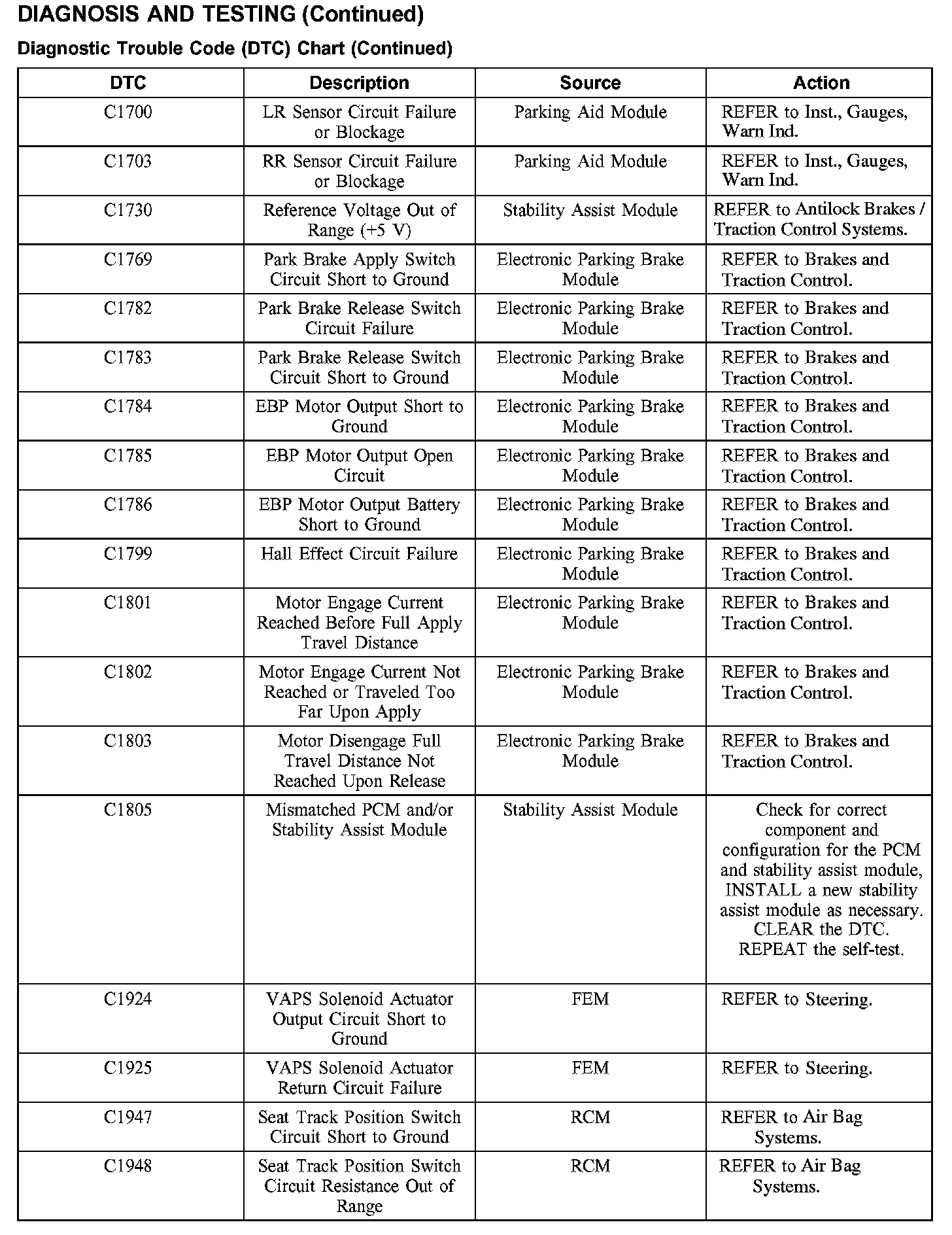

DTC Chart C1700 - C1948:

DTC Chart C1963 - P0114:

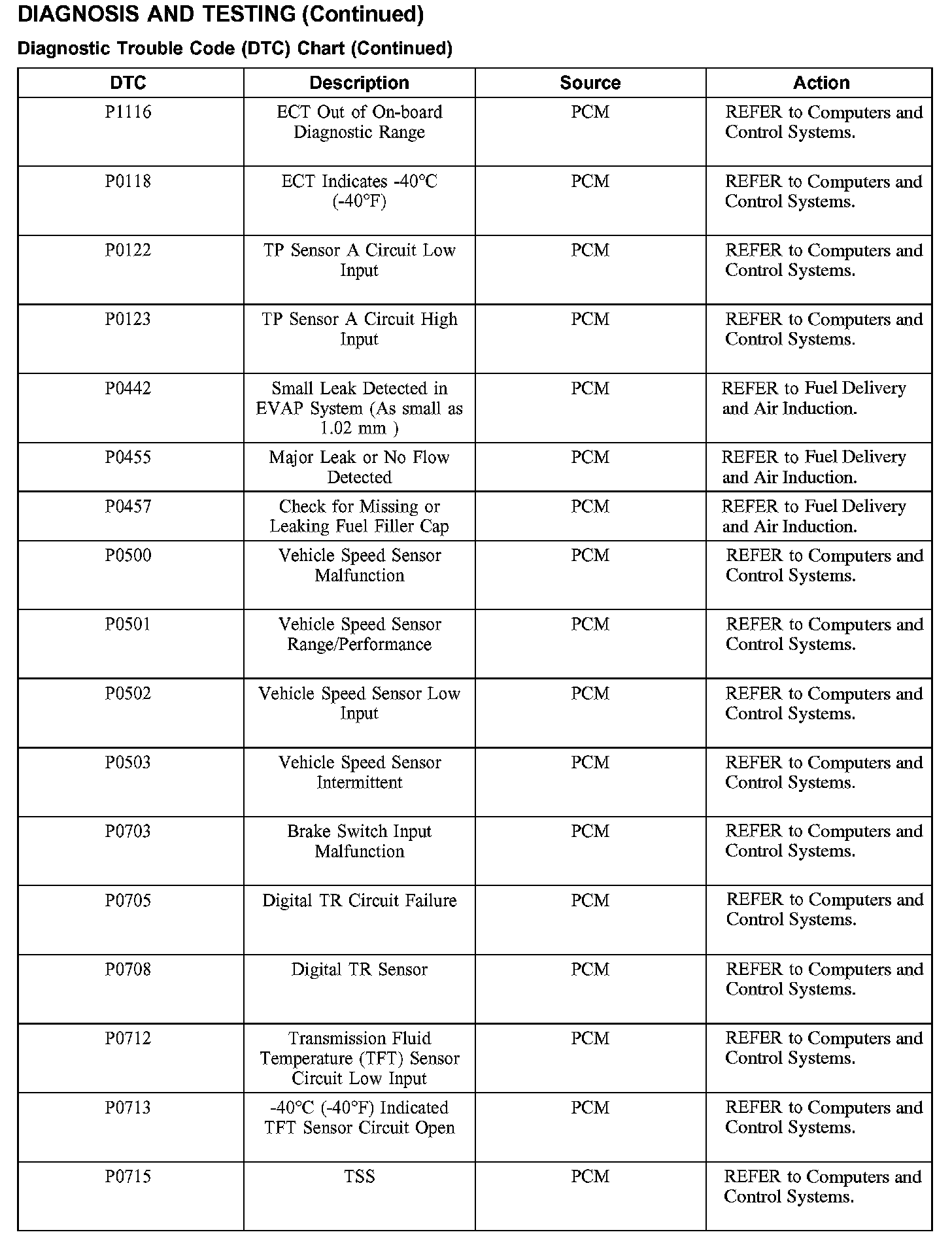

DTC Chart P1116 - P0715:

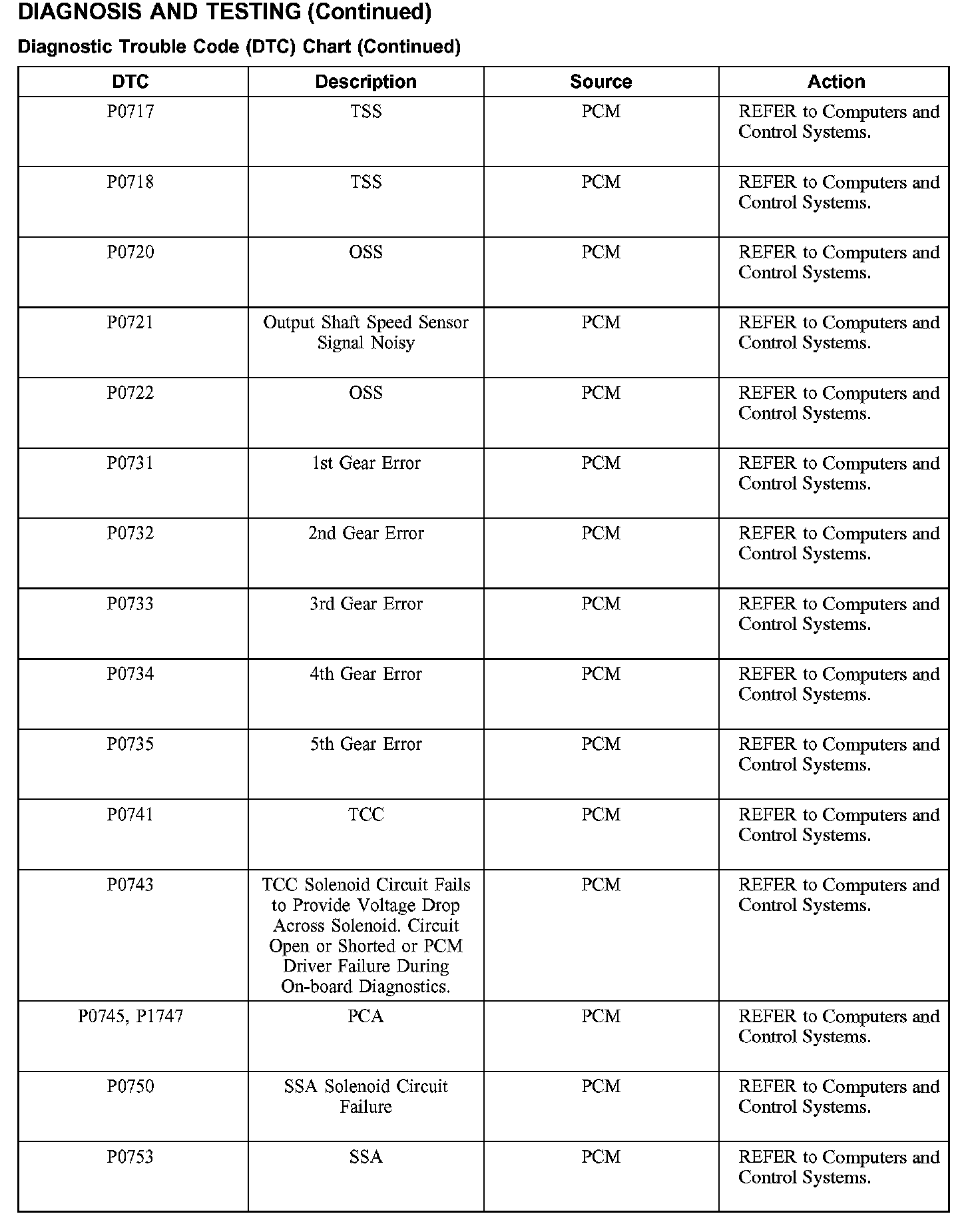

DTC Chart P0717 - P0753:

DTC Chart P0755 - P1120:

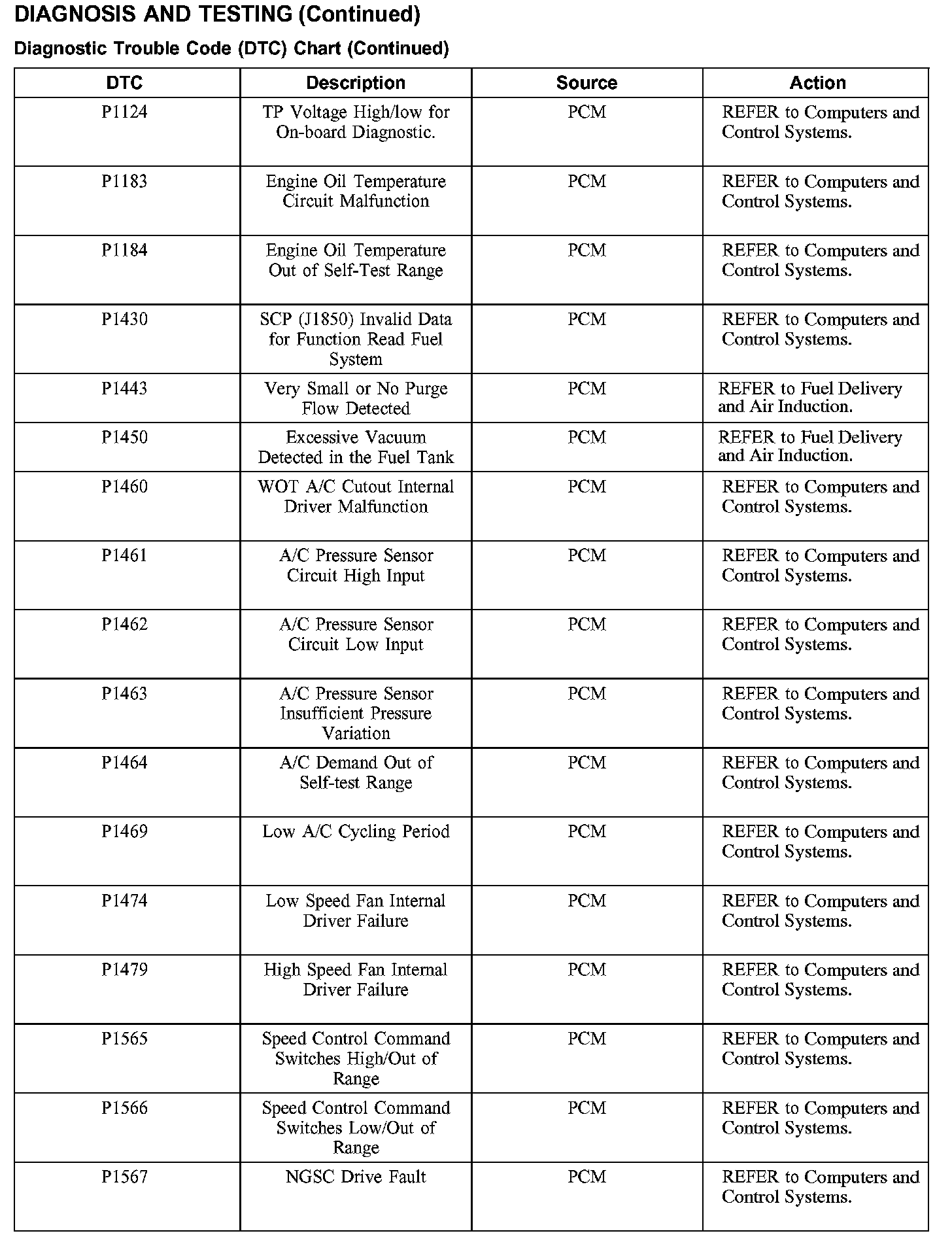

DTC Chart P1124 - P1567:

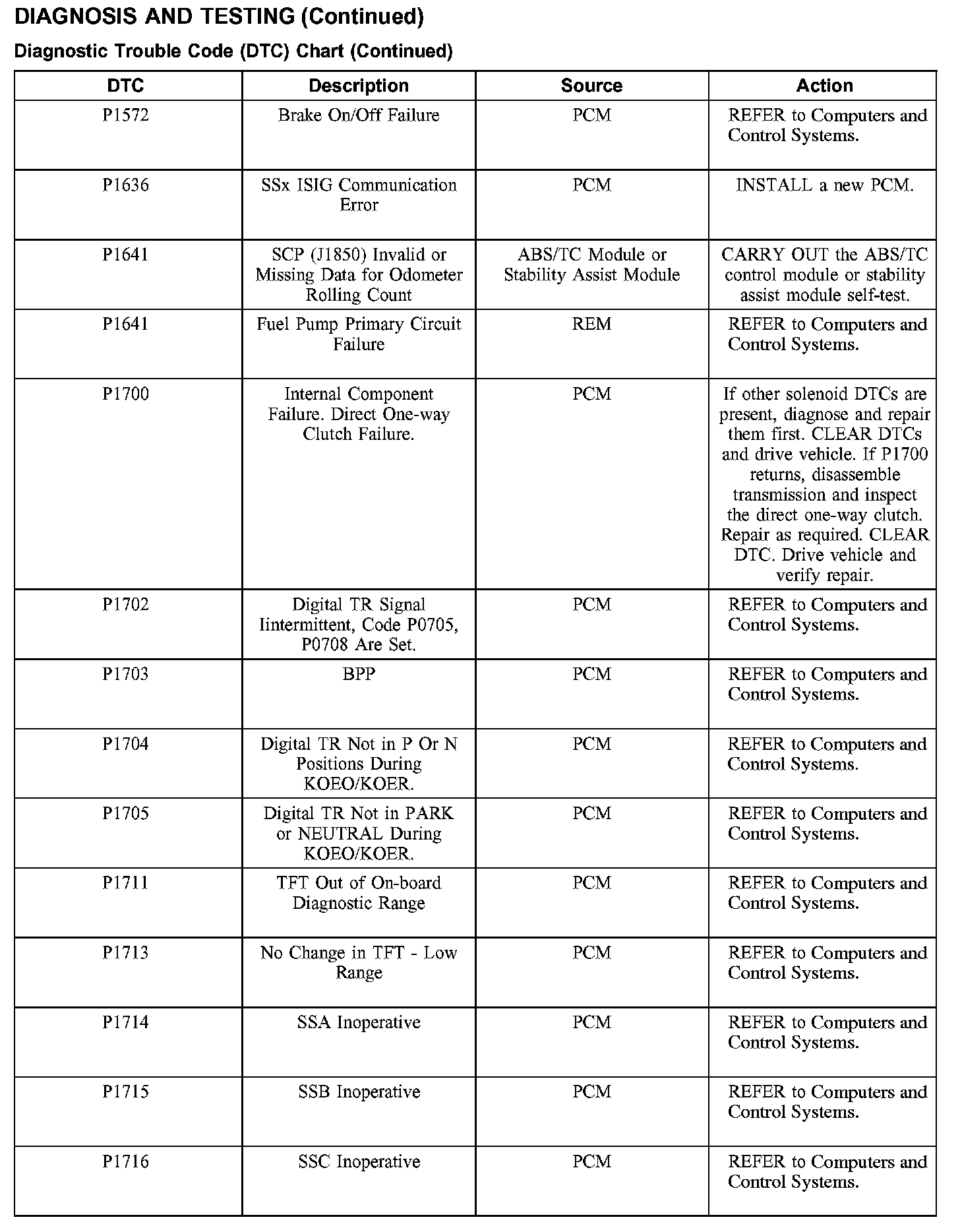

DTC Chart P1572 - P1716:

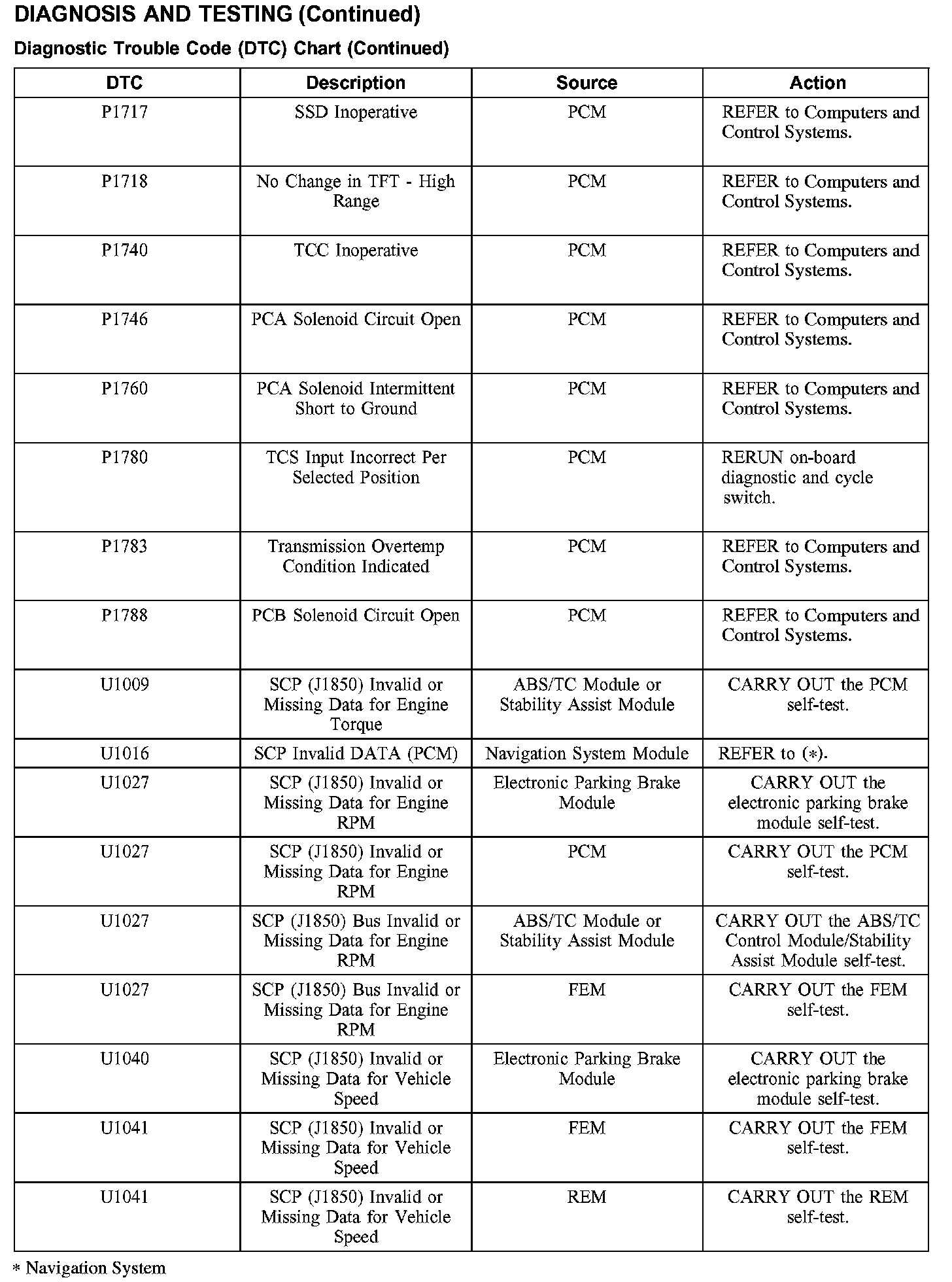

DTC Chart P1717 - U1041:

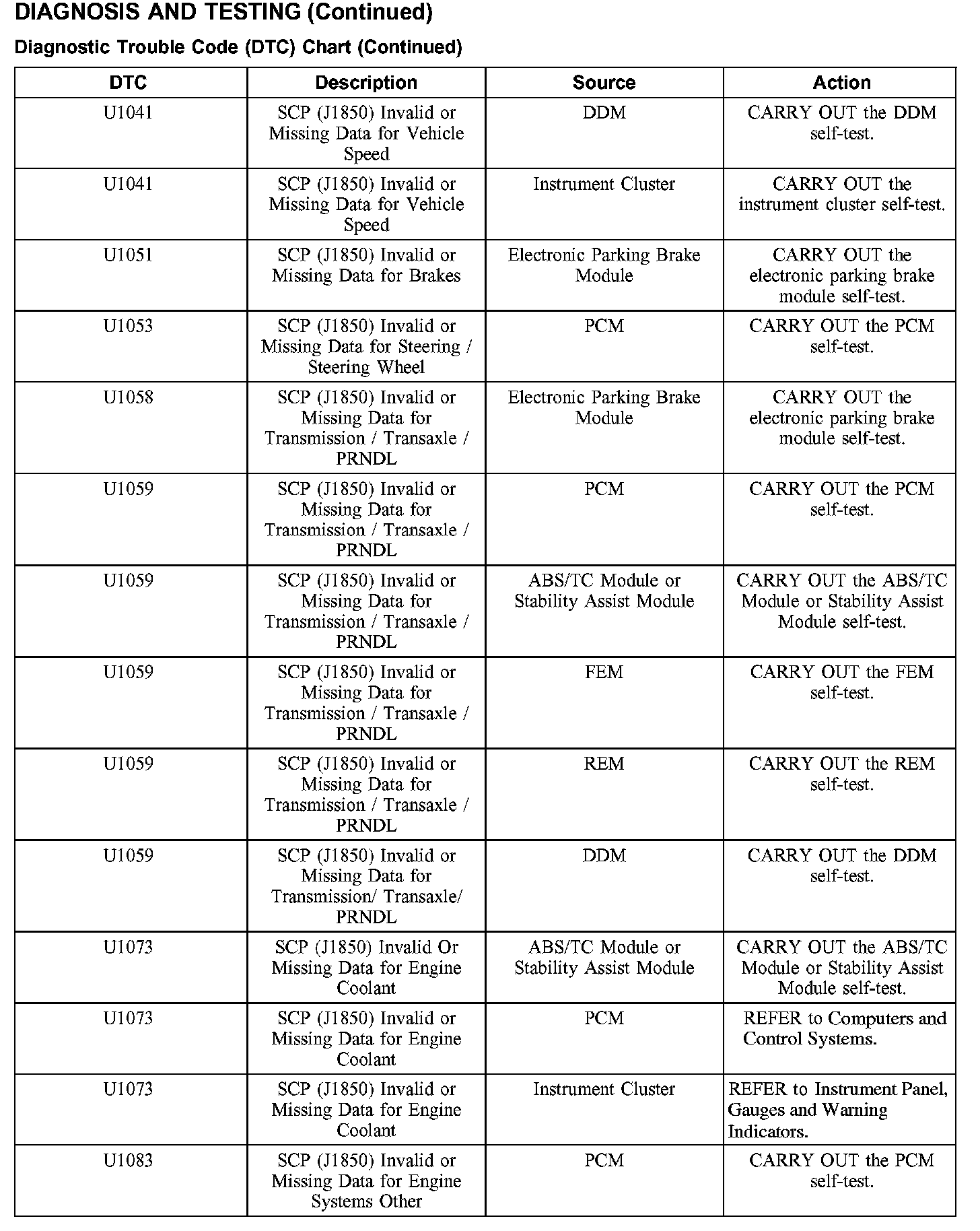

DTC Chart U1041 - U1083:

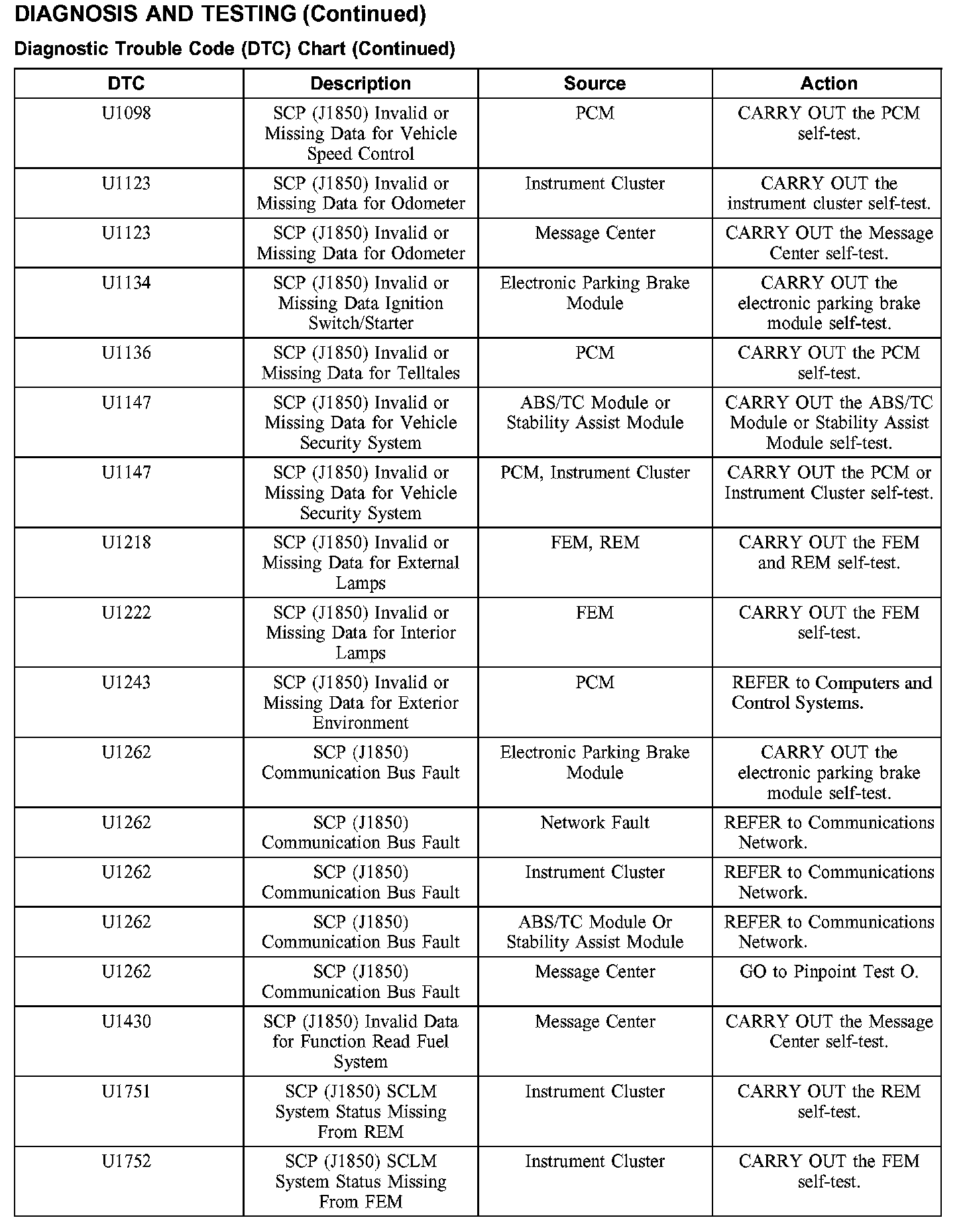

DTC Chart U1098 - U1752:

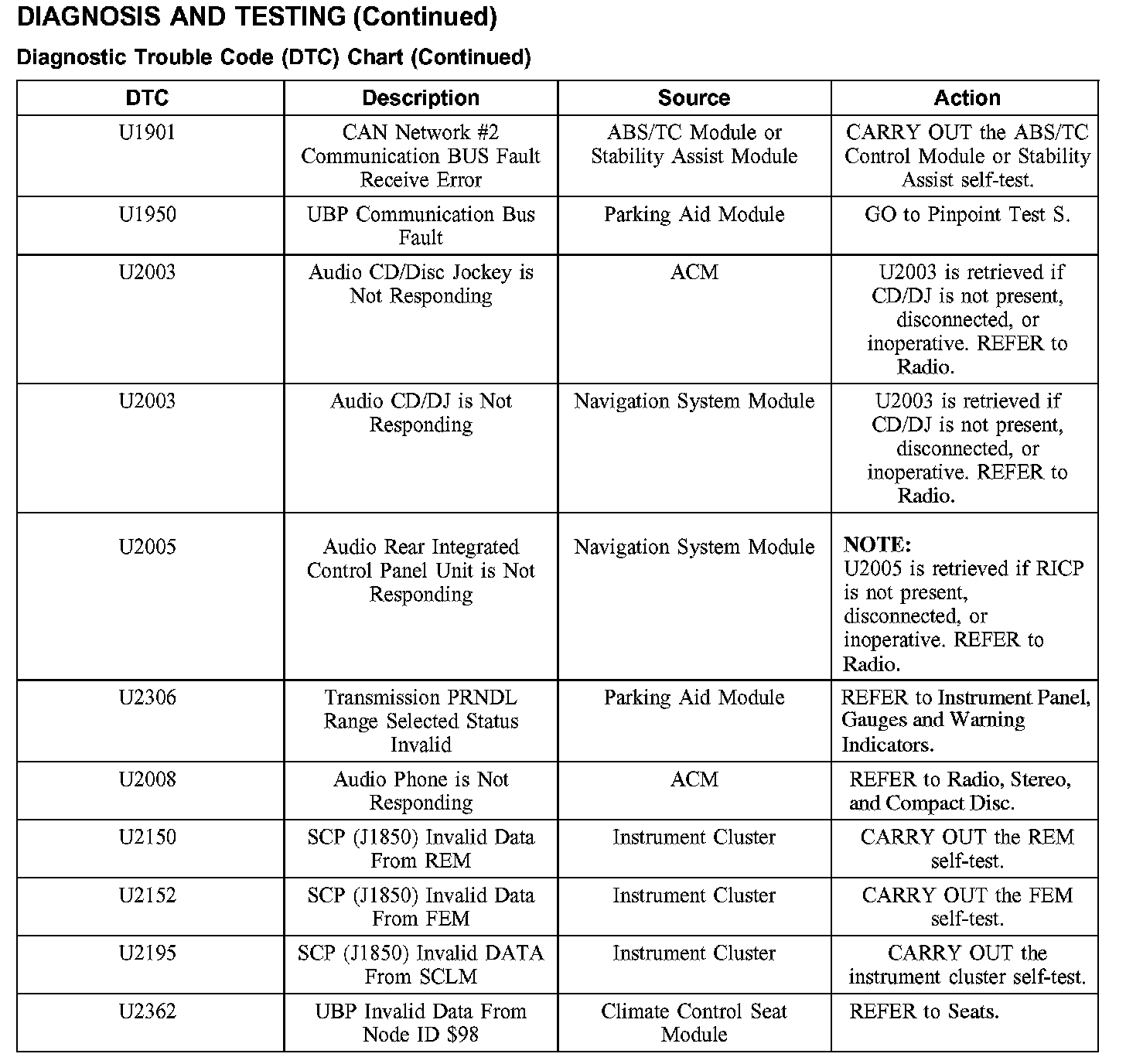

DTC Chart U1901 - U2362:
