Flywheel

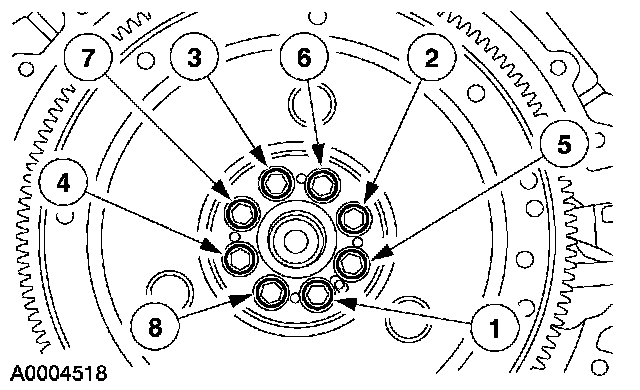

Install the flexplate bolts and tighten in two stages in the sequence shown.
Stage 1: Tighten to 15 Nm (11 ft. lbs.).
Stage 2: Tighten to 110 Nm (81 ft. lbs.).
