Fluid Pan, Gasket and Filter

Fluid Pan, Gasket and Filter

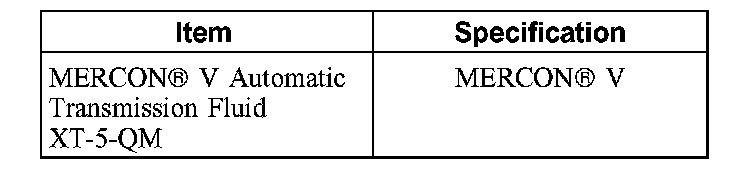

Material:

Material

Removal and Installation

CAUTION: Lubricate the fluid filter seals with clean automatic transmission fluid or they may be damaged.

NOTE: Make sure that the fluid filter seals are correctly seated on the filter.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

NOTE: Install a new transmission fluid filter.

1. With the vehicle in NEUTRAL, position it on a hoist.

Part 1 Of 2:

Part 2 Of 2:

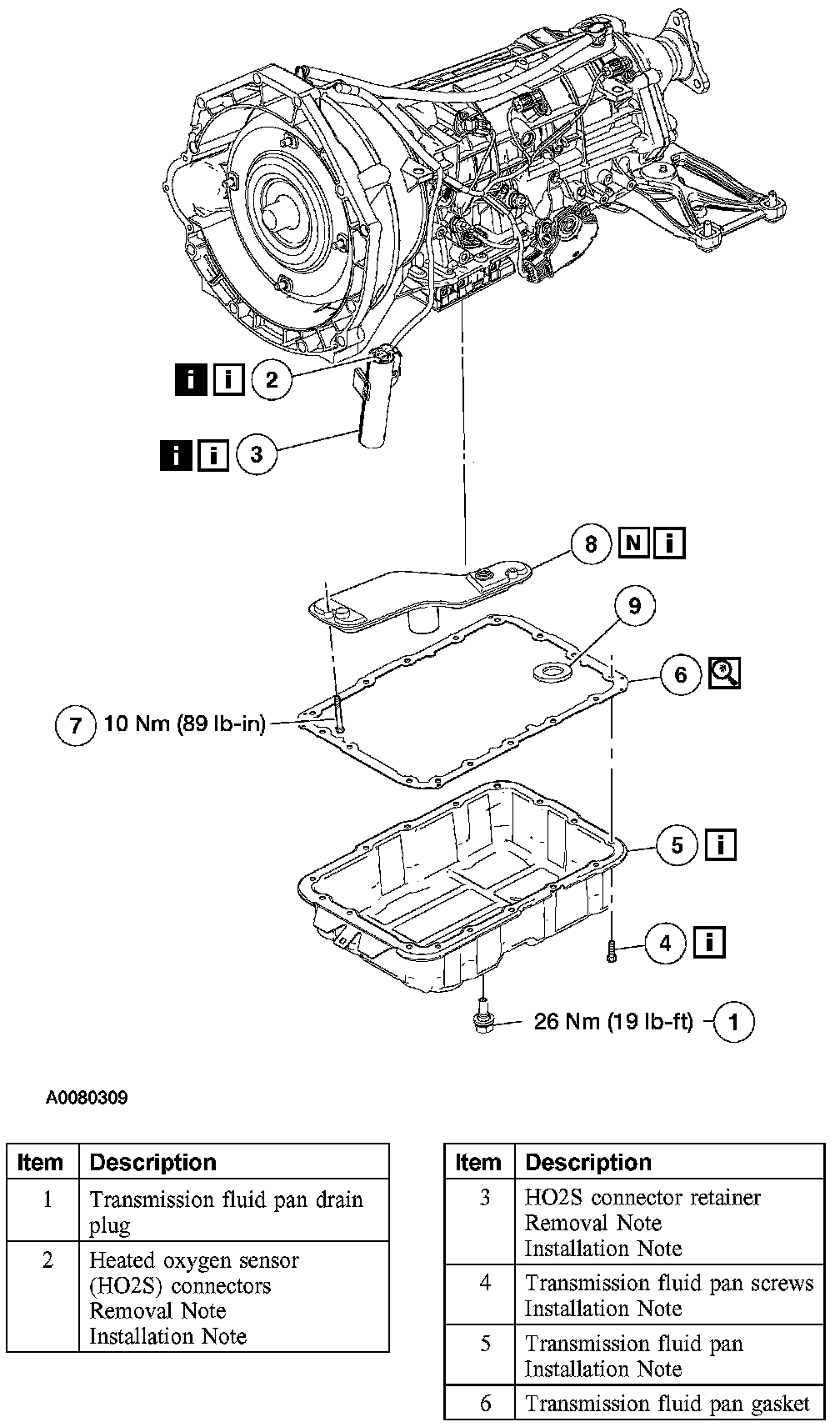

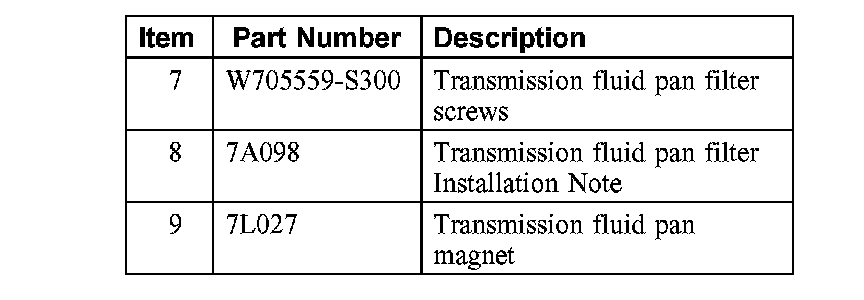

2. Remove the parts in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.
4. Fill the transmission to the correct level.

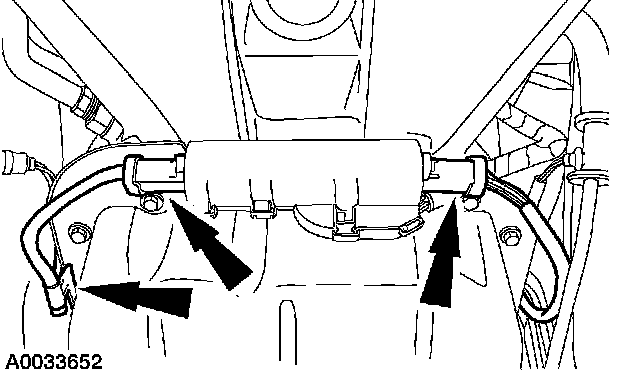

Item 2: Heated Oxygen Sensor (H02S) Connector Removal Note





1. Disconnect the H02S connectors and remove the sensor wire retaining clip from the right side of the transmission pan rail.

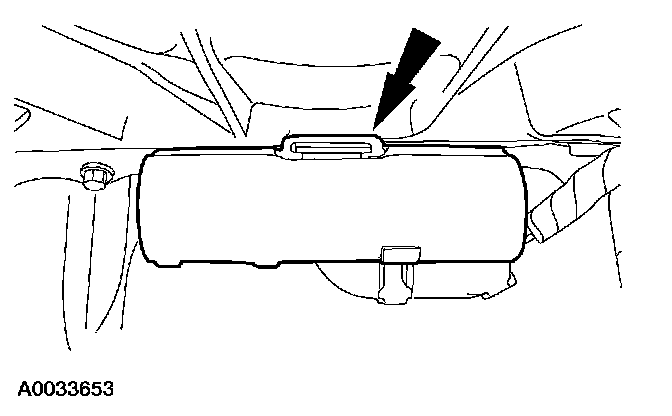

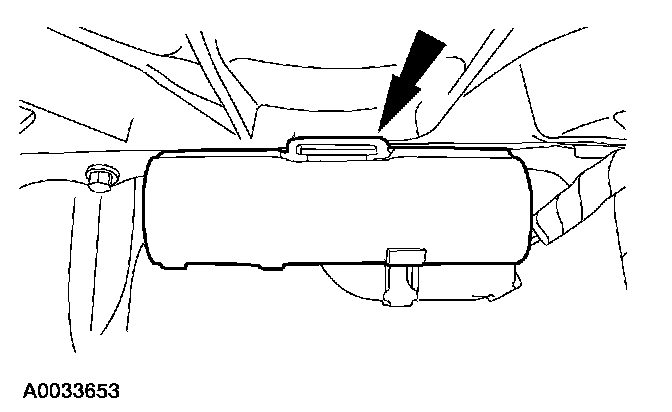

Item 3: H02S Connector Retainer Removal Note





1. Remove the H02S connector from the front of the transmission pan rail and position it out of the way.

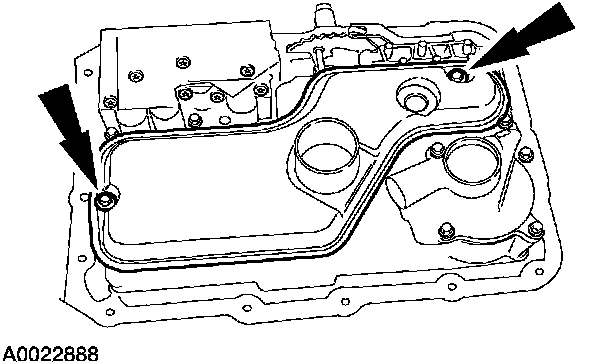

Item 8: Transmission Fluid Pan Filter Installation Note





1. CAUTION: Lubricate the fluid filter seals with clean automatic transmission fluid or they may be damaged.

NOTE: Make sure that the fluid filter seals are correctly seated on the filter.

Lubricate the seals and install the transmission fluid filter.

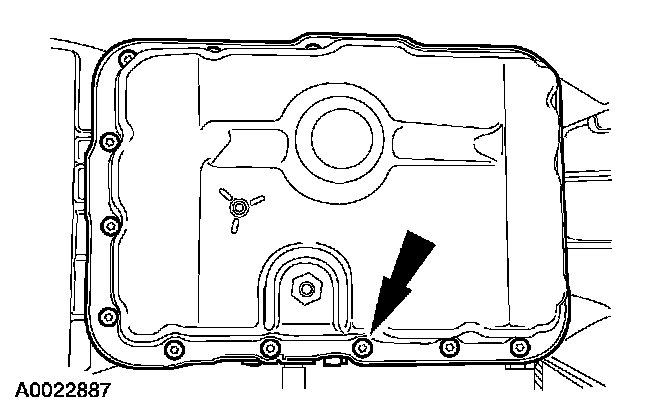

Item 5: Transmission Fluid Pan Installation Note





1. Install the transmission fluid pan and gasket and loosely install the screws.

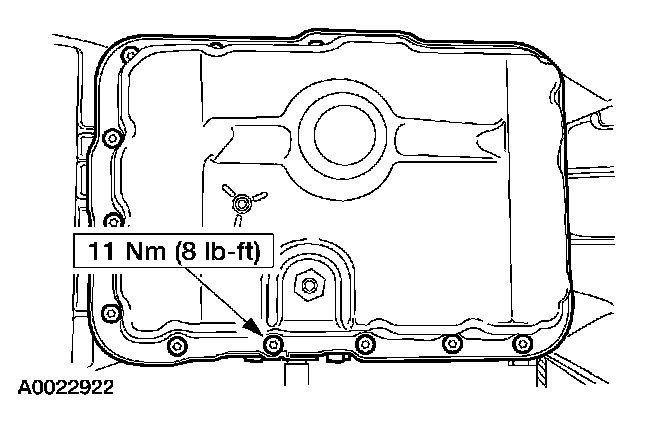

Item 4: Transmission Fluid Pan Screws Installation Note

Torque Specifications:

1. Tighten the screws in a crisscross sequence.

Item 3: H02S Connector Retainer Installation Note





1. Install the H02S connector to the front of the transmission pan rail.

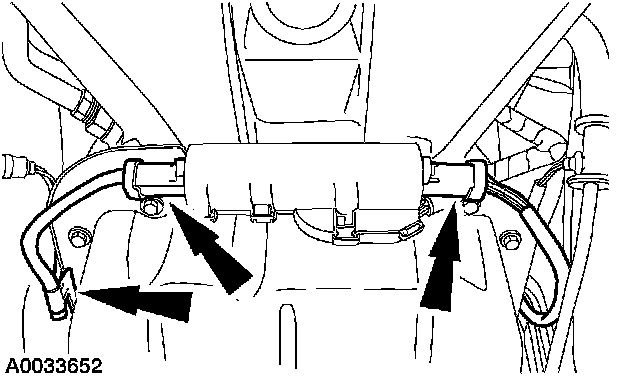

Item 2: H02S Connector Installation Note





1. Connect the H02S connectors and install the sensor wire retaining clip to the right side of the transmission pan rail.
