Test E

PINPOINT TEST E: TURBINE SHAFT SPEED (TSS), INTERMEDIATE SHAFT SPEED, AND OUTPUT SHAFT SPEED (OSS) SENSORS

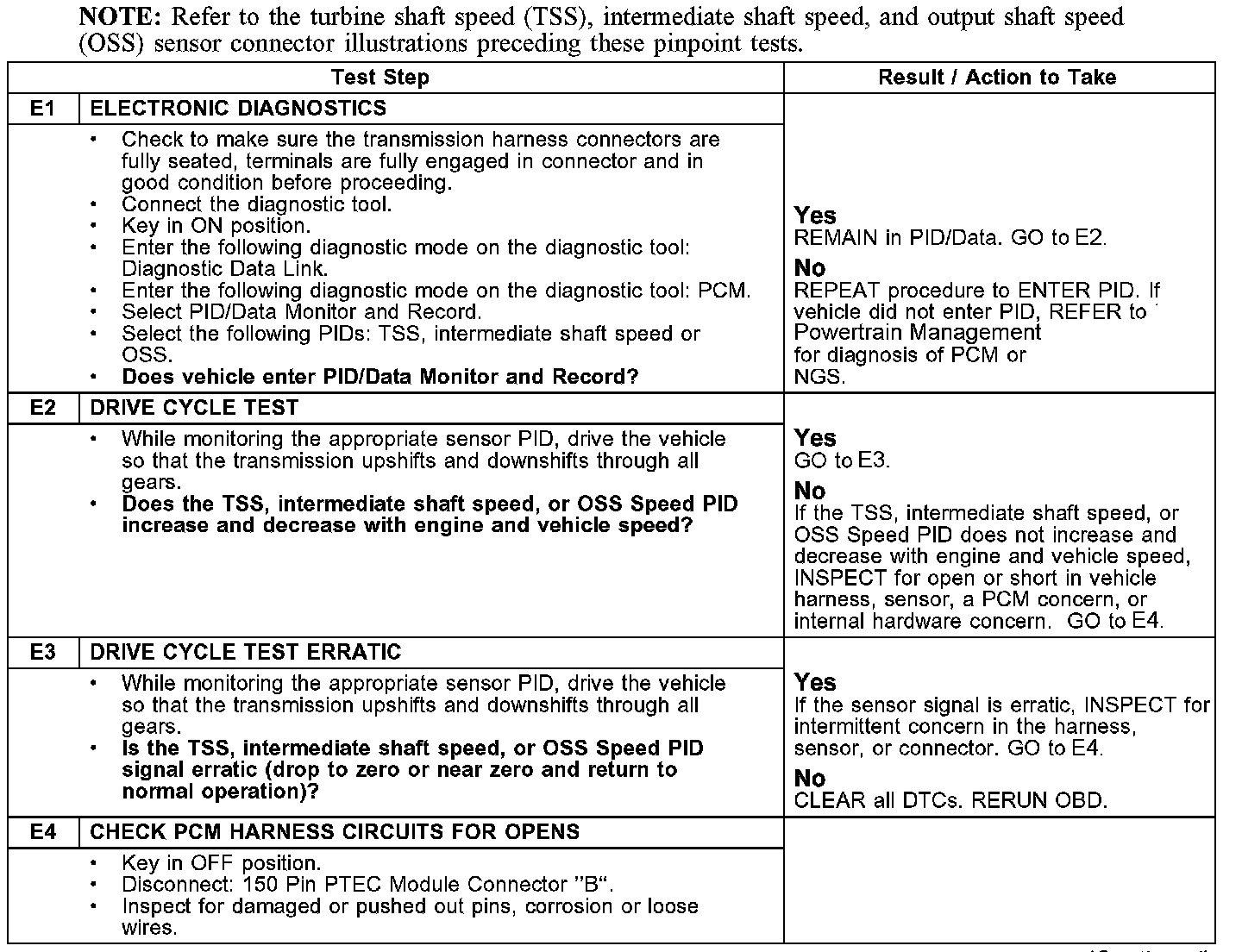

Steps E1 - E4:

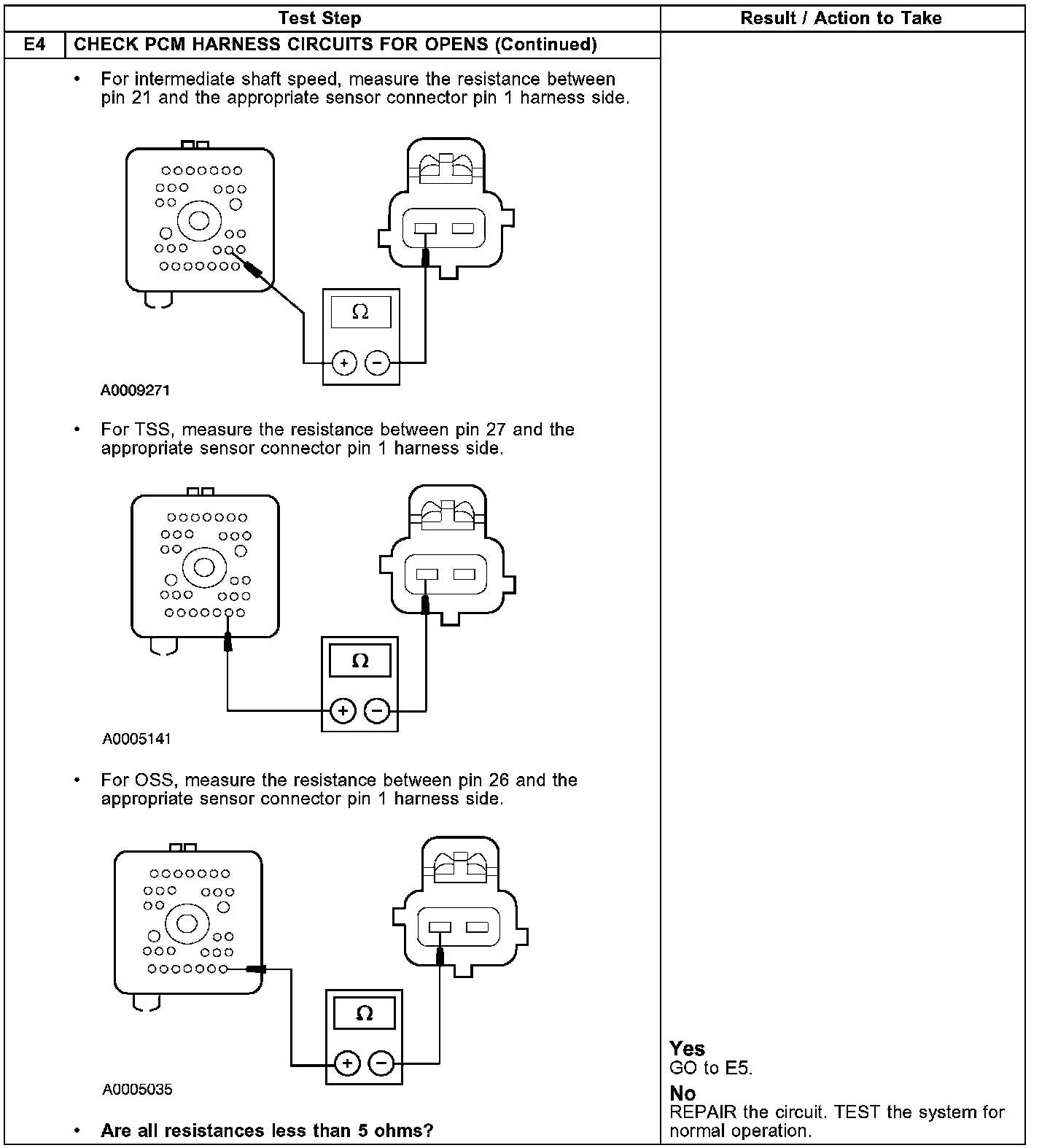

Step E4:

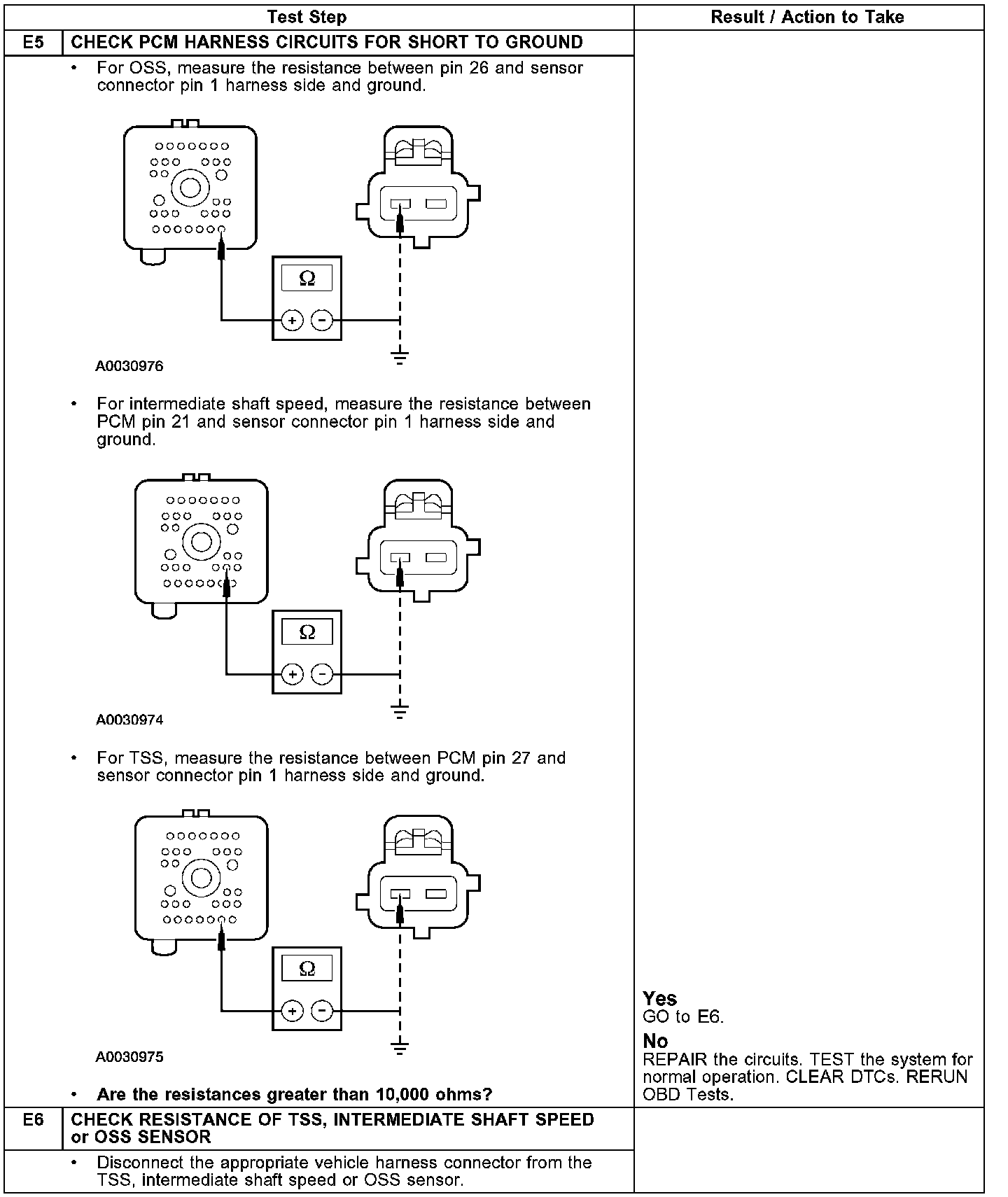

Steps E5 - E6:

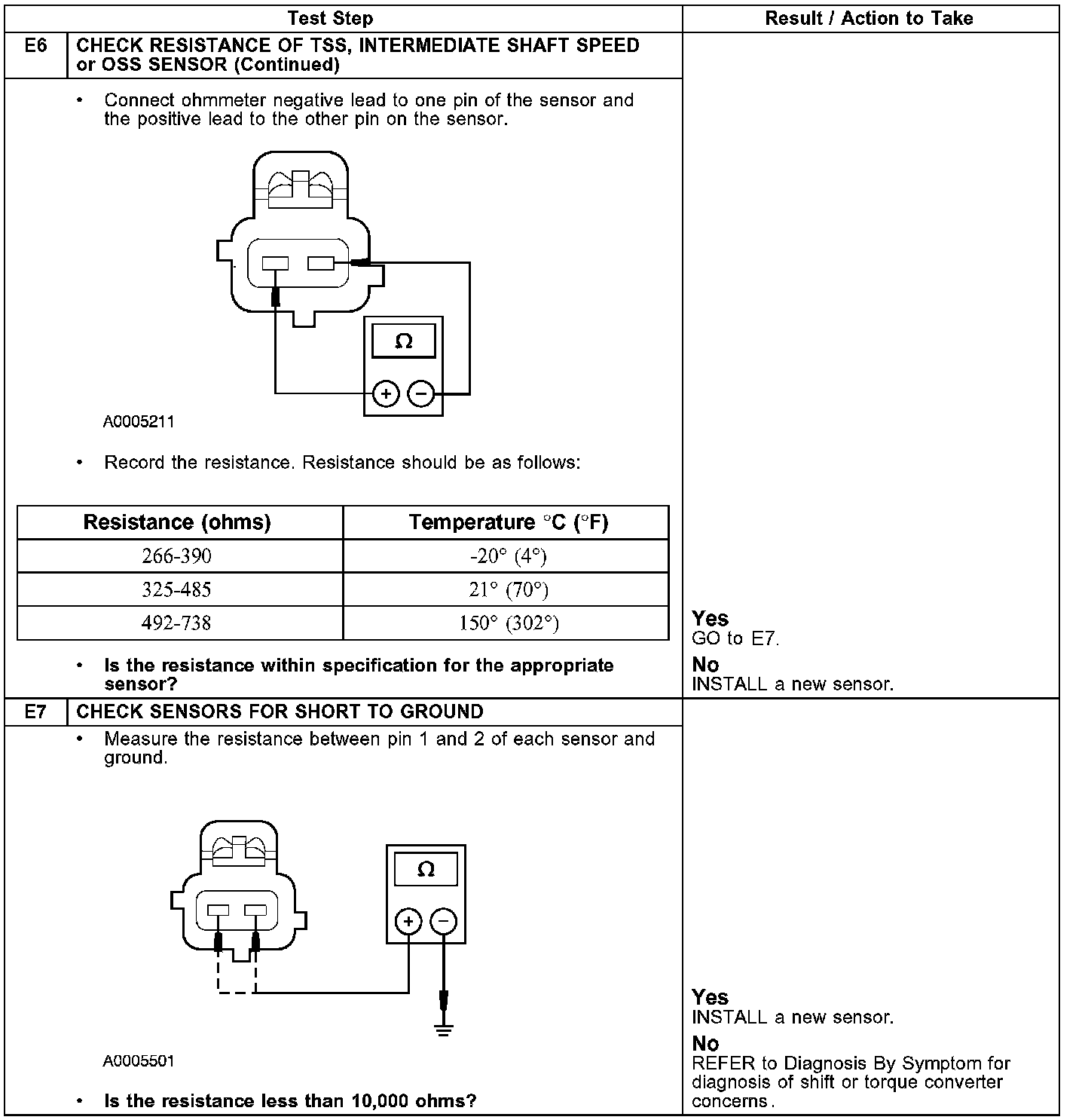

Steps E6 - E7:

NOTE: Refer to the Turbine Shaft Speed (TSS), intermediate shaft speed, and Output Shaft Speed (OSS) sensor connector illustrations. Transmission Connector Layouts
