Transmission Mount: Service and Repair

Transmission Support Insulator

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Support the transmission with a transmission jack.

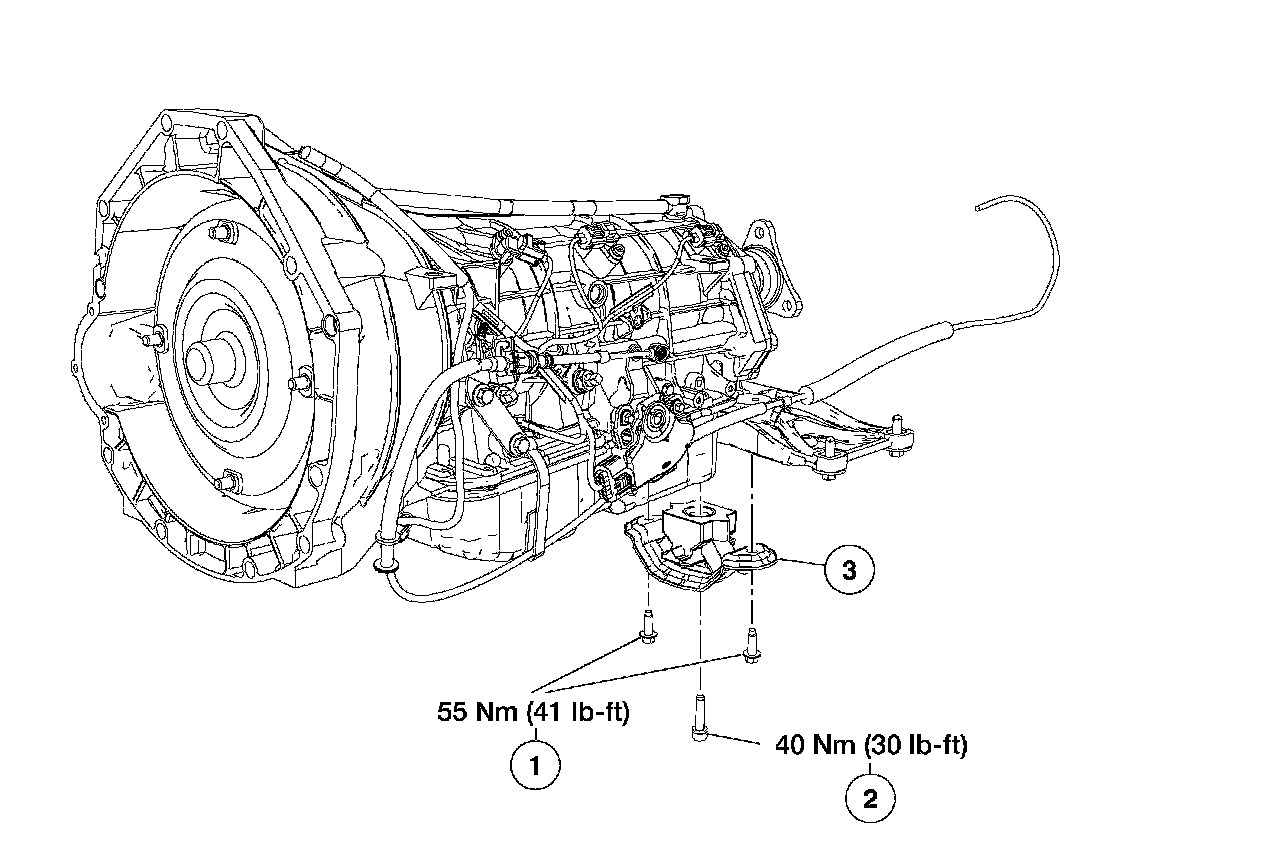

Part 1:

Part 2:

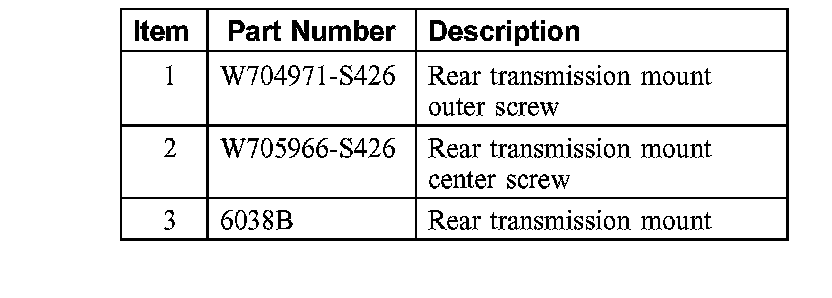

3. Remove the parts in the order indicated in the following illustration and table.
4. To install, reverse the removal procedure.
