Front Fender: Service and Repair

FENDER - NAVIGATOR

Removal and Installation

NOTE: Left side shown, right side similar.

Vehicles with power running boards

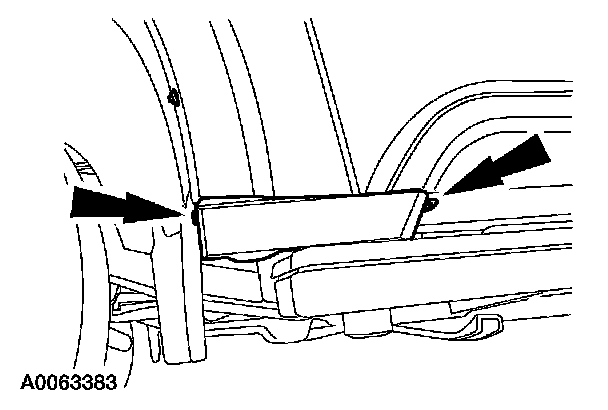

1. Remove the lower fender moulding.

Vehicles without power running boards







2. Lower the running board.

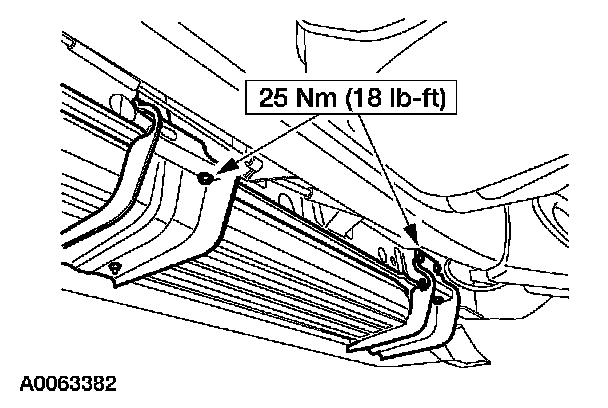

- Remove the front and middle running board retainer bolts from the body.

All vehicles

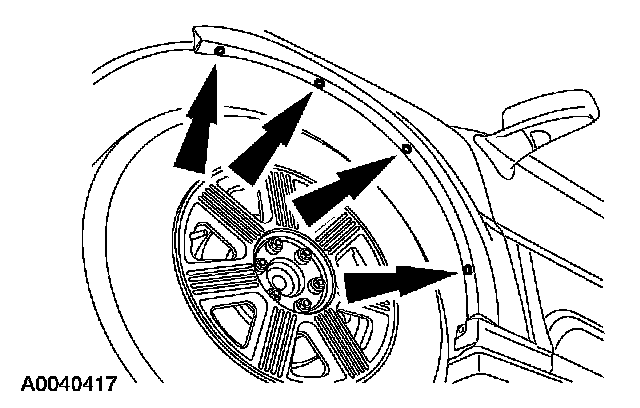

3. Remove the front fender splash shield screws.

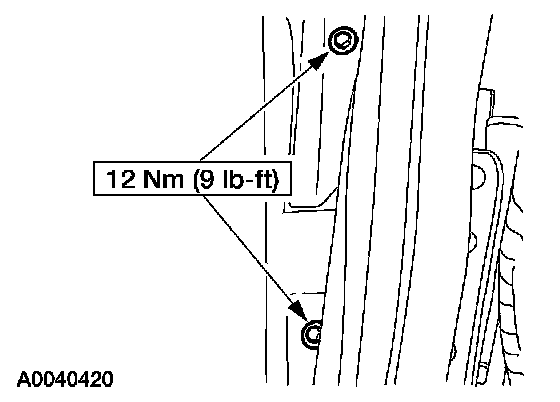

4. Remove the front fender to front bumper cover bolts.

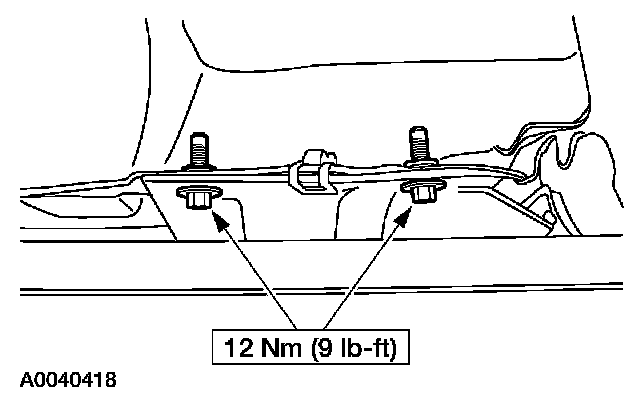

5. Remove the front fender lower bolts.

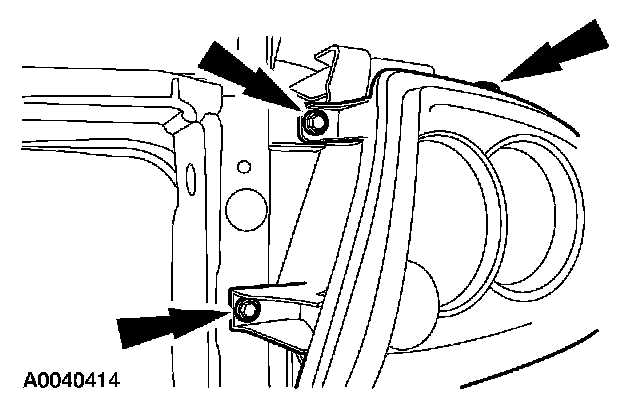

6. Remove the headlight.

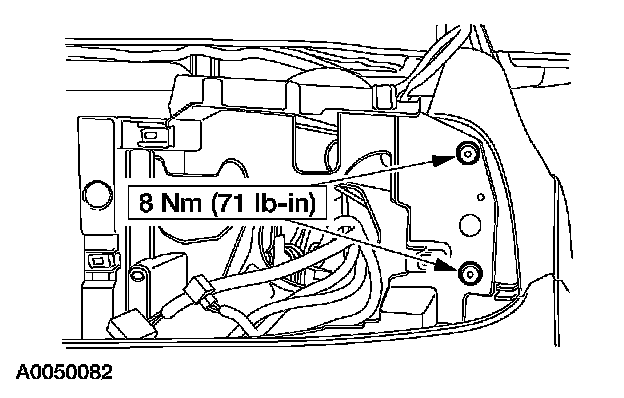

- Remove the bolts and disconnect the electrical connectors.

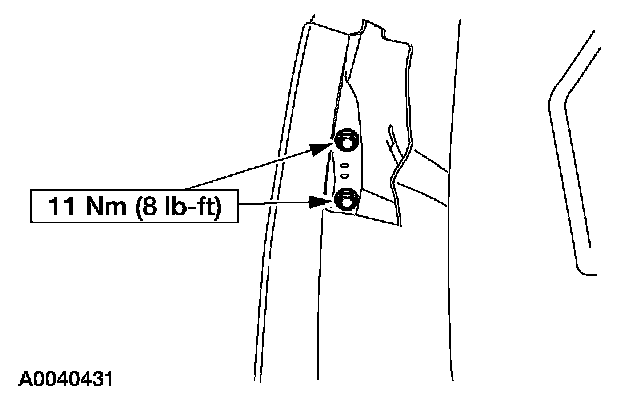

7. Remove the front fender front bolts.







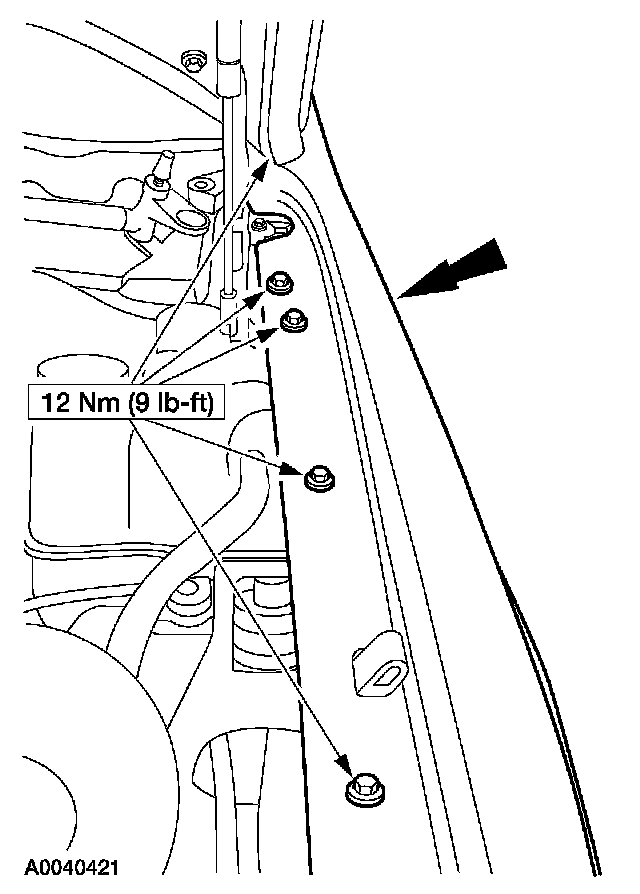

8. Remove the front fender inner bolts.
9. Remove the cowl panel grille.







10. Remove the front fender.
- Remove the bolts.

11. To install, reverse the removal procedure.
