Test P

PINPOINT TEST P: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO) 9141 NETWORK COMMUNICATION

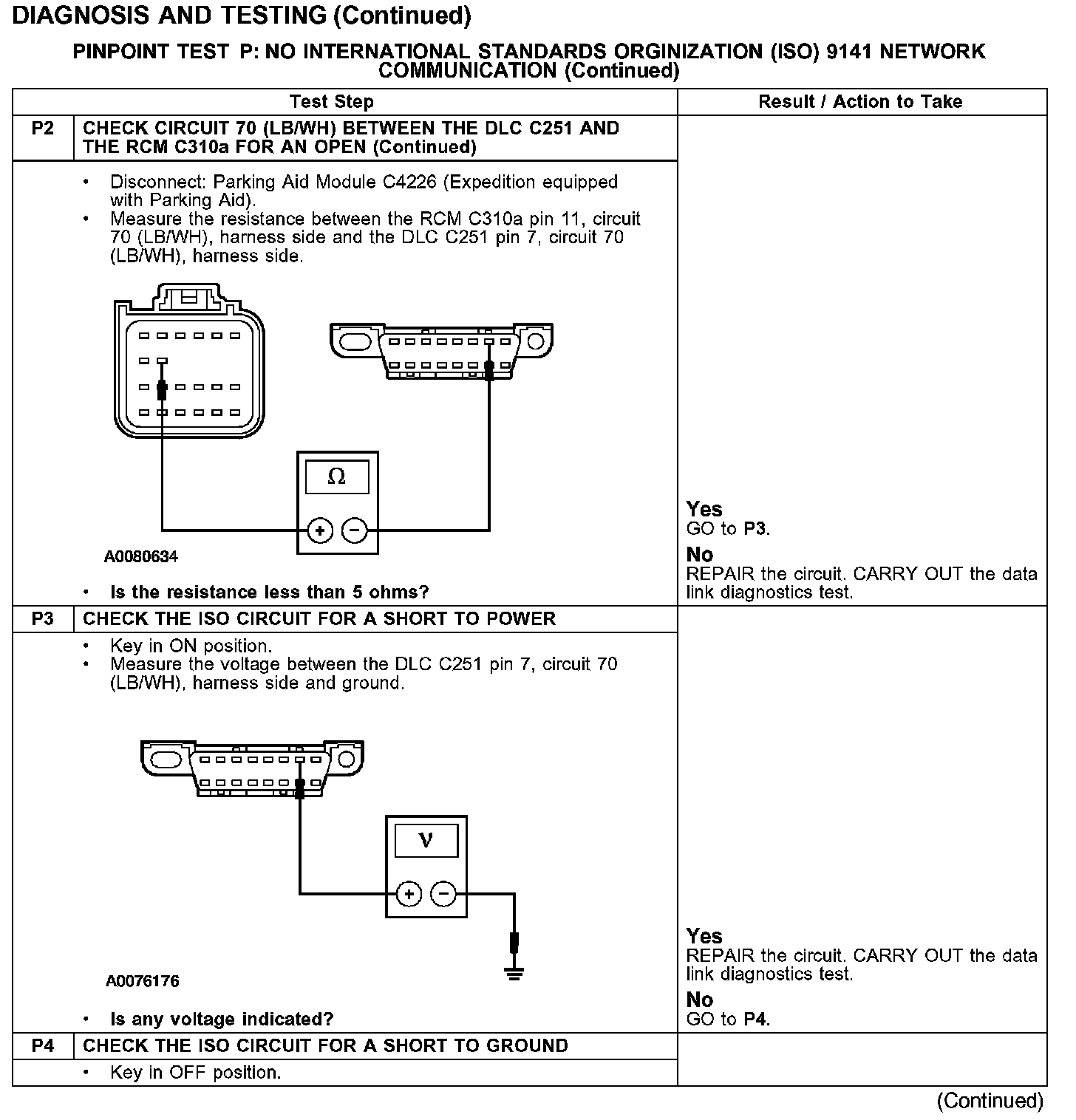

Test P1-P2:

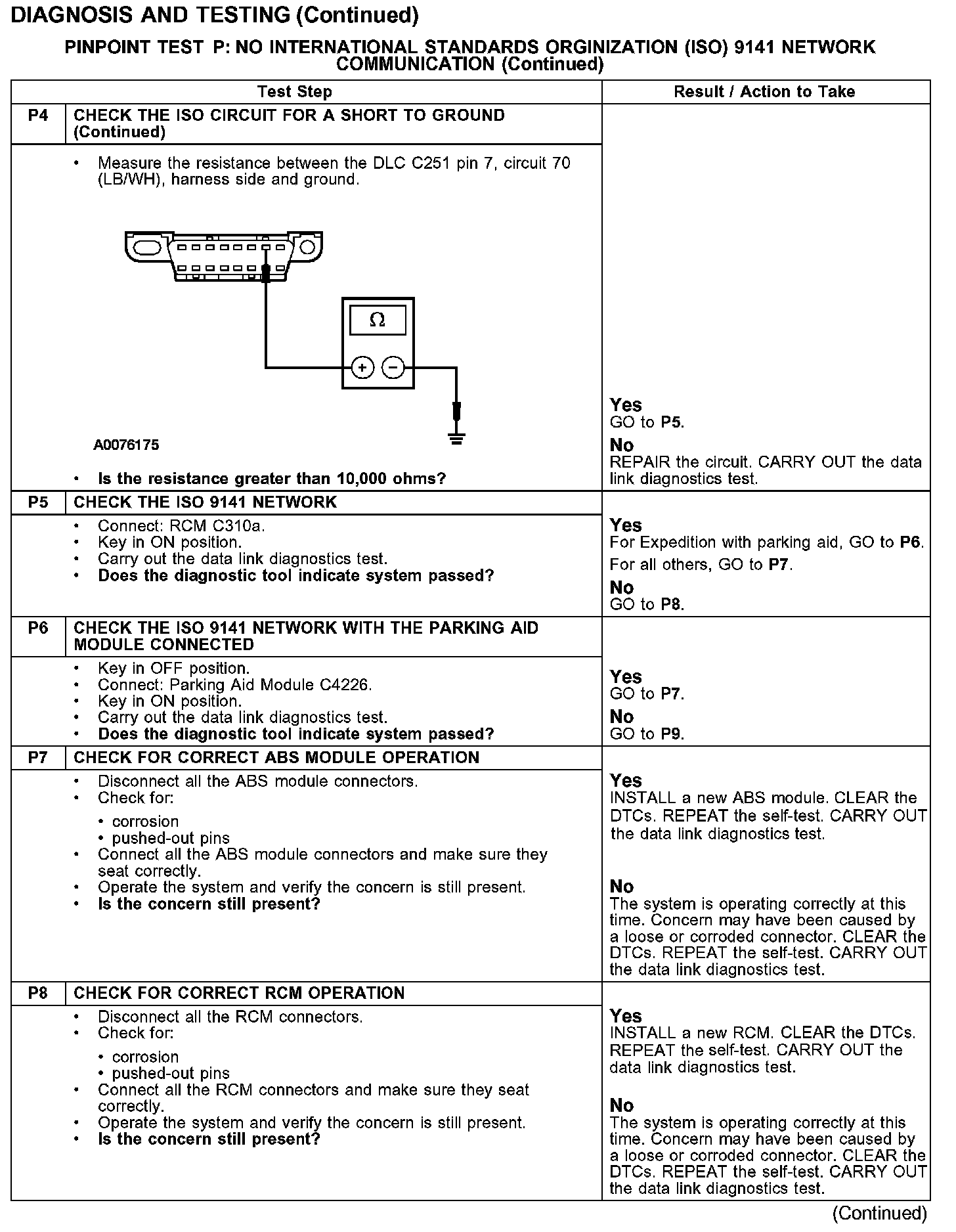

Test P2-P4:






Test P4-P8:

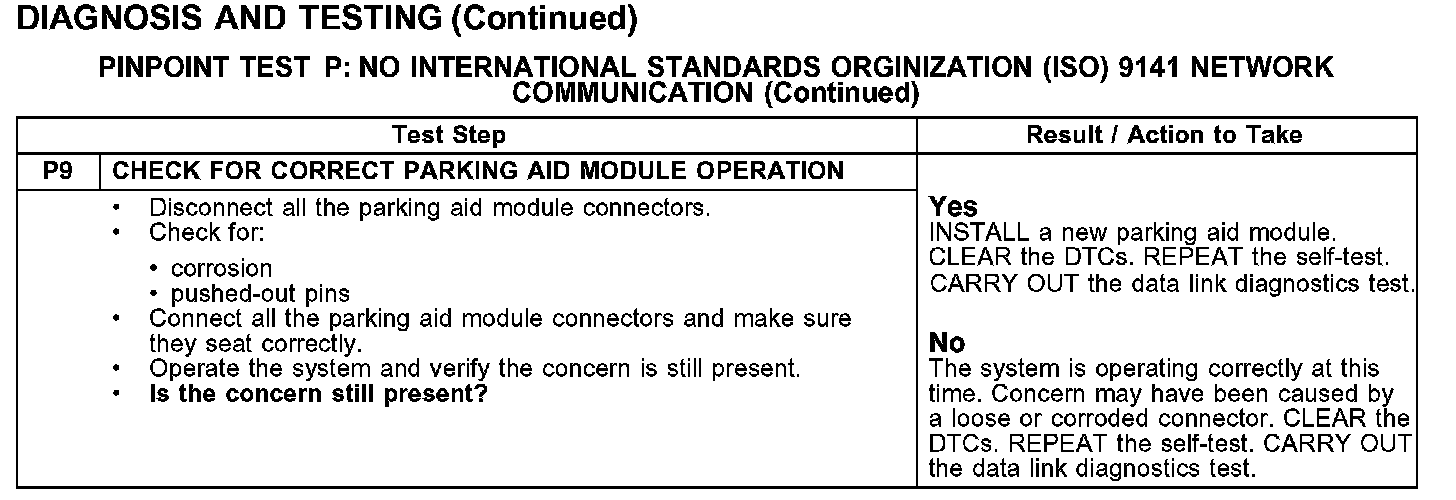

Test P9:
