Test A

PINPOINT TEST A: THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE OR STABILITY ASSIST MODULE (IF EQUIPPED) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

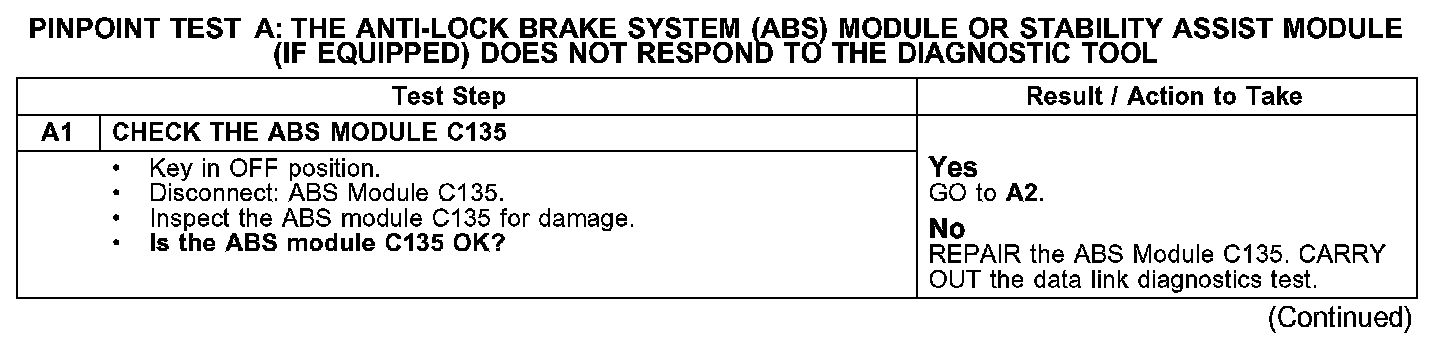

Test A1:

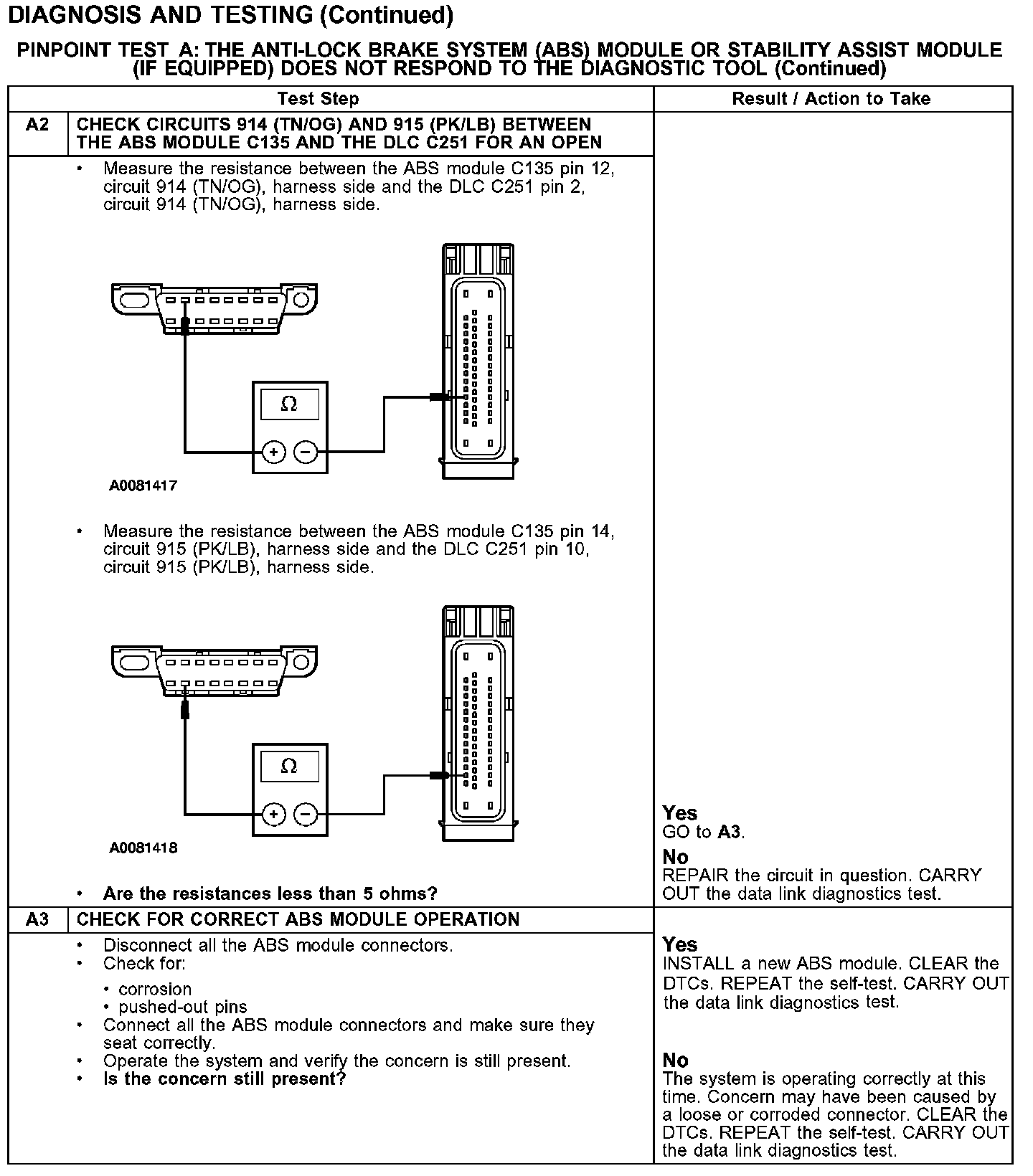

Test A2-A3:
