Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2004 >> Navigator 4WD V8-5.4L DOHC VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Test Q

Test Q

PINPOINT TEST Q: NO STANDARD CORPORATE PROTOCOL (SCP) NETWORK COMMUNICATION

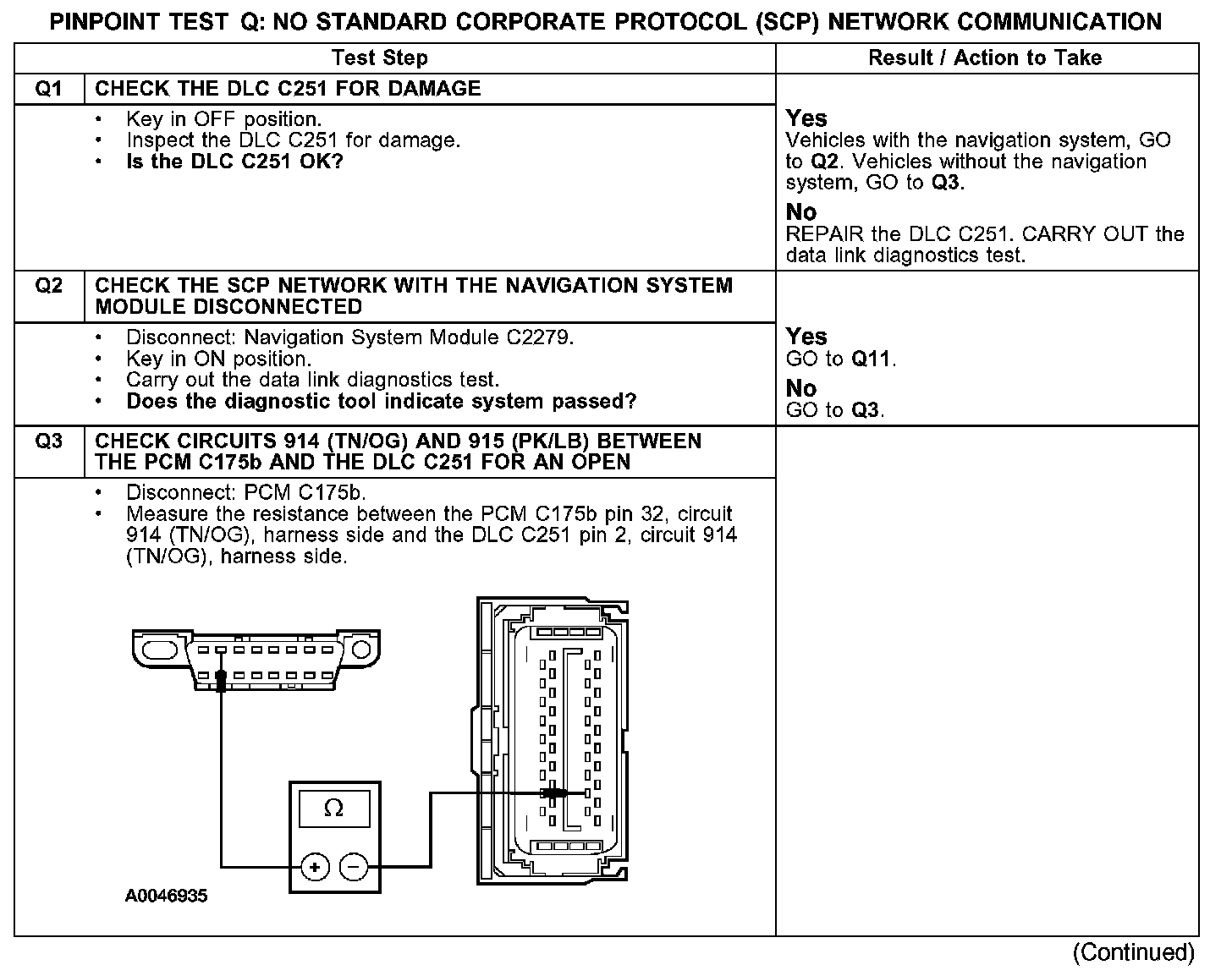

Test Q1-Q3:

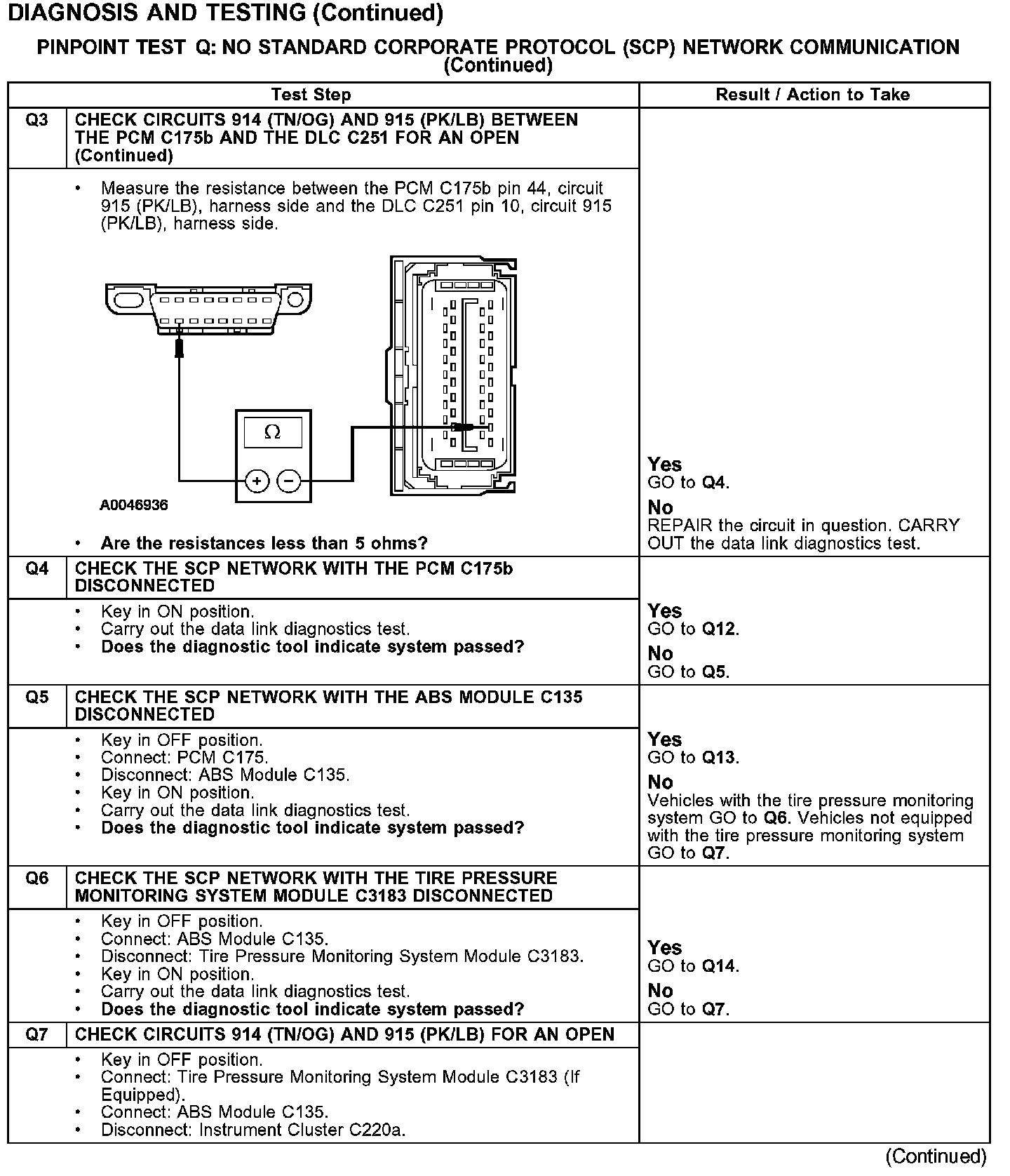

Test Q3-Q7:

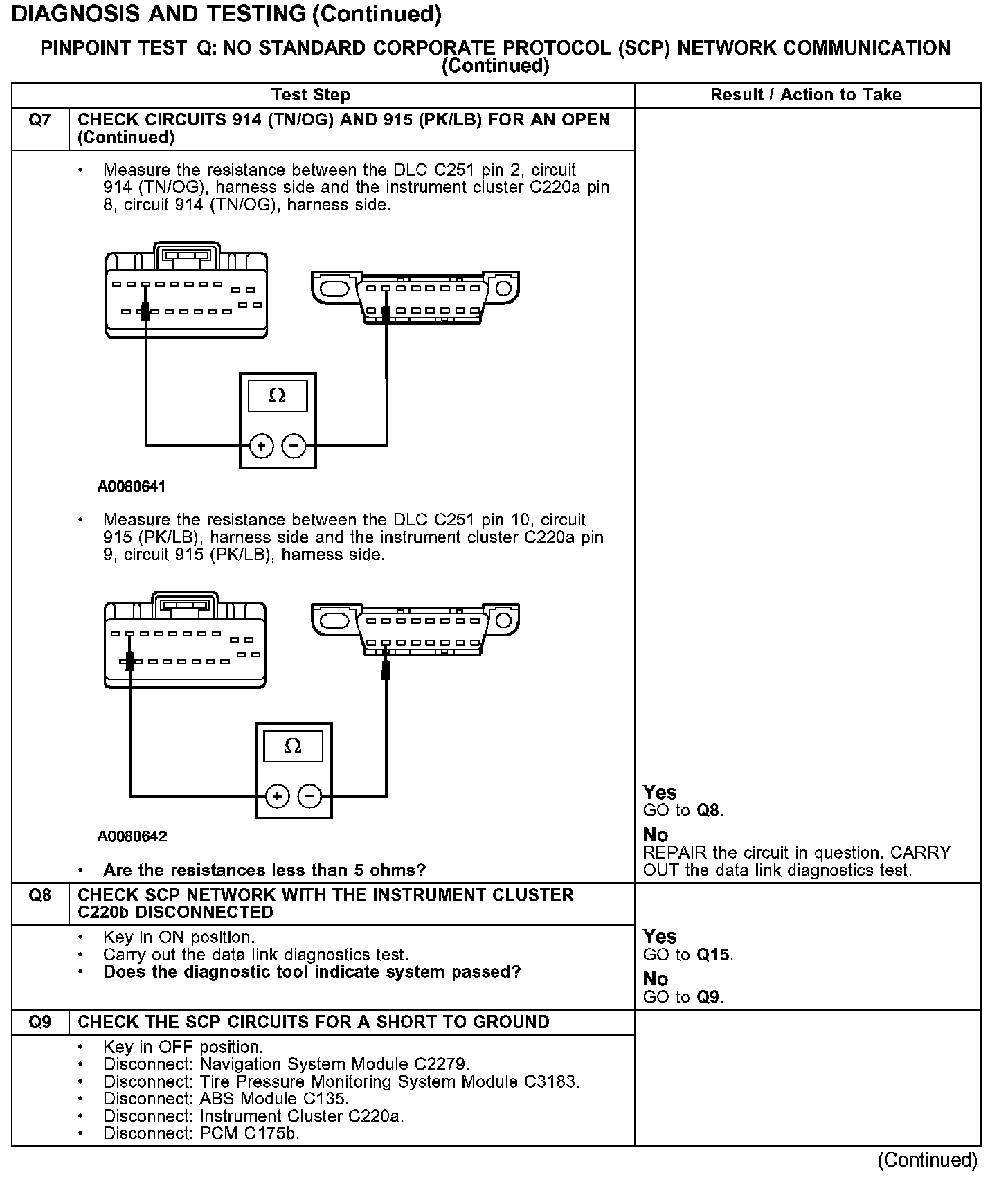

Test Q7-Q9:

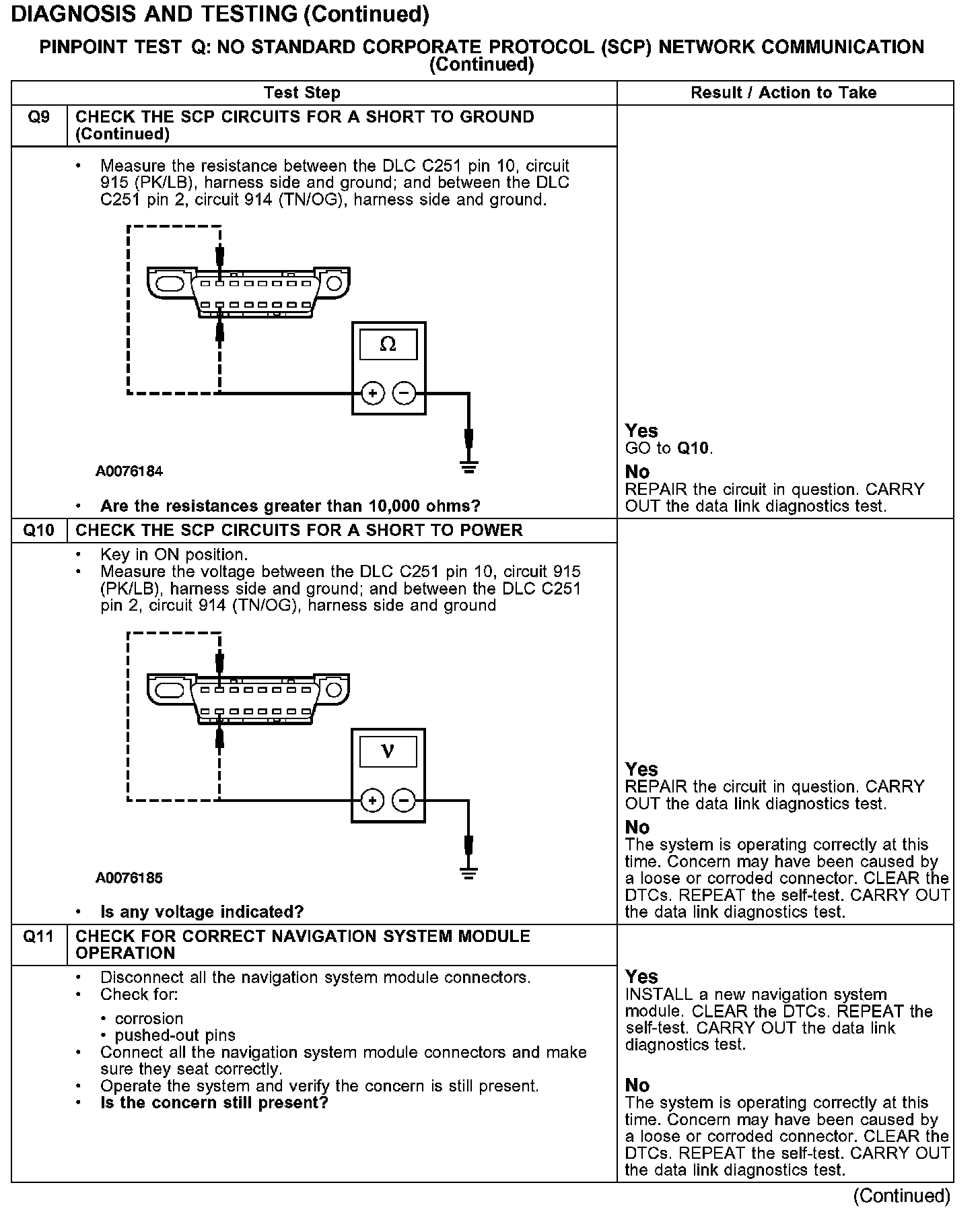

Test Q9-Q11:

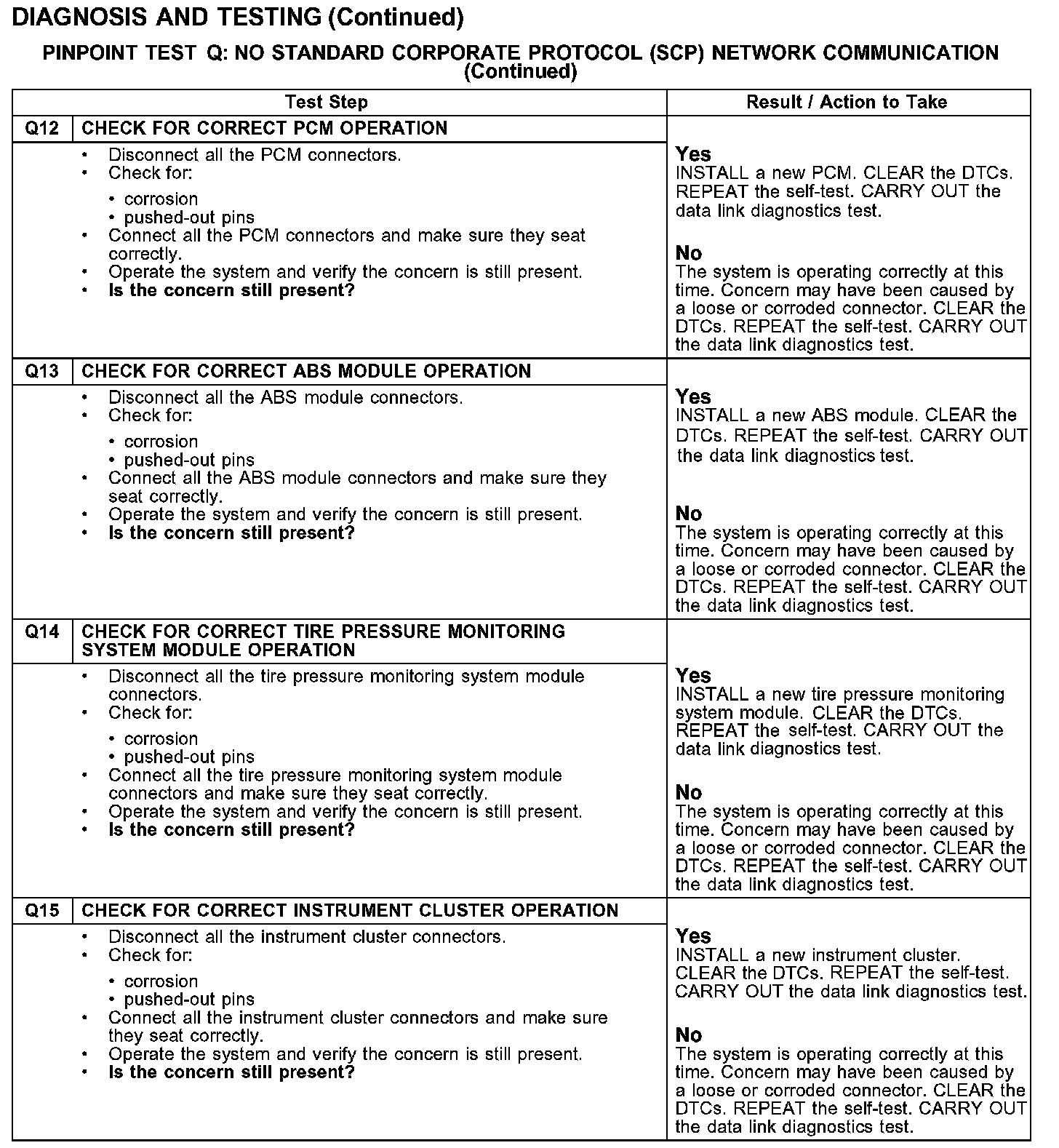

Test Q12-Q15:
