Test R

PINPOINT TEST R: NO UNIVERSAL ASYNCHRONOUS RECEIVER-TRANSMITTER (UART) BASED PROTOCOL (UBP) NETWORK COMMUNICATION

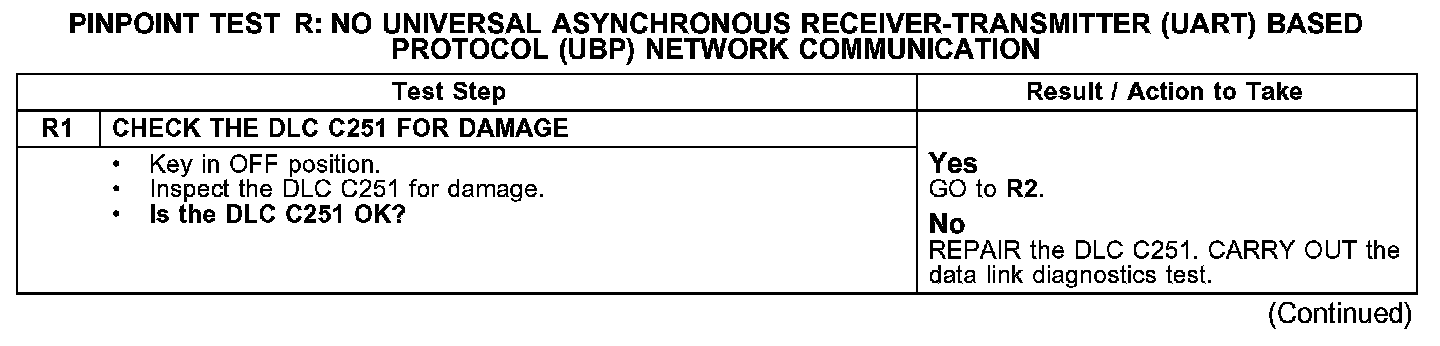

Test R1:

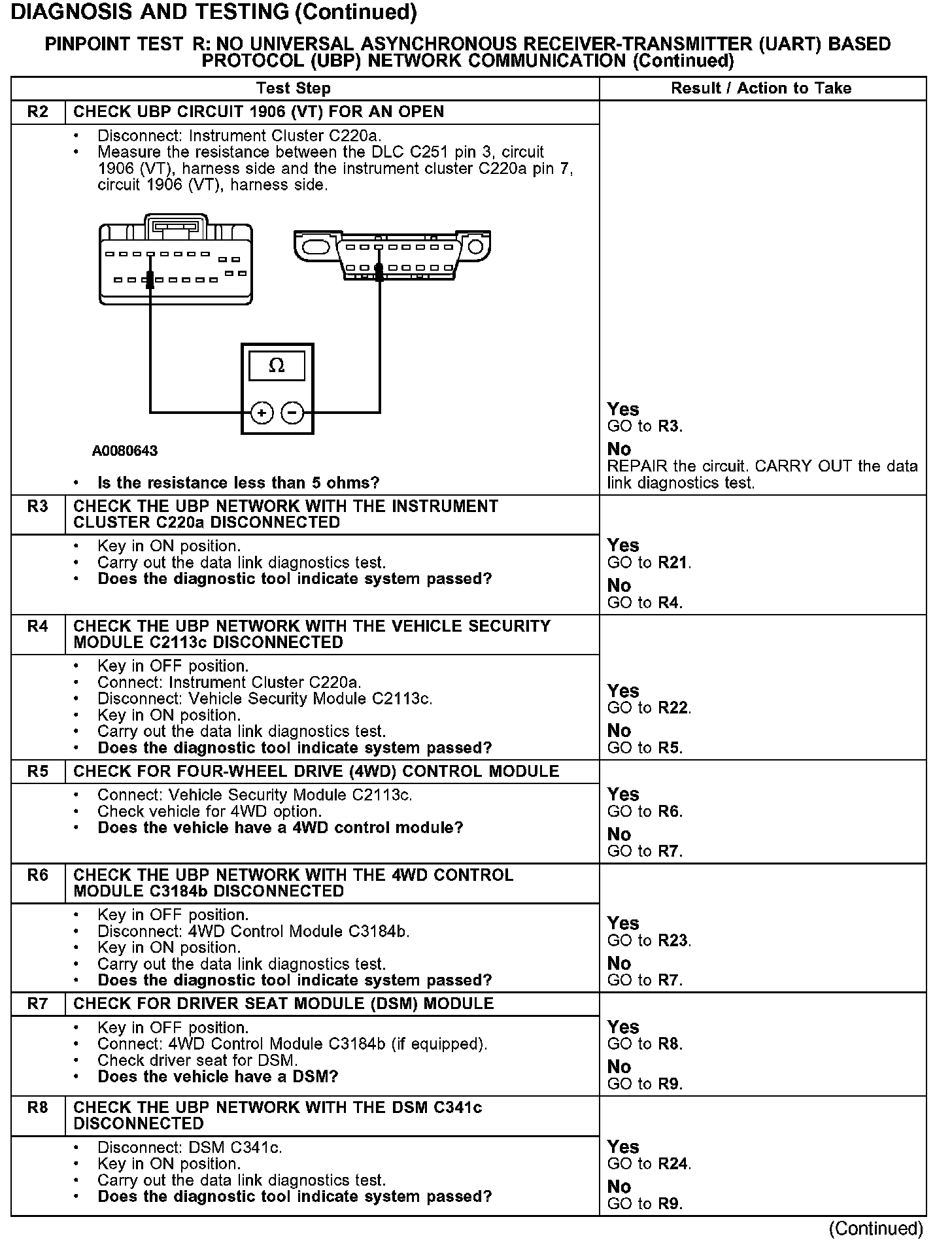

Test R2-R8:

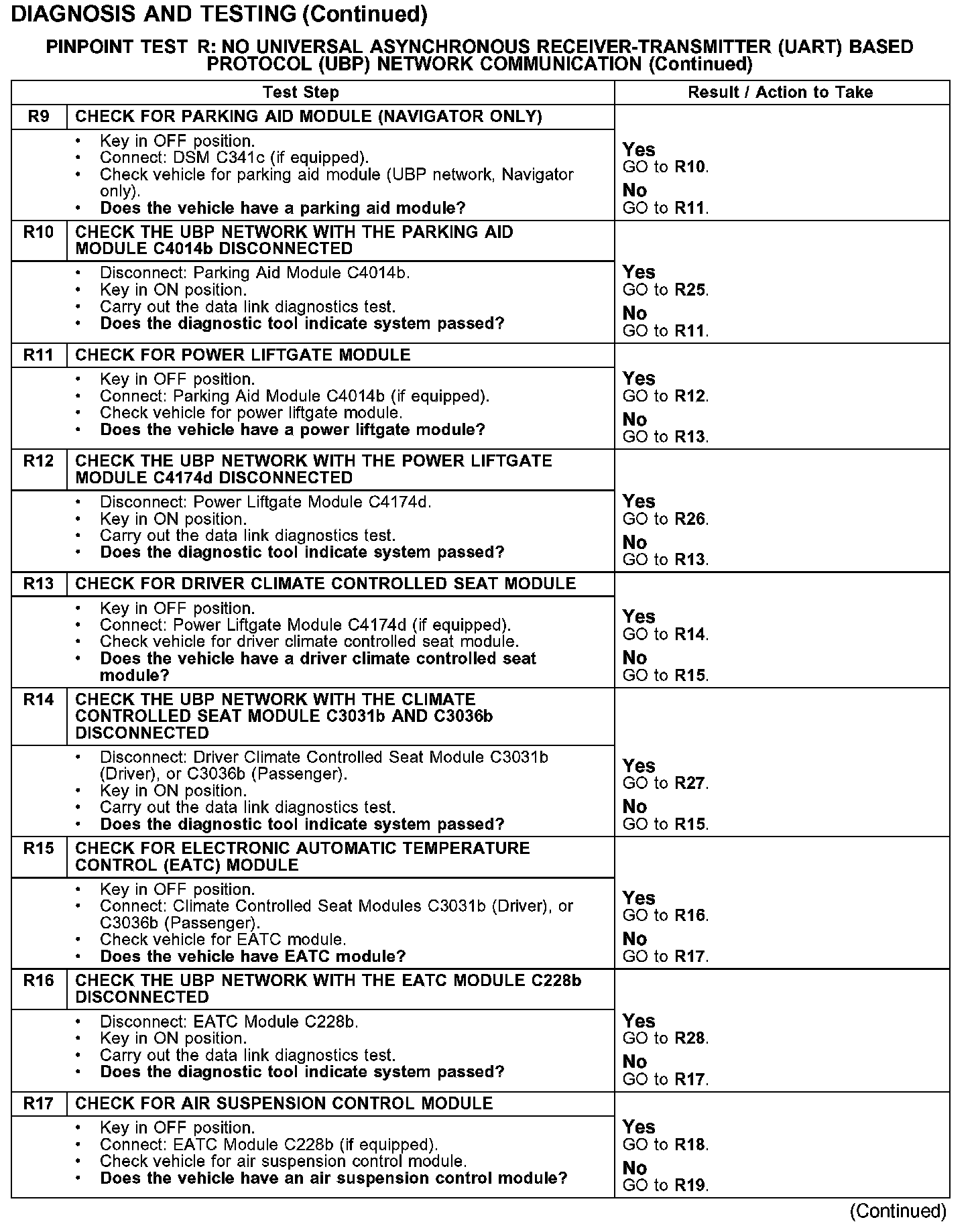

Test R9-R17:

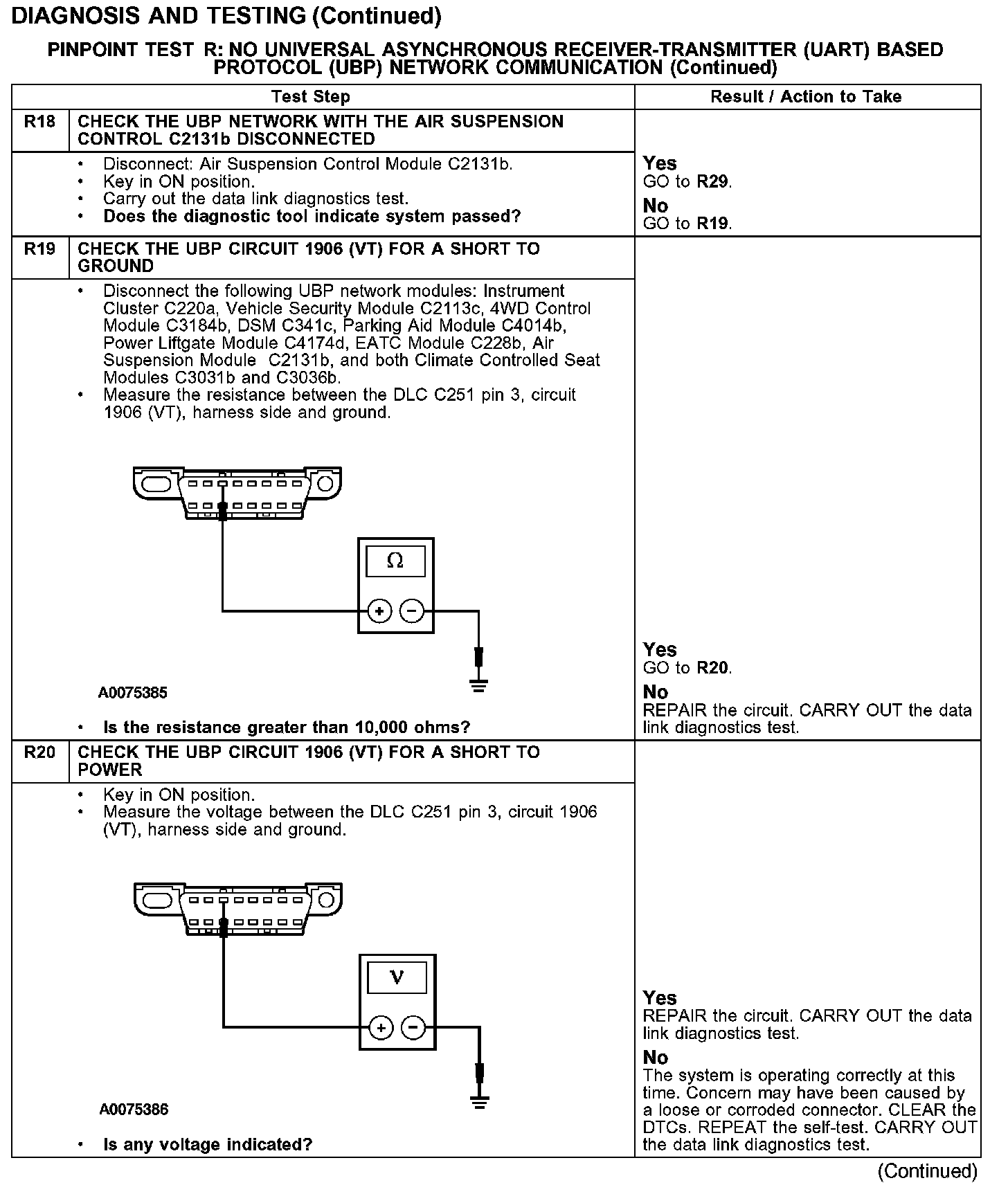

Test R18-R20:

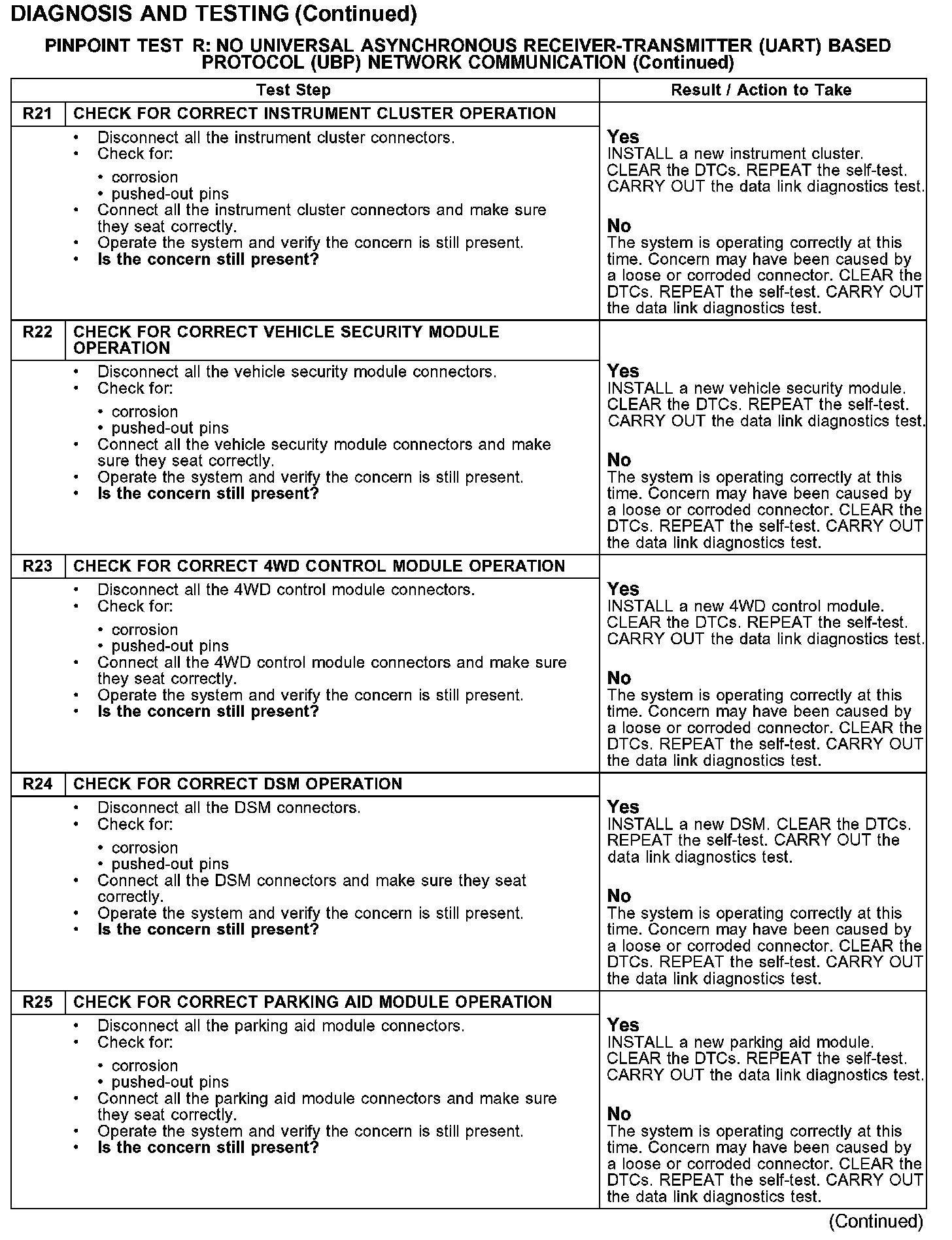

Test R21-R25:

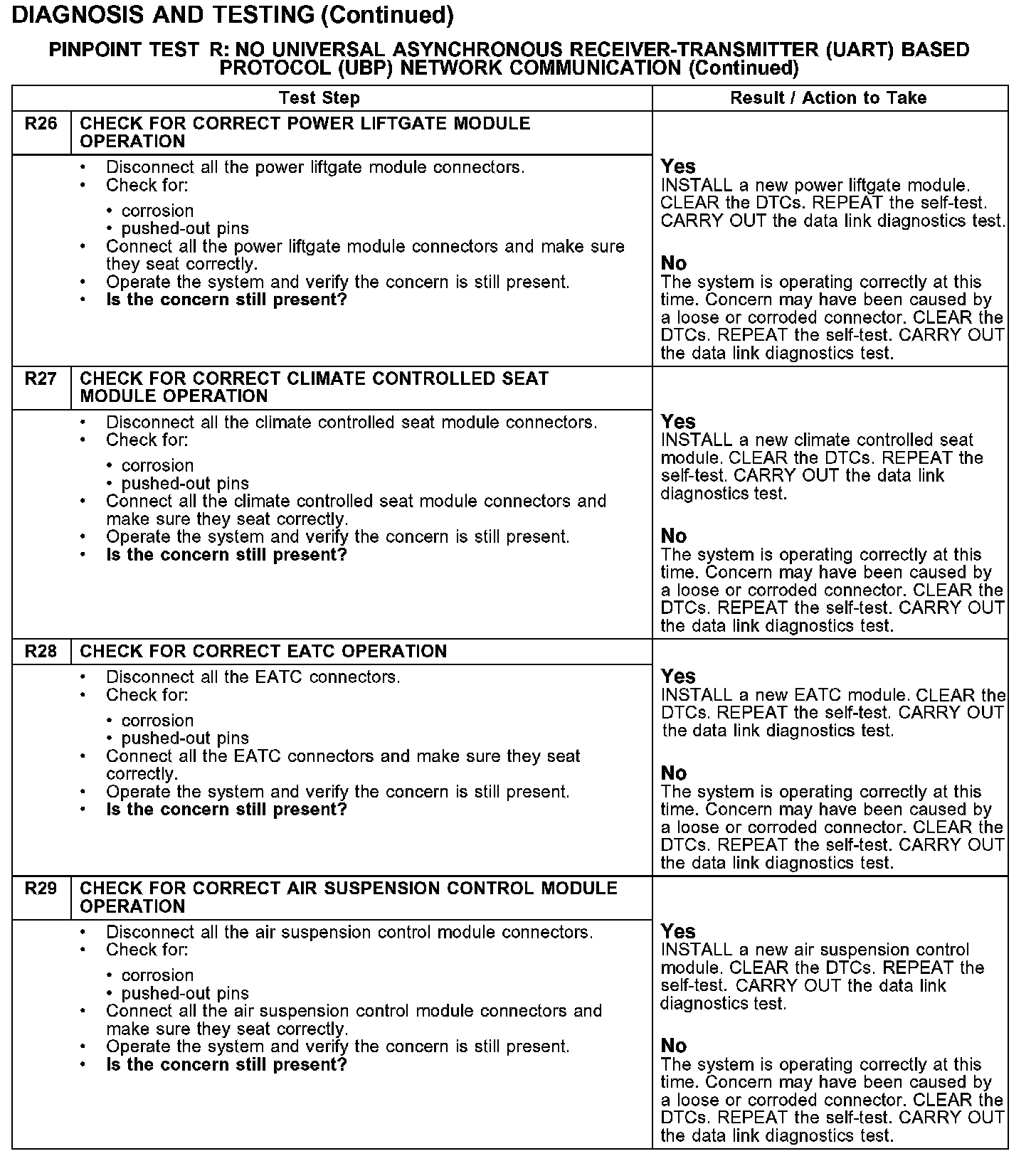

Test R26-R29:
