Antitheft Mode Switch: Service and Repair

ANTI-THEFT SWITCH

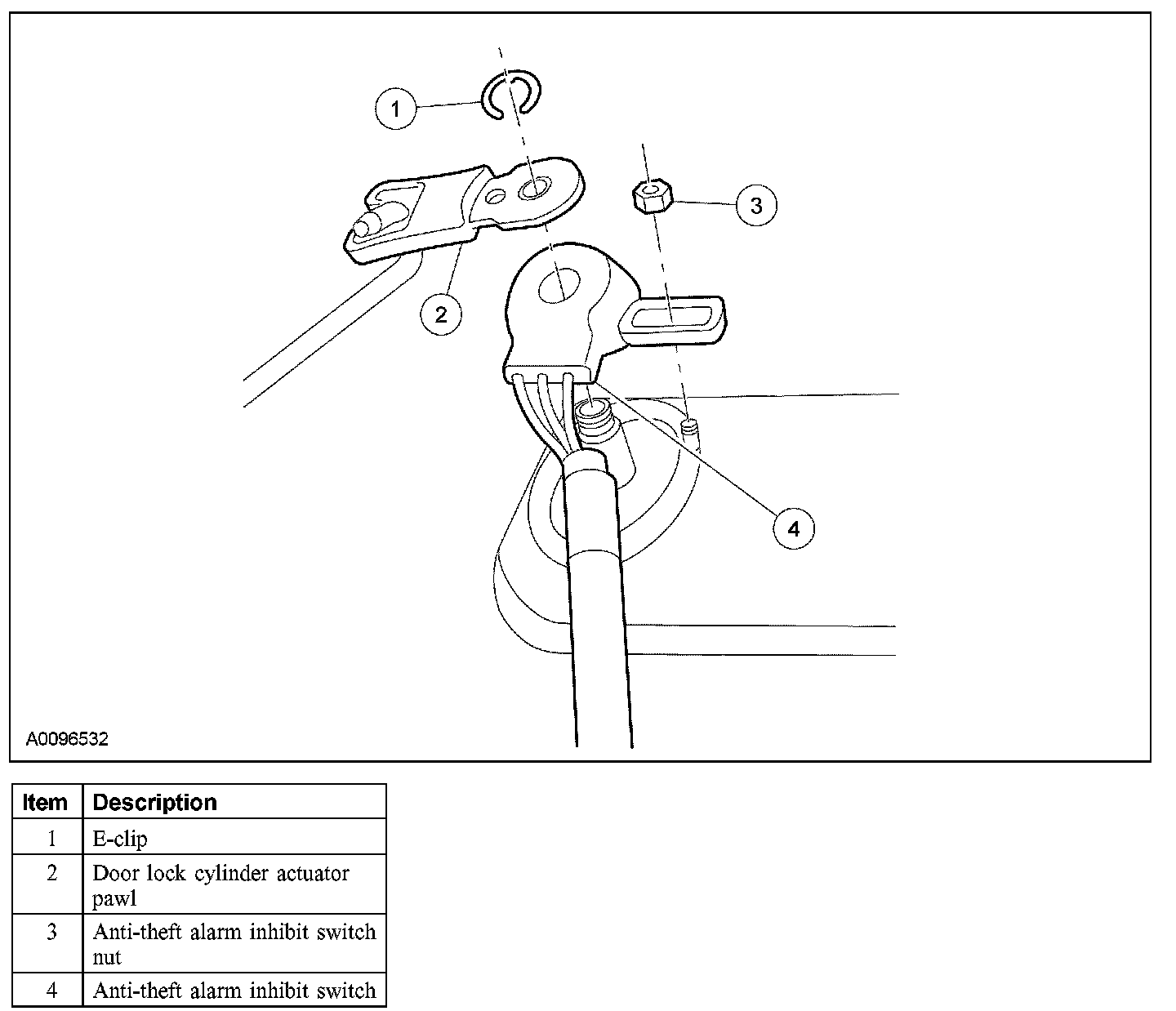

Removal and Installation
1. Remove the driver door trim panel.
2. Position the watershield aside.
3. Remove the E-clip.
4. Remove the door lock cylinder actuator pawl.
5. Remove the nut and the anti-theft alarm inhibit switch.







6. To install, reverse the removal procedure.
- The anti-theft alarm inhibit switch mark must be positioned towards the harness side of the switch prior to installation.
