Navigation Module: Service and Repair

NAVIGATION SYSTEM MODULE







CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Removal and Installation
1. Disconnect the battery.
2. Remove the third row child safety seat tether anchor.

3. NOTE: The navigation system module assembly must be pulled straight back out of the floor panel before positioning aside.

Position the navigation system module assembly aside.

4. Remove the 5 screws and the navigation system module cover.

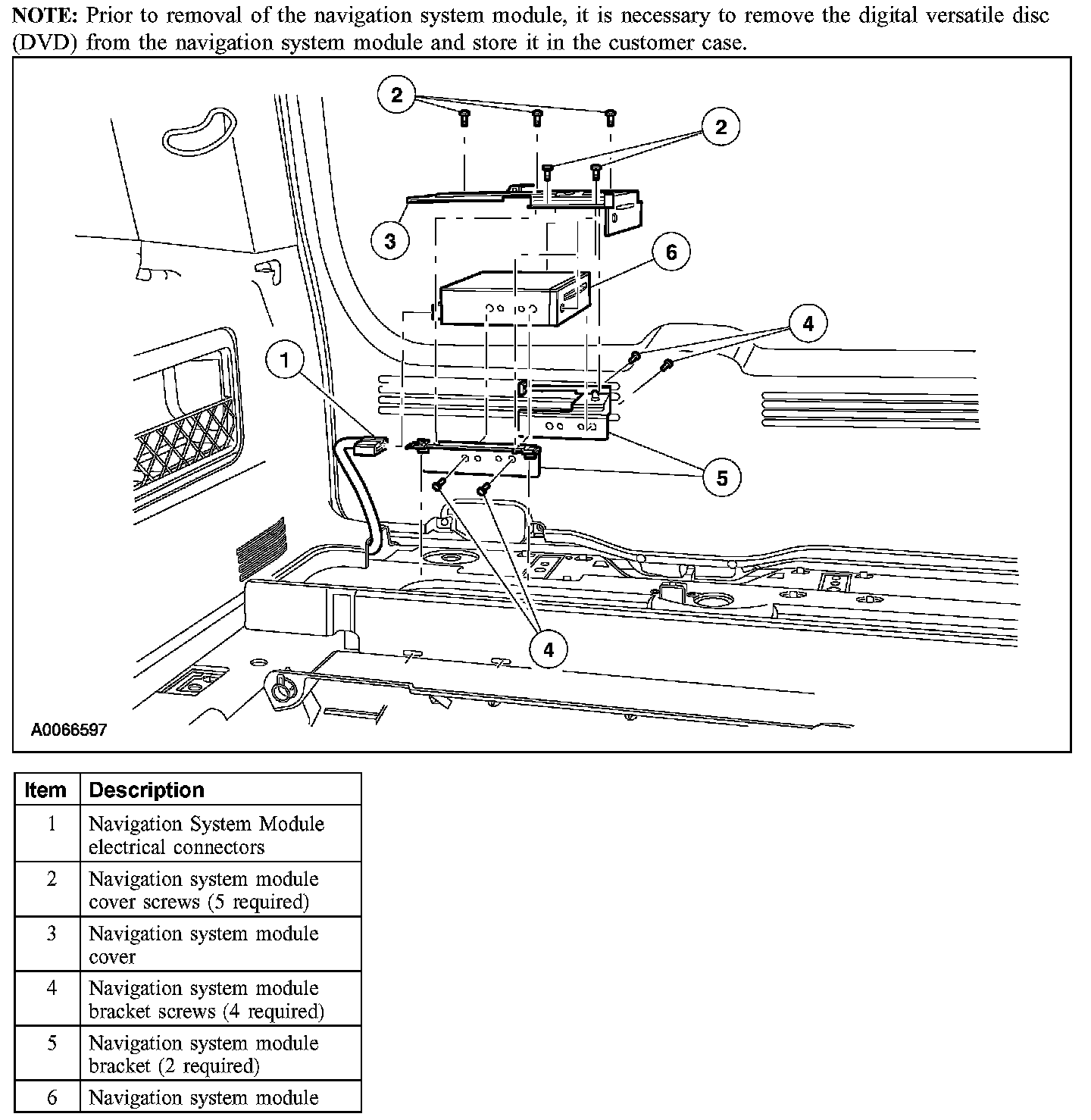

5. Remove the 4 screws and the navigation system module brackets.
6. Remove the navigation system module.
7. To install, reverse the removal procedure.
