Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Navigation System Module C4209
Navigation System Module C4209

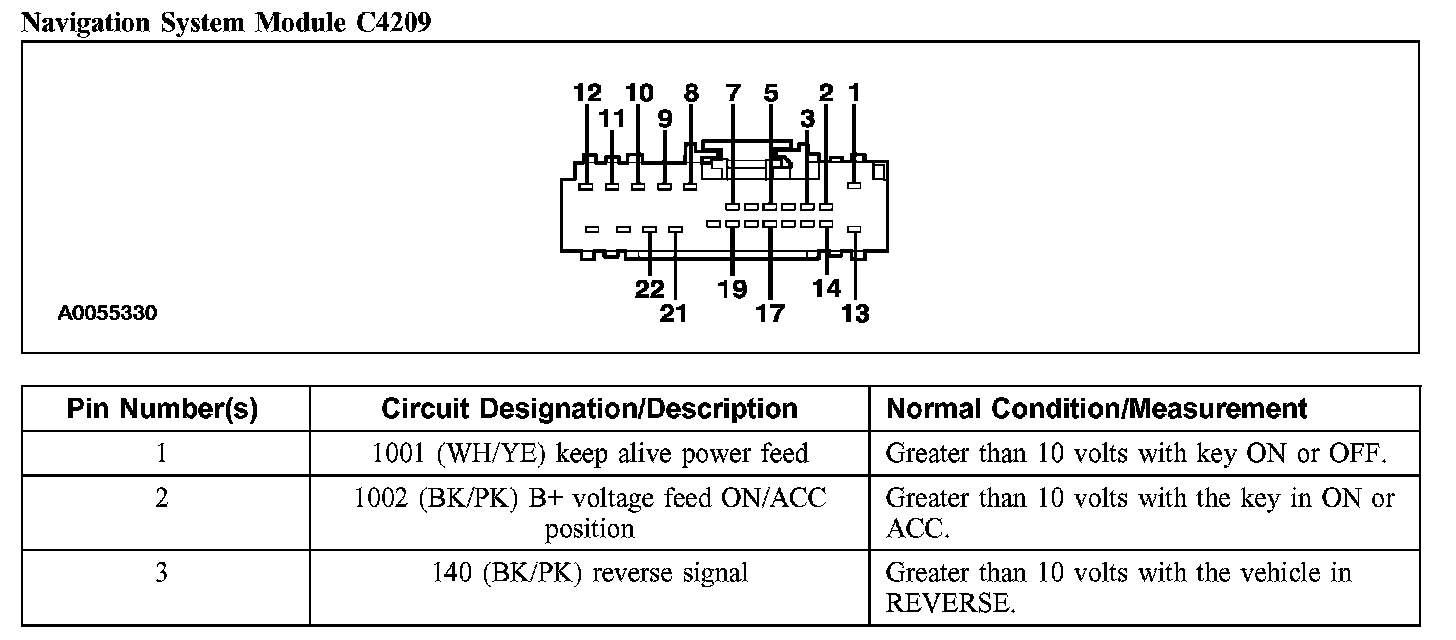

Navigation System Module C4209 (Part 1):

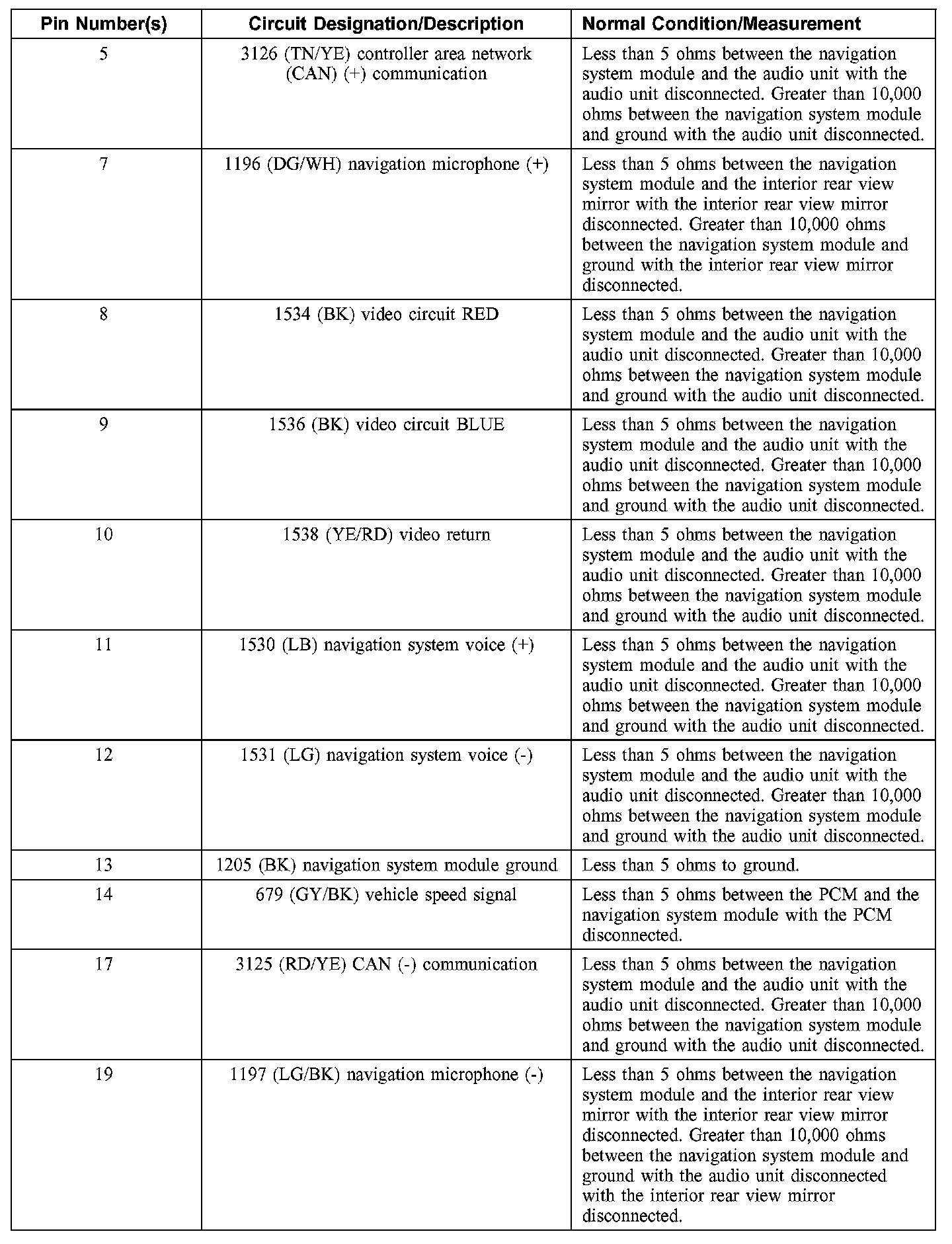

Navigation System Module C4209 (Part 2):
Navigation System Module C4209 (Part 3):
