Test B: No Communication With The Vehicle Security Module

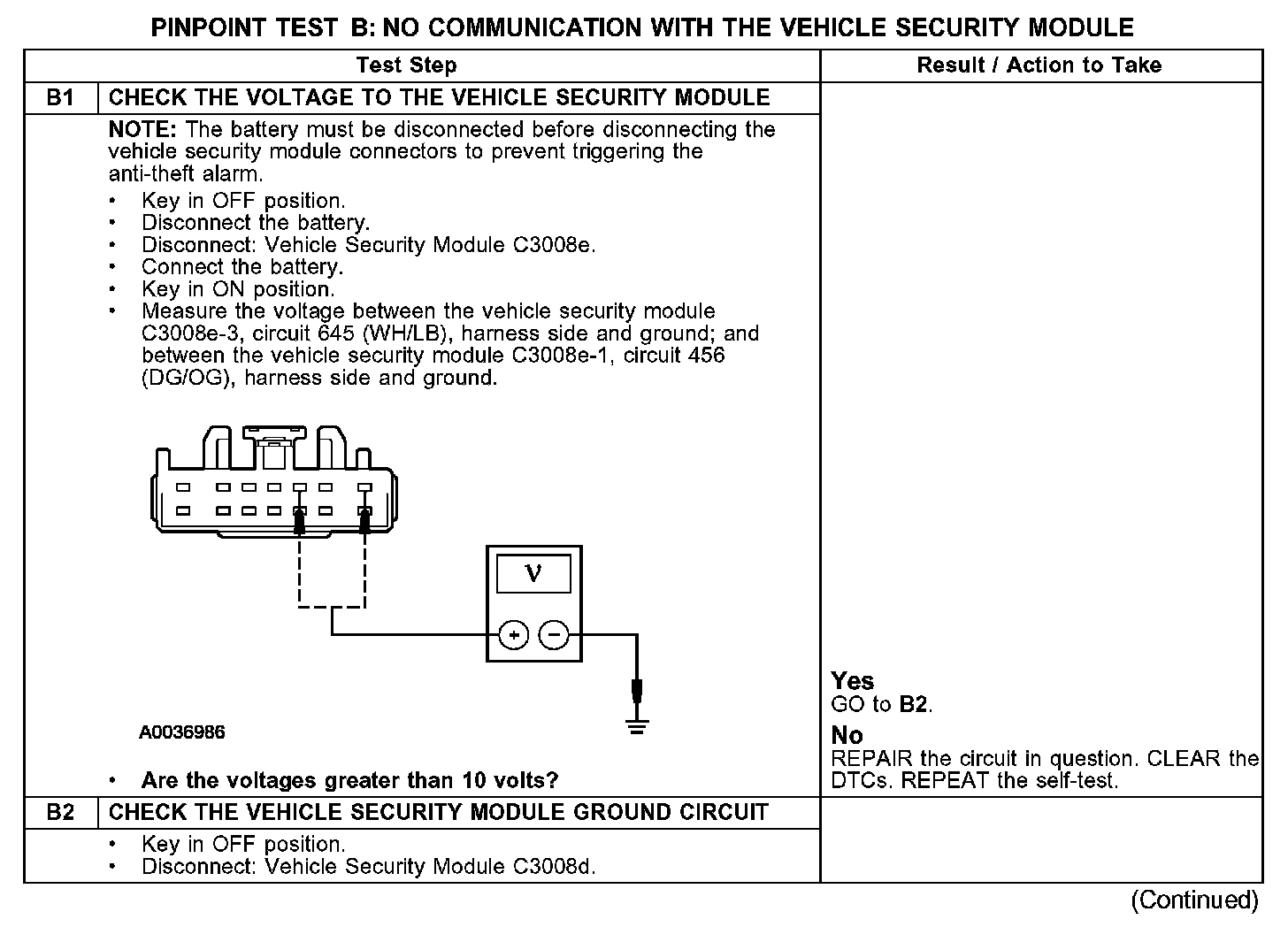

PINPOINT TEST B: NO COMMUNICATION WITH THE VEHICLE SECURITY MODULE

B1-B2:

B2 Continued:

Normal Operation
The vehicle security module controls the remote keyless entry (RKE), the power locks, and the vehicle security. The vehicle security module receives voltage through the battery junction box (BJB) fuse 2 (10A). Voltage is delivered from the fuses to the module through circuits 456 (DG/OG), 645 (WH/LB) and is grounded on circuit 1205 (BK).

Possible Causes
- BJB fuse 2 (30A)
- CJB fuse 2 (10A)
- vehicle security module
