Front Fender: Service and Repair

FENDER

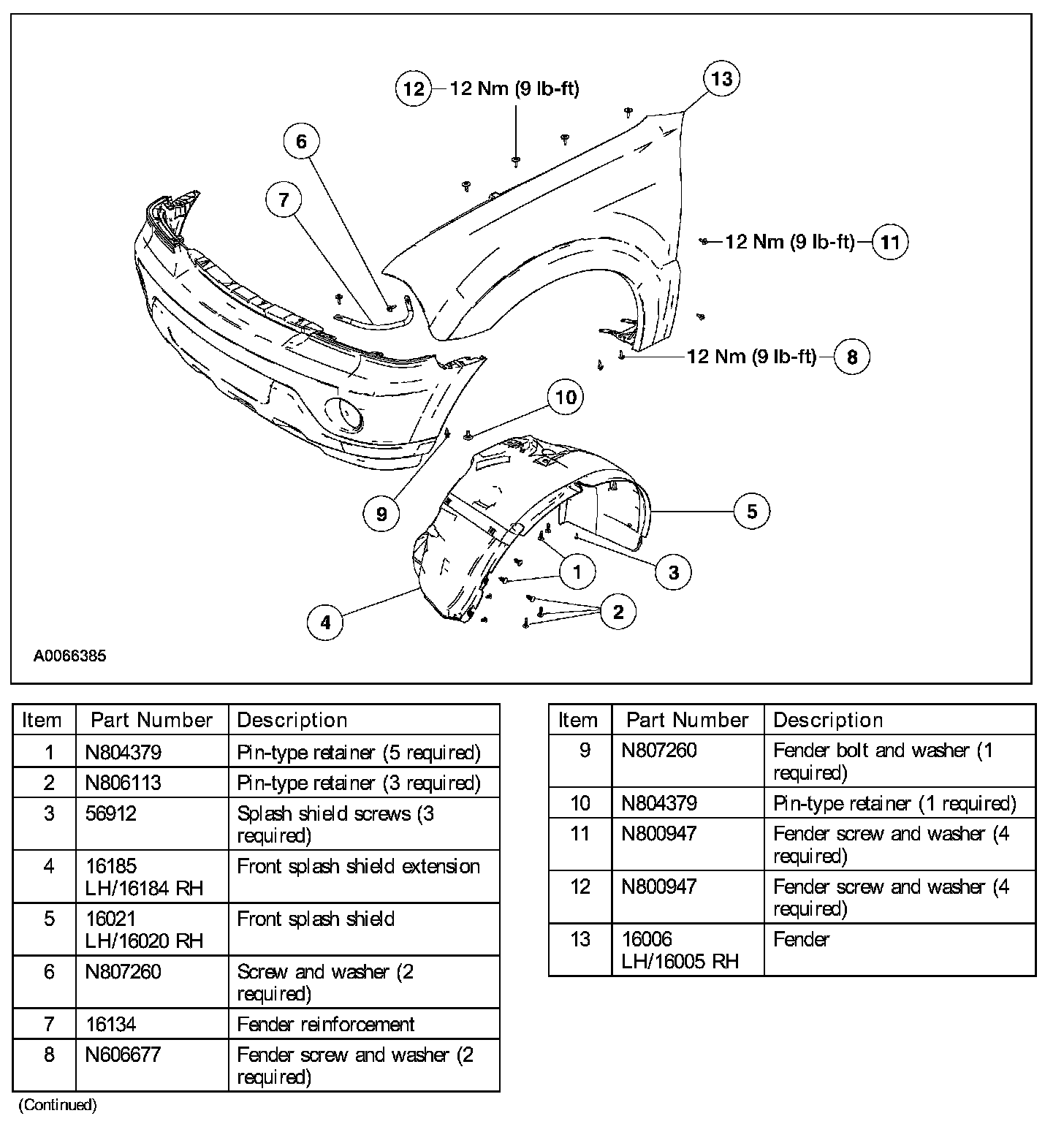

Exploded View

Removal and Installation
1. Remove the headlamp assembly.
2. Remove the splash shield.
3. Remove the fender-to-reinforcement screw.
4. Remove the bumper cover-to-fender pin-type retainer.
5. Remove the fender screws.
- To install, tighten to 12 Nm (9 lb-ft).

6. Remove the fender.
7. To install, reverse the removal procedure.
