Cross-Member: Service and Repair

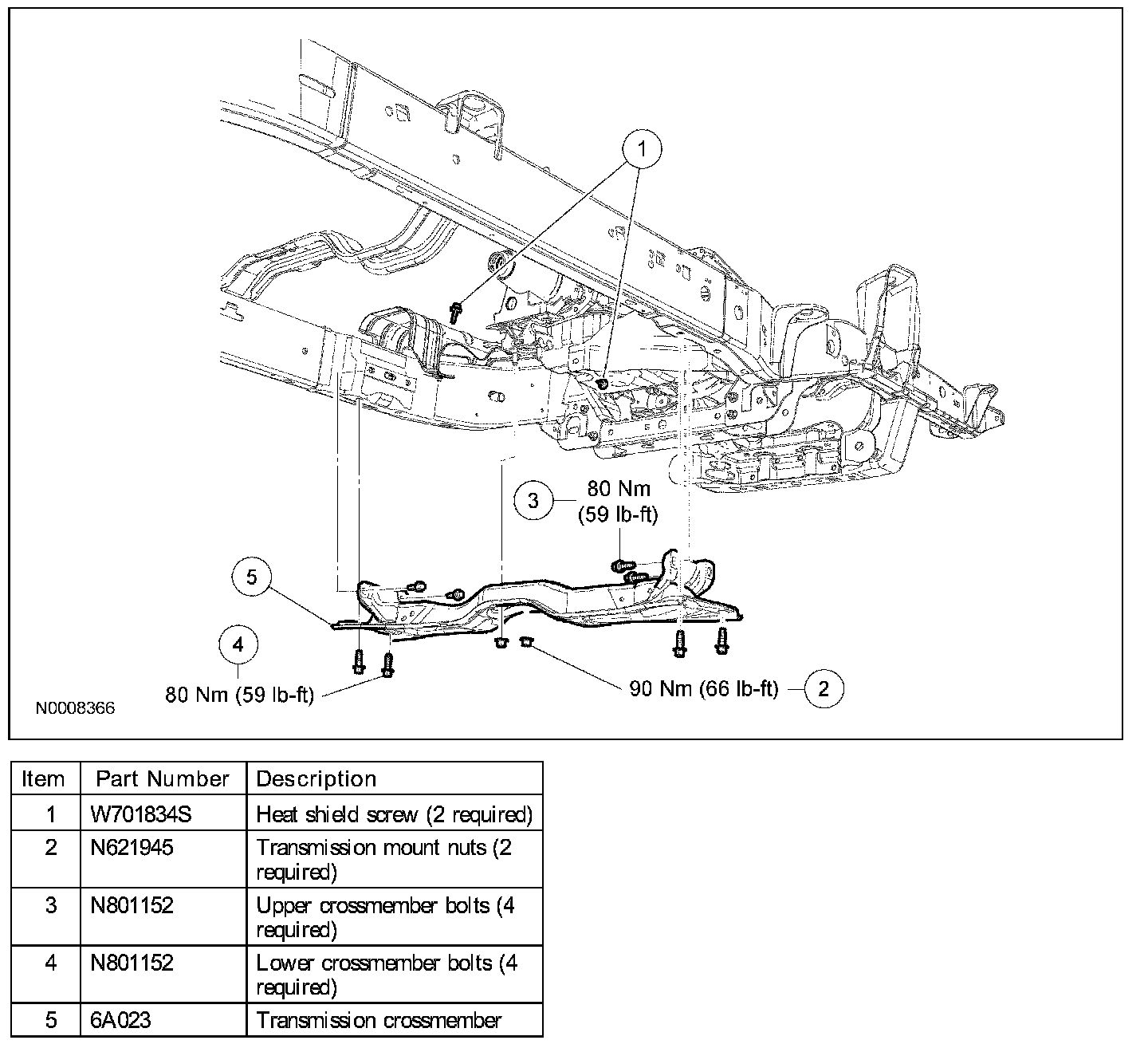

TRANSMISSION SUPPORT CROSSMEMBER







Removal and Installation
1. Raise and support the vehicle.







2. Remove the 4 crossmember splash shield bolts and splash shield
- To install, tighten to 40 Nm (30 lb-ft).

3. Remove the 2 heat shield screws
4. Remove the 2 transmission mount nuts.
- To install, tighten to 90 Nm (66 lb-ft).

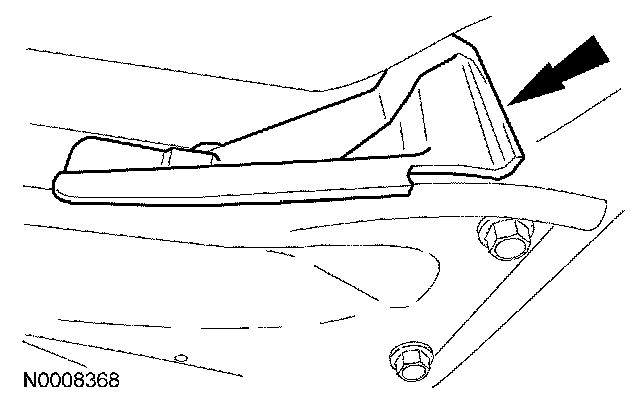

5. Remove the screws and the plastic shield on the right side of the crossmember.
- To install, tighten to 9 Nm (80 lb-in).

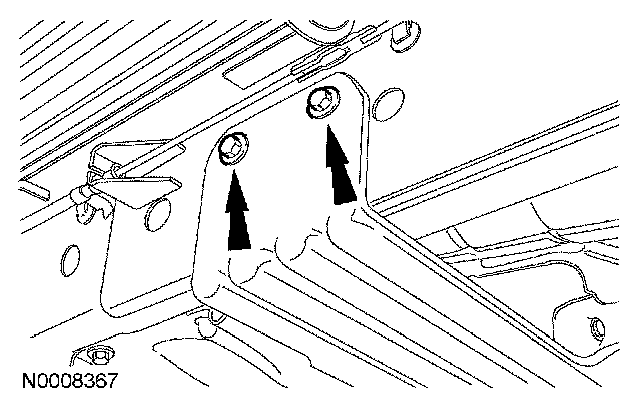

6. Remove the 4 upper crossmember bolts
- To install, tighten to 80 Nm (59 lb-ft).

7. Remove the 4 lower crossmember bolts and the transmission crossmember.
- To install, tighten to 80 Nm (59 lb-ft).

8. To install, reverse the removal procedure.
