Keyless Entry Key-Pad: Locations

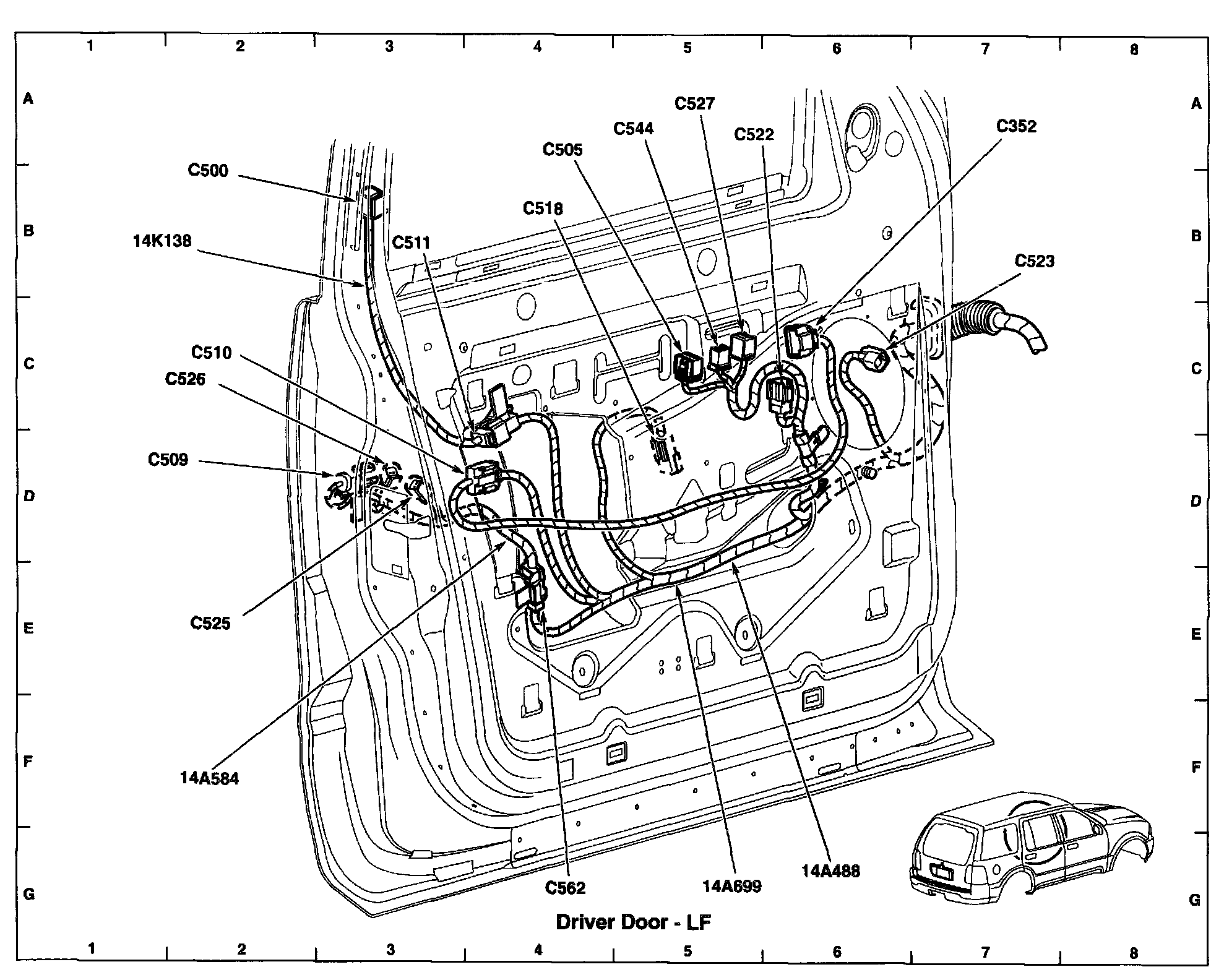

View 151-31 (Driver Door-LF):

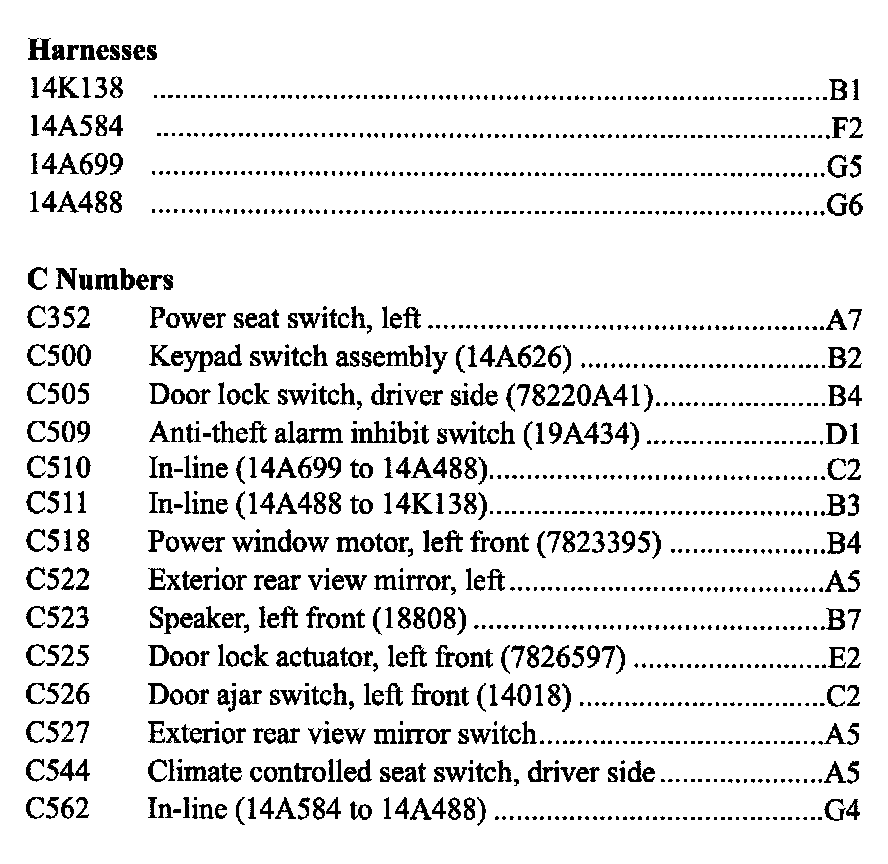

View 151-31 (Driver Door-LF - Legend):
