Keyless Entry Key-Pad: Service and Repair

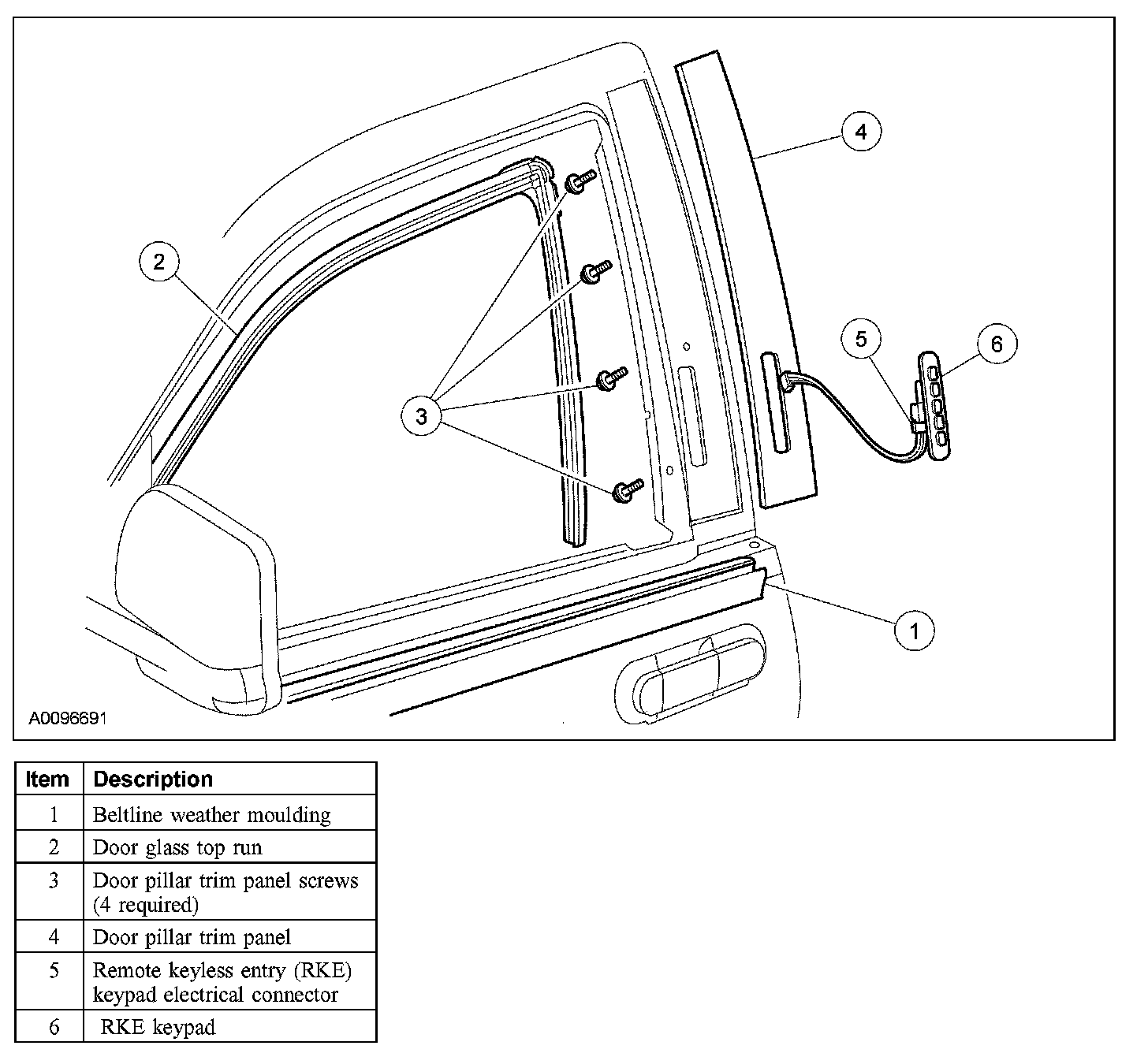

REMOTE KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the beltline weather moulding.
2. Position the door glass top run aside to access the door pillar trim panel screws.
3. Remove the 4 screws and the door pillar trim panel.
4. Disconnect the electrical connector and remove the RKE keypad.
5. To install, reverse the removal procedure.
