Cruise Control Servo: Service and Repair

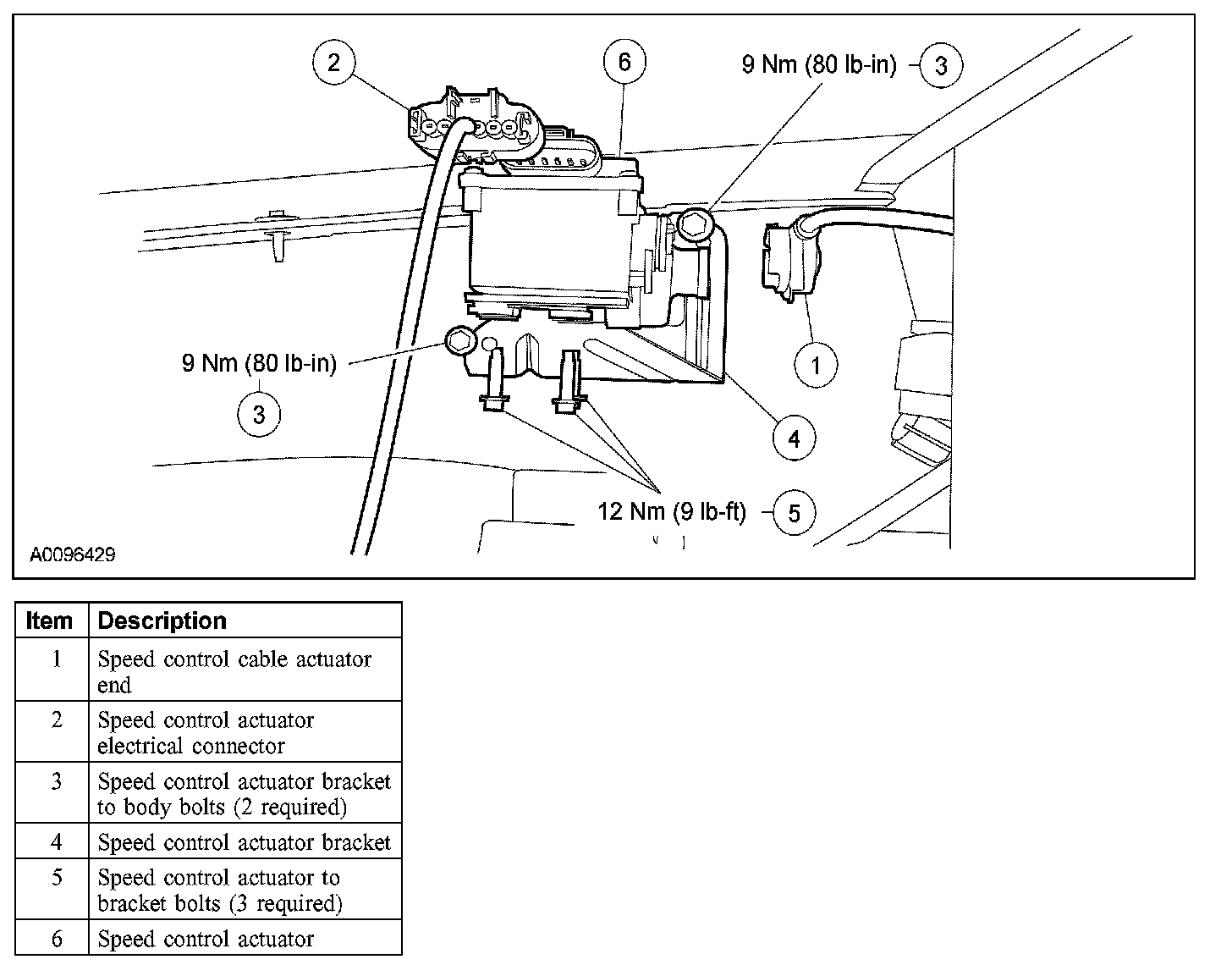

SPEED CONTROL ACTUATOR







Removal and Installation
1. Disconnect the speed control cable from the speed control actuator.
2. Disconnect the speed control actuator electrical connector.
3. Remove the 2 bolts and the speed control actuator and bracket assembly.
- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.

Make sure the tabs on the speed control cable are locked in place and cable is fully seated in accelerator bracket.
- Make sure the rubber seal is fully seated onto the speed control cable cap.
