Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH







Removal and Installation
1. Remove the driver air bag module.

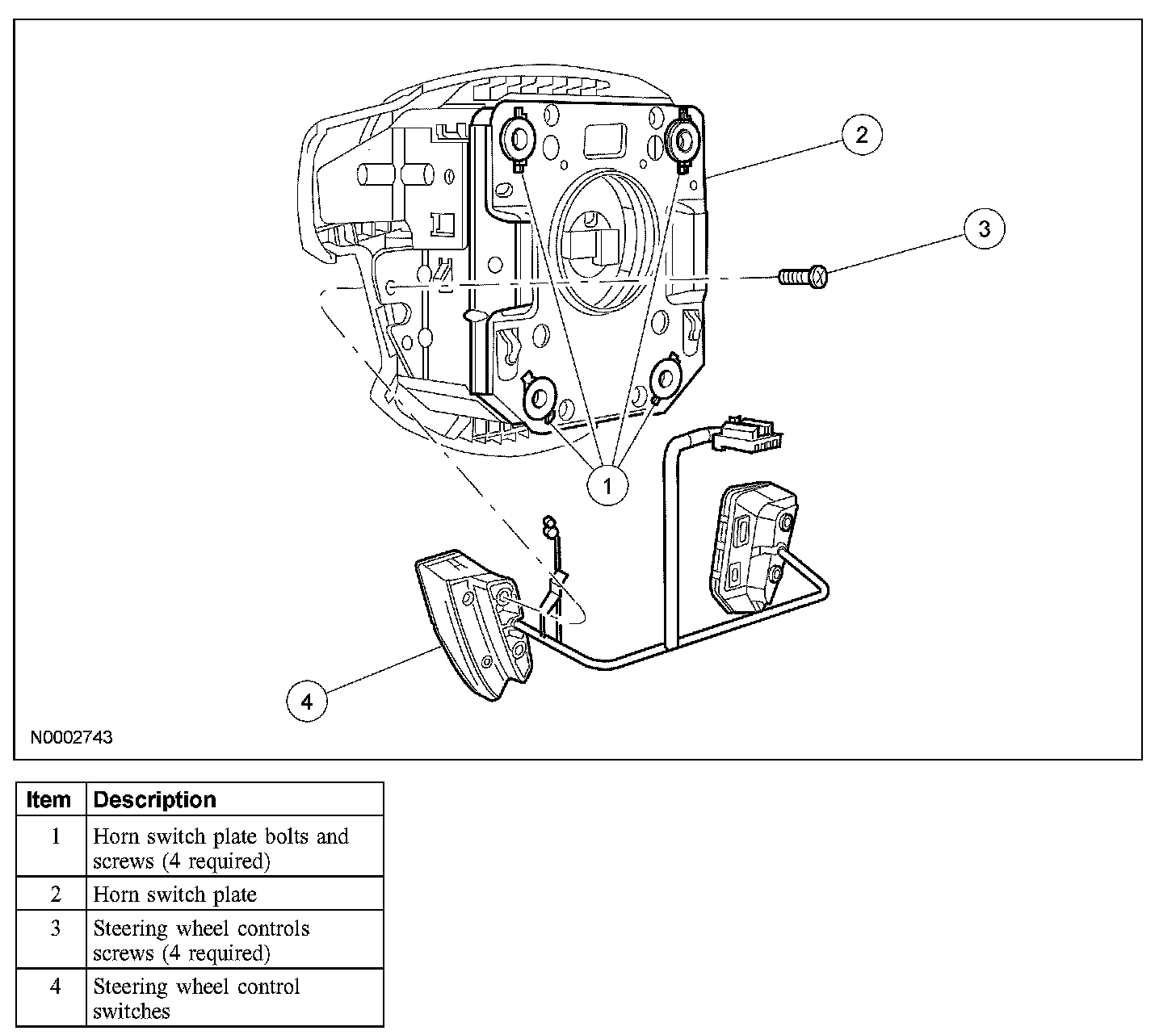

2. Remove the 4 bolts and springs and position the horn switch plate aside.

3. NOTE: Note the routing of the steering wheel controls harness on the module plate for installation of the new steering wheel controls.

Disconnect the steering wheel controls switch harness from the clips and remove the horn switch plate.

4. Remove the 4 screws and the steering wheel controls switches.
5. To install, reverse the removal procedure.
