Ambient Temperature Sensor / Switch HVAC: Service and Repair

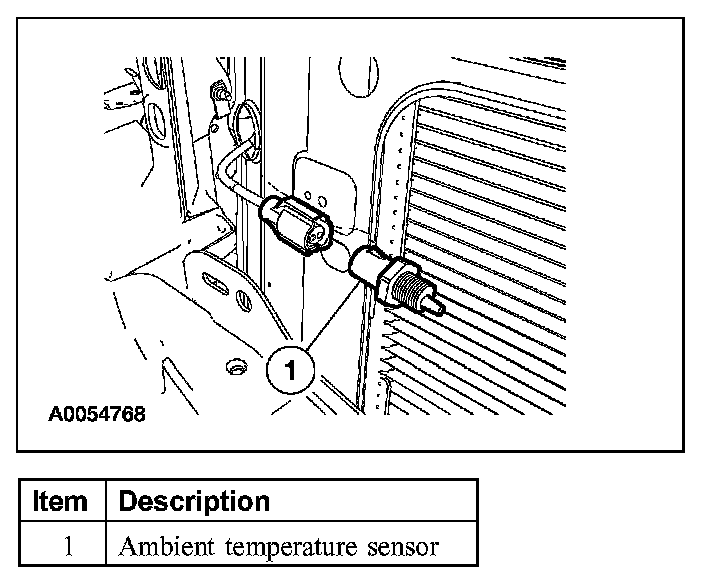

AMBIENT AIR TEMPERATURE SENSOR







Removal and Installation
1. Remove the upper radiator sight shield.
2. Remove the ambient air temperature sensor.
3. To install, reverse the removal procedure.
