Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE TEMPERATURE SENSOR

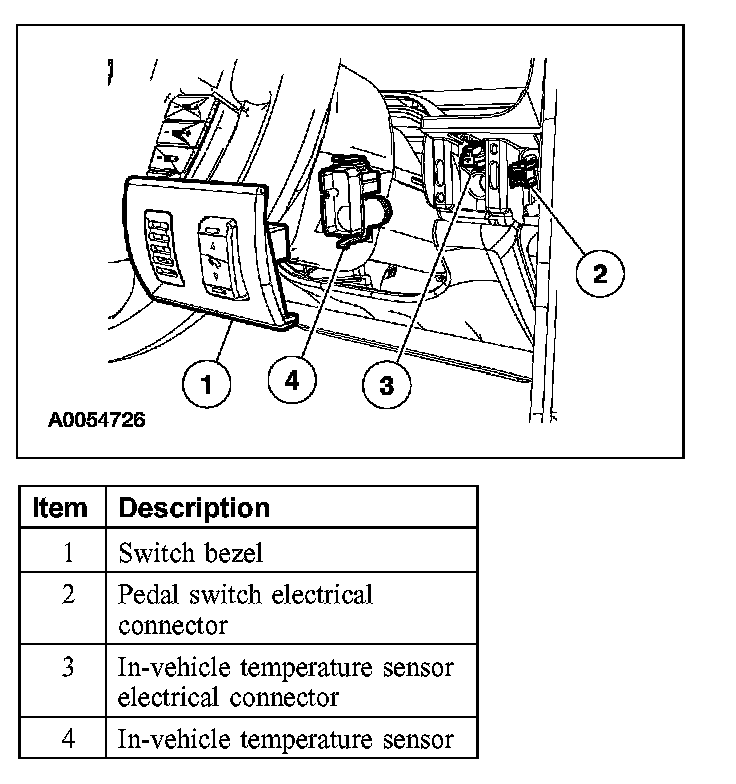

Removal and Installation
1. Remove the switch bezel.
2. Remove the pedal switch electrical connector.
3. Remove the in-vehicle temperature sensor electrical connector.
4. Remove the in-vehicle temperature sensor.
5. To install, reverse the removal procedure.
