Auxiliary Climate Control Assembly - Rear

AUXILIARY CLIMATE CONTROL ASSEMBLY - REAR

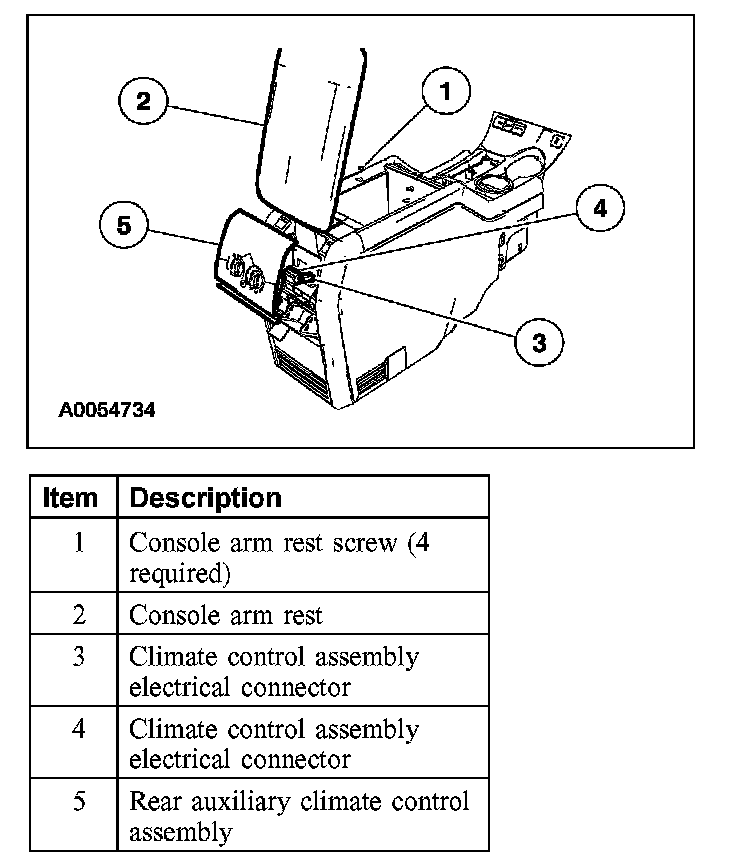

Removal and Installation
1. Remove the 4 console arm rest screws.
2. Remove the console arm rest.
3. Remove the 2 climate control assembly electrical connectors.
4. Remove the rear auxiliary climate control assembly.
5. To install, reverse the removal procedure.
