Climate Control Assembly

CLIMATE CONTROL ASSEMBLY







Removal and Installation

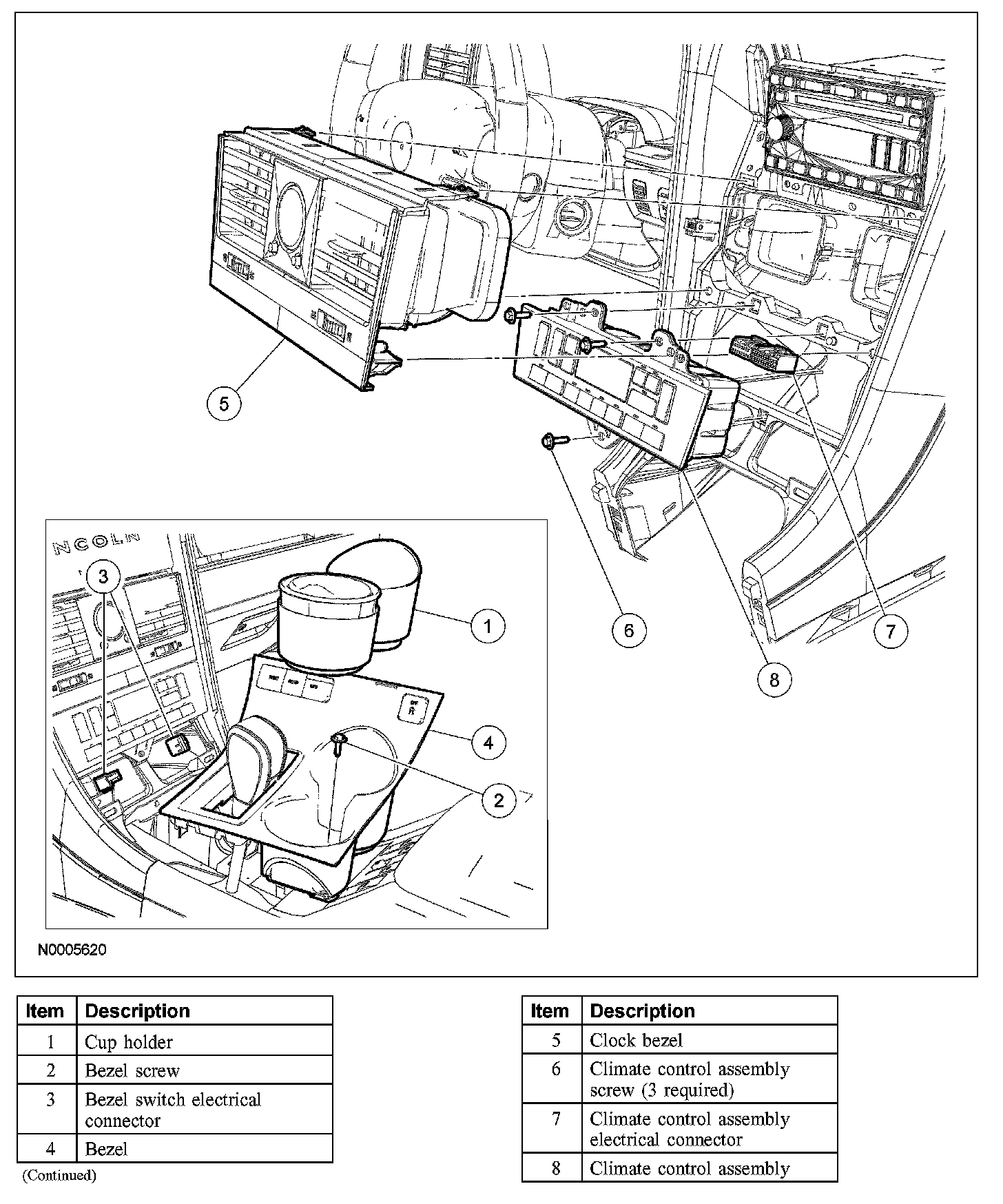

1. Remove the cup holder.
2. Remove the bezel screw.
3. Disconnect the bezel switch electrical connectors.

4. NOTE: The shift control bezel is only partially removed from the floor console to allow removal of the floor console center finish panel.

Position aside the bezel.
- Depress the tab at the rear of the shift control bezel to release it from the floor console center finish panel and rotate the bezel to gain access to the lower climate control assembly screw.

5. Remove the instrument panel center cover.
6. Remove the clock bezel.
7. Remove the 3 climate control assembly screws.
8. Disconnect the climate control assembly electrical connectors.
9. Remove the climate control assembly.
10. To install, reverse the removal procedure.
